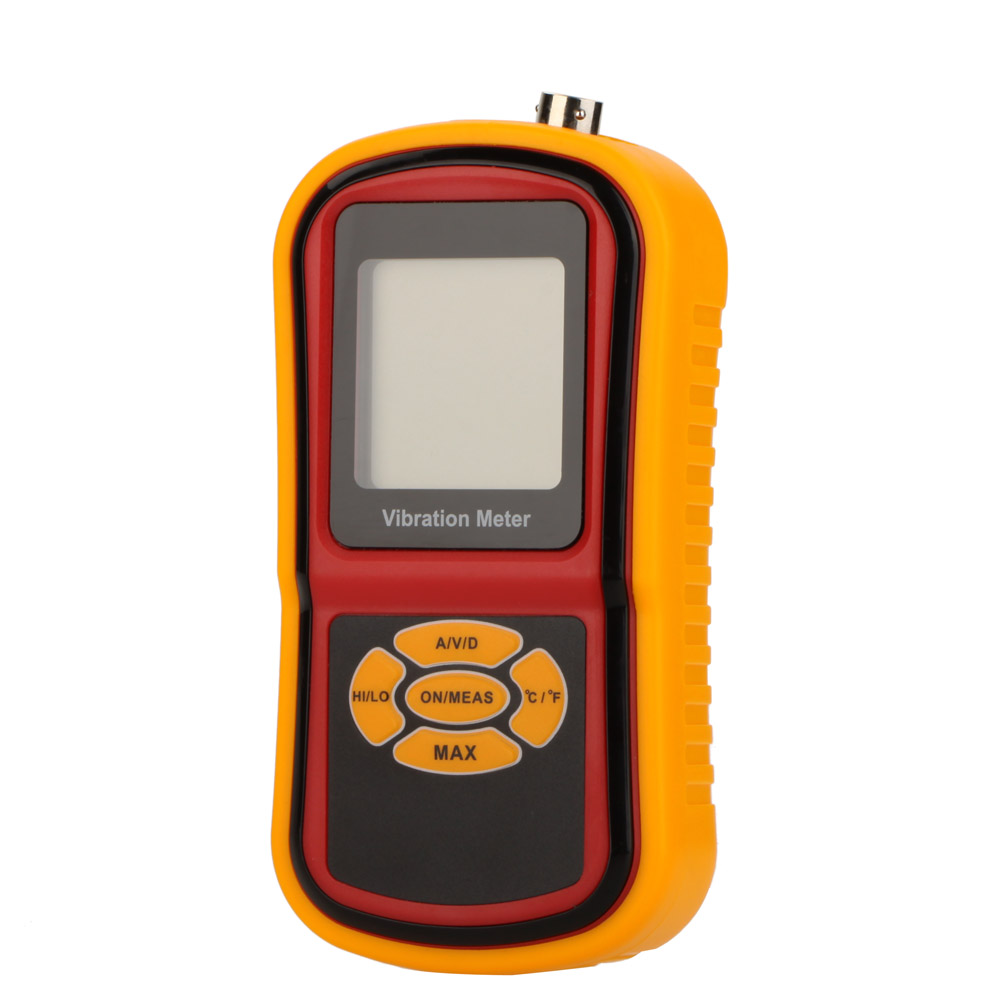

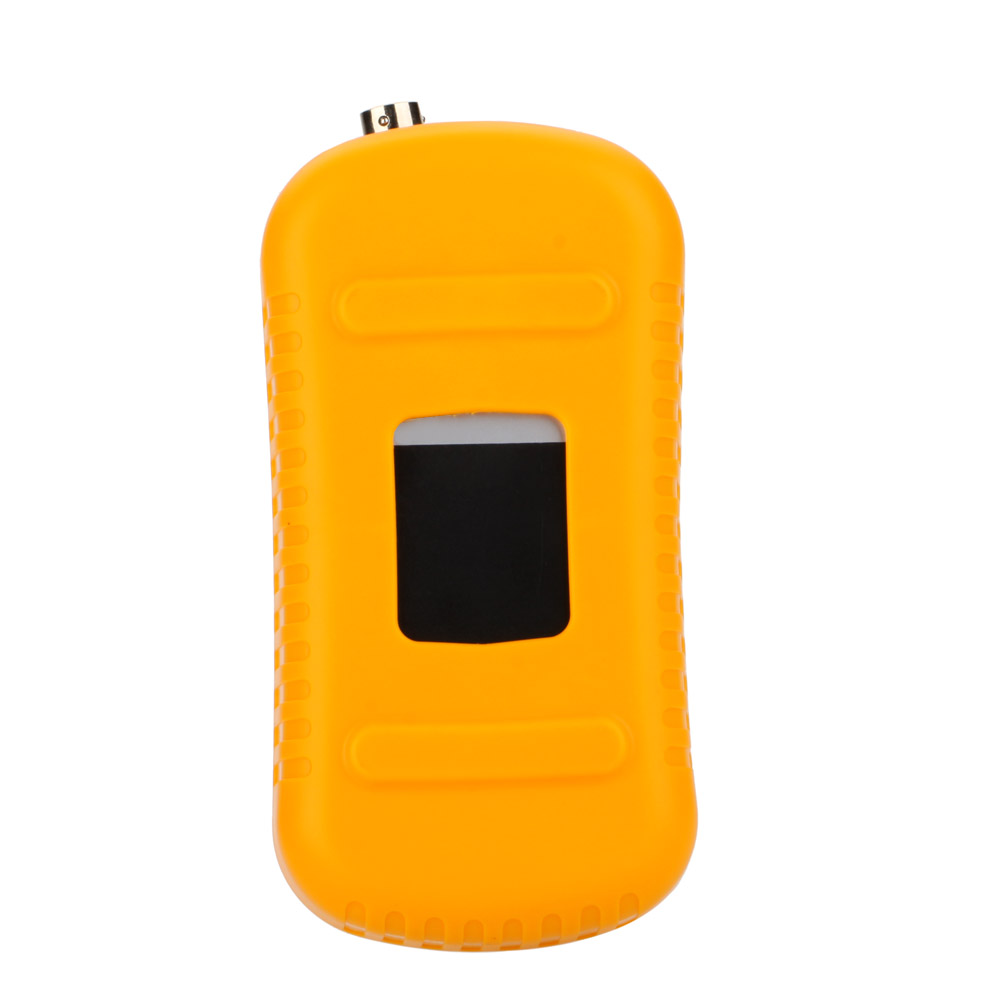

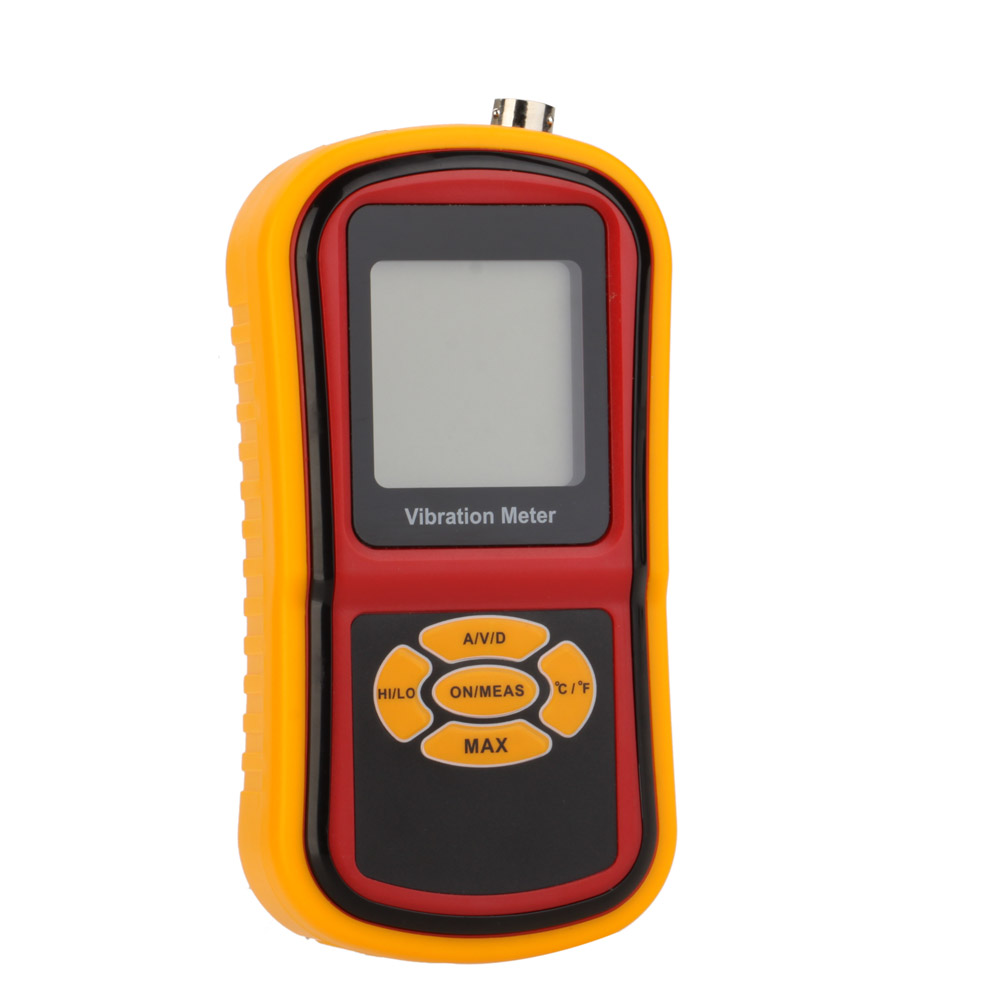

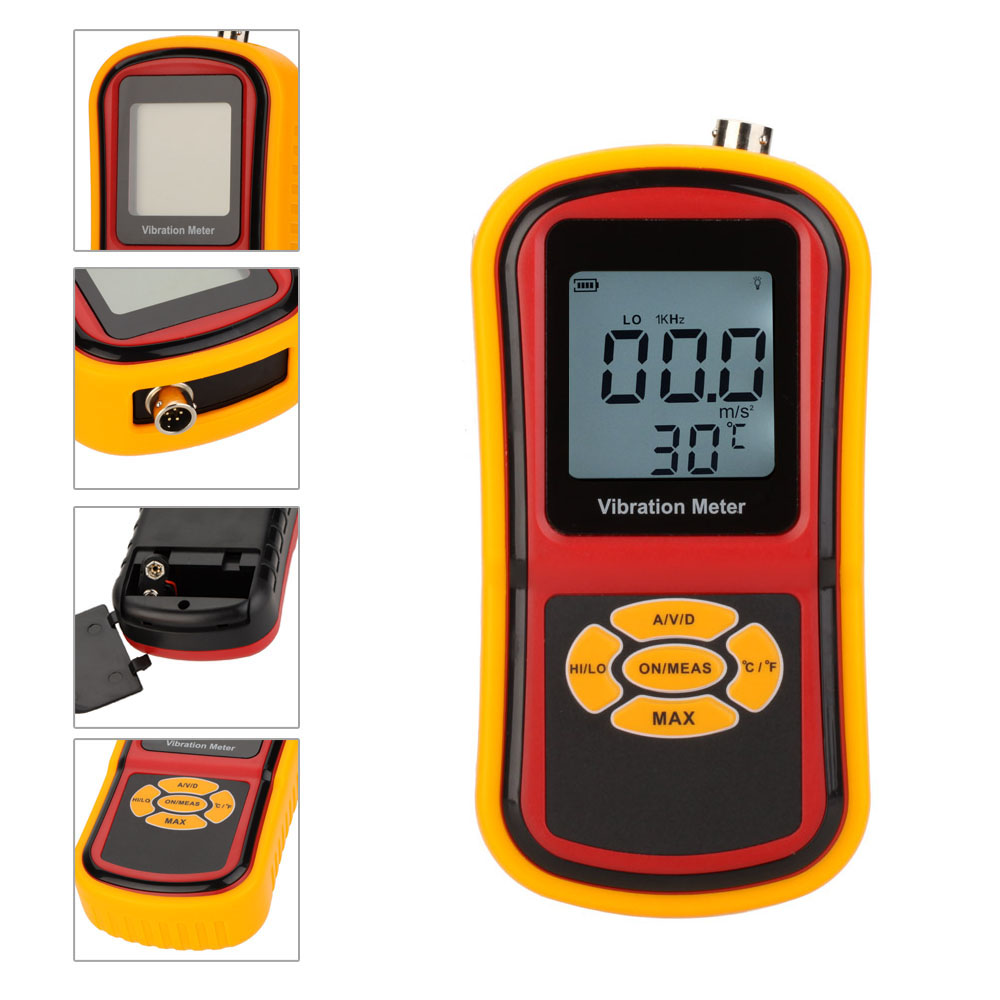

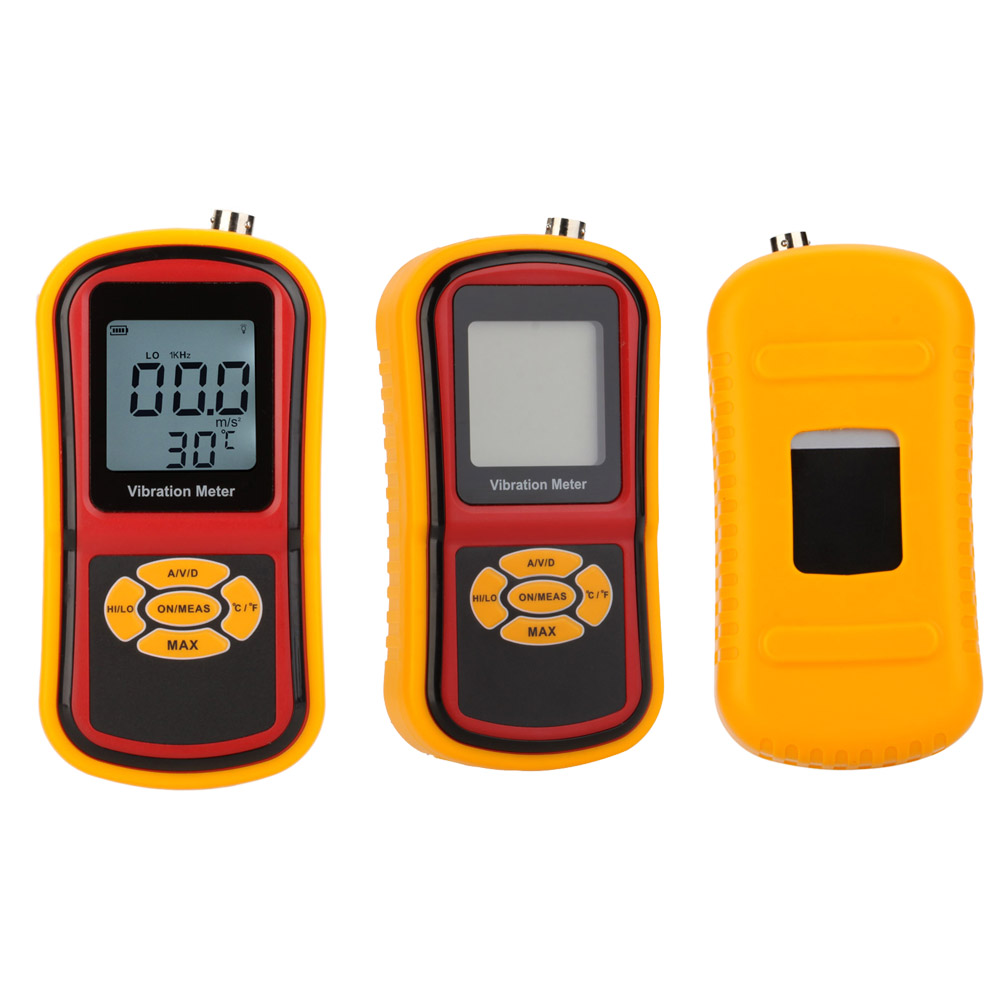

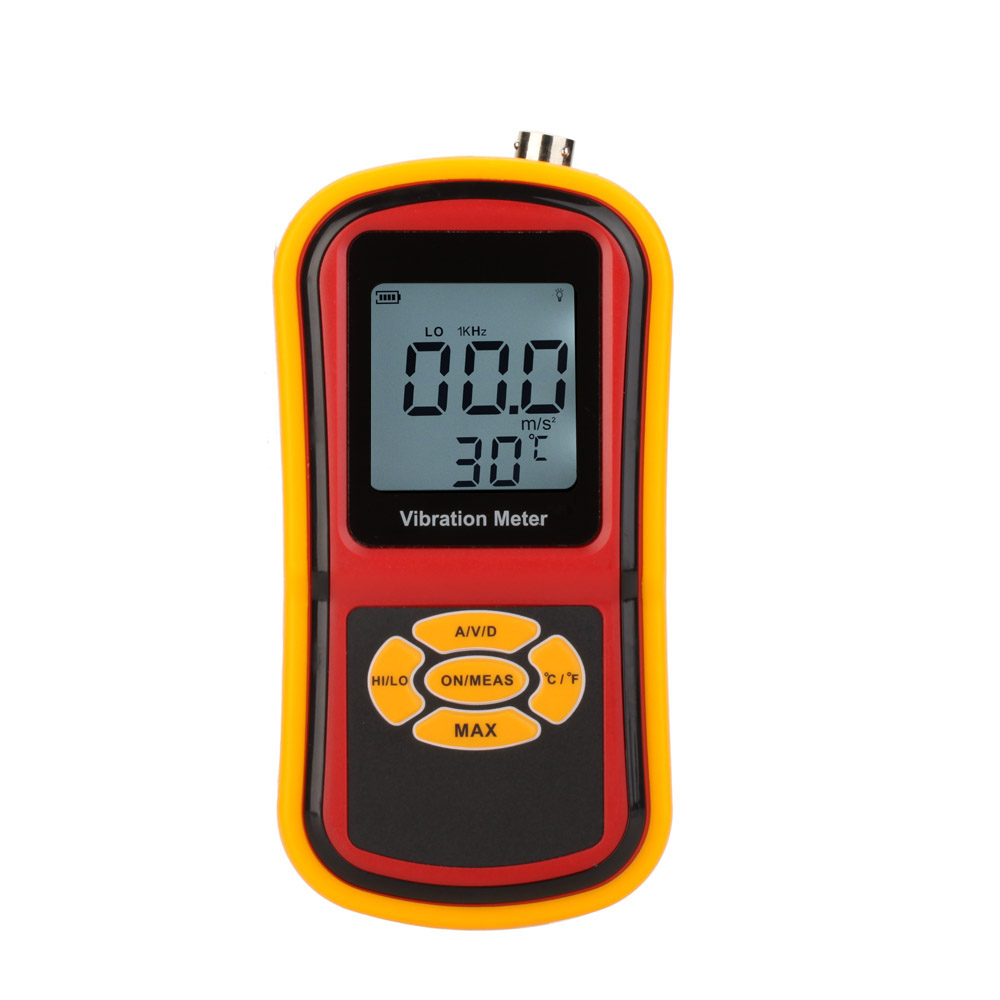

GM63B High Pression Ultrasonic Vibrometer Portable Digital LCD Vibration Meter Analyzer Temperature Meter With Max Hold

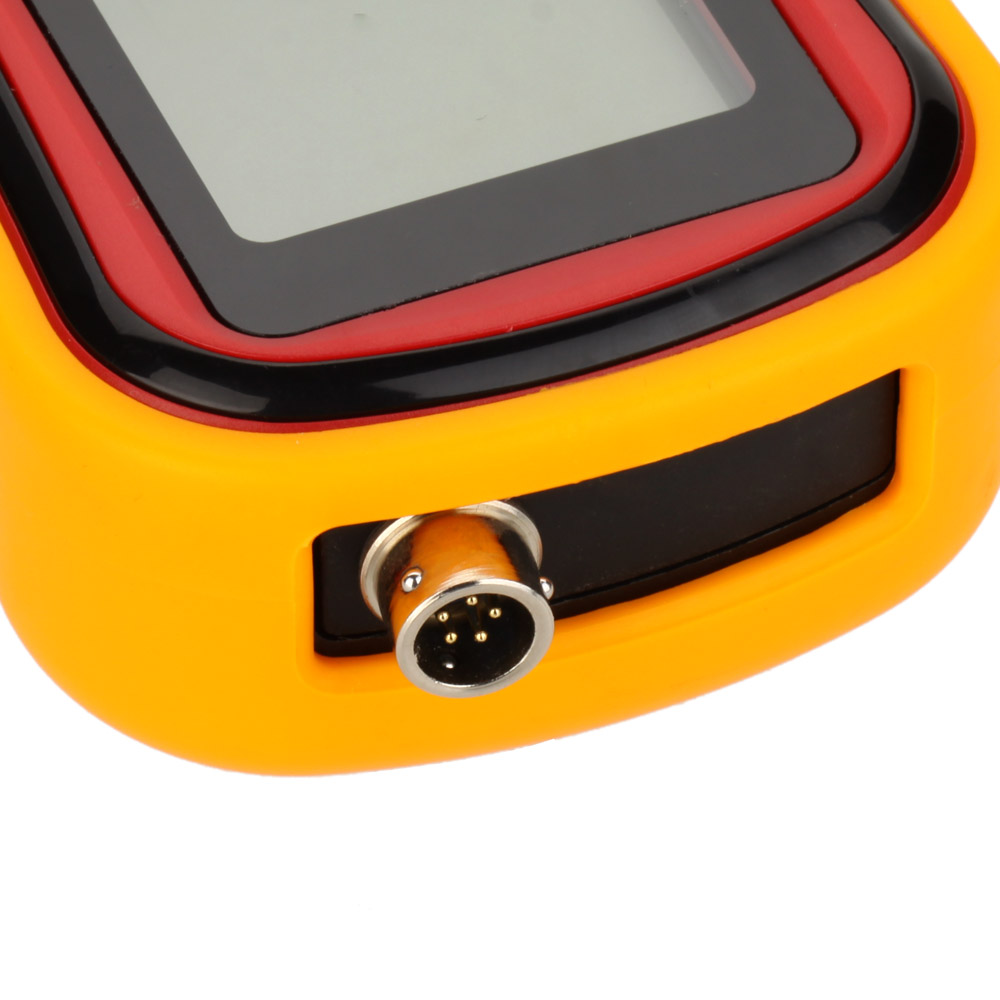

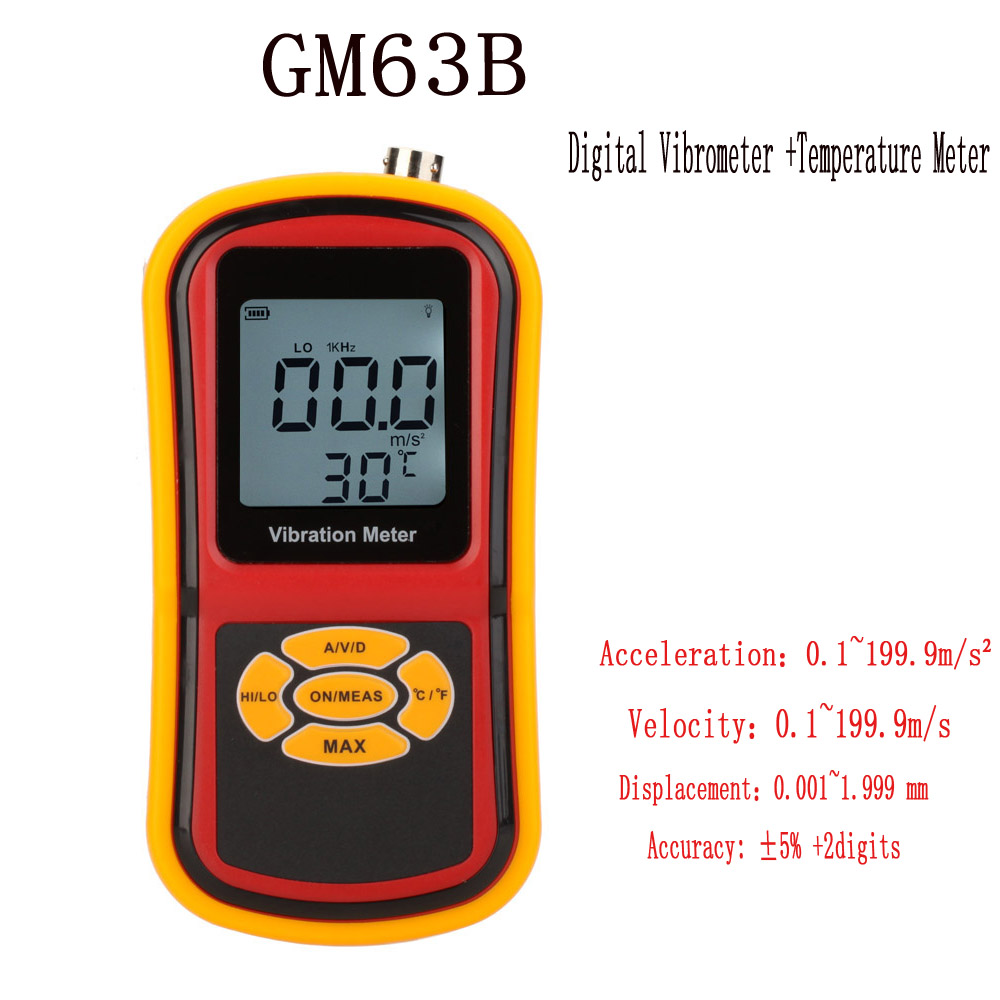

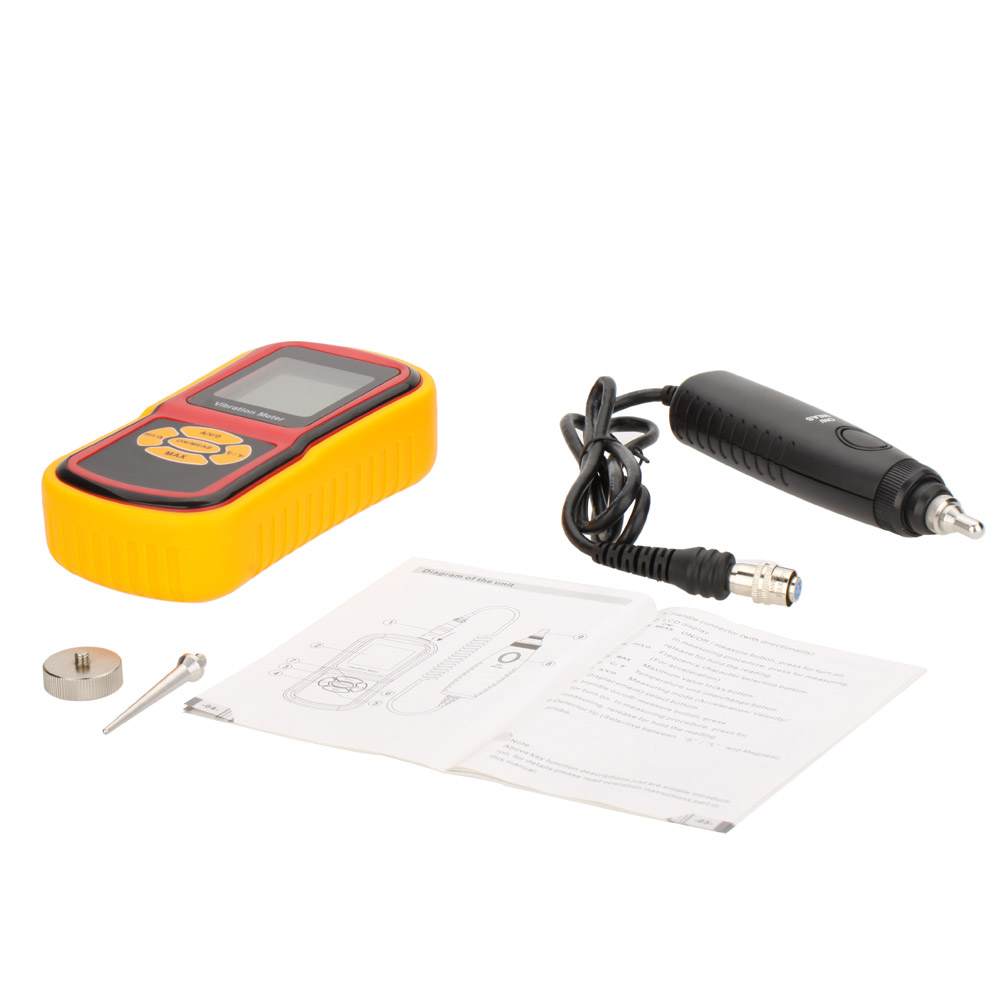

The item is suitable for monitoring all kinds of vibrating mechanical facility, especially the vibration measurements of rotating and reciprocating machine. The unit can measure acceleration, velocity, displacement and ambient temperature, which is widely used in mechanical manufacture, electric power metallurgy and general aviation field etc.Features: Measuring range:Acceleration:0.1~199.9m/s⊃2; peak Velocity:0.1~199.9m/s Displacement:0.001~1.999 mm (P-P) LCD backlight display measurement result and conditions directly. Ambient temperature reading Degrees / Fahrenheit unit selectable. Measure acceleration, velocity, displacement. Uses Hi-sense of vibration sensor for accurate measurement. Equipped with two probes (S & L) to meet different measuring requirements. Provides a magnetic probe to fit the conditions on which it is uneasy to be held by hand. Low battery indication & Auto power off Max. value readoutSpecifications: Measuring range:Acceleration:0.1~199.9m/s⊃2; peak Velocity:0.1~199.9m/s Displacement:0.001~1.999 mm (P-P) Accuracy: ±5% +2digits Measuring frequency of acceleration: 10Hz~1KHz (LO); 1KHz~15KHz (HI) Measuring frequency of velocity/displacement: 10Hz~1KHz (LO) LCD display: 3 1/2 digits displayGeneral Characteristics: Operation temperature/humidity: 0~40 Degrees, 30~90%RH Power supply: 1*9V/6F22 battery(not included) Product Size: 15 * 6.5 * 3.5cm / 6 * 2.7 * 1.4in Product Weight: 165g / 5.8oz Package Size: 25.5 * 17.5 * 5cm / 10 * 6.8 * 2.0in Package Weight: 516g / 1.13lbPackage List: 1 * Digital Vibrometer 1 * Detector Probe(L) 1 * Detector Probe(S, equipped on the main unit) 1 * Magnetic 1 * English Manual
