100 pieces/lot 802.11n/g/b RTL 8188EUS 2dBi internal smart antenna MINI USB wifi adapter wireless signal receiver/emitter

SKU:

CK30194

Category: Wireless USB Adapter

$498.00

Enquiry

Footer Group

Description

Features:

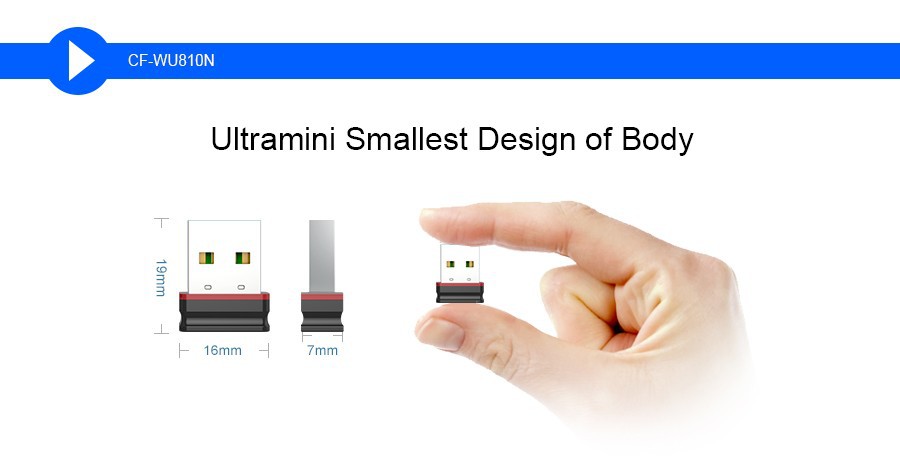

•The global smallest (invisible card),portable,easy to use
•MIMO technology makes wireless transmission rates up to 150Mbps.
•Adopt CCA empty channel detection technology, and GREEN WLAN technology to enhance wireless performance,

automatically regulating power saving and environmental protection
•Built-in smart antennas, can strengthen its wireless reception capabilities, and enhance the stability of the wireless

signal and signal coverage
•Support WEP the WPA/WPA2 network security key, wireless network more secure

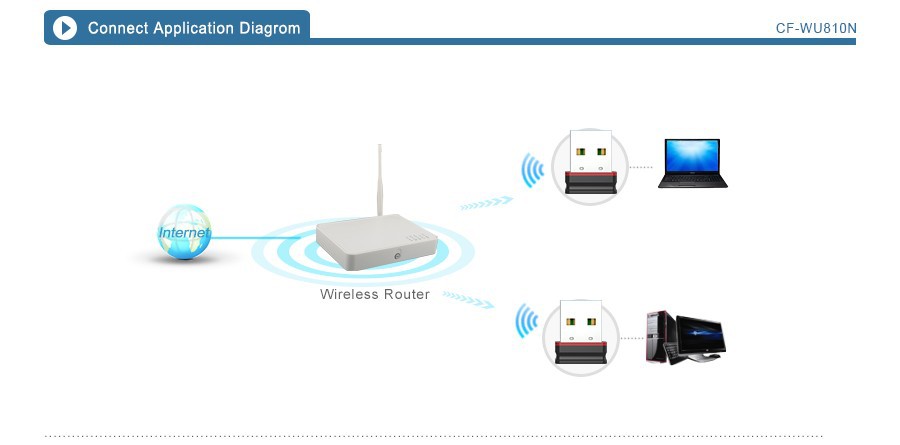

•Supports analog AP function, easily build a wireless LAN
•Supports wireless roaming technology for high-efficient wireless connections
•Support PSP XLink game platforms (Windows XP system) and enjoy the pleasure and excitement

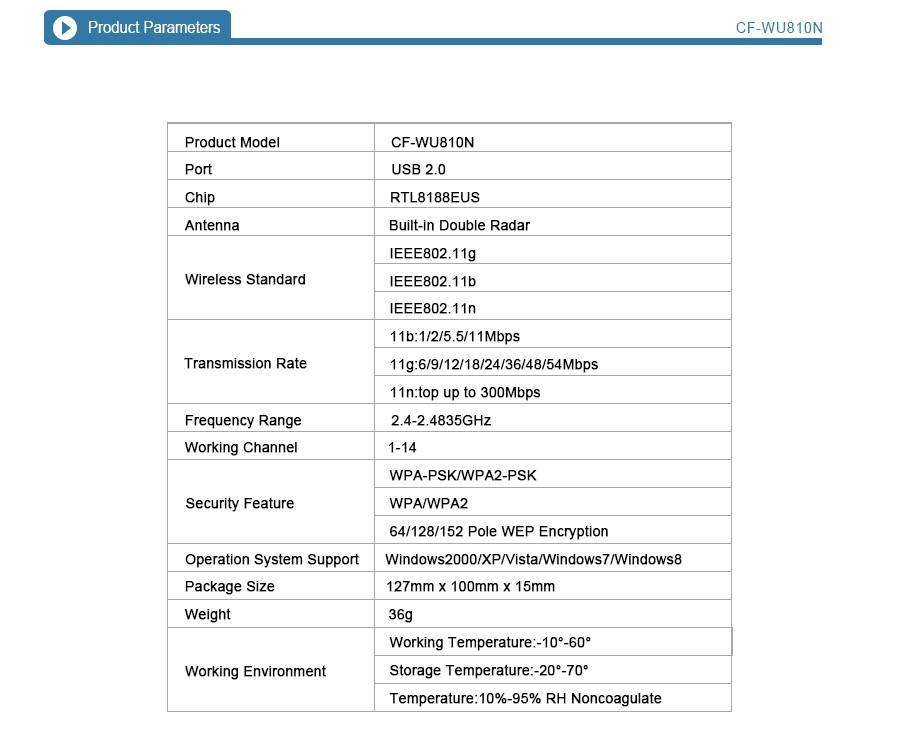

Specifications:

CF-WU810N portable mini wireless Wifi Adapter
Chipset	Realtek RTL8188EUS
Interface	USB 2.0
Frequency	2.4~2.4835GHz
Standard	IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK, used with IEEE 802.11n(draft 2.0) wireless technology
Wireless speed	11n: the highest data rate can reach to 150Mbps
	11g: 6/9/12/18/24/36/48/54Mbps(Dynamic)
	11b: 1/2/5.5/11Mbps(Dynamic)
Channel	1~13
Data Modulation	11b: CCK,DQPSK,DBPSK
	11g: OFDM
	11n: OFDM with PSK,BPSK,16-QAM,64-QAM
RF power	20dBm(maximum)
Encryption	64/128/152 digit WEP encryption ,WPA/WPA-PSK, WPA2/WPA2-PSK Encryption and WPS one button encryption
Antenna Gain	2dBi internal smart antenna
LED indicator	Link/Activity
Working environment	Working temperature: 0 to 40 Celsius
	Storage temperature : -40 to 70 Celsius
	Working humidity: 10% to 90%RH
	Storage humidity: 5% to 90%RH
Operation system	Windows 2000/XP/Vista/WIN 7/LINUX etc.
Range	Indoors: 50-100 m (Theoretical Value)
Range	Outdoors: 100-200m (Theoretical Value)
