0-50.00V/0-2.000A Digital LCD Display Constant Voltage Current Practical Step-down Programmable Power Supply Module

This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one. With many useful functions, the module is really practical.
Features:
This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.
The output voltage is adjustable from 0V-32V/50.00V(optional), the output current is adjustable from 0-2.000A/5.000A(optional).
The module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value.

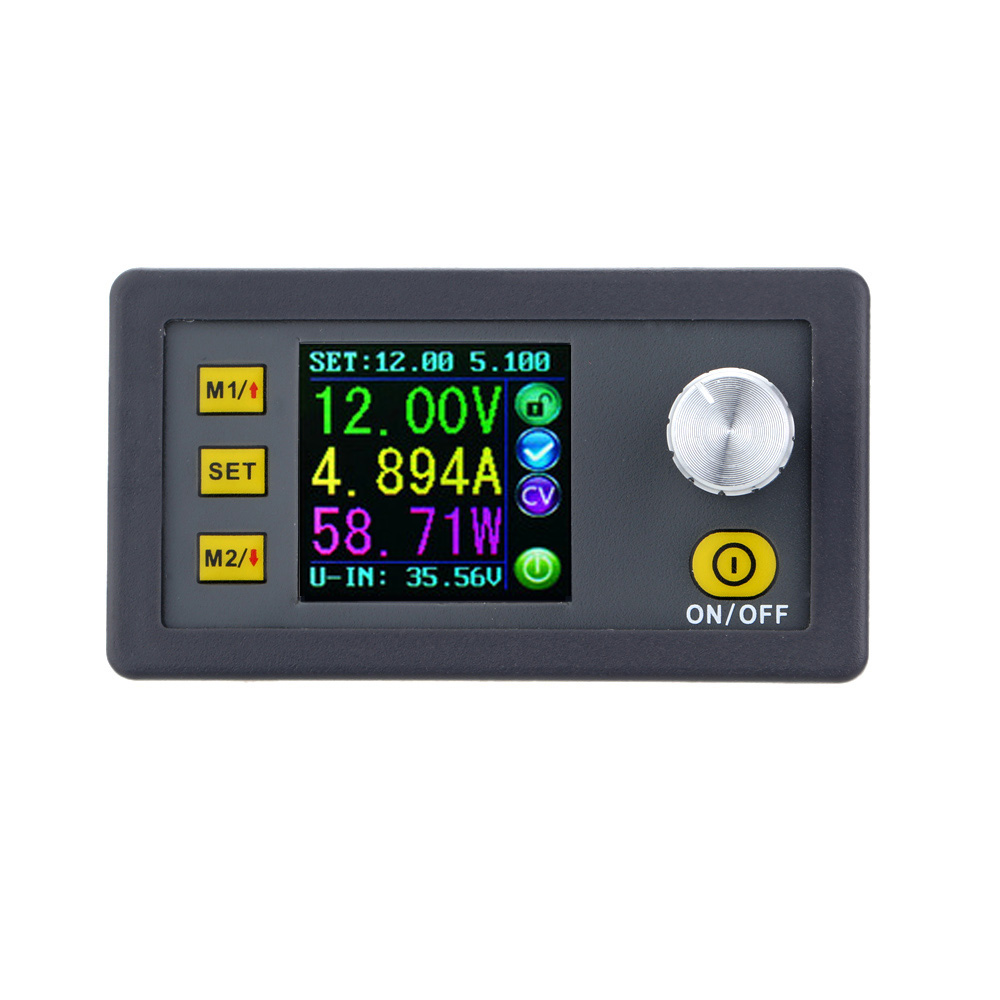

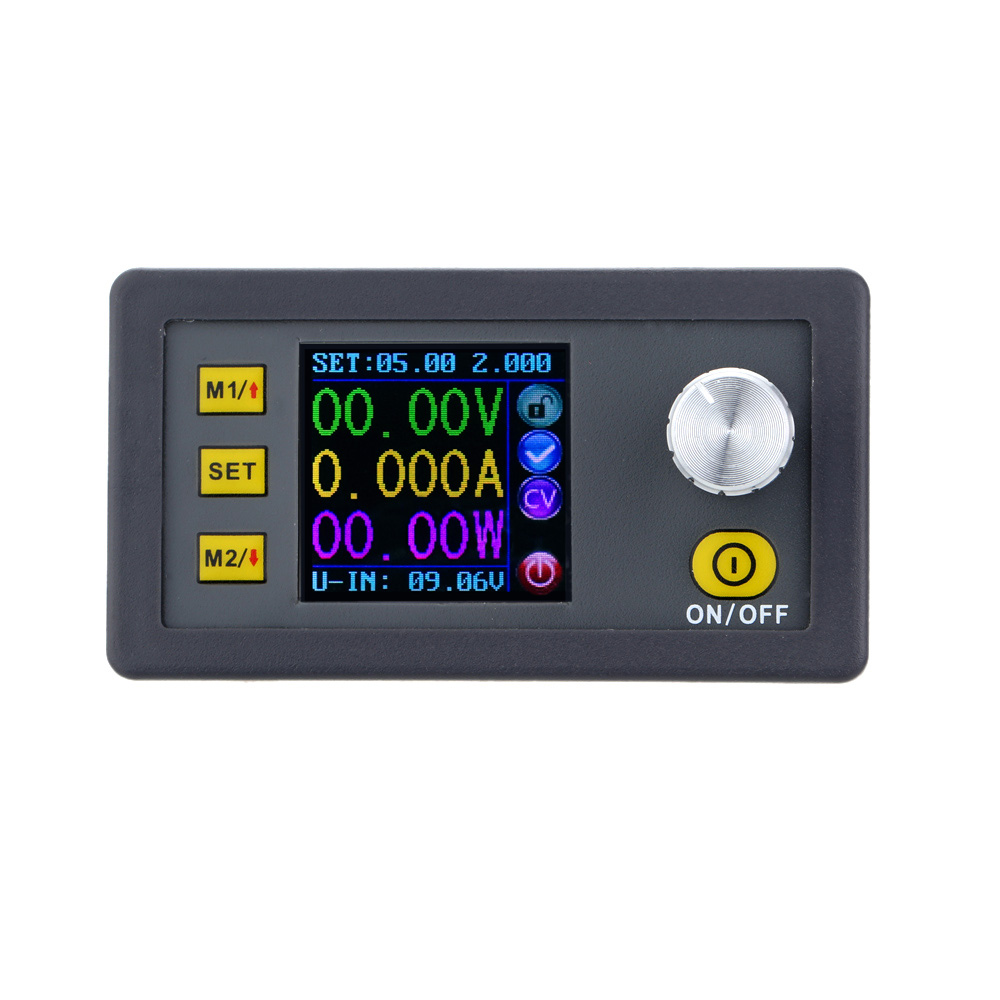

With LCD display and the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.
In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.
Equipped with smart fan, it works automatically when output current is over 0.5A which is helpful for heat dissipation and ensures power output stably.
With advanced functions, high accuracy, wide application, the item is really practical.
Note:
The maximum input voltage is 55V. It is better to make the value less than the limit value, otherwise the item maybe be damaged.
DP50V5A output for battery charging or capacitive load, please add a diode on output positive in case that the current flow backward the module.
DP30V5A is suitable for charging, recommend the power input end connecting capacitor filtering above 4700uf.
Specifications:
Model Type: DP50V5A / DP30V5A / DP50V2A(Optional)
Input Voltage: DC6-40V(DP30V5A); DC6-55V(DP50V2A and DP50V5A)
Output Voltage: 0-32.00V(DP30V5A); 0-50.00V(DP50V2A and DP50V5A)
Output Current: 0-2.000A(DP50V2A); 0-5.000A(DP50V5A and DP30V5A)
Output Power: 0-100W(DP50V2A); 0-160W(DP30V5A); 0-250W(DP50V5A)

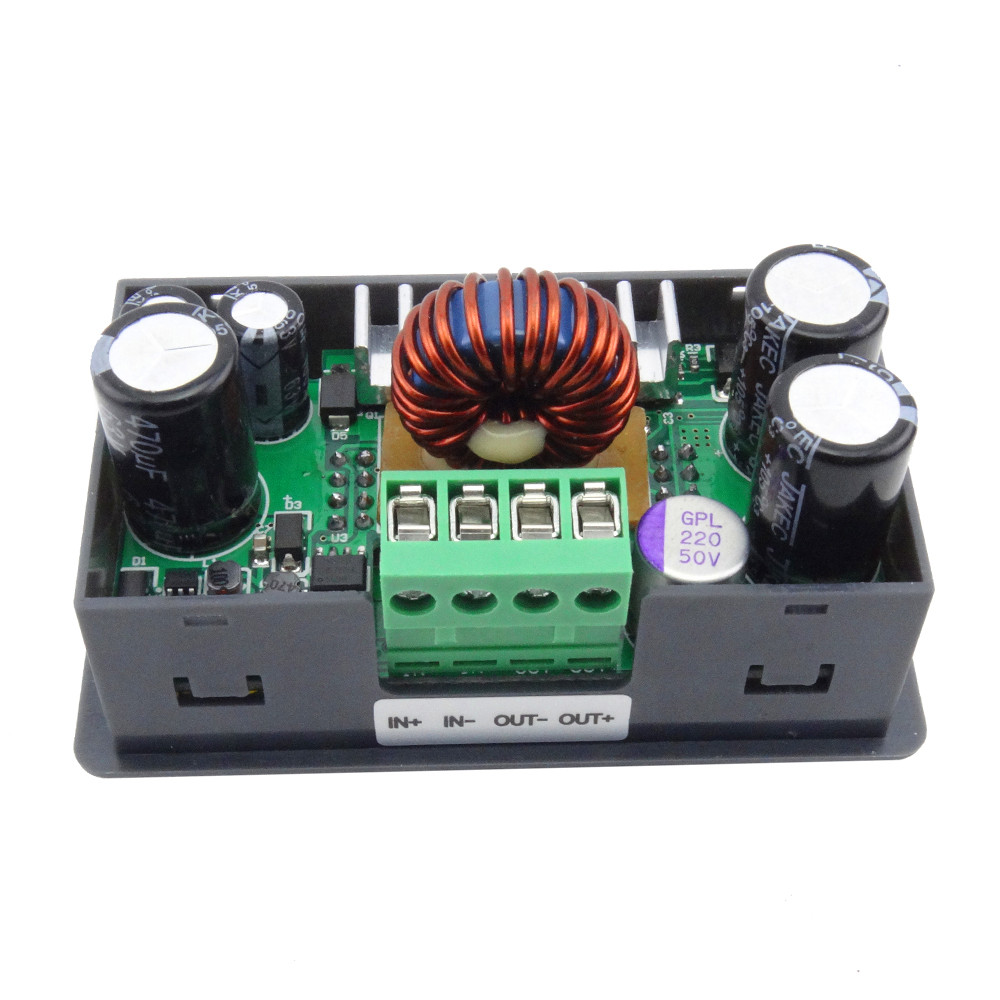

IN+: Input Positive
IN-: Input Negative
OUT+: Output Positive
OUT-: Output Negative
Item Size: 8 * 4.2 * 4.5cm / 3.1 * 1.7 * 1.8in
Item Weight: 84g / 3oz
Package Size: 5 * 5 * 8cm / 2 * 2 * 3.1in
Package Weight: 108g / 3.8oz
Package List:
1 * Power Supply Module
1 * User Manual (English)
