YSUP-15P Ultra-Low-Cost Single Use Cold Chain PDF USB Temperature Data Logger

<<prev

YSUP-15P Ultra-Low-Cost Single Use Cold Chain PDF USB Temperature Data Logger

SKU:

CK216536

Category: Electrical Instrument & Meters

$11.52

$7.80 - $11.52

Enquiry

Footer Group

Description

YSUP-15P Ultra-Low-Cost Single Use Cold Chain PDF USB Temperature Data Logger

Specifications

Specifications	YSUP-15P	YSUP-15U	YSUP-15X
Use type	Single-use
Measurement Range	-30°C~+70°C
Accuracy	±0.5°C
Resolution	±0.1°C
Data Storage Capacity	8640	8640	30240
Sample interval	10sec. to 18hours
Run days	1day to 360days
High and low alarm	User-configurable
Alarm delay	0 to 960min.
Alarm type	Single type; Accumulation type
Start delay	0~254min.
Start mode	By button
Stop mode	By button; Memory full; When into USB
Operation environment	-30~70°C
Storage environment	-30~70°C
Size/Weight/Case material	62mmX27mmX4mm/10g
Protection class	IP67	IP65	IP65
Standards/Certificates	CE, ROHS, EN12830
Communication interface	Build-in USB 2.0
Power supply	CR2032(non-replaceable)
Shelf Life	2 years

Product Description

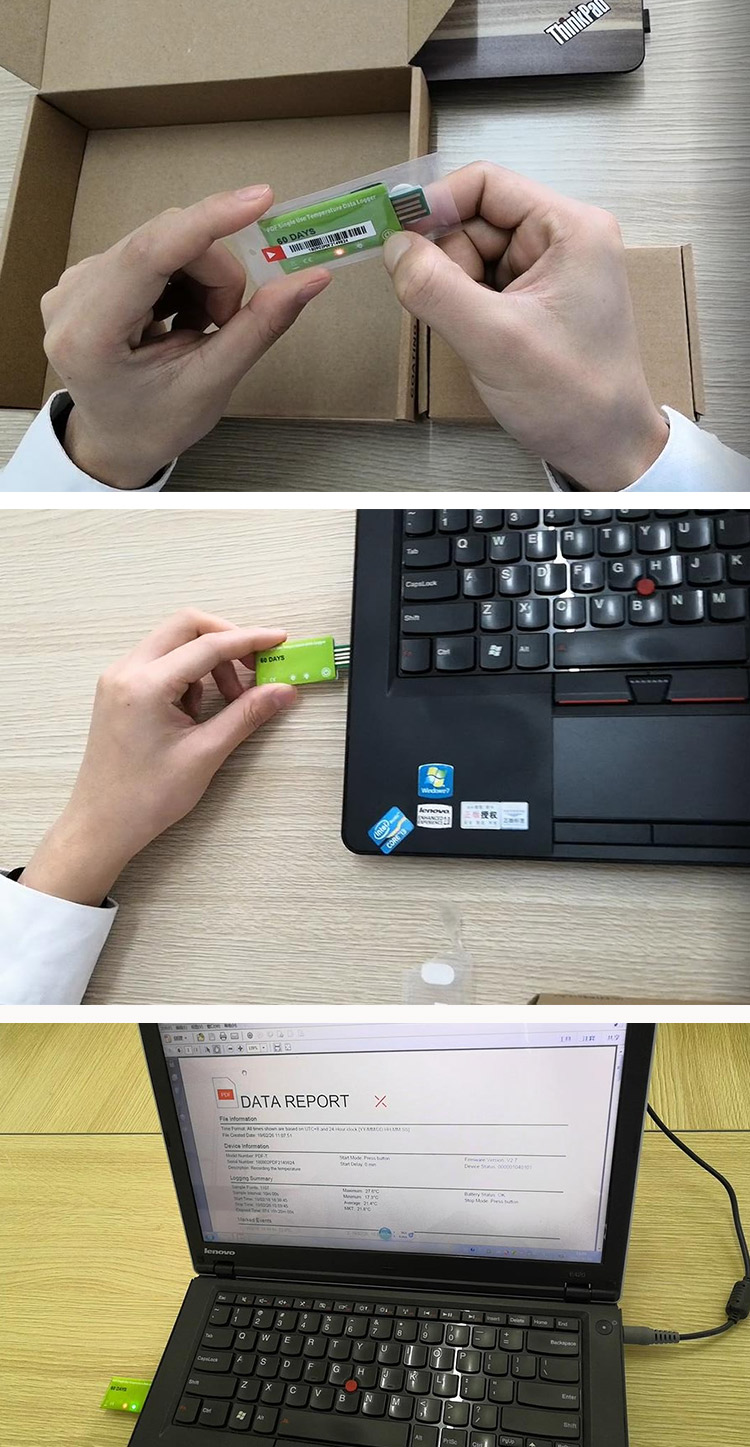

These data loggers are ideal to monitor the temperature in transportation, storage and testing process. Recording can be started and stopped by pressing the button. User can get PDF reports by connecting the device into PC without any software or driver.

Features
· Generate PDF report without any software and driver
· Built-in USB interface
· 6 mark points supported

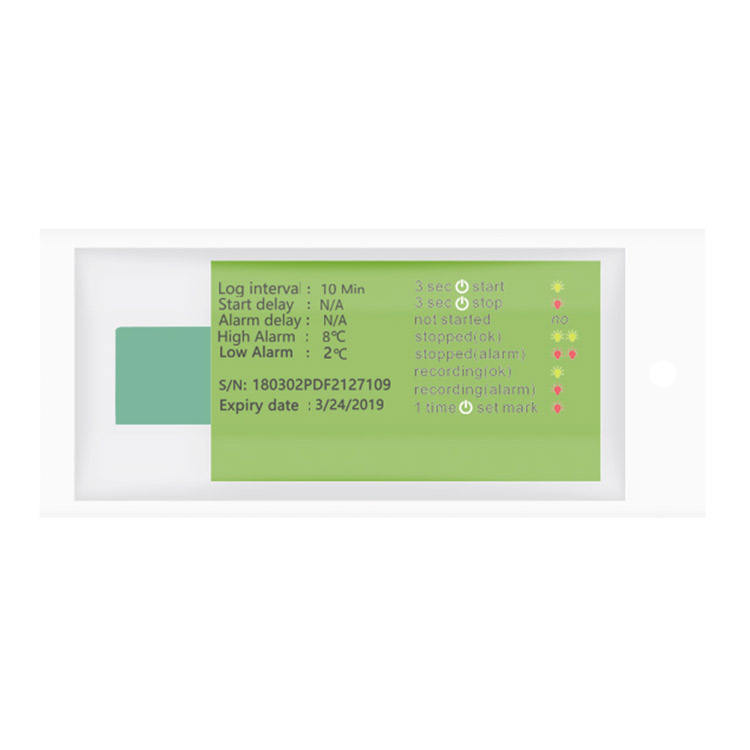

· LED status and alarm indication
· Waterproof IP67
· Long standby battery

Applications

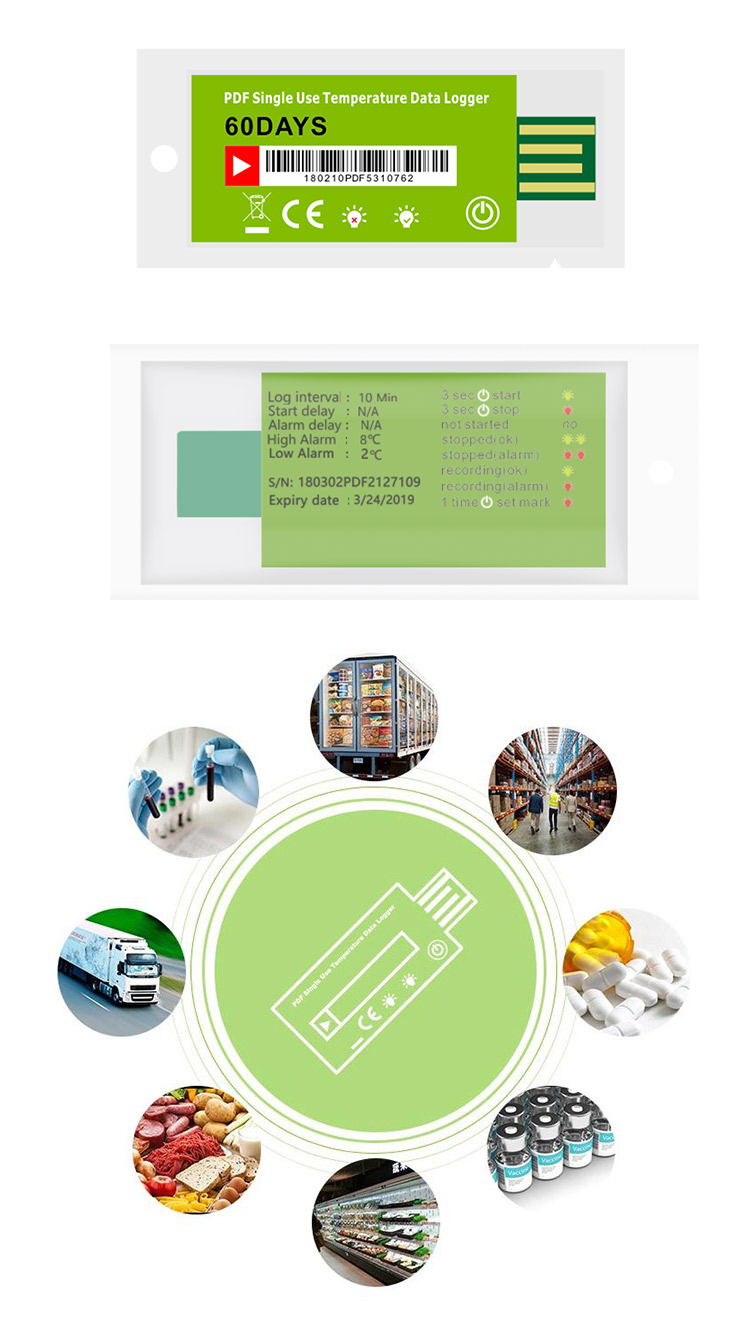

This recorder is mainly used in cold chain transportation, refrigeration, warehouse, HVAC, food & pharmaceutical of medicines, food, goods, equipments and environments that are sensitive to temperature.
