Probe position

Internal

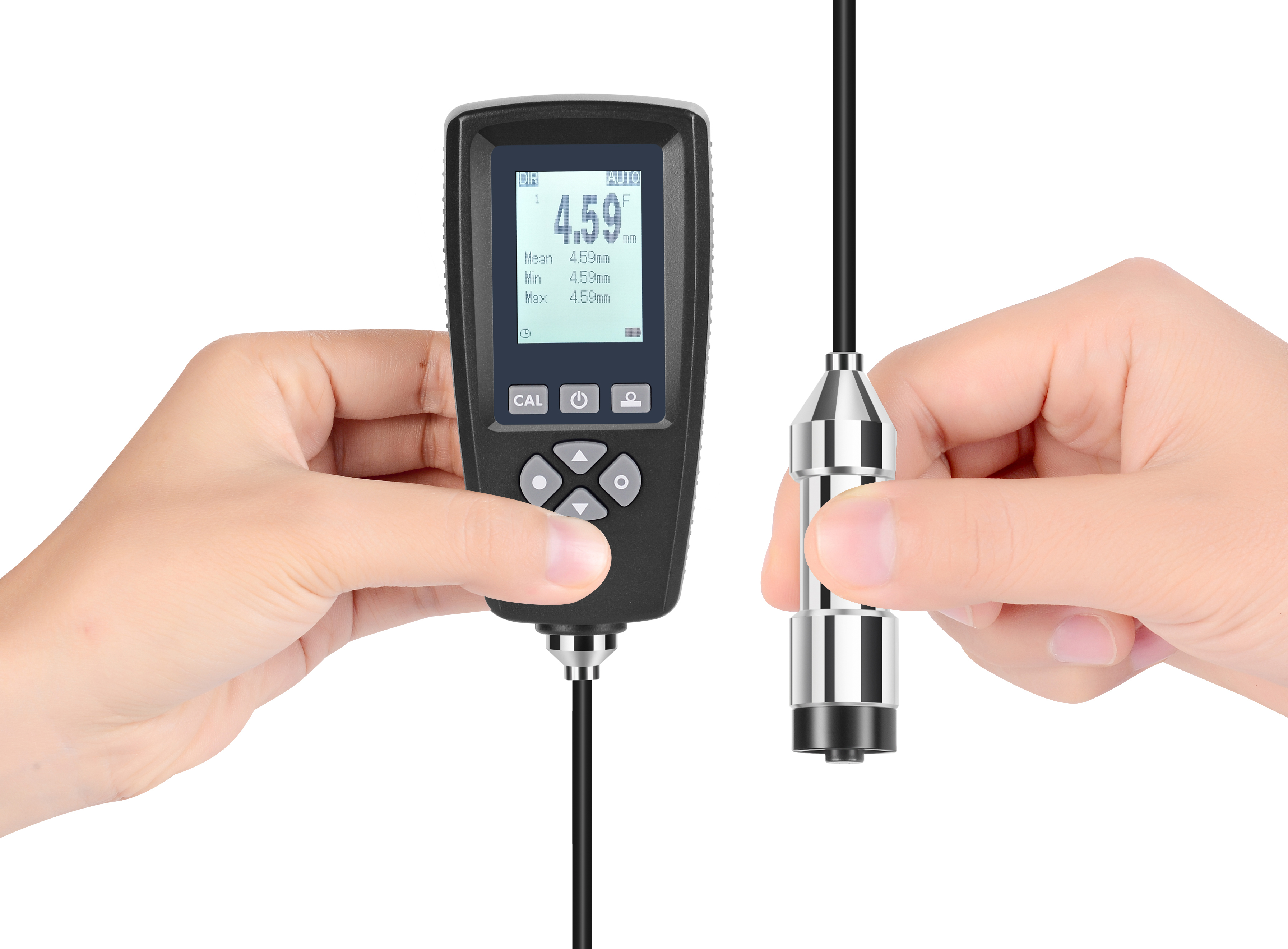

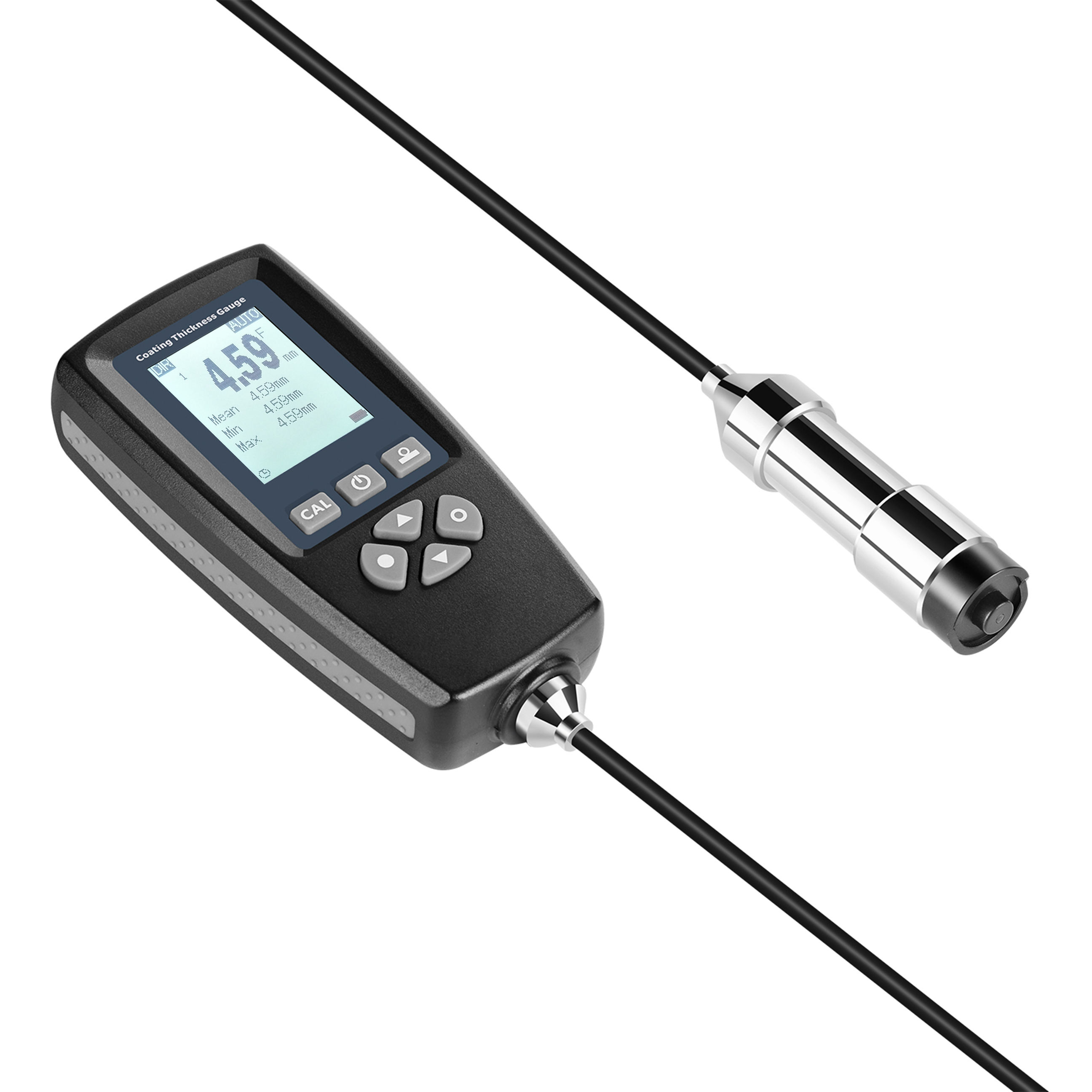

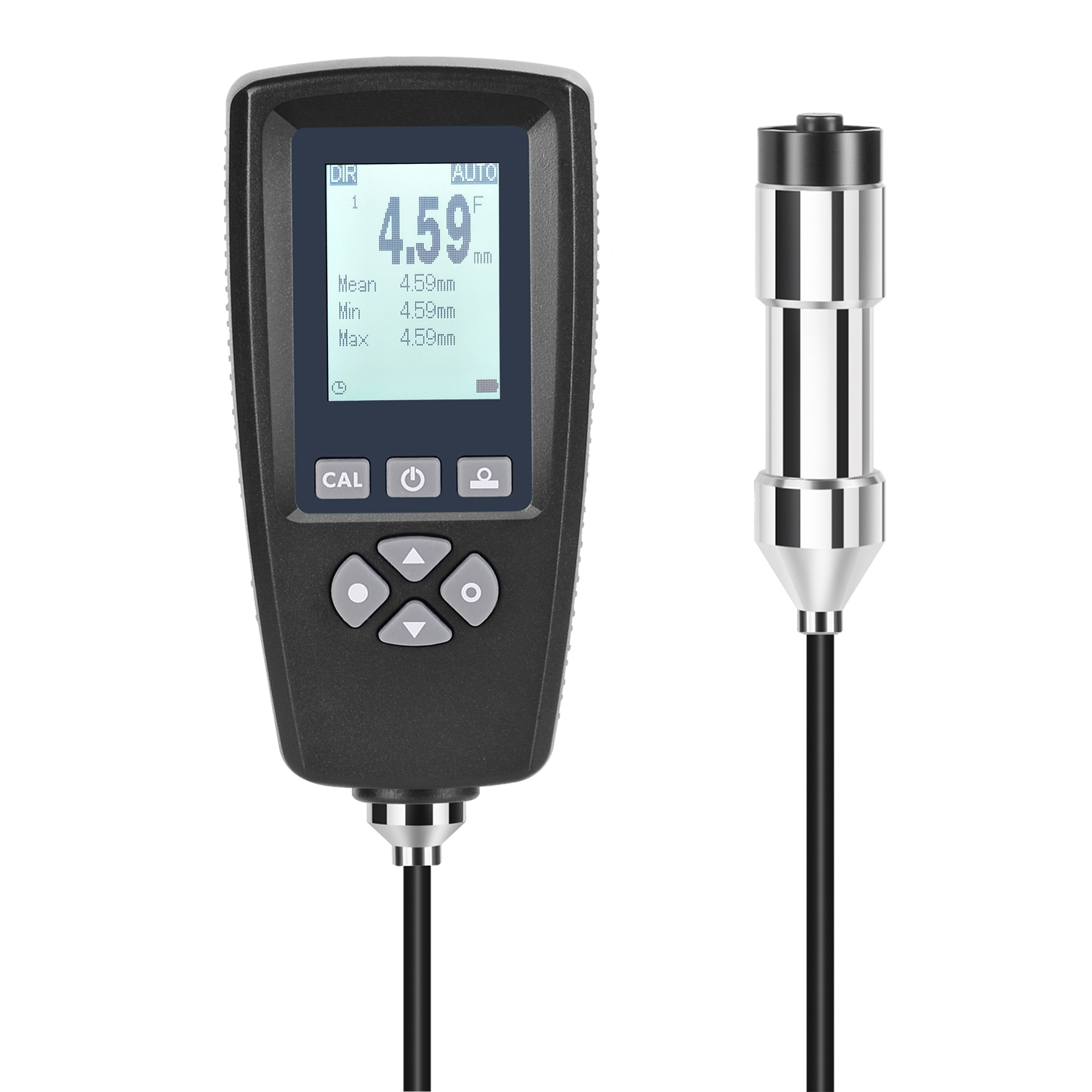

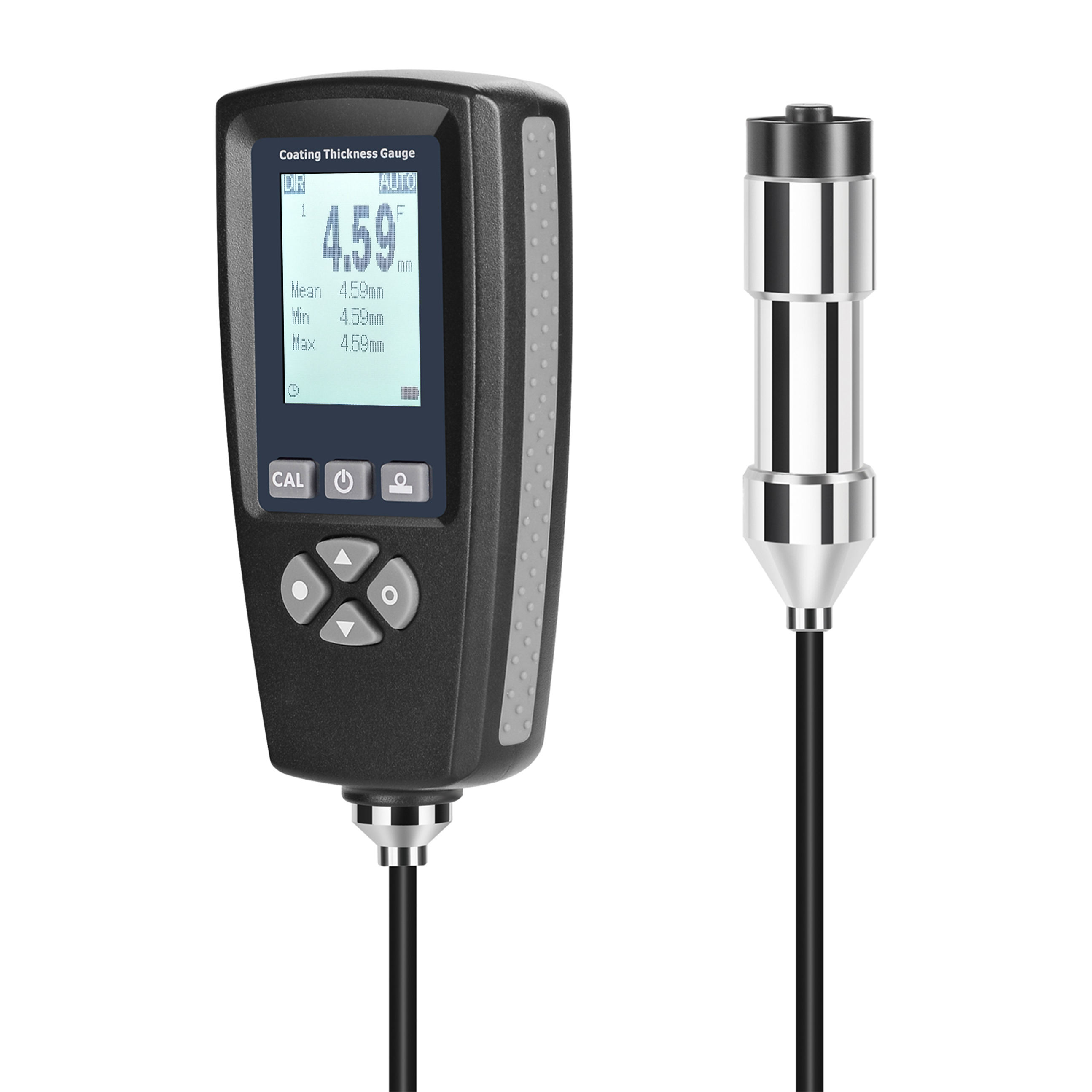

External

Internal

External

Measuring principle

Fe: magnetic induction; NFe: eddy current effect

Measuring range

0~500μm

Fe: 0~5000μm; NFe: 0~3000

Other measurements can be customized

Accuracy

±(1%+1μm)

±(2%+1μm)

Resolution

0.1μm (0~99.9μm ); 1μm (≥100μm)

Unit

μm, mm, mils

Calibration

Zero calibration, point calibration

Statistics

Number of data, maximum, minimum, mean, standard variance

USB data transmission

Support

Storage capacity

2000 measurements

Probe triggering force

0.3~0.8N

Minimum radius of curvature of substrate

Convex 5mm

Concave 25mm

Minimum measurement area

Diameter 10mm

Minimum substrate thickness

Fe: 0.20mm; NFe: 0.03mm

Maximum measured speed

2 readings/sec

Display

Dot Display

Operating environment

Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)

Storage environment

Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)

Power supply

2 AAA 1.5V alkaline batteries

2 AAA 1.2V rechargeable batteries

Protection class

IP40

Dimensions

114*54*30mm

Host:114*54*30mm

Line:Φ3.5*1000mm

Probe:Φ17*67mm

113*53*25mm

Host:113*53*25mm

Line:Φ3.5*1000mm

Probe:Φ17*67mm

Material

ABS

Host: ABS

Probe:stainless steel

ABS

Host:ABS

Probe:stainless steel

Weight

About 80g

(without batteries)

About 140g

(without batteries)

About 80g

(without batteries)

About 140g

(without batteries)

Standard

CE, ROHS,ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005
