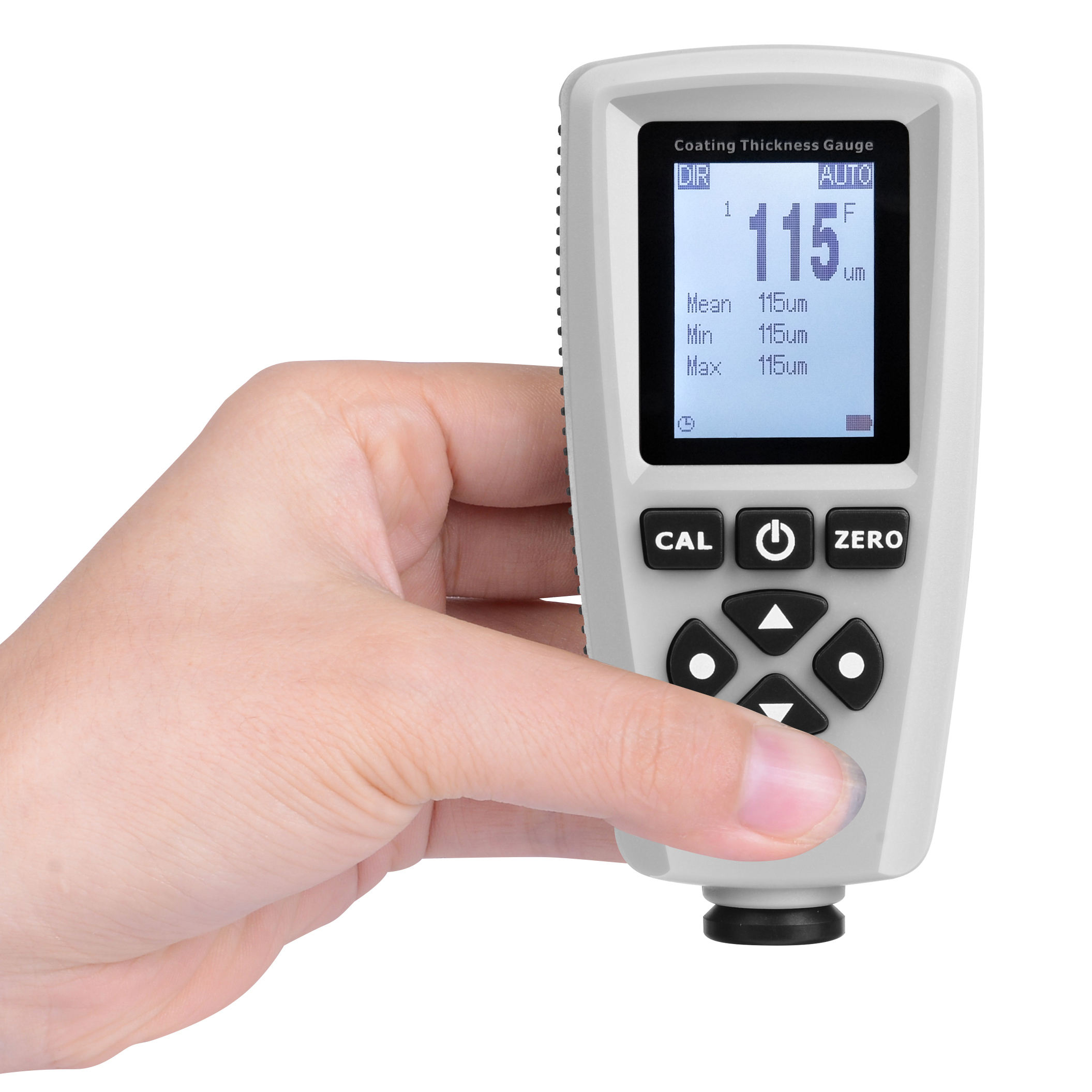

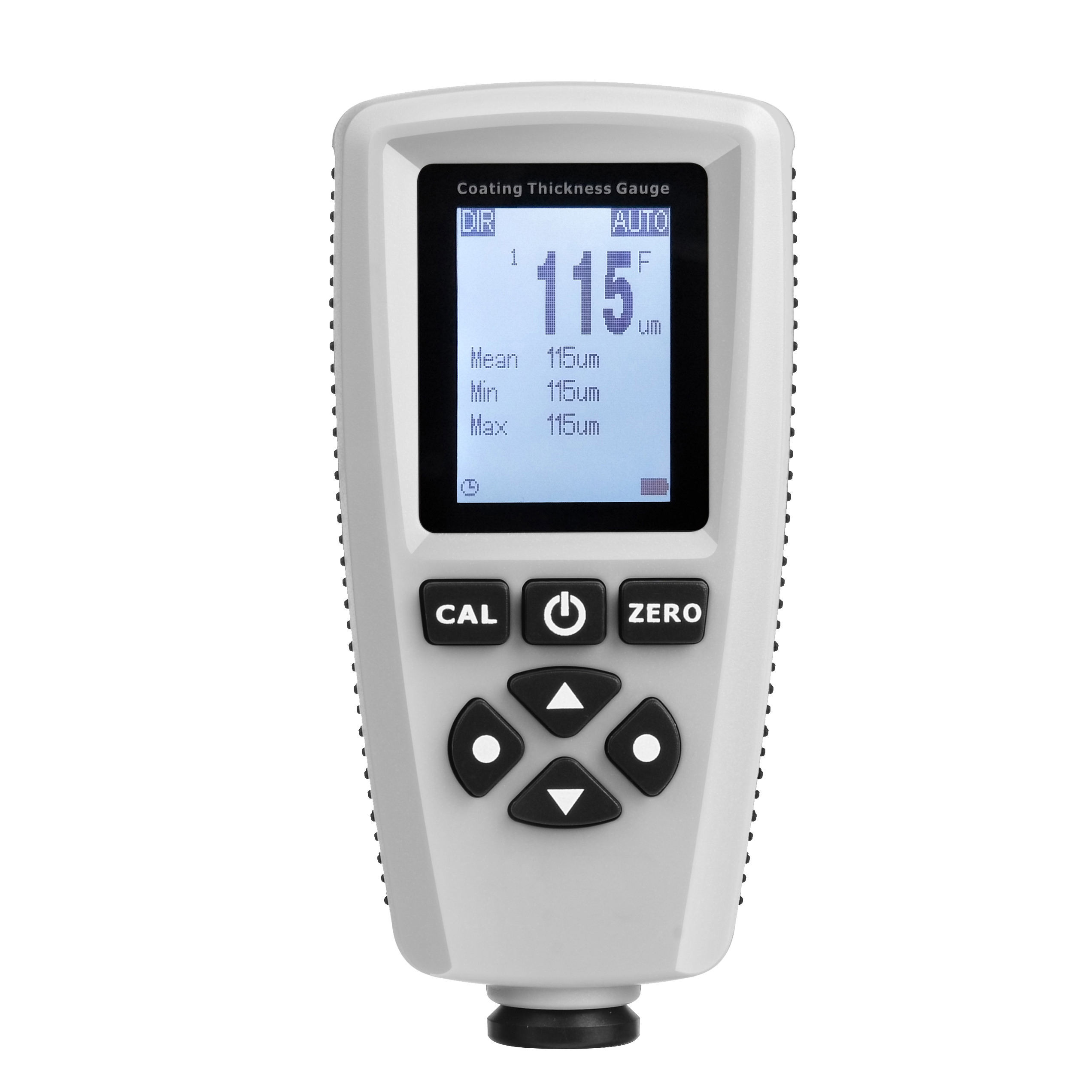

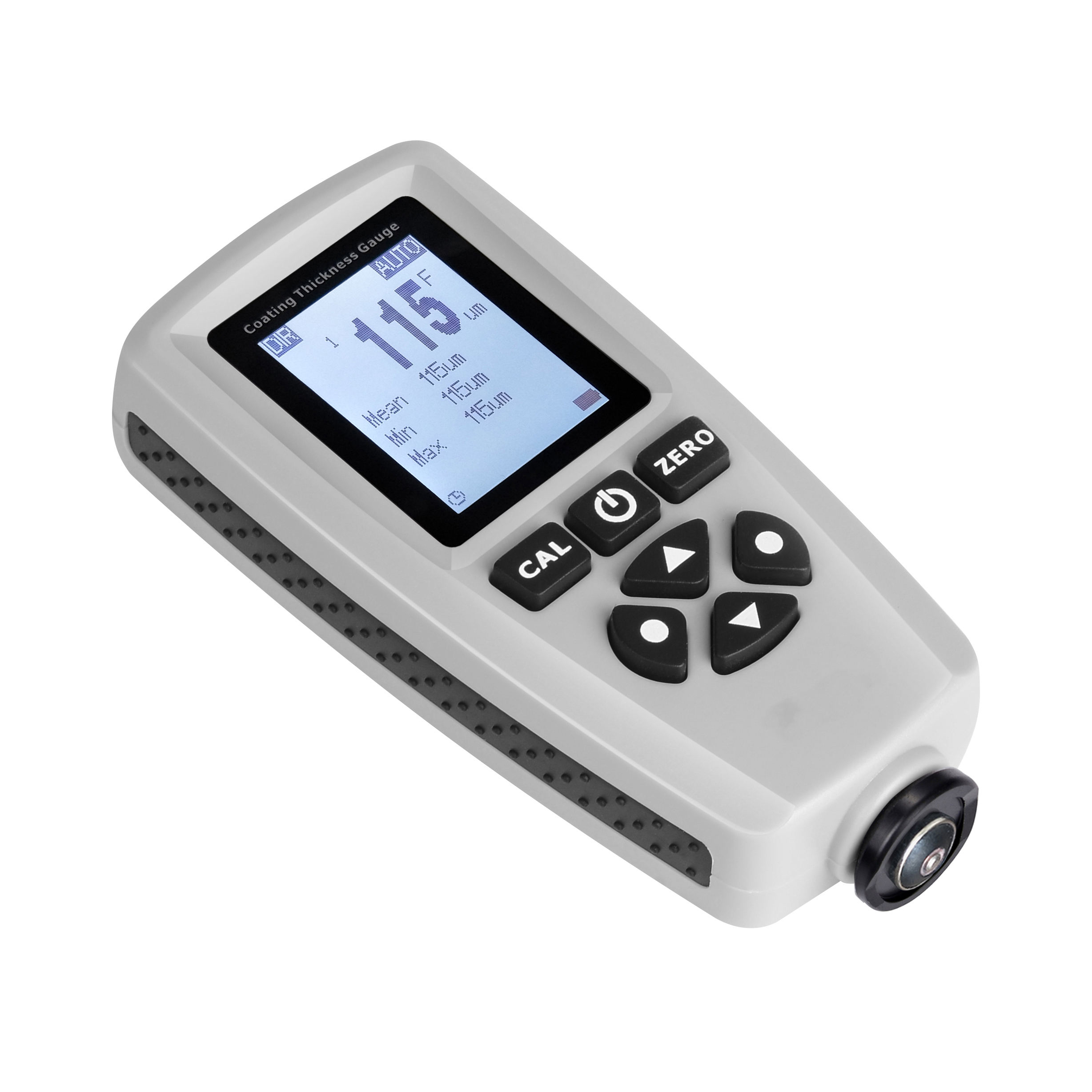

The EC-770-P thickness gauge can measure the thickness of non-conductive cladding of metallic surface and ferromagnetic metal (e.g. iron, nickel, cobalt) surface without, including measuring the thickness of iron, stainless steel surface paint or galvanized layer, and measuring the thickness of plastic film of aluminum and copper surface paint.

EC-770-P built-in magnetic sensor and eddy current effect integrated probe, with a measurement range of 0~2000m and the measurement accuracy of ± (2.5% + 1μm), and its resolution is up to 0.1μm. When measuring, the user only needs to fit the probe and the end quickly, the surface of the measured object, in the process of contracting the probe into the equipment, the equipment can automatically distinguish the substrate properties and measure the thickness of the coating (plating) layer.

The EC-770-P has a streamlined menu and data display interface that displays the average, maximum, and minimum values, and indicates and alert data overrun. In addition, the device contains large-capacity memory. During the measurement process, the equipment can count and record the measurement results. The recorded data can be transmitted to the computer via the USB data cable.

Specification:
