DESCRIPTION:

The EC-370A and EC-370B thickness gauge has a built-in magnetic induction and eddies current effect integrated probe, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, cobalt). Specific uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel and the thickness of the paint or plastic film on the surface of aluminum and copper.

EC-370A and EC-370B have a measurement range of 0~2000μm, with a resolution of up to 0.1μm. When measuring, the user only needs to quickly fit the probe tip to the surface of the object to be measured. When the probe shrinks into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer.

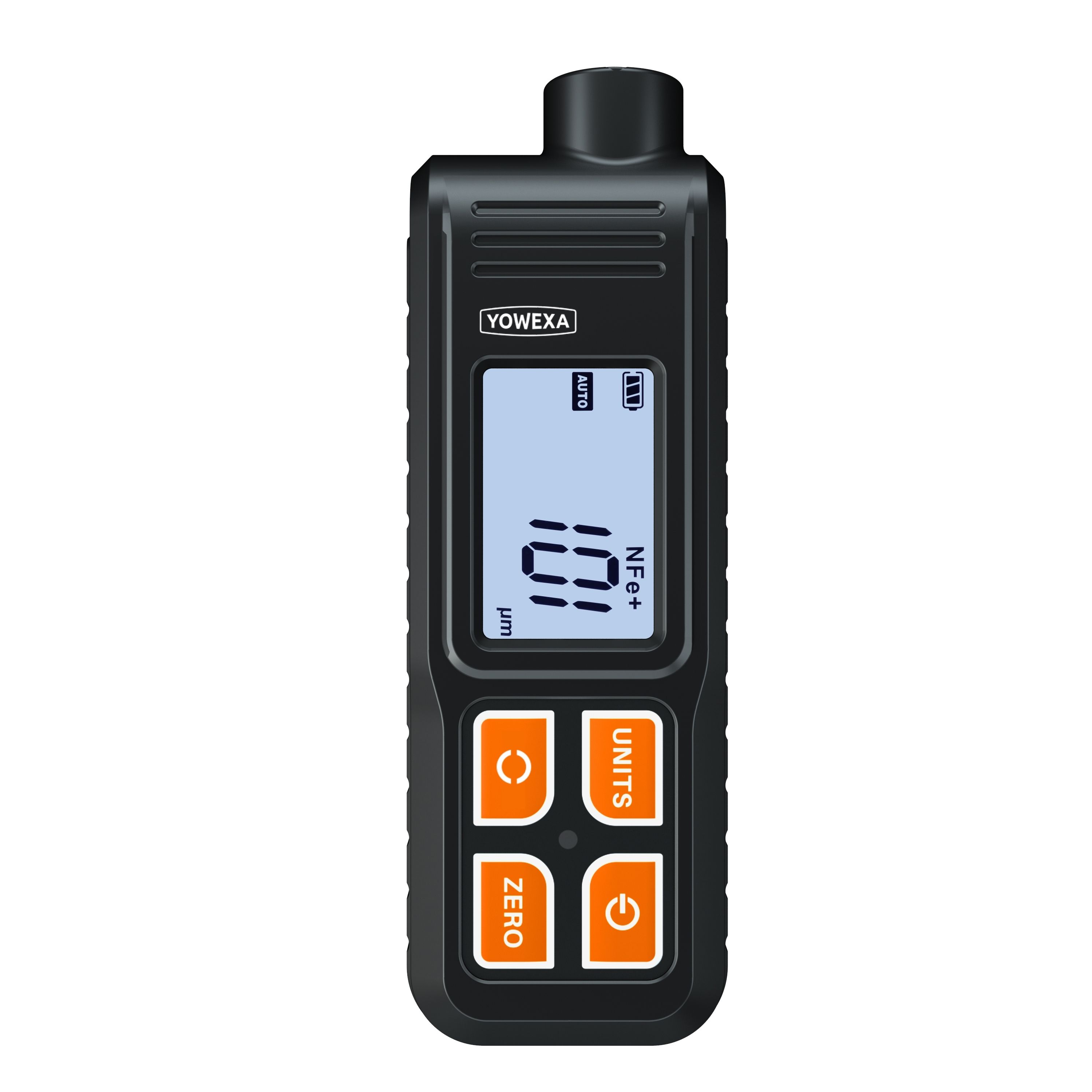

EC-370A and EC-370B have a streamlined data display interface. The EC-370A uses a black and white segment LCD screen for outdoor or high-light environments. The EC-370B uses a color segment LCD screen for indoor or low-light environments.

Specification:
