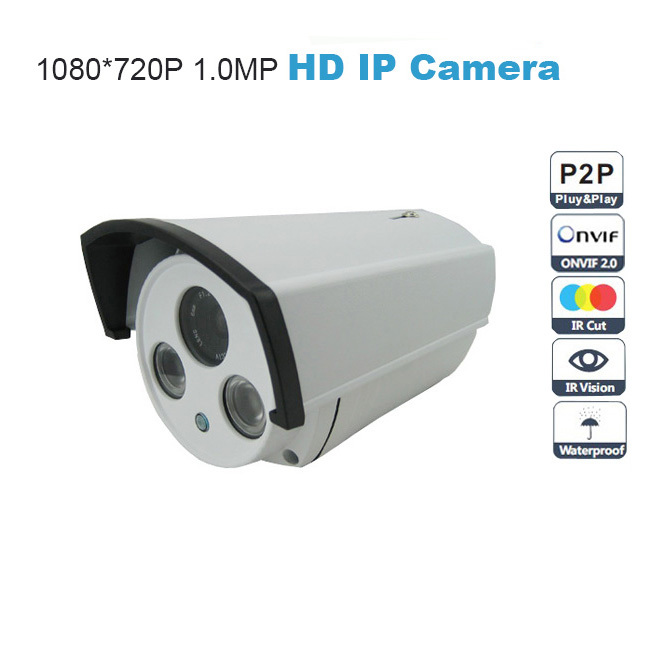

STAR CCTV 1.0 Megapixel 1080*720P H.264 P2P Array LED 50M-60M Outdoor Waterproof Security IP Camera With Free Bracket

1. This module uses Huawei Hass Hi3518E + OV9712 (38 or 32) as the core,High Resolutiion 1.0 Megapixel 1/4" CMOS Sensor

2. 1280*720P Resolution 25fps real time.

3. Using XM CMS client, Supports P2P remote, does not need to open router ports without port mapping, Easy remote access.

4. Support IE, Firefox,Google browser

5. Supports mobile phone remote access easily, AS: Apple, Android, Win, Symbian, Blackberry.

6. Support for international Onvif agreement, compatible XM,Hikvision, Dahua and other well-known manufacturers of NVR.

7. 2pcs Array IR LED With 40-50m IR Distance

8. Built in IR-CUT Filter

9. Day & Night Vision

10. Waterproof/Weatherproof

11. Standard lens:8mm, if you need other lens,please leave a message to us in your order.

Model NO.                                                             60-NX4C100BQ

Camera

Image Device                                                       1/4" High Sensitivity CMOS

Image senser                                                       OV 9712

DSP                                    HI3518C

TV System                                                            PAL/NTSC

Effective Pixels                                                    1280(H) x 720(V)

Min. Illumination                                                  0Lux(IR-ON )

Day/Night                               ICR

Infrared LED                            2pcs Taiwan Epistar High-power 42mil LED Array

IR Distance                             50-60 Meters

Infrared Spectrum                        850nm

Lens

Focal Length                            (Default:CS8mm)CS6mm/12mm/16mm Optional

Compression

Video compression                                             H.264 Main Profile/JPEG capture

Video Bite Rate                          100Kbps~6Mbps

Audio compression                       G.711a


Max Resolution                          1280(H) x 720(V)

Frame Rate                                                           PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

Image settings                           Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage                                                                  Network storage

Intelliget Alarm                           Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol                                 TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

(HTTPS,SIP ,802.1x,IPv6 optional)

Basic                                   Anti-flicker, dual stream, heartbeat, password protection

Interface

Communication Interface                                  1 RJ45 10M/100M self-adaptive Ethernet interface

Video output                             1Vp-p Composite Output(75Ω/BNC)

General

Operating condition                       -10~60, humidity 90% less (non-condensing)

Power supply                            DC12V±10%

Current                                  <600mA

Protection Range                         IP66

Dimensions                                                            220*125*120 mm

Net Weight                               750g/pcs

Indoor picture

outdoor picture

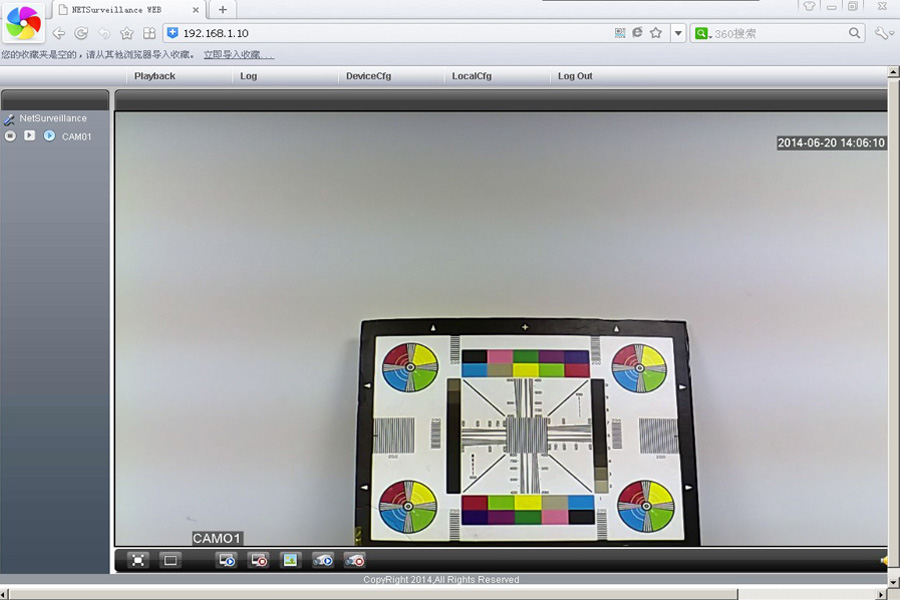

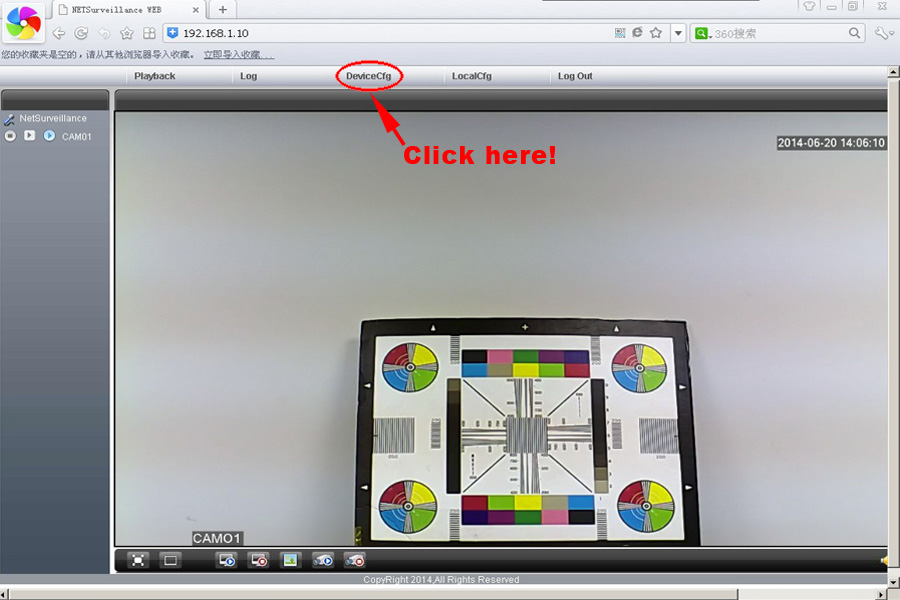

The Standard IP is:192.168.1.10

User name:amdin

Password: None

Remind: If you use the software first time, you need to install a plugin.

P2P on the browser

www.xmeye.net

If you lo gin first time,you need to register an account freely.

1.   Android System Installation(Two ways)

(1).Android user can install directly.The APP is in the CD.

Install the app "XMEye"

(2)Please visit www.xmeye.net,Then use your smartphone toscan this image

Then complete the download and installation.

2.Iphone user can download app on Apple Store.

How to use?

If you have the account already,you can view directly.

If you login first time,you also need to register.
