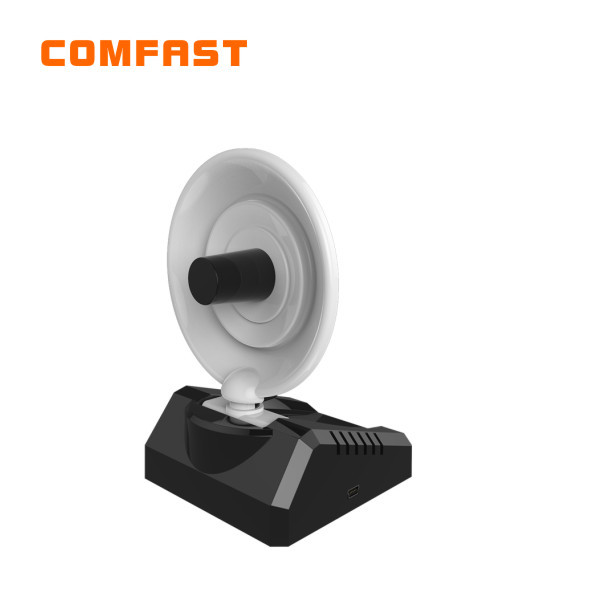

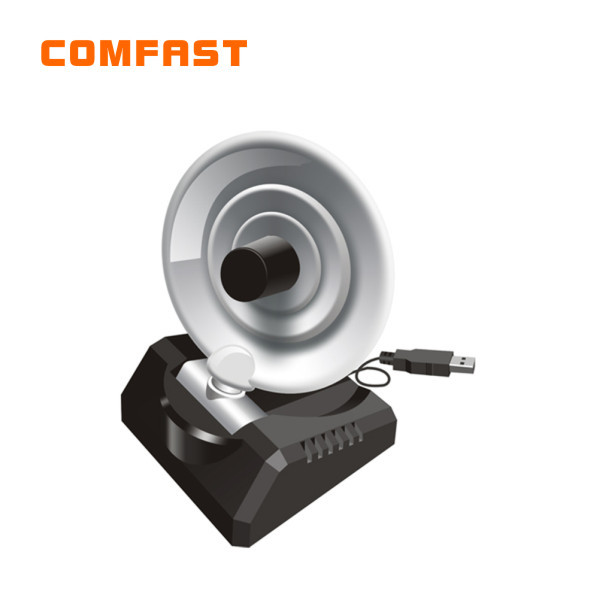

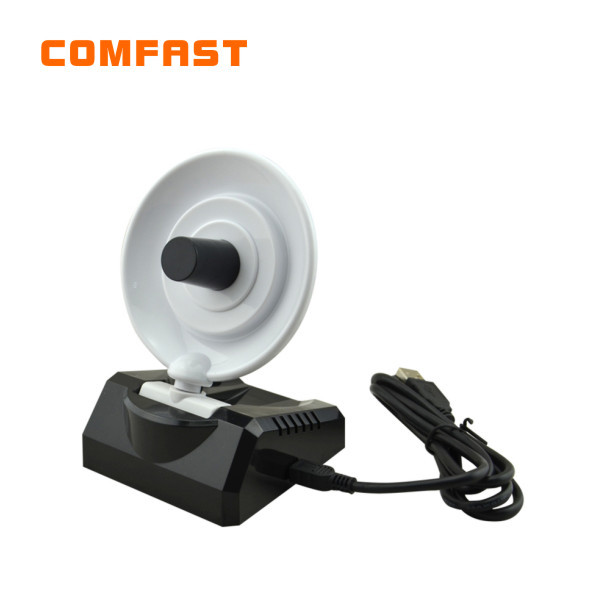

CF-WU770N

Chipset

RALINK3070L

Standard

IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK.used with IEEE 802.11n (draft 2.0)

wireless technology

Interface

USB 2.0

Frequency

2.4~2.4835GHz

Wireless Speed

11n: the highest data rate can reach to 150Mbps

11g: 6/9/12/18/24/36/48/54Mbps (Dynamic)

11b: 1/2/5.5/11Mbps (Dynamic)

Working channel

1~13

Data Modulation

11b: CCK,DQPSK,DBPSK

11g: OFDM

11n: OFDM with PSK,BPSK,16-QAM,64-QAM

RF power

20dBm(Maximum)

RF gain

10dBi Internal antenna

Encryption

64/128/152 digit WEP encryption,WPA/WPA-PSK,WPA2/WPA2-PSK Encryption

LED indicator

Link/Activity

Working environment

Working temperature: 0 to 40 Celsius

Storage temperature: -40 to 70 Celsius

Working Humidity: 10% to 90%RH (non-condensing)

Storage Humidity: 5% to 90%RH (non-condensing)

Operation system

Windows 2000/XP/Vista/WIN 7/LINUX/Mac etc.

Range

Indoors: 1000-2000 m (Theoretical Value)

Outdoors: 2000-3000 m (Theoretical Value)
