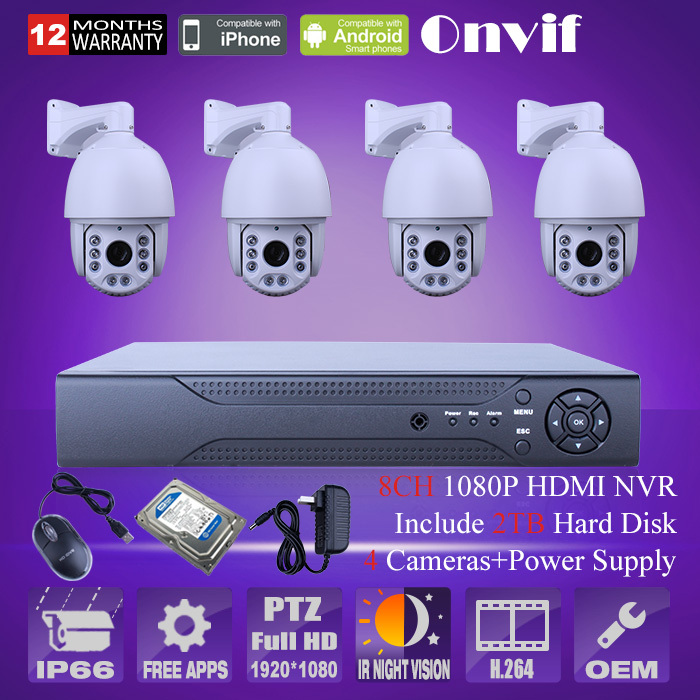

Package includes:

• 1 x 8 Channel Network Video Recorder

• 1 x USB mouse

• 1 x 2TB Hard disk(It was inside the NVR when delivery)

• 4 x 2.0MP 1080P Network Wired IP Camera with Bracket

• 4 x Camera Power adapter

• 4 x CD manual

• 4 x Screws package

Main Features:

• H.264 Main Profile level 3
• Main stream:1920*1080;Sub stream:704*576
• Dual H.264 Stream, resolution, frame rate, bit rate adjustable
• Pan:355°,Tilt:90°,Zoom:4.7-94mm 20x
• Build in Motion Detection , Privacy Mask , image snapshot , Title OSD
• Image Controls: Brightness, saturation, contrast, hue adjustable
• Support RTSP Compatible with AVI Media Player
• Onvif Compliant, Support Milestone/Dahua/Hikvision/Blue iris/Synology/Axxon/NUUO NVR/Software
• Smart Phone Support: iPhone, iPad, Android

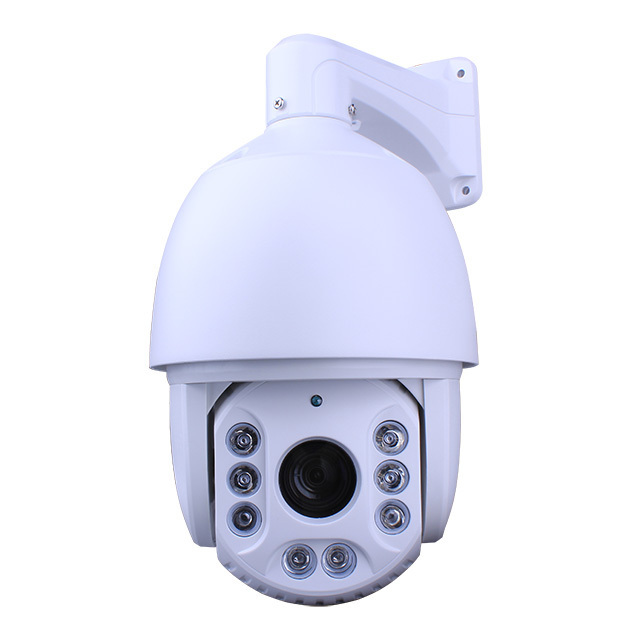

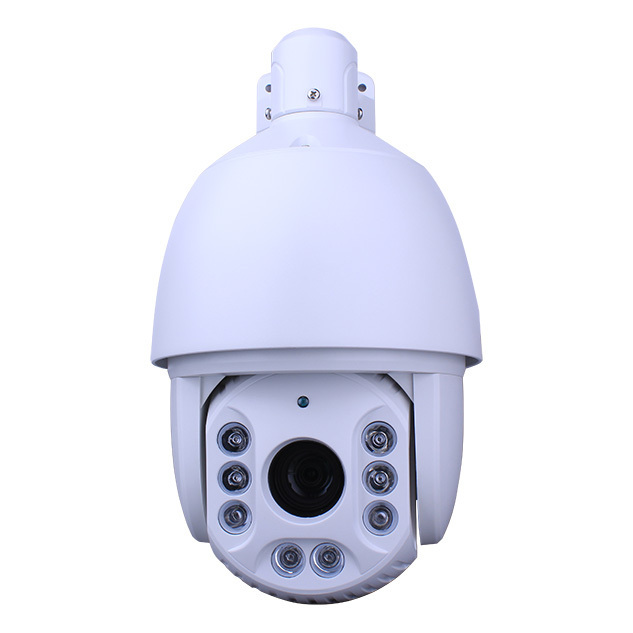

Camera:

• Image Sensor: 1/2.5\'\'Sony CMOS IMX122 Progressive Scan
• Effective Pixels: 1920(H)x1080(V)
• Signal System: PAL/NTSC
• Minimum Illumination: Color: 0.01Lux/F1.6
• B/W:0.001Lux/F1.6
• 0 Lux with IR
• White Balance: Auto
• AGC: Auto/Manual
• S/N Ratio: 50dB
• BLC: ON/OFF
• HLC: Support
• WDR: Support
• Shutter Time: 1-1/30,000s
• Day& Night: ICR
• Digital Zoom: 12X
• Privacy Masking: support
• Auto Focus: Auto / Manual

Lens:

•   Focal Length: 4.7-94mm, 20x
• Zoom Speed: 4s
• Angle of View: 55.4-2.9 degree (Wide-Tele)
• Minimum Working Distance: 100-1000mm(Wide-Tele)
• Aperture Range: F1.6- F3.0

Pan & Tilt:

• Pan Range: 355°
• Tilt Range: 90° (Auto Flip )
• Proportional Zoom: Rotation speed can be adjusted automatically according to zoommultiples
• Number of Preset: 256
• Patrol: 8 patrols, up to 32 presets per patrol
• Power loss recovery: Support
• Park Action: Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame/scan/Panorama scan
• PTZ Position Display: ON/OFF
• Freeze Frame: Support

Infrared:

• IR irradiation distance: 100m
• IR irradiation angle: Adjustable by zoom

Network:

•   Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
• Max.Image Resolution: 1920×1080
• Frame Rate: 50Hz:25fps(1920×1080), 25fps (1920×1080)
• 60Hz:30fps(1920×1080), 30fps (1920×1080)
• Image Compression: H.264 / MJPEG
• Audio Compression: G.711a
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTP,TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• No.of Simultaneous Users: Up to 6 users
• Dual Stream: Support
• User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
• Security Measures: User authentication (ID and PW), host authentication (MAC address)

Client GUI:

• Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and,programming, auto mode
• Web Browser: IE 6+, Firefox 5.0 +

General:

• Menu Language: English / Chinese
• Power Supply: DC12V
• Power Consumption: Max. 18W
• Working Temperature/Humidity: -20 -80(outdoor)
• 80% or less
• Protection Level: IP66 standard (outdoor)
• Mounting: Wall bracket
• Dimensions: 220×290mm (8.66×11.42)(Outdoor)
• Weight: 5.0kg

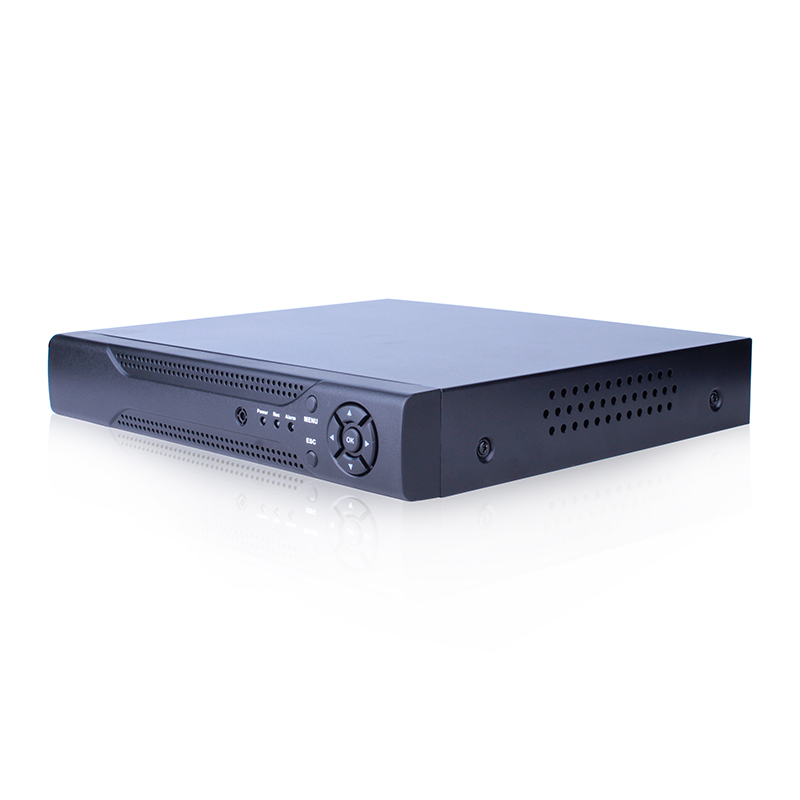

NVR6008T-PL:8*1080P/8*720P/16*D1, 30fps 1080P decoding

Support

Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,Japanese,Portuguese,Russian,Thai,Turkish,Brazilian,Bulgarian,

Farsi,French,German,Hebrew,Hungarian,Polish,Romanian,Spanish,Swedish,Vietnamese

Support smart mobile and network (IE&Firefox)

real time remotely monitoring,such as iPhone,Blackberry,Android,Nokia and windows mobile.

Features

1.H.264 High profile compression algorithm ideal for standalone DVR

2.Realtime live display up to 8 cameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5.Multiple control methods:IR remote controller,USB mouse and front panel press button

6.Smart video detection:motion detection,video blind,video loss

7.Smart camera settings:privacy asking,camera lock,color setting,and tittle display

8.Pan Tilt Zoom and Speed Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,auxiliary function supported.

9.Easy backup methods: USB devices,remote network and client software backup

10.Alarm triggering screen tips,PTZ preset,e-mail &FTP upload

11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

12.Powerful network software:built-in web server,multi-DVR Networking access for remote live viewing,recording,playback,setting,

system statu,event log,e-mail & ftp function.

13.Support DHCP/PPPOE/FTP/DNS/DDNS/NTP/Email alarm/IP right management/IP search/network alarm center functions,

support web client, standalone client and SDK.

14.With the sound system for the protection circuit,unique triple watchdog function,very low power consumption,to ensure

 the equipment never be hang up.With the unique black box technology, monitor the whole run process of the equipment,

15.Enable strong multi-way synchronization with max 2CH 1080P playback,realize the zero-delay between playback channels.

16.Support Onvif 2.0

17. Support XM cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with XM cloud technology.
