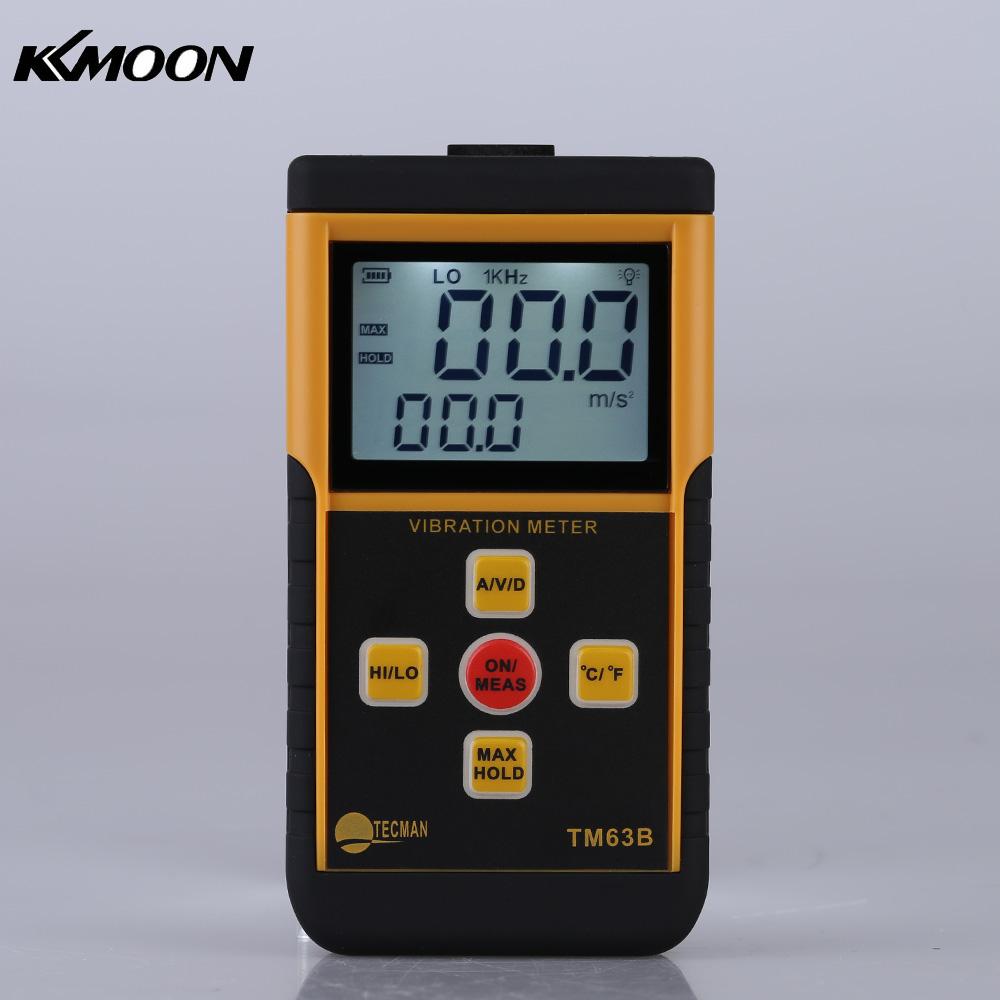

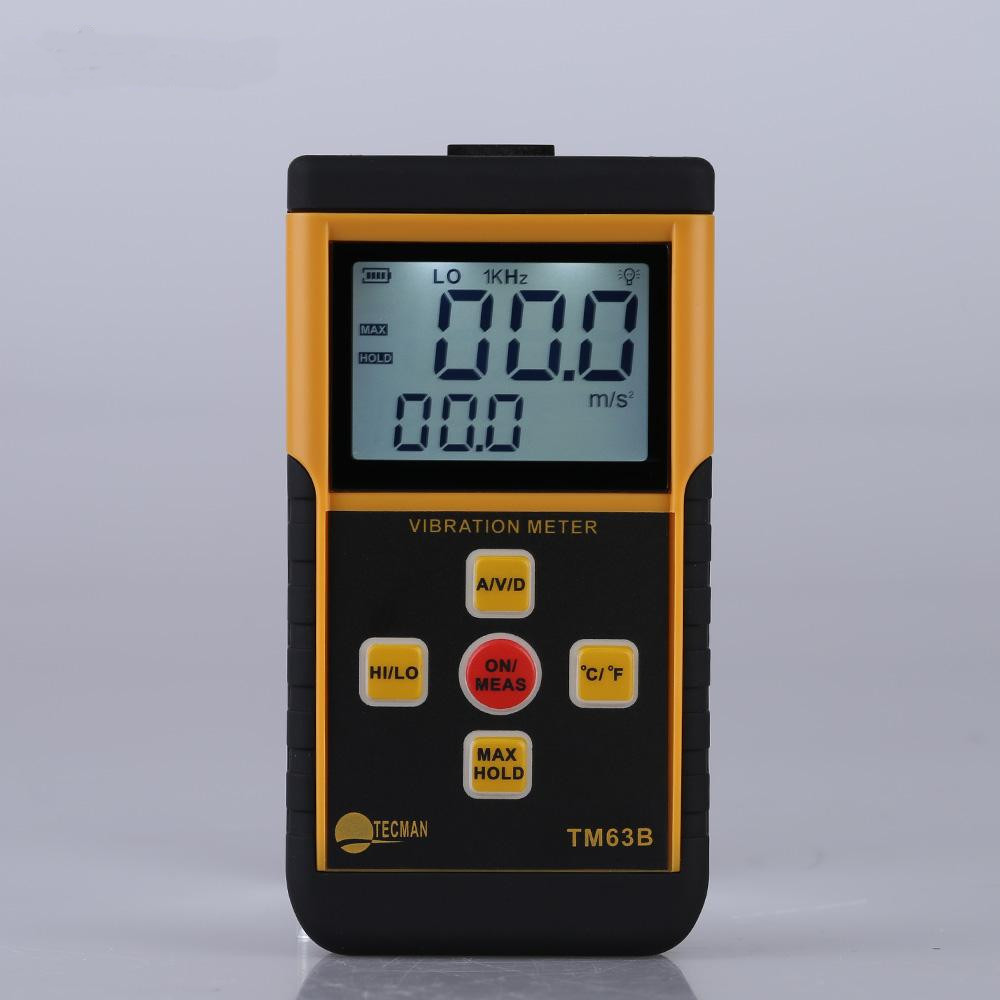

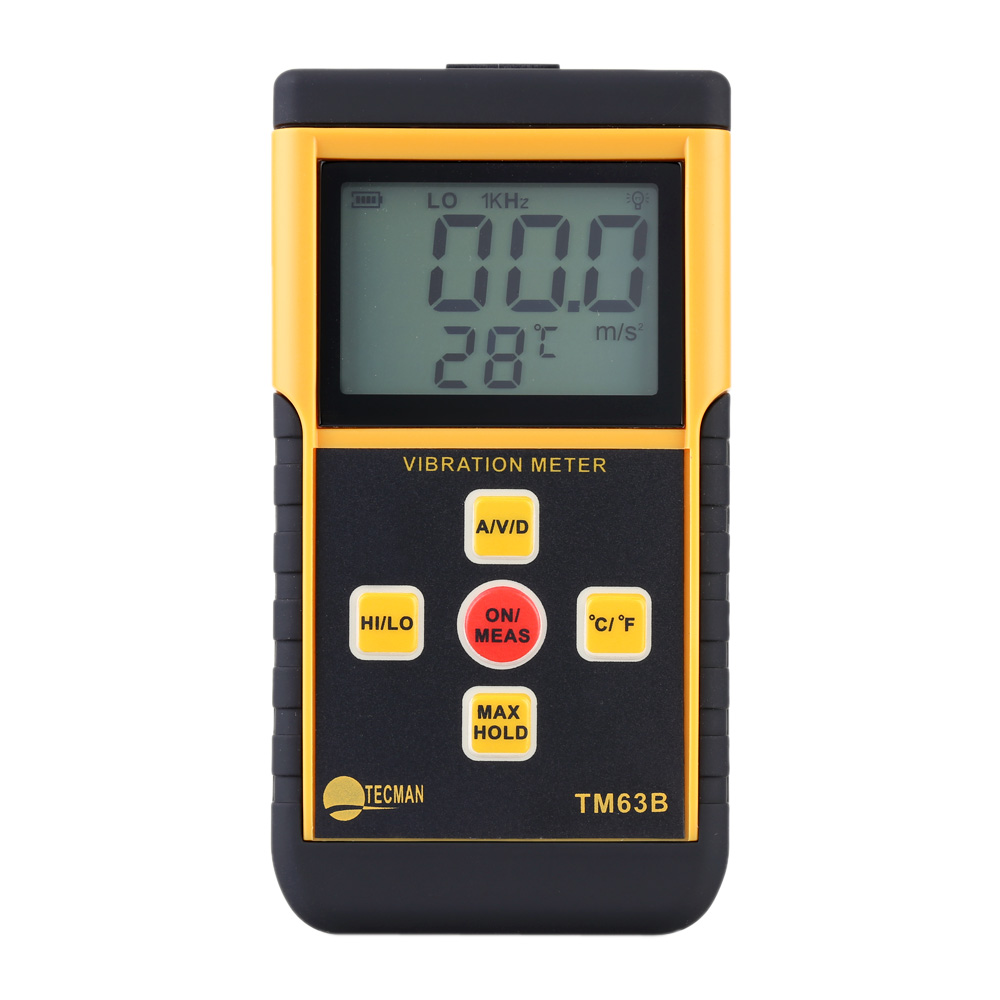

Portable Digital Vibrometer Vibration Analyzer Tester + Temperature Meter with LCD Backlight Maximum Value Hold Function

This product adopts piezoelectric effect of artificial polarized ceramic for design. The item is suitable for monitoring all kinds of vibrating mechanical facility, especially the vibration measurements of rotating and reciprocating machine. The unit can measure acceleration, velocity, displacement and ambient temperature, which is widely used in mechanical manufacture, electric power metallurgy and general aviation field etc.
Features:
LCD backlight display, measurement result and condition can show directly.
Measure acceleration, velocity, displacement.
Selective vibration characteristic.
Uses hi-sense of vibration sensor, measuring accurately.
Equipped with two probes (S & L) to meet different measuring requirements.
Provides a magnetic probe to fit the conditions on which it is uneasy to be held by hand.
Low battery indication & auto power off function.
Max. value hold function.
Temperature unit selection between °C and °F.
Specifications:
Vibration Acquisition: Piezoelectric Ceramic Accelerometer (Shear-type)
Measuring Range:
Acceleration:0.1~199.9m/s⊃2; Peak
Velocity:0.1~199.9mm/s rms
Displacement:0.001~1.999 mm (P﹣P)
Accuracy: ±5% +2 digits
Measuring Frequency of Acceleration: 10Hz~1KHz (LO); 1KHz~15KHz (HI)
Measuring Frequency of Velocity/displacement: 10Hz~1KHz (LO)
Display Update Cycle: 1s
LCD display: 3 1/2 digits Display
Single Output: AC Output 2V Peak(Display Full Scale)

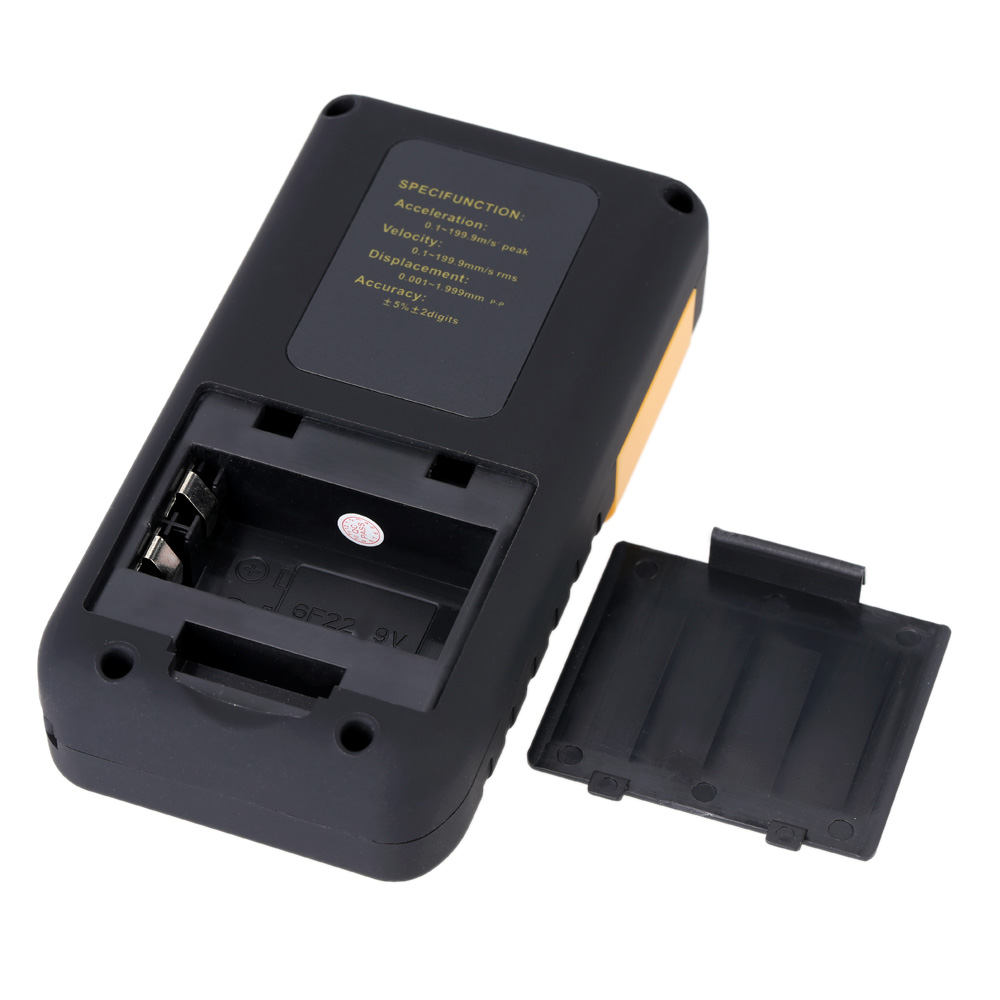

Power Supply: 1 * 9V 6F22 Battery(NOT Included)
Stand-by Current: ≤15μA
Operating Current: ≤25mA
Operation Temperature/Humidity: 0~40°C, 30~90%RH
Temperature Range: -10~80°C / 14~176°F
Temperature Accuracy: ±2°C
Main Unit Size: 135 * 70 * 35mm / 5.3 * 2.75 * 1.4in (L * W * H)
Main Unit Weight: 171g / 6.04oz
Package Size: 24.5 * 20.5 * 5.5cm / 9.64 * 8.07 * 2.16in (L * W * H)
Package Weight: 744g / 26.24oz

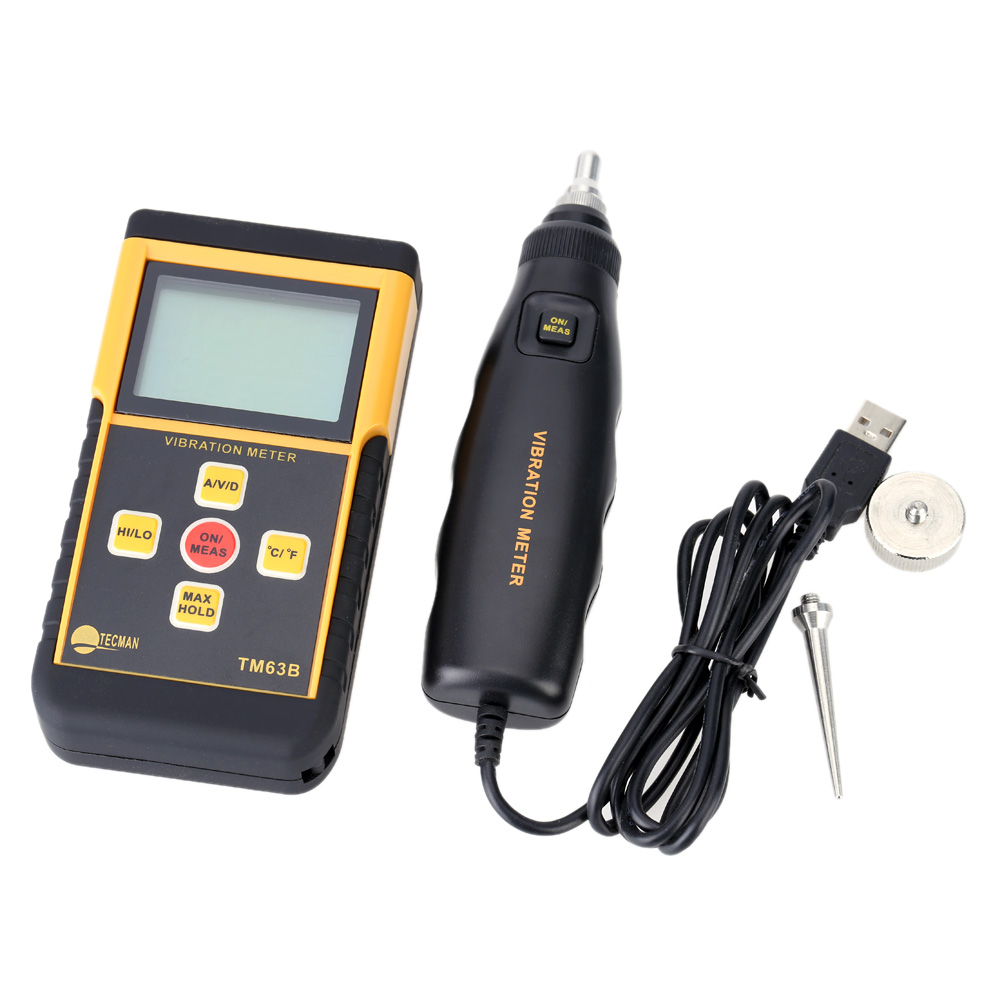

Package List:
1 * Main Unit
1 * Handle Sub-unit
1 * Detector Probe(L)
1 * Detector Probe(S, Equipped on the Main Unit)
1 * Magnetic Chuck
1 * User Manual (English)
