Pneumatic Airtac PT1/4 1/8 2 Position 5 Way Pneumatic Solenoid Valve Electric Air Valve Double Coil AC/DC 12v 24v 110v 220v

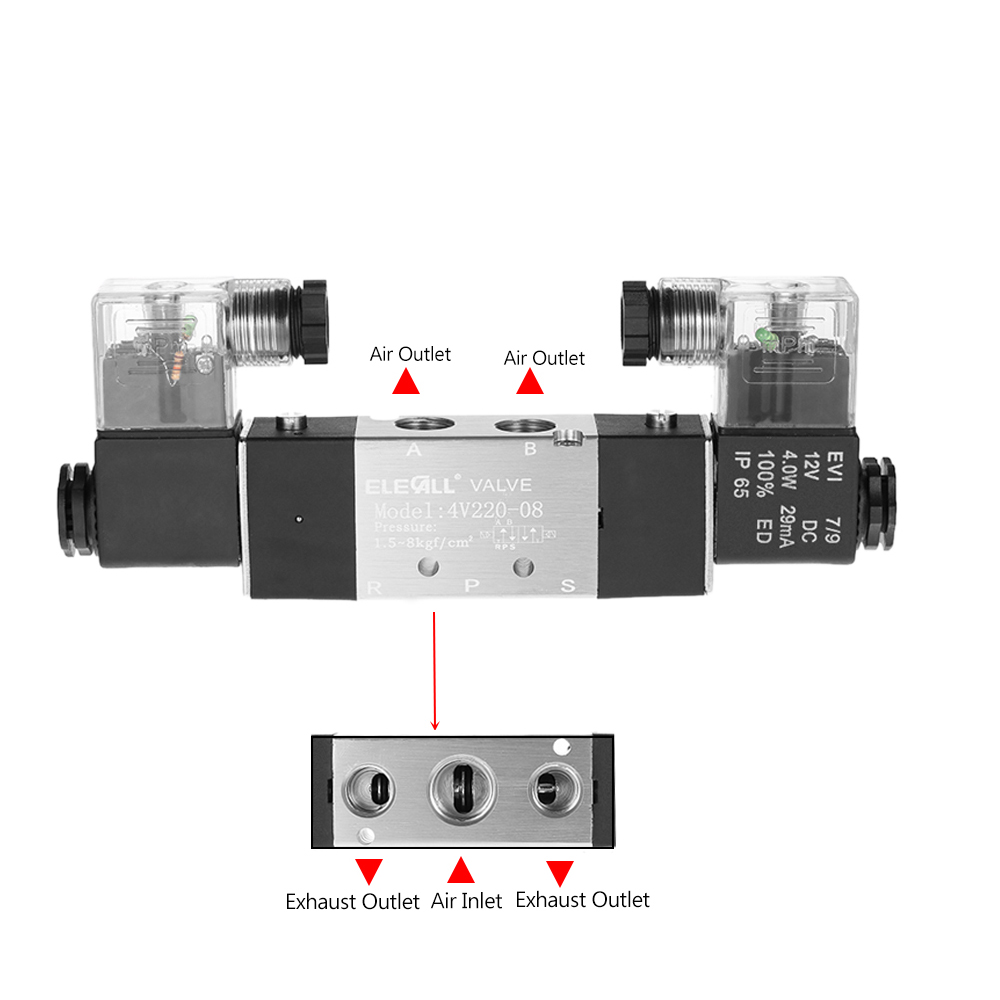

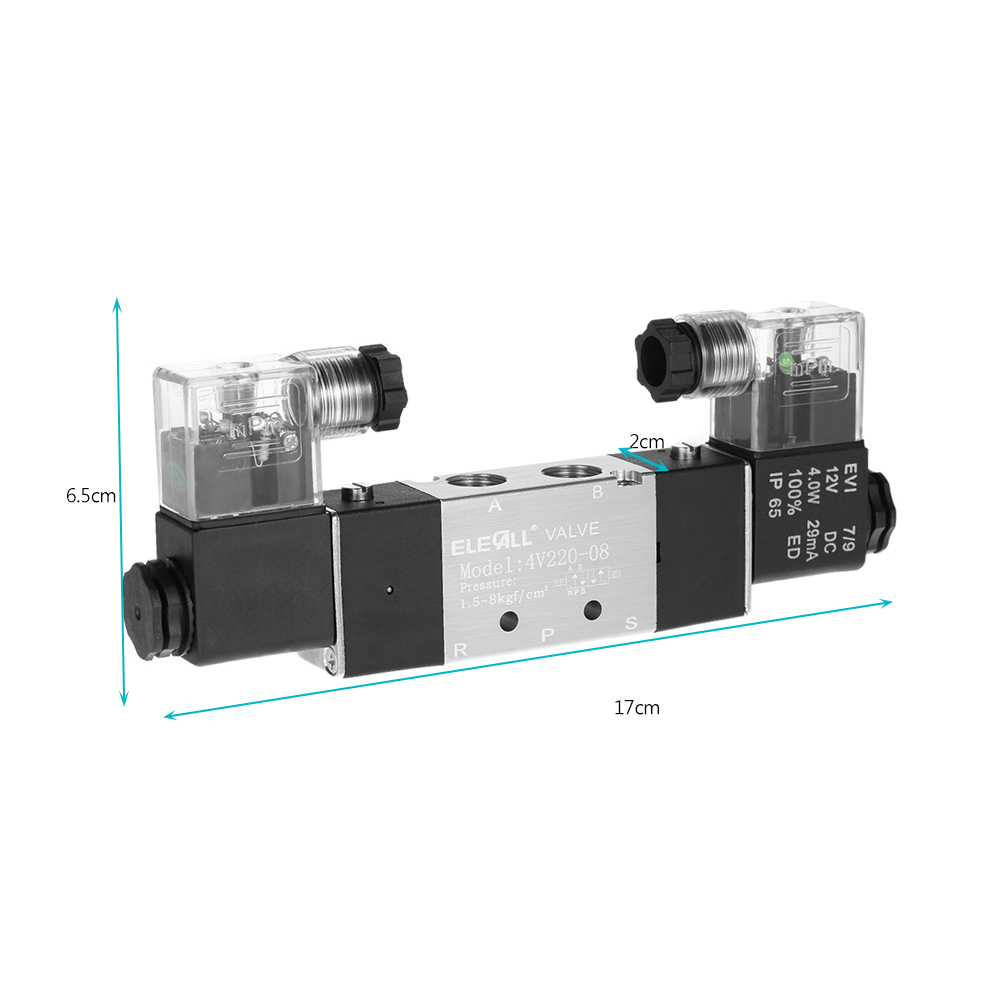

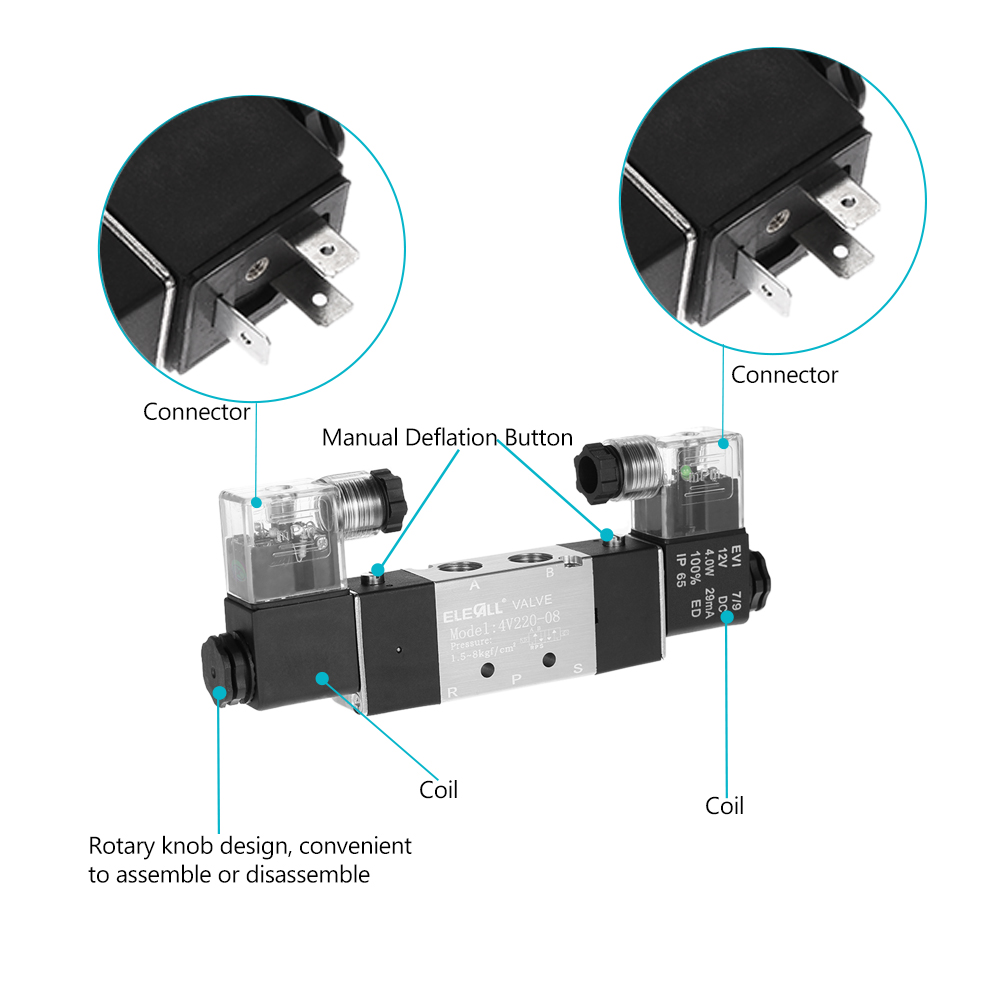

If you want to find a reliable, durable and useful pneumatic solenoid valve, this one is highly recommended. It features of quick response, long service life, good sealing and small frictional resistance.Features:2 position 5 way pneumatic solenoid valve with stable performance and quick response.This valve is designed for control appropriate flow and direction.Made of high quality material, it has a long service life.Rotary knob design, easy to assemble and disassemble.With 2 buttons for manual deflation.With good sealing and small frictional resistance.Specifications:Type: 2 Position 5 WayVoltage: DC12V / DC24V / AC110V / AC220V(optional)Power: 4W(DC12V); 4.8W(DC24V); 3.5W(AC110V); 6VA(AC220V)Material: Aluminum AlloyOperating Medium: Air(filtered by 40μm filter)Operation Type: Internal Pilot OperatedPort Size: Air Inlet=Air Outlet=PT1/4 Exhaust Outlet=PT1/8Operating Temperature: -5~60°C(23~140°F)Lubrication: Not RequiredOperating Pressure: 1.5-8kgf/c㎡Level of Protection: IP65Max. Frequency: 5times/sInsulation: B ClassVoltage Range: -15%~+10%Active Time: <0.05sItem Size: 17 * 6.5 * 2cm / 6.69 * 2.56 * 0.79inItem Weight: 302g / 10.67ozPackage Size: 19.5 * 7 * 3cm / 7.68 * 2.75 * 1.18inPackage Weight: 328g / 11.56ozPackage List:1 * Pneumatic Solenoid Valve
