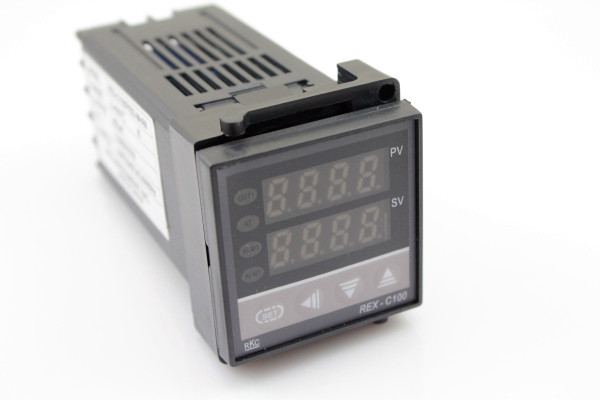

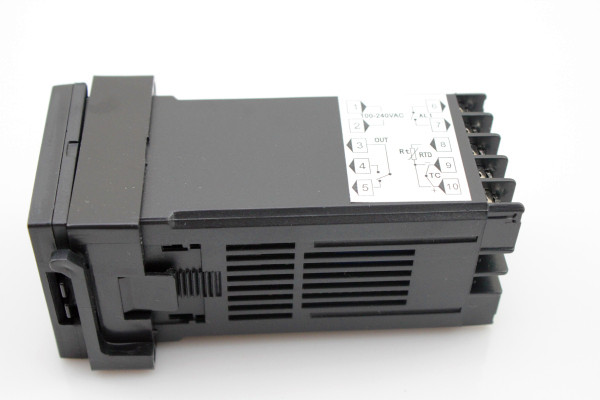

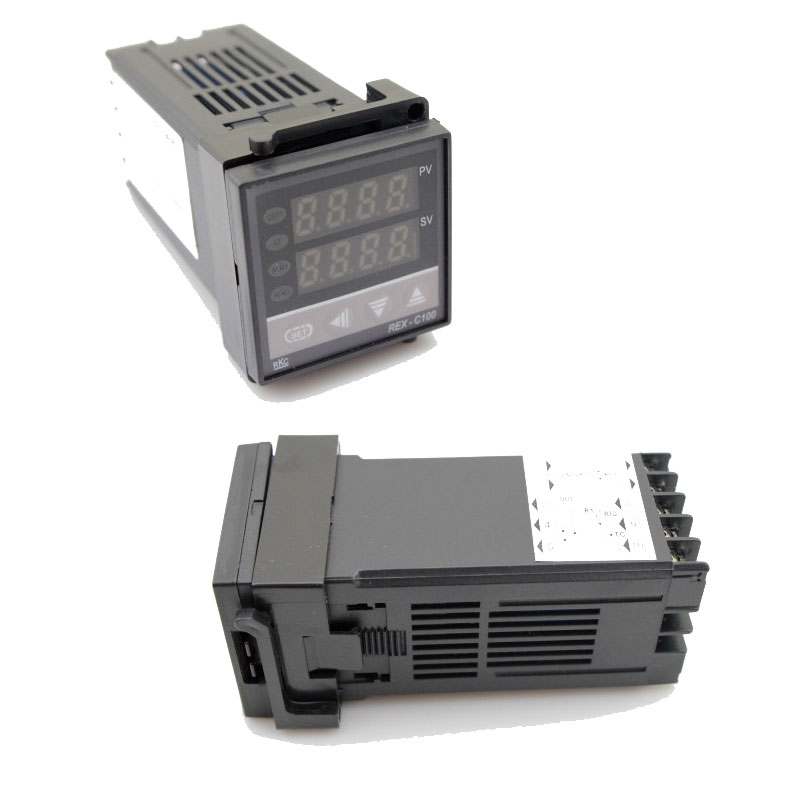

PID Digital Temperature Control Controller Thermocouple 0 to 400 Degrees Heat-reset Alarm function
PID Digital Temperature Control Controller Thermocouple 0 to 400 degrees Measuring accuracy: ±0.5%FS Cold-end compensation tolerance: ±2 degrees (can be modified by software for 0~50degrees) Resolution: 14 bit Sampling cycle: 0.5 Sec Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by LED PIN control (including ON/OFF, step-type PID and continuous PID) Alarm function output: 1 way Contact capacity of output: 250V AC 3A (resistive load) Setting value (SV): identical to measuring range (PV) Proportional band (P): 0~full range (ON/OFF control when set to 0) Integral time (I): 0~3600 sec (No integral action when set to 0) Derivative time (D): 0~3600 sec (No derivative action when set to 0) Heat-reset proportional cycle: 1~100 sec Detective temperature range:0 to 400 degrees Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: <10 VA Service environment: 0~50 degrees, environment with no corrosive gas 30~85% RH Dimensions:5.5 * 6.3 * 11.5 cm / 2.2 * 2.5 * 4.5in Weight: 161g / 5.7oz Please assure that you are familiar with this product before you buy, because the manual we offer is Chinese. Package Includes: 1 * Temperature Control Controller 1 * Instruction Manual
