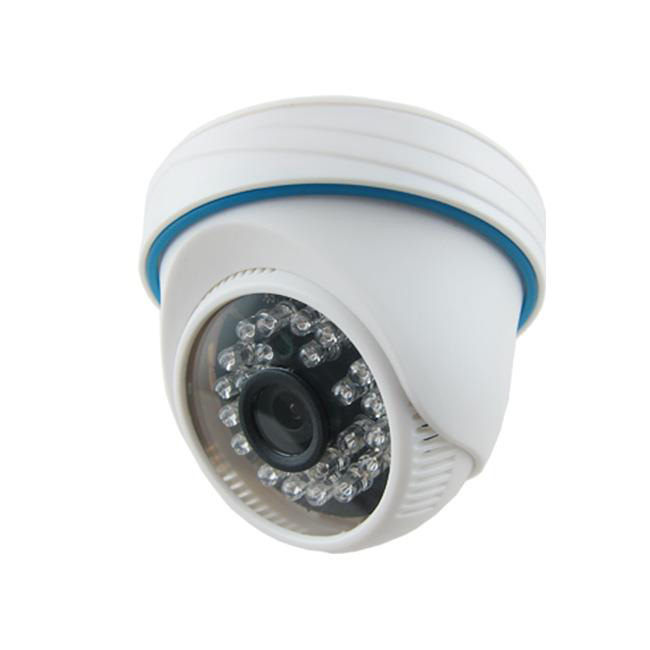

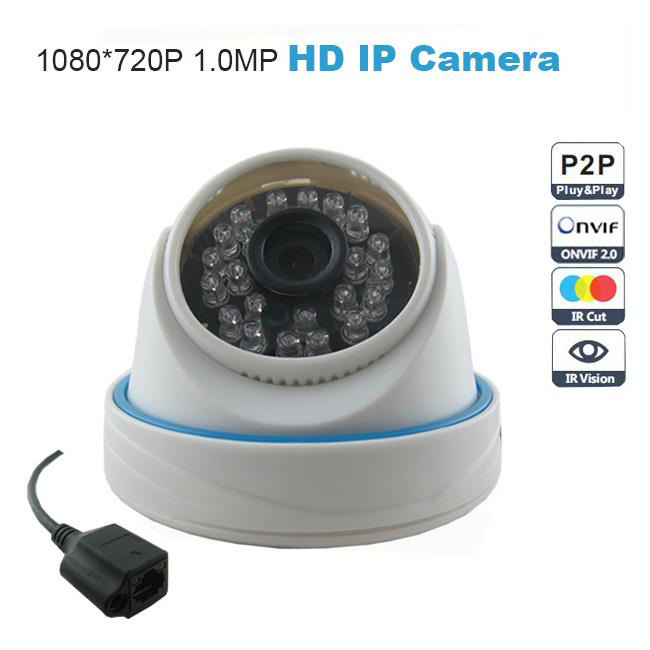

Onvif 1280*720P HD 1.0MP Mini Dome IP Camera IR Night Vision P2P Plug Play CCTV Security Camara,Free Phone view Free shipping

1. This module uses Huawei Hass Hi3518E + OV9712 (38 or 32) as the core,High Resolutiion 1.0 Megapixel 1/4" CMOS Sensor

2. 1280*720P Resolution 25fps real time.

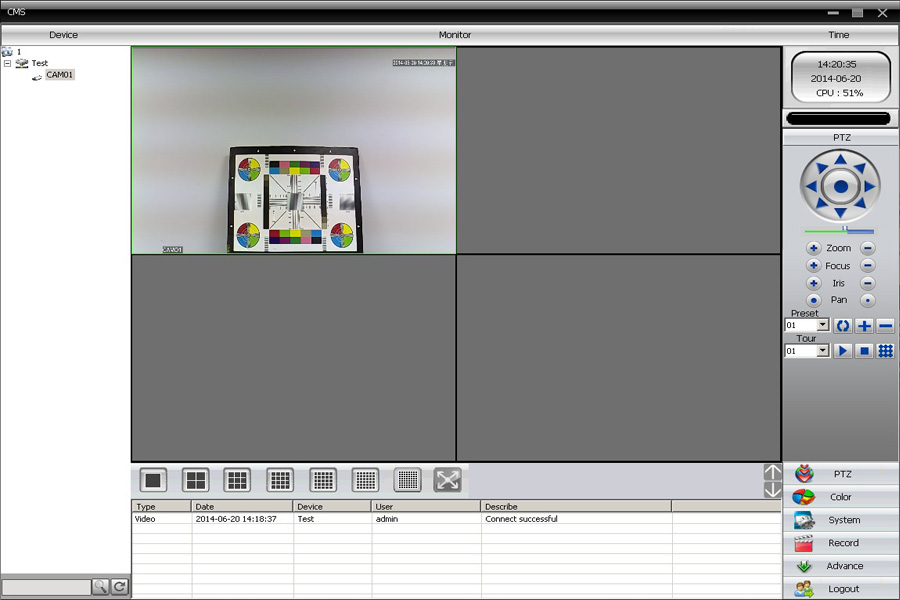

3. Using XM CMS client, Supports P2P remote, does not need to open router ports without port mapping, Easy remote access.

4. Support IE, Firefox,Google browser

5. Supports mobile phone remote access easily, AS: Apple, Android, Win, Symbian, Blackberry.

6. Support for international Onvif agreement, compatible XM,Hikvision, Dahua and other well-known manufacturers of NVR.

7. 24IR LED With 20m IR Distance

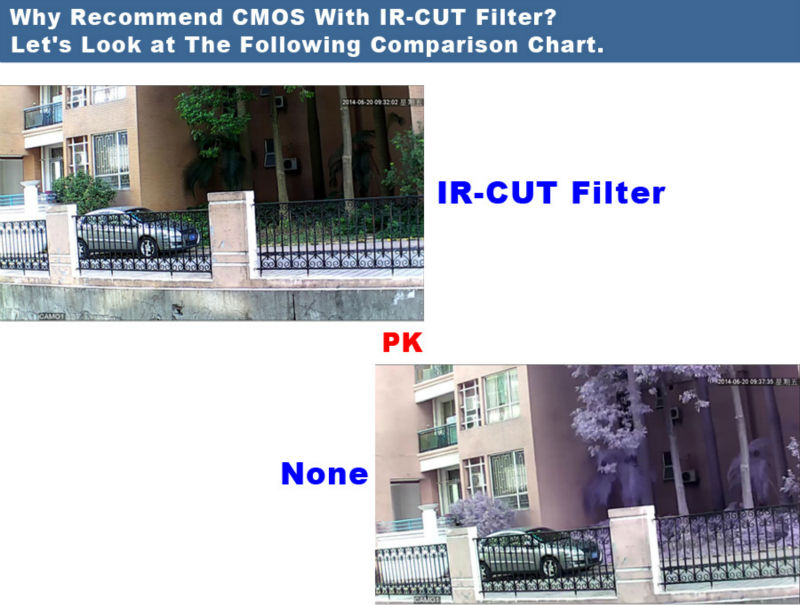

8. Built in IR-CUT Filter

9.Day & Night Vision

10. High Quality ABS Plastic

Model NO.                                                              50-NX4C100A

Camera

Image Device                                                       1/4" High Sensitivity CMOS

Image senser                                                      OV 9712

DSP                                                                        HI3518E

TV System                                                            PAL/NTSC

Effective Pixels                                                    1280(H) x 720(V)

Min. Illumination                                                  0Lux(IR-ON )

Day/Night                                                              ICR

Infrared LED                                                  24pcs Taiwan Dingyuan IR LED

IR Distance                                                          15-20 Meters

Infrared Spectrum                                               850nm

Lens

Focal Length                                                      (Default:3.6mm)6mm/8mm Optional

Compression

Video compression                                          H.264 Main Profile/JPEG capture

Video Bite Rate                                                 100Kbps~6Mbps

Audio compression                                          G.711a


Max Resolution                                                 1280(H) x 720(V)

Frame Rate                                                         PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

Image settings                                                  Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage                                                               Network storage

Intelliget Alarm                                                  Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol                                                              TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

                                                                               (HTTPS,SIP ,802.1x,IPv6 optional)

Basic                                                                    Anti-flicker, dual stream, heartbeat, password protection

Interface

Communication Interface                              1 RJ45 10M/100M self-adaptive Ethernet interface

Video output                                                      1Vp-p Composite Output(75Ω/BNC)

General

Operating condition                                          -10~60,umidity 90% less (non-condensing)

Power supply                                                      DC12V±10%

Current                                                                  <280mA

Dimensions                                                          100*100*90mm

Net Weight                                                            250g/pcs

1 x Mini 720P IP Camera

 1 x User Manual

1 x CD

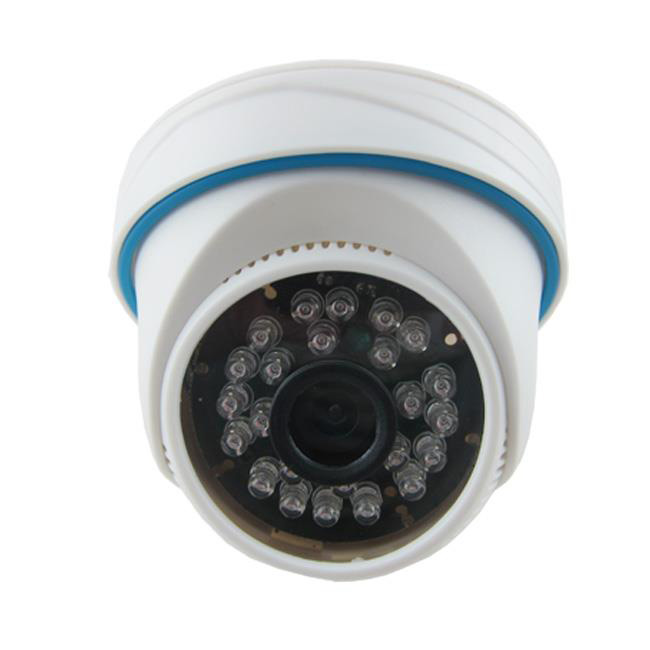

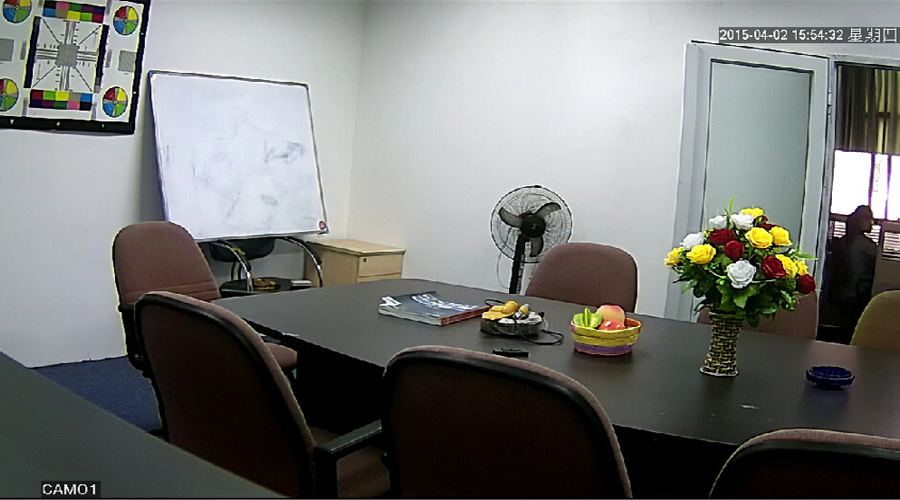

Indoor picture

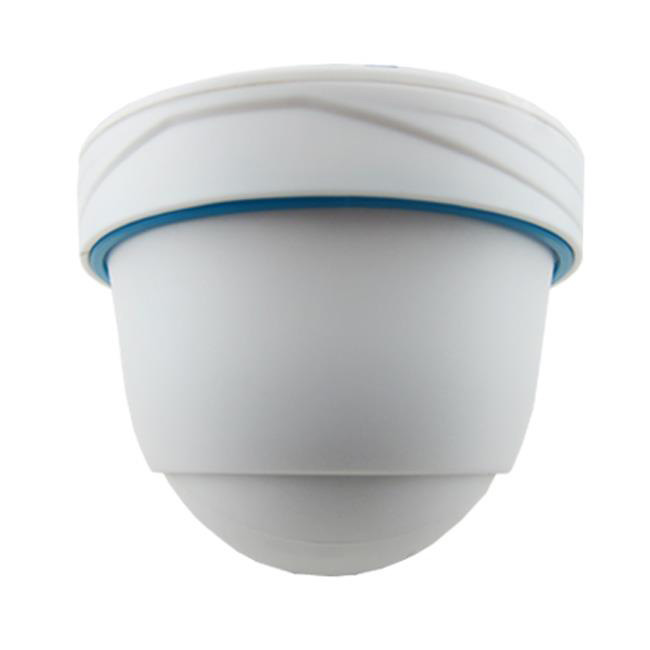

outdoor picture

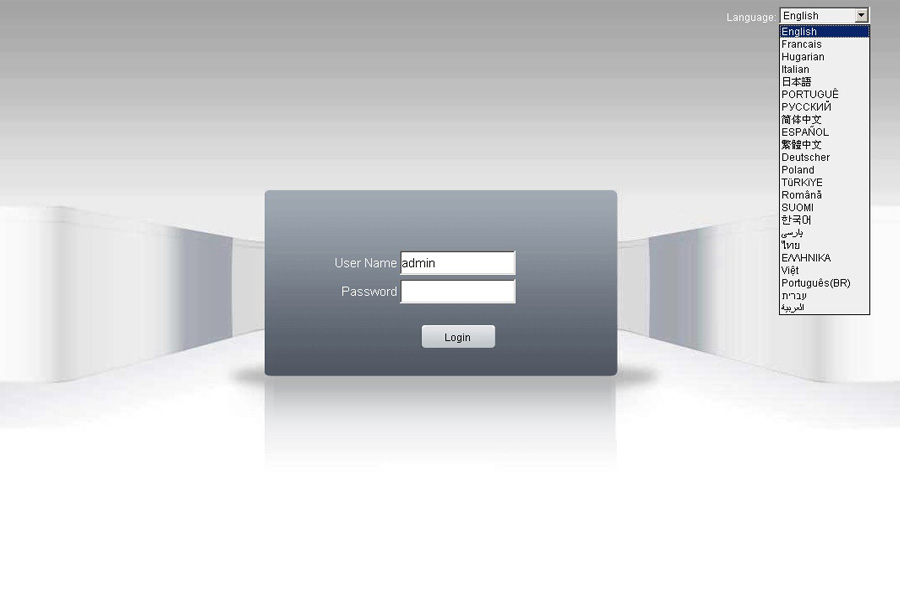

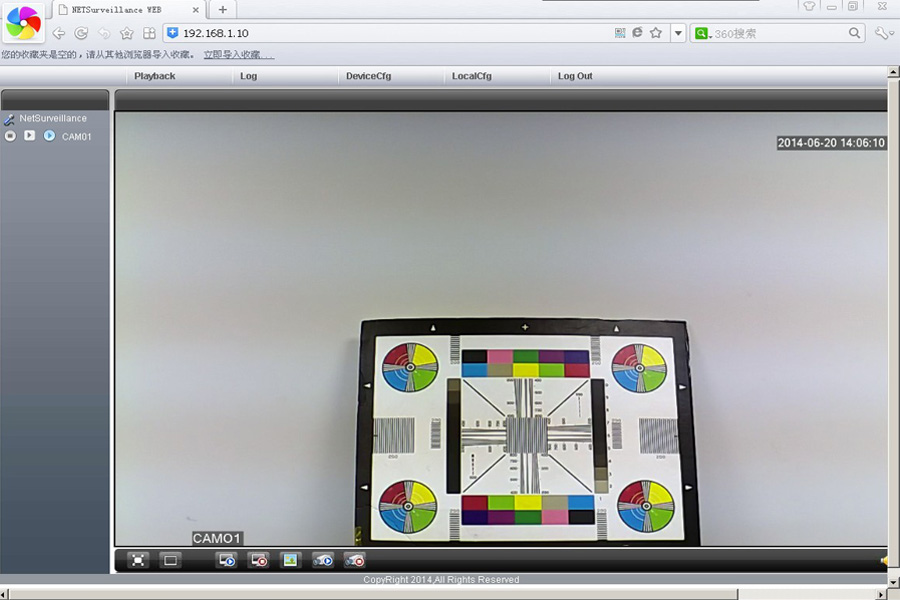

The Standard IP is:192.168.1.10

User name:amdin

Password: None

Remind: If you use the software first time, you need to install a plugin.

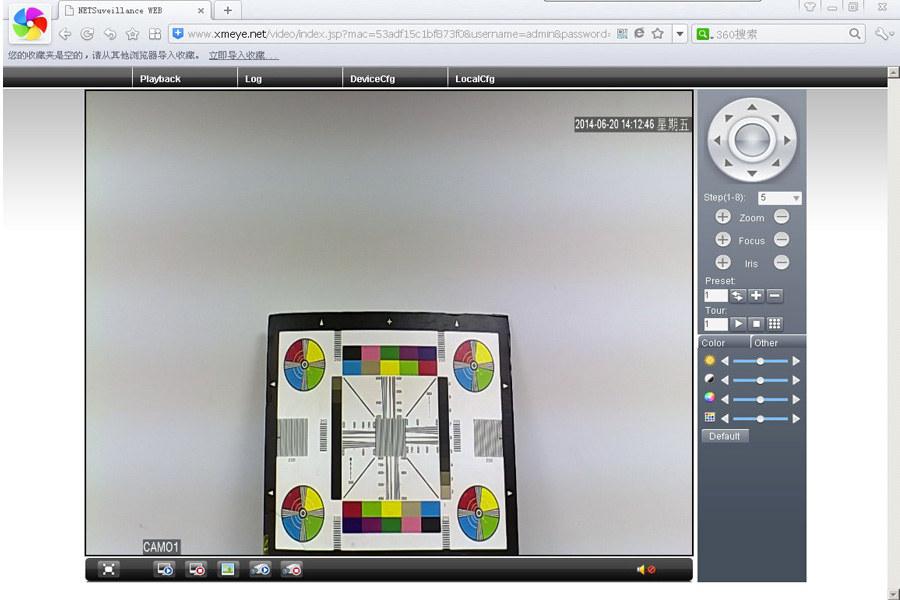

P2P on the browser

www. xmeye. net

If you log in first time,you need to register an account freely.

1.   Android System Installation(Two ways)

(1).Android user can install directly.The APP is in the CD.

Install the app "XMEye"

(2) Please visit www.xmeye.net, Then use your smartphone toscan this image.

Then complete the download and installation.

2. Iphone user can download app on Apple Store.

How to use?

If you have the account already,you can view directly.

If you login first time,you also need to register.
