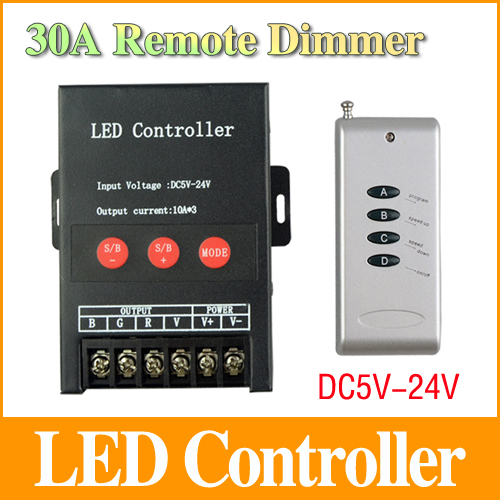

New 30A RGB LED Controller RF Remote Dimmer DC 5V / 12V / 24V Current 4 Keys 7 Colors Controller For LED strip CR07

<<prev

next>>

New 30A RGB LED Controller RF Remote Dimmer DC 5V / 12V / 24V Current 4 Keys 7 Colors Controller For LED strip CR07

SKU:

LS26553

Category: RGB Controller

$26.50

Enquiry

Footer Group

Description

30A LED Controller:

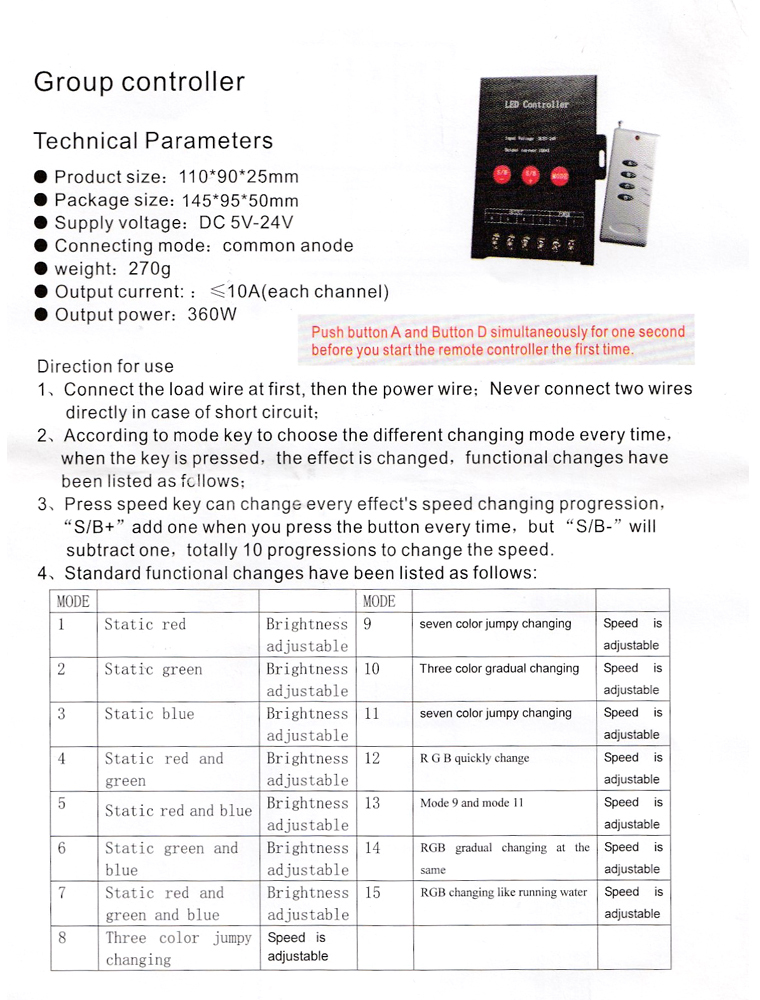

Specification

Product size: 110mm x 90mm x 25mm	Supply voltage:DC 5V-24V
Control mode: common anode	Weight:270g
Output current:≤10A(each channel)	Output power:180W/360W-720W
Operating temperature: -20-60 ° C	Output:3-channel

Direction for use:

1.Connect the load wire at first, then the power wire; Never connect two wires directly in case of short circuit;

2.According to mode key to choose the different changing mode every time.when the key is pressed the effect is changed, functional changes have been listed as follows.;

3.Press speed key can changed every effect's speed changing progression. "S / B +" add one. When you press the button every time. But "S / B-" will subtract one. Totally 10 progressions to change the speed

4 Standard functional changes have been listed as follows

Mode			Mode
1	Static red	Brightness adjustable	9	Seven color jumpy changing	Speed is adjustable
2	Static green	Brightness adjustable	10	Three color gradual changing	Speed is adjustable
3	Static blue	Brightness adjustable	11	Seven color jumpy changing	Speed is adjustable
4	Static red and green	Brightness adjustable	12	RGB quickly chang	Speed is adjustable
5	Static red and blue	Brightness adjustable	13	Mode 9 and mode 11	Speed is adjustable
6	Static green and green	Brightness adjustable	14	RGB gradual changing at the same	Speed is adjustable
7	Static red and green and blue	Brightness adjustable	15	RGB changing like running water	Speed is adjustable
8	Three color jumpy changing	Speed is adjustable

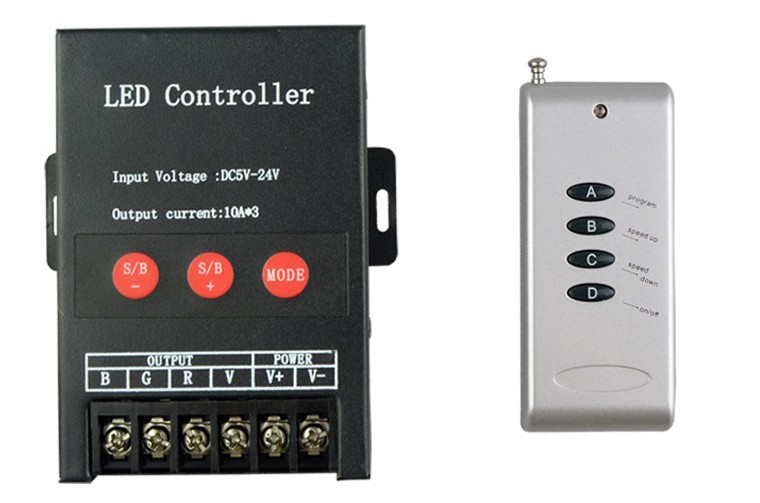

Control Method:

Adopt wireless control method, function of each button as below:

Button "A": is the style / color function key, could choose different color changes

Button "B": each press changing speed + 1

Button "B": each press changing speed-1

Button "D": the output switch.

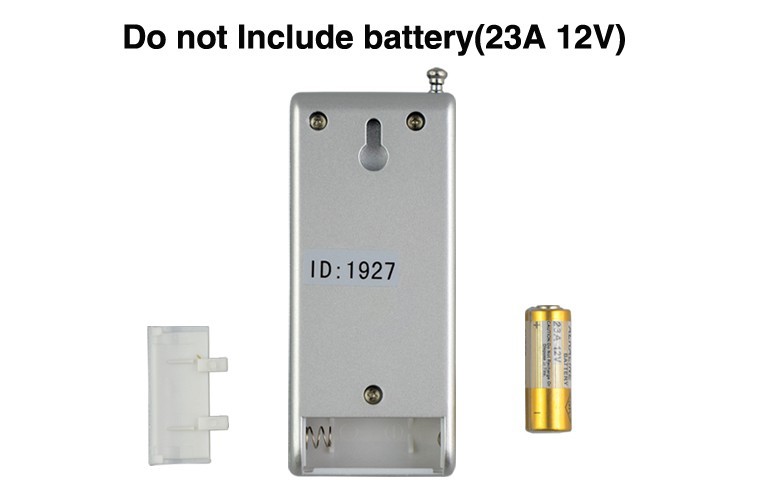

About 23A 12V batteries

- Because the battery is transport contraband, so our products are not included 23A12V batteries So you need to buy it in your country.

Package Include:

1 x 30A RGB LED Remote Controller

1 x User Manual

New 30A RGB LED Controller RF Remote Dimmer DC 5V 12V 24V Current 4 Keys 7 Colors Controller For LED strip CR07
