Operation:

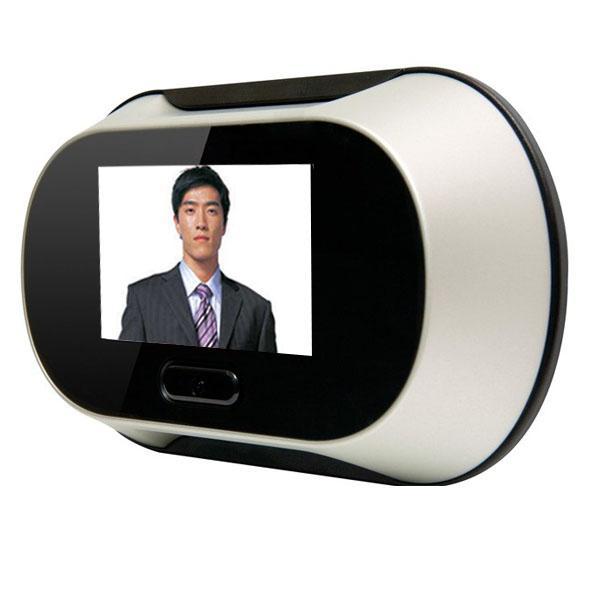

1.   3.5" color TFT display

2.   Peephole barrel :12mm (large peephole barrel can be done) .

3.   Fits any door 35-65mm

4.   Sensor :300,000pixels

5.   Press call button , red led light turn on ,door chime ring at indoor display .Press monitor button ,the display turn on .

6.   Press monitor button to turn on the display to see outside anytime .

7.   The display will turn on 8seconds ,then become back .

8.   When adjust the melody ,the display which turn on can last 20seconds .

9.   At the bottom of display ,left button is to adjust sound volume ,the right button is to adjust melody .

10.   16pcs melody for option

11.   Can press monitor button by 1500pcs at least per 3pcs AA battery.

12.   “Don’t disturb” function : When hold monitor button of display for seconds without loose ,then the screen turn off ,loose ;so the adjustment of “don’t disturb “ is finished . When in “don’t disturb “ function ,anyone press call button ,indoor display have no door chime sound . Cancel “don’t disturb function “: just hold monitor button for seconds until the screen turn on .

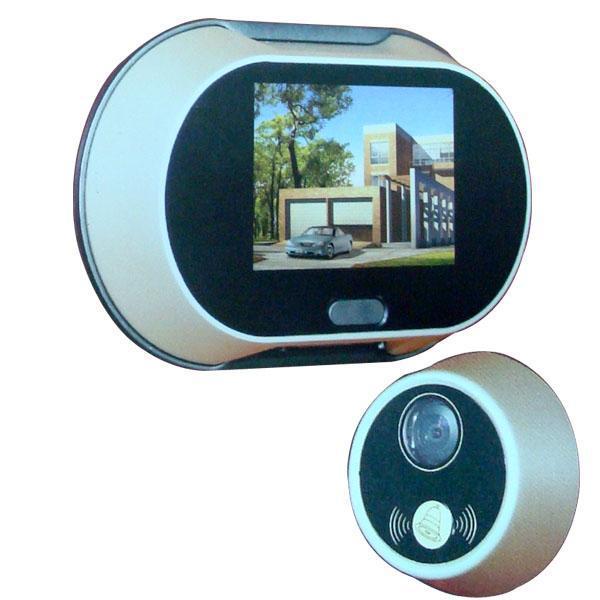

Parts:

1.   Peephole viewer

2.   Base Flange

3.   Peephole lens

4.   11cm wire

5.   Peephole Barrel

 AA battery is not included .

Installation:

Step 1. Insert Peephole lens in the outside of the door

Step2. Insert Peephole barrel through base Flange and insert both into the hole on the inside of the door .

Step3: Put 3pcs AA battery in peephole viewer , Connect the 4P cable with viewer ,then fix it on base flange by inserting match hole .

Package included:

1PC x Peephole viewer
1PC x Base Flange
1PC x Peephole lens
1PC x 11cm wire
1PC x Peephole Barrel
(AA battery is not included )
