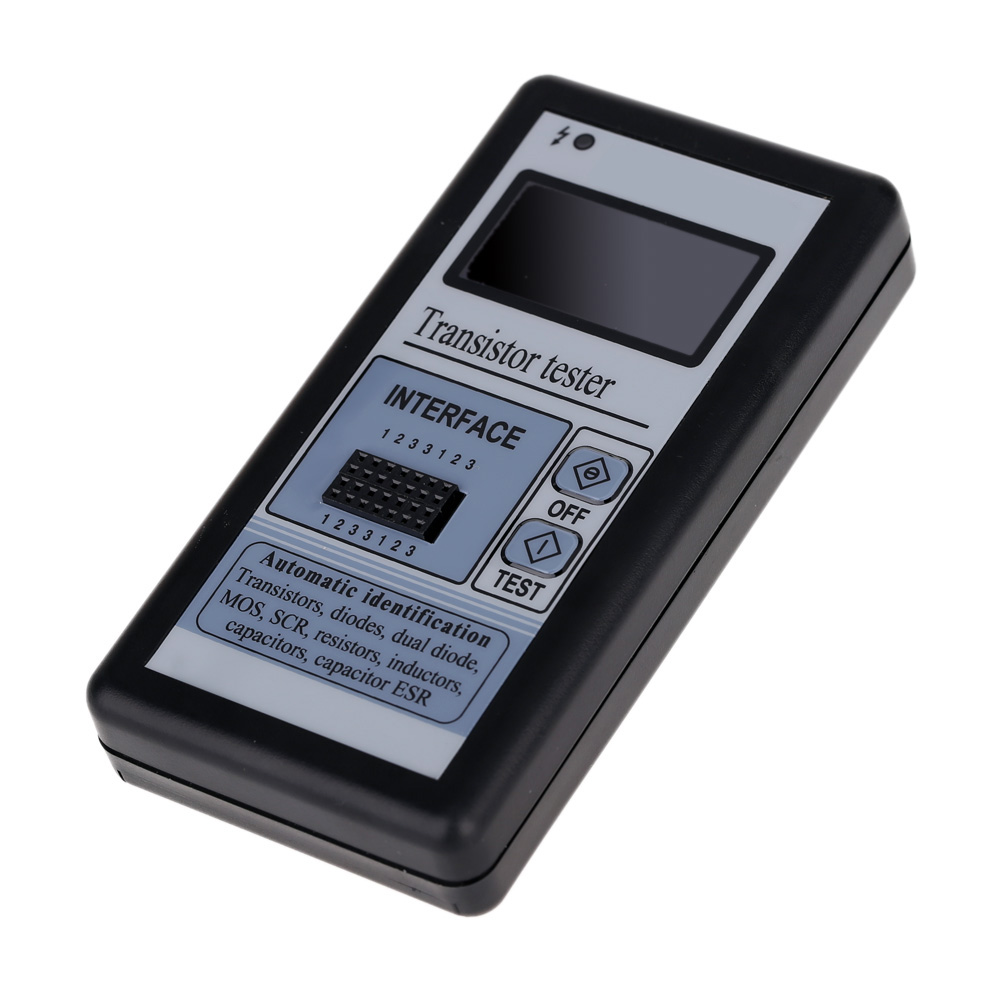

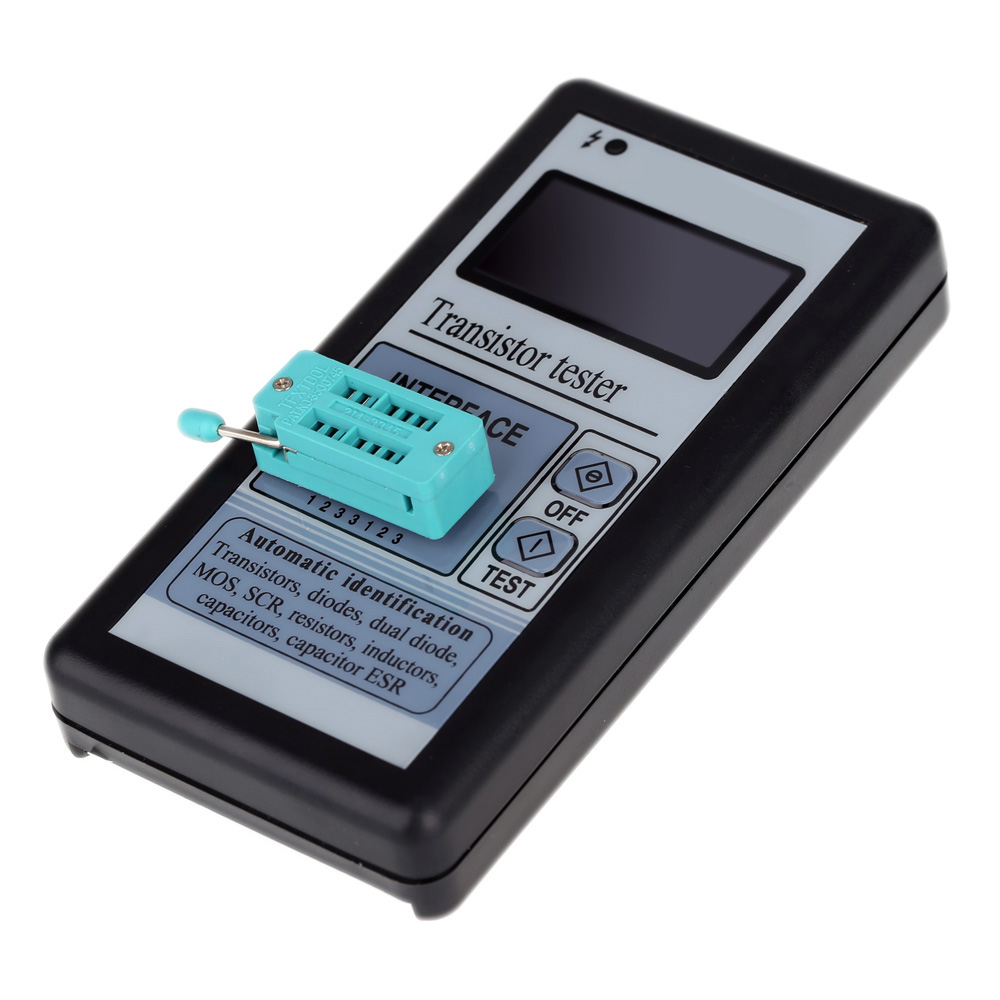

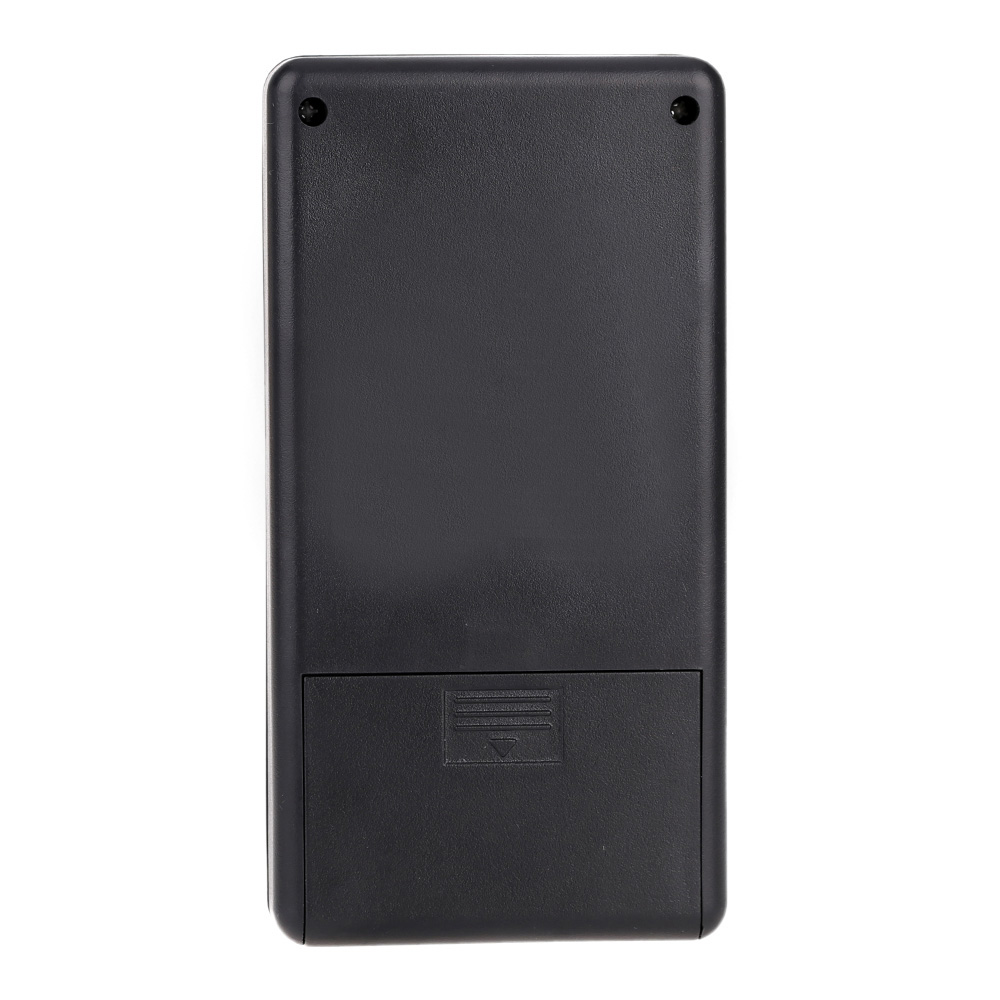

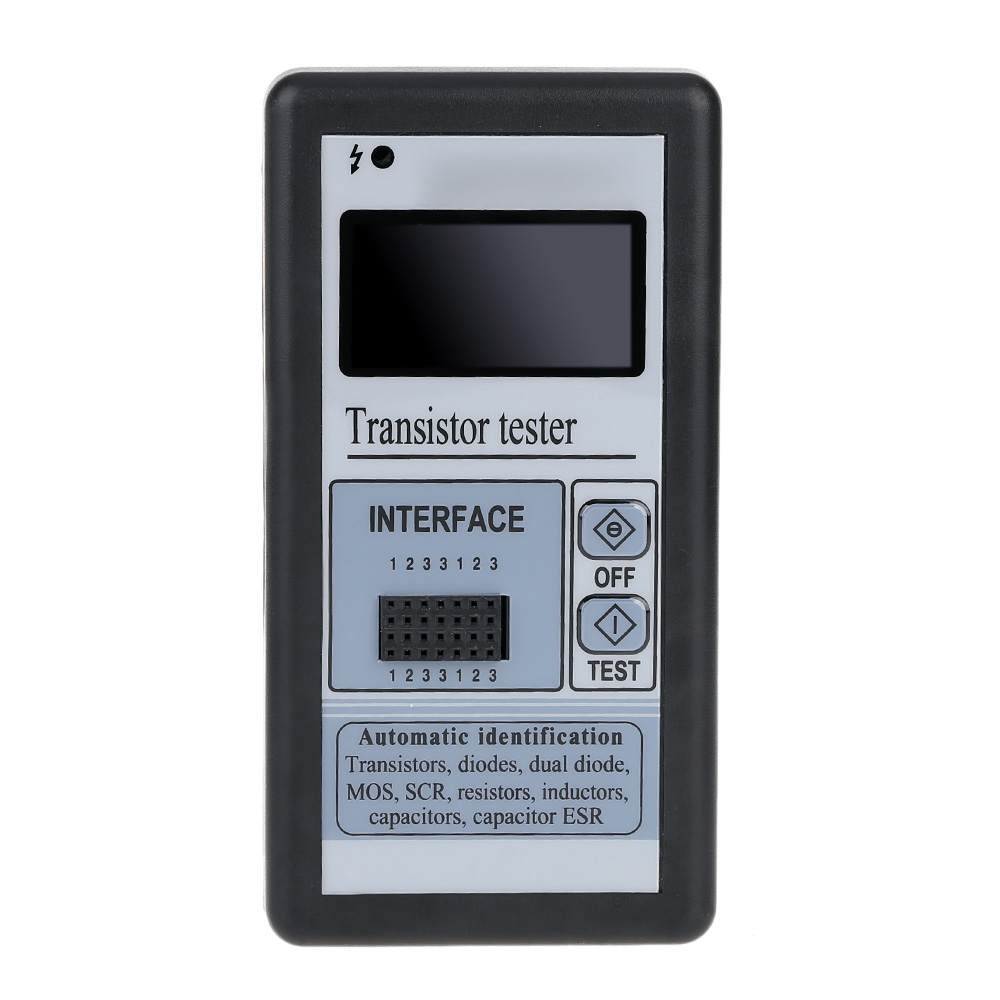

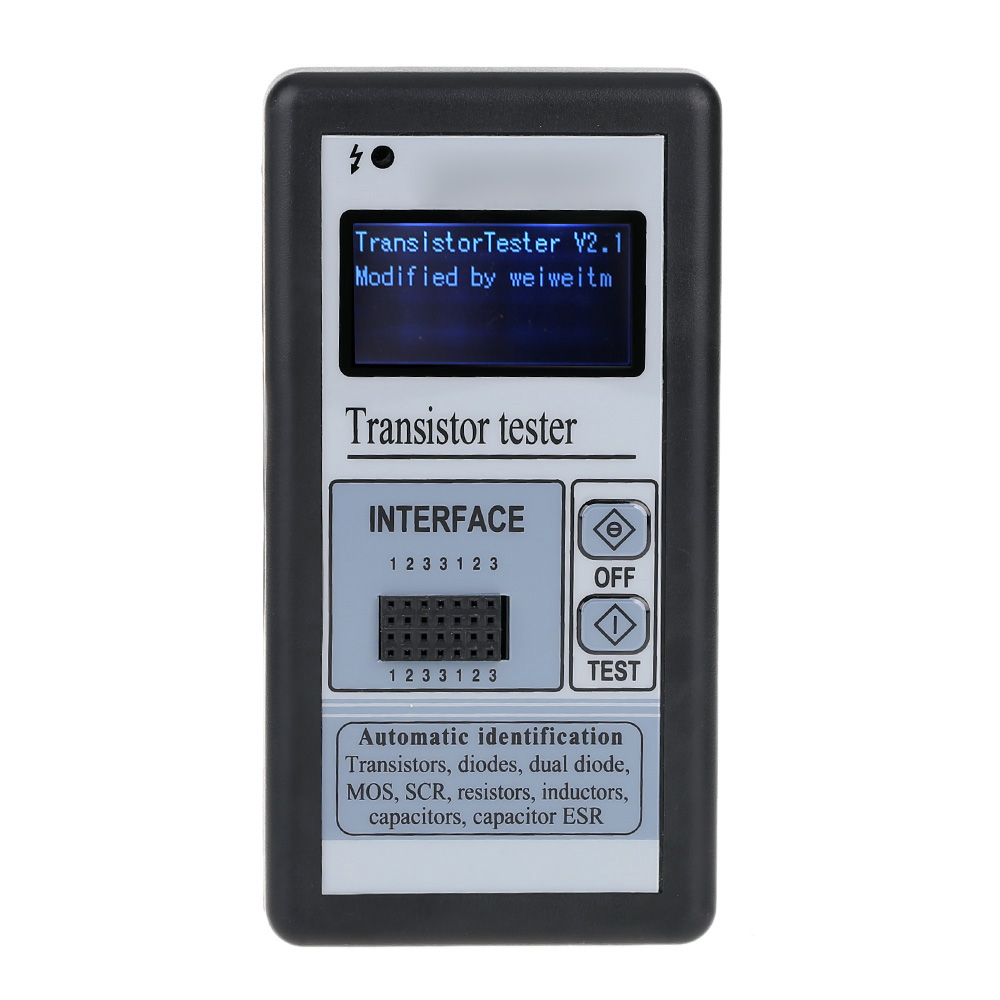

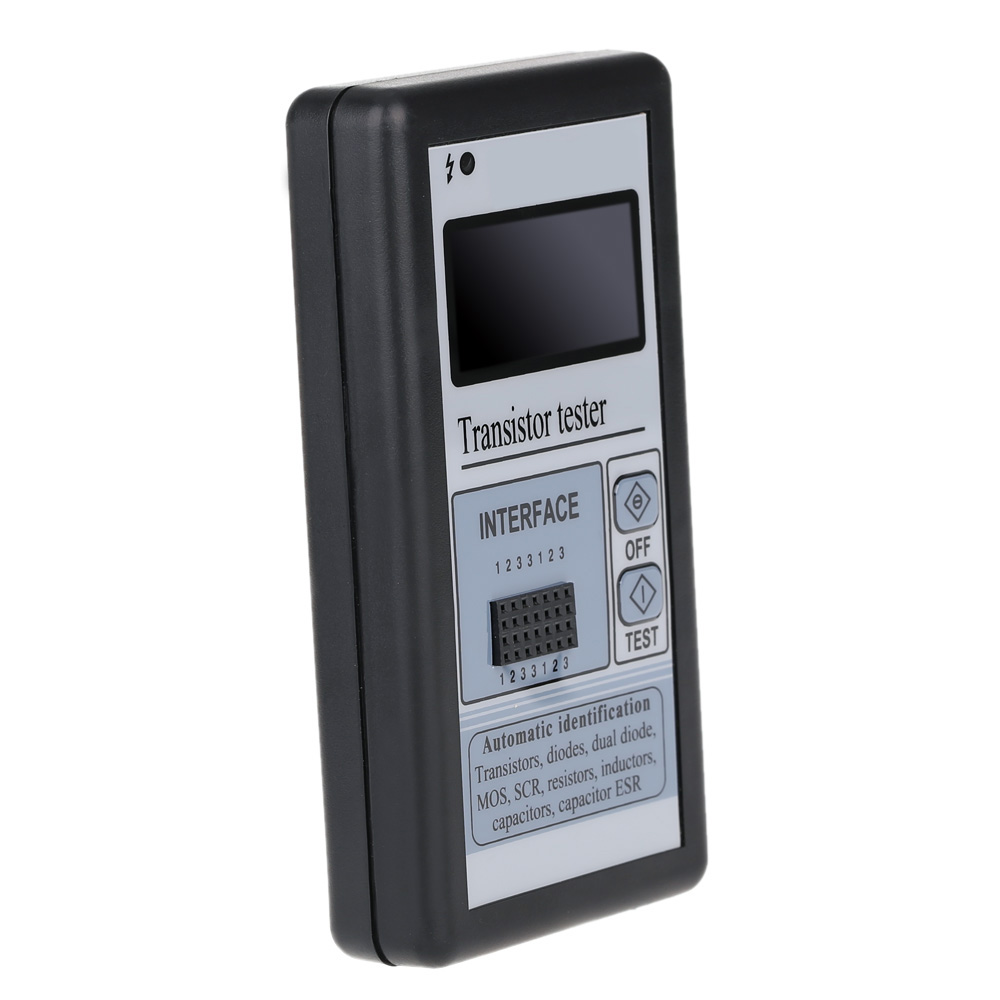

Multi-functional LCD Backlight Transistor Tester Diode Thyristor Capacitance Meter ESR LCR Meter with Grey Plastic Case

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate.
Features:
The display is 128*64 LCD with backlight in blue color.
Powered by 9V battery.
All components are protected by a grey plastic case, convenient to carry.
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices.
Automatically test the pins of a component and display on the LCD.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
Two-button operation, automatic shutdown to avoid unnecessary waste.
Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.
Note:
Please make sure that capacitors are discharged before testing.
Specifications:
Material: PCB + Plastic
Display: 128 * 64 LCD
Shutdown Current: 20nA
Resistor Test Range: 0.5Ω-50MΩ
Inductor Test Range: 0.01mH-20H
Capacitor Test Range: 25pF-100000uF
Item Size: 13 * 6.5 * 2cm / 5.1 * 2.6 * 0.8in
Item Weight: 103g / 3.7oz
Package Size: 20 * 11.5 * 2cm / 7.9 * 4.5 * 0.8in
Package Weight: 107g / 3.8oz
Package List:
1 * Transistor Tester (battery not included)
