Motor Controller DC 12V-36V 500W Brushless Motor Controller Without Hall PWM Control Balanced Car Driver Board
SMT process, high quality.

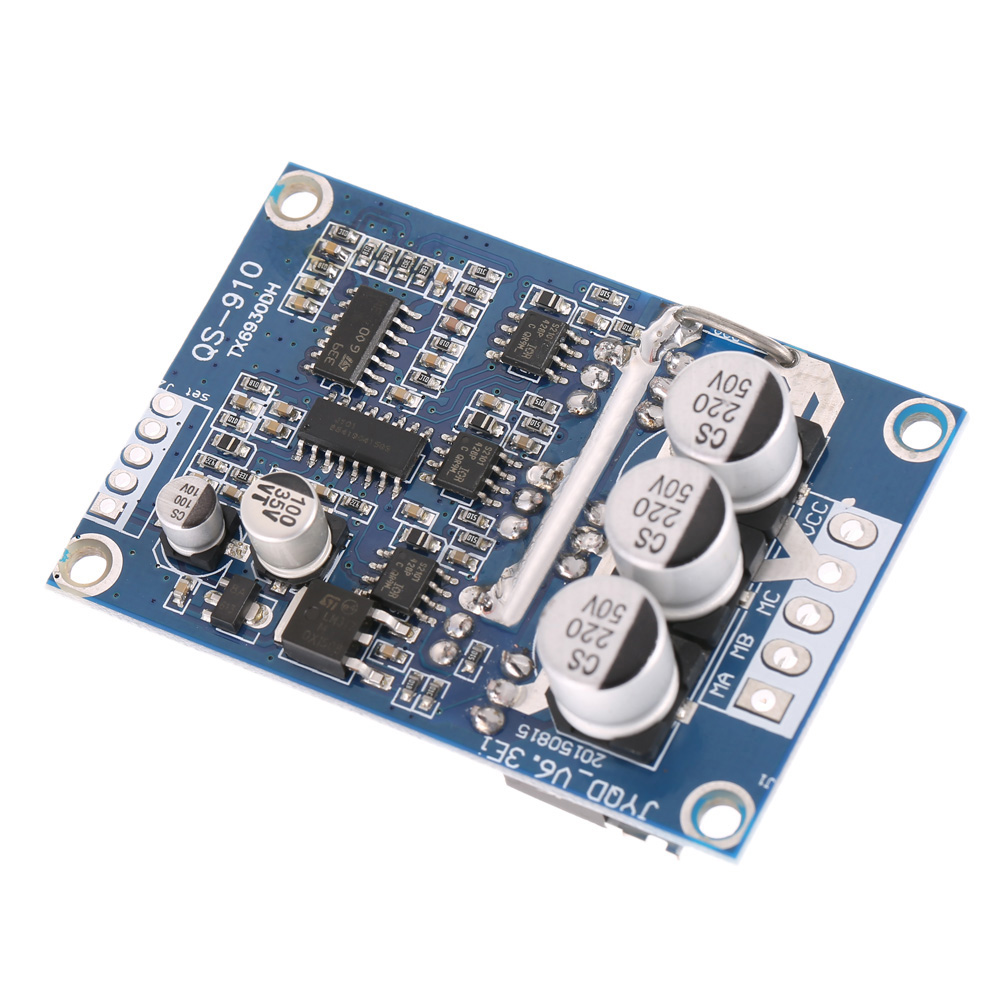

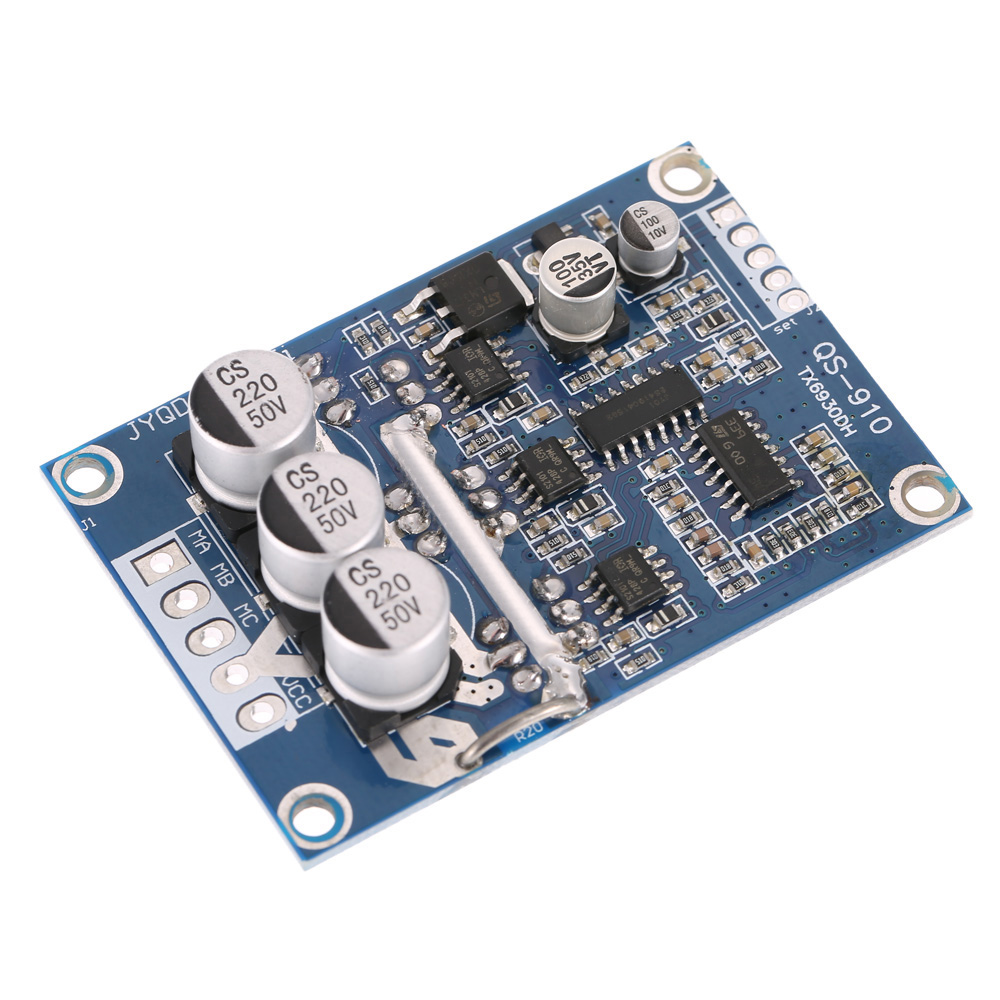

DC brushless motor driver board.
Operating voltage: DC 12V to 36V; operating current ≤15A.
With speed control function, 0.1V-5V speed voltage.
Over-current protection and speed signal.Specifications:
Operating Voltage: DC12-36V
Operating Current: ≤15A
Drive Power: ≤500W
Speed Voltage: 0.1V-5V
Operating Temperature: -40~85°C
Over-current Protection: Yes
Speed Signal: Pulse Speed Signal
Speed Control Function: Yes(external potentimeter control)

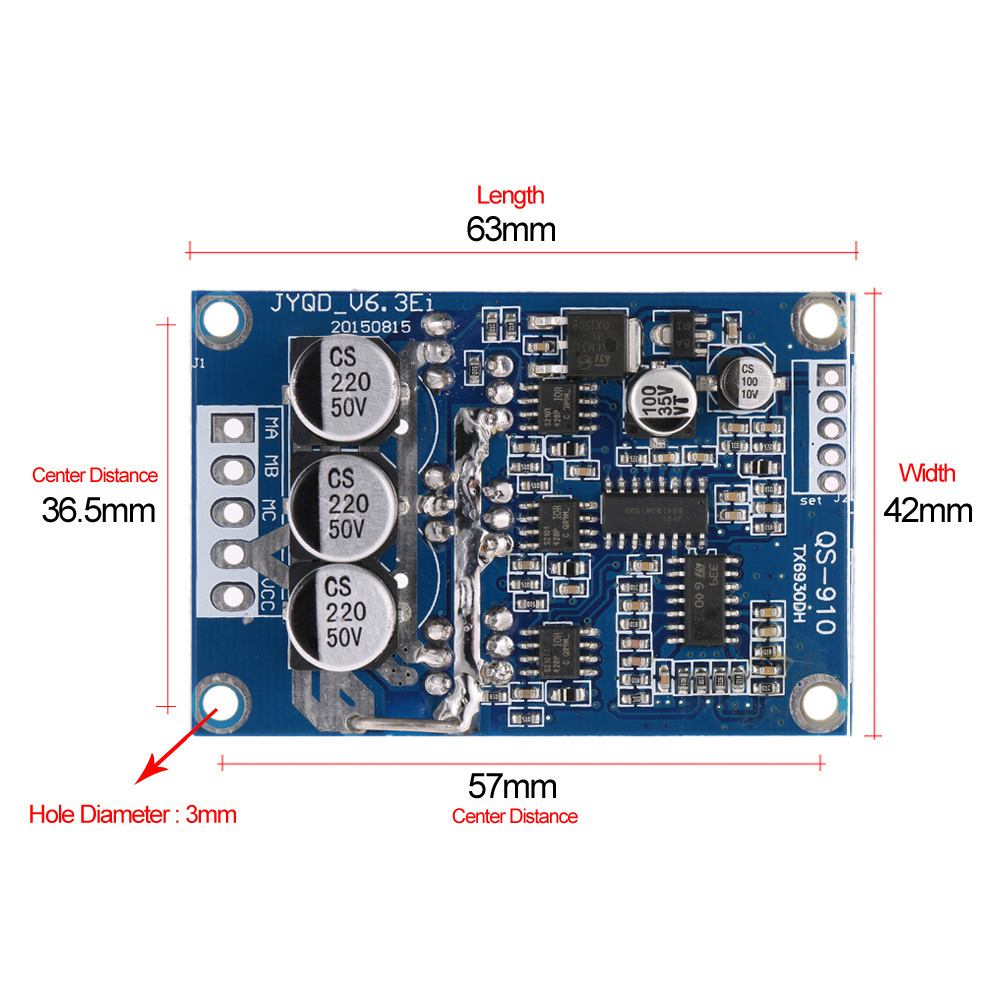

PCB Size: 63 * 42 * 17mm

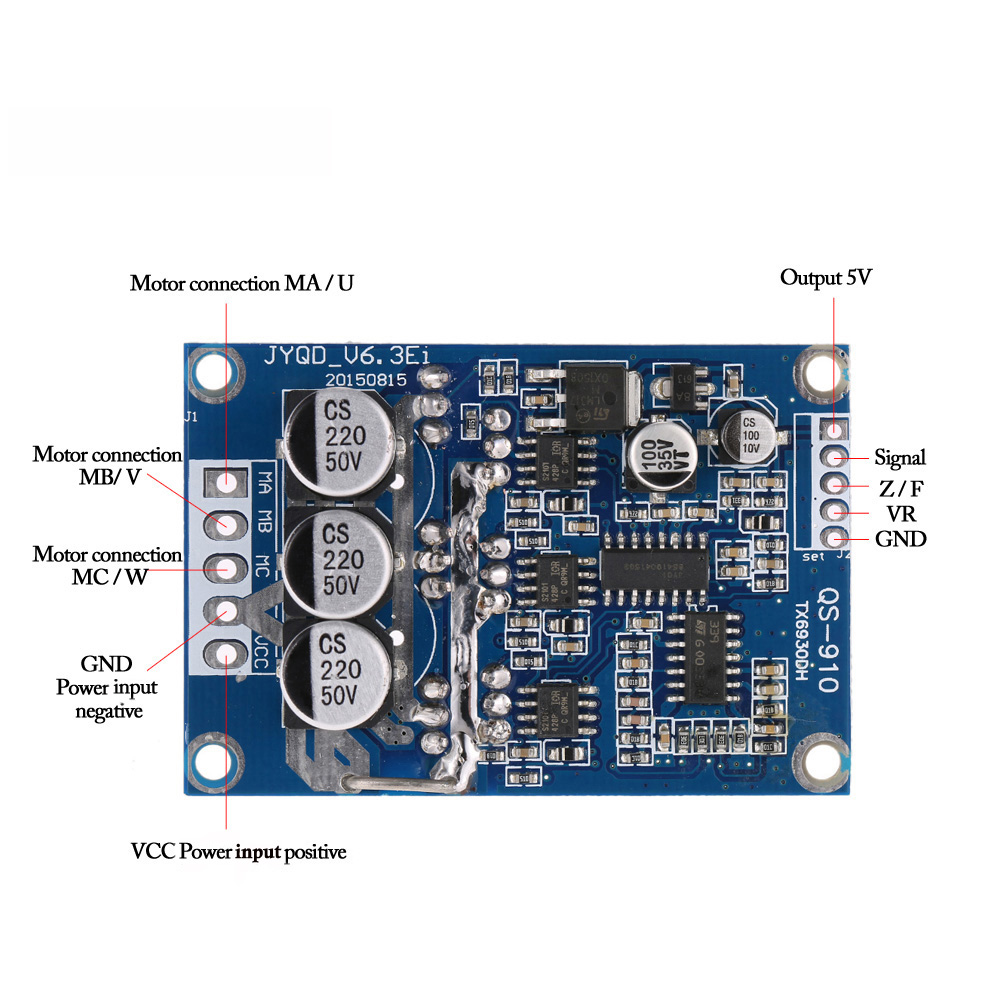

Weight: 30gNote: This driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default "Hall" on the board is no function, doesn't need to connect).Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W.

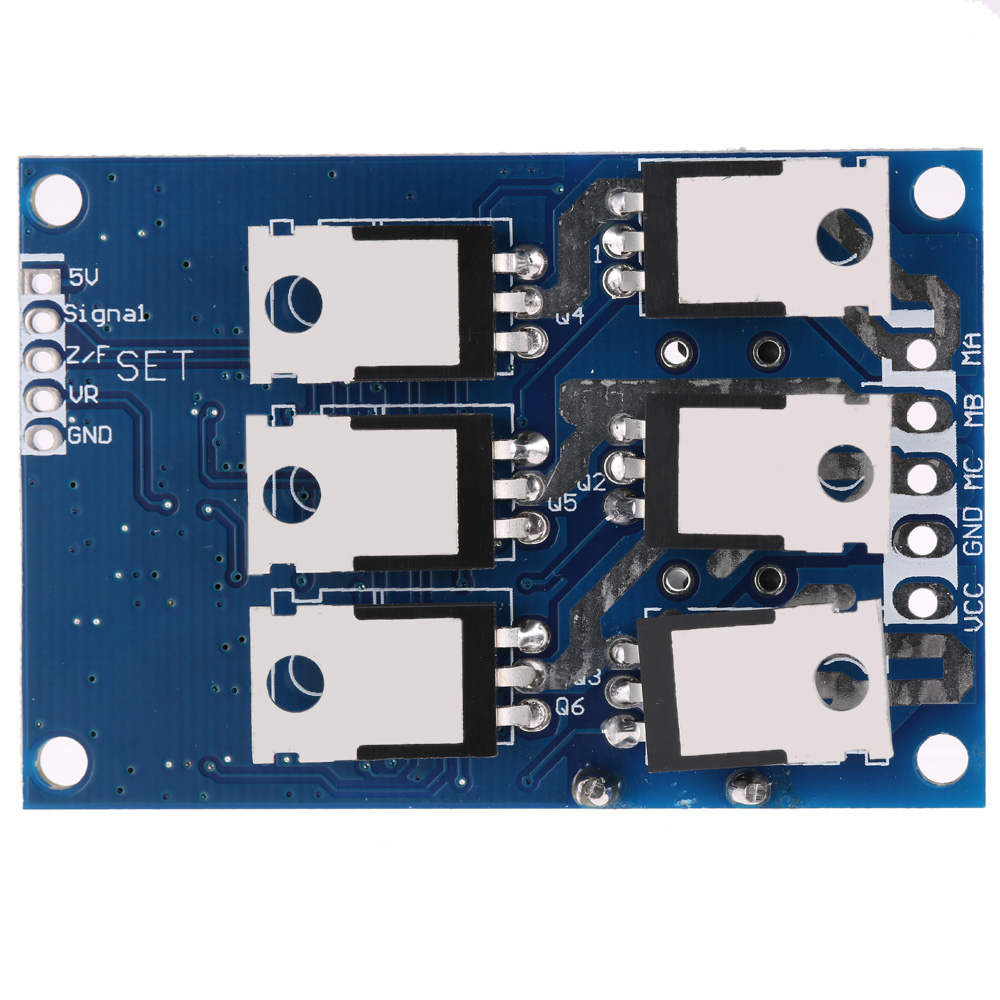

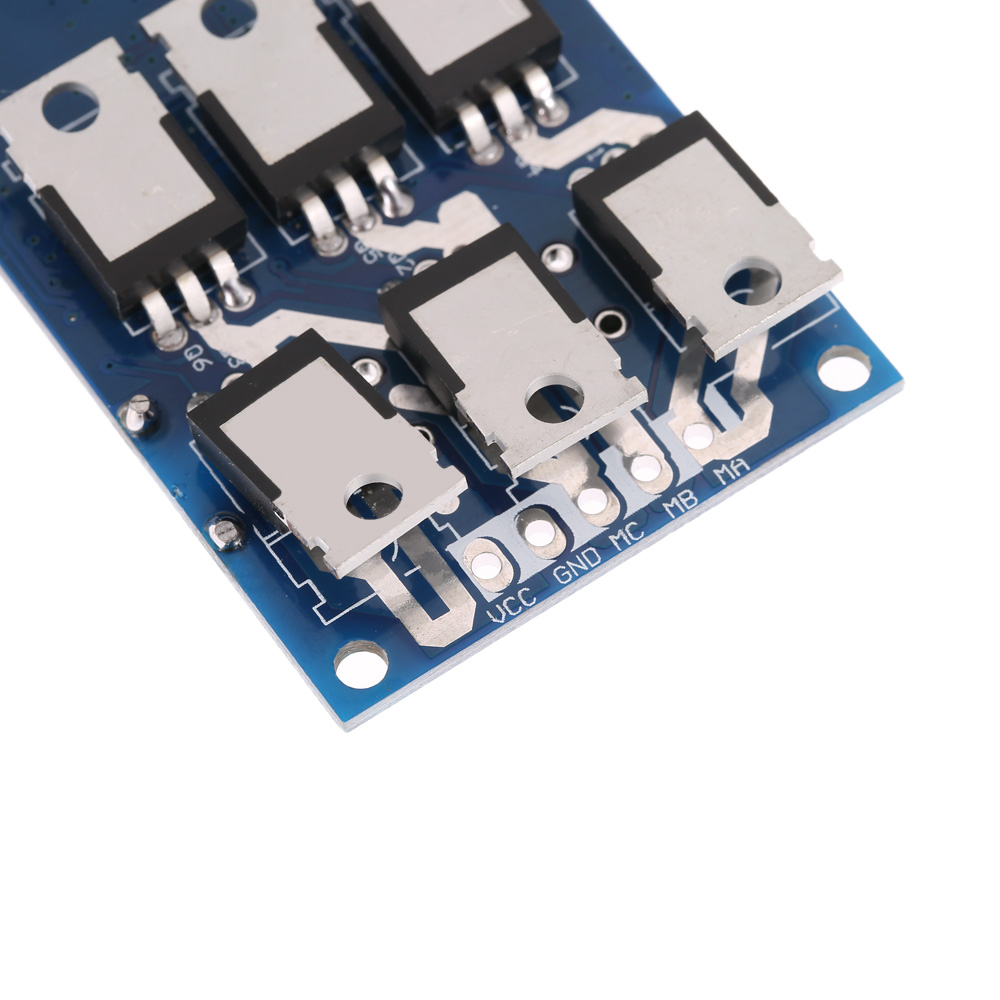

When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.Package List:
1 * Brushless Motor Controller
