LCD Digital PM2.5 Air Quality Detector Sensor Module PM1.0 PM10 Sensor Temperature Humidity Measuring Environment Monitoring

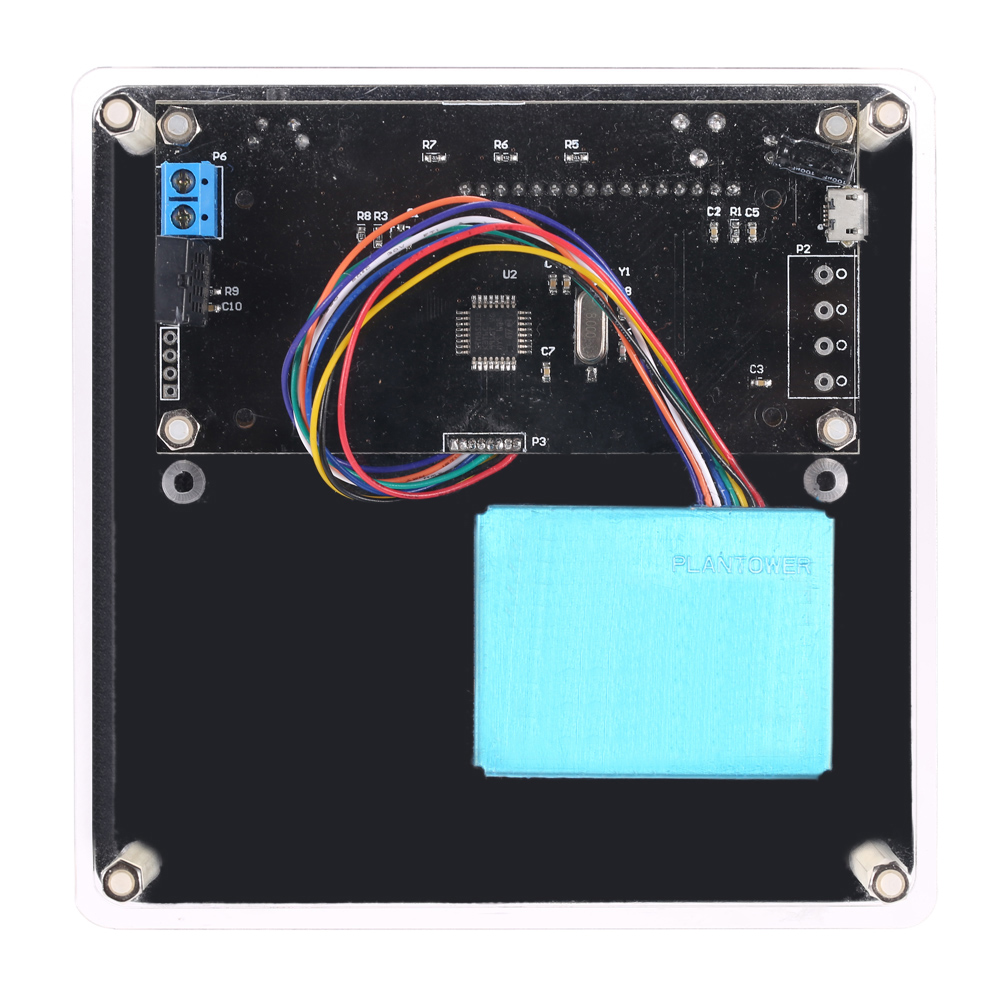

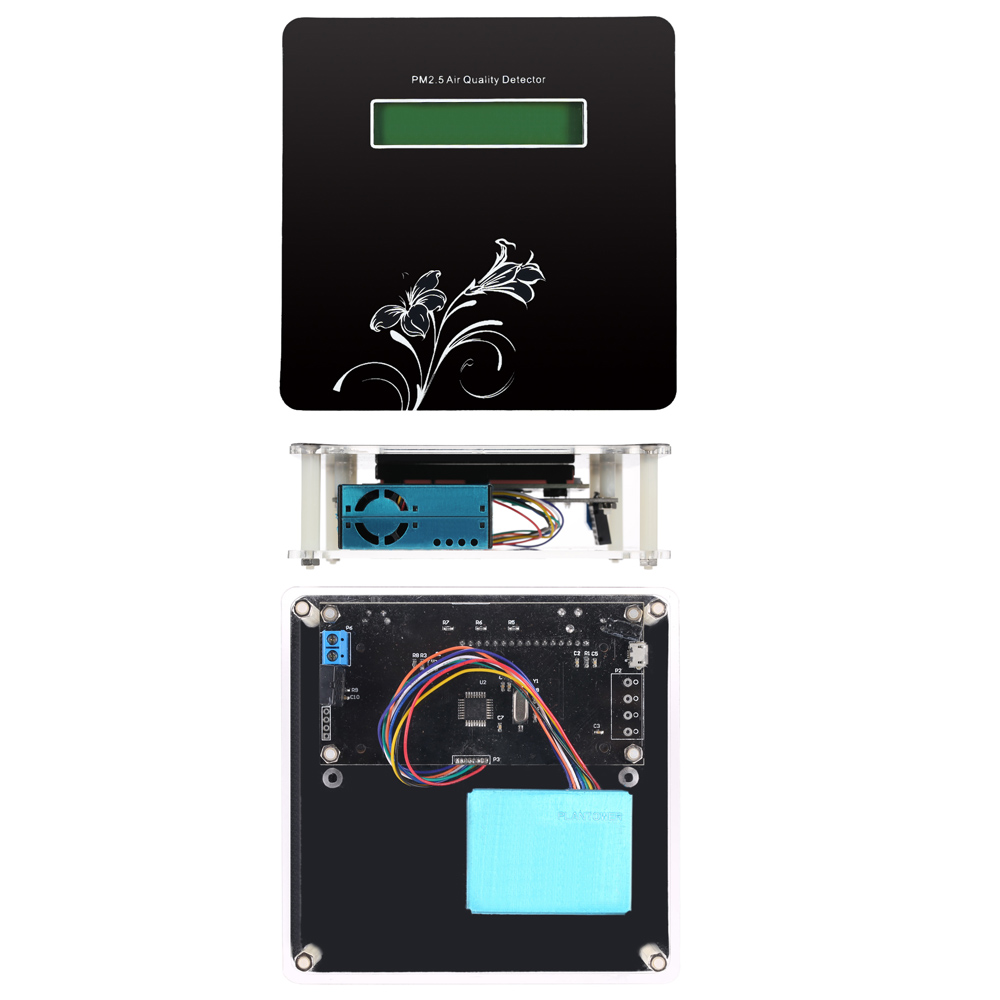

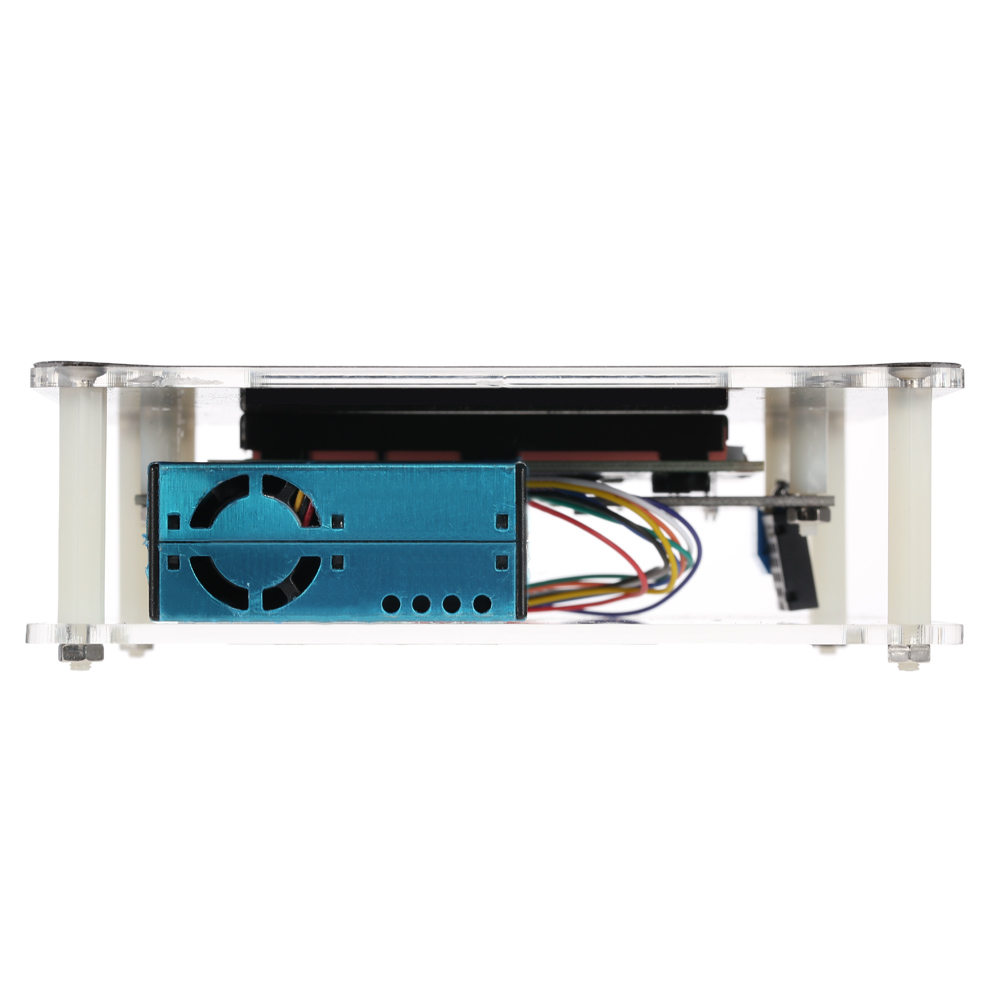

This product uses 1602 LCD screen to display PM1.0/PM2.5/PM10 concentration, temperature and humidity of the surrounding environment. This product adopts PMS5003 sensor which can get the quality and quantity of the suspended particle.
Features:

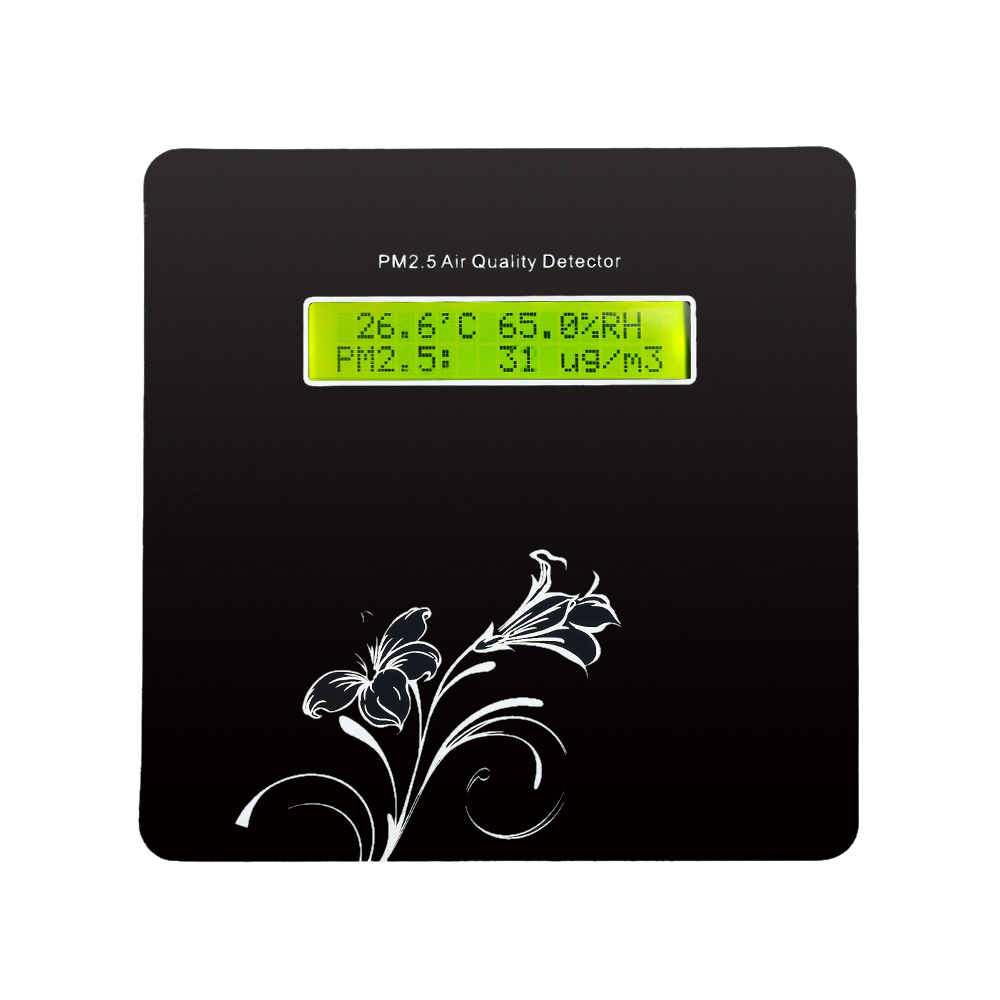

1602 LCD digital display, convenient for clear readings.
Detect the PM1.0/PM2.5/PM10 concentration in the air.
Display the temperature and humidity on main interface, °C/°F selectable.
Count the particle(>0.3μm/0.5μm/1.0μm/2.5μm/5.0μm/10μm) quantity in 0.1L air.
Short press the button to switch the display interfaces conveniently.
PM2.5 concentration>75μg/m⊃3;, high level output; PM2.5 concentration<75μg/m⊃3;, low level output.

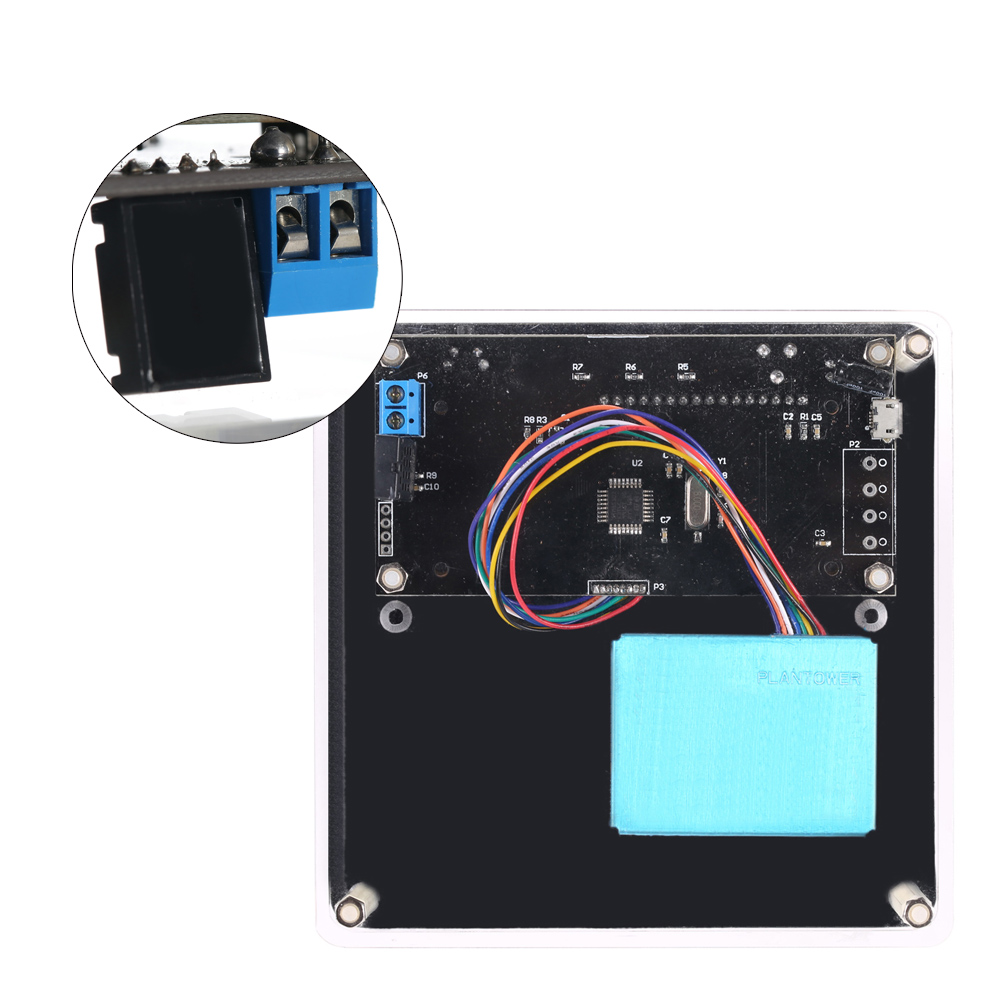

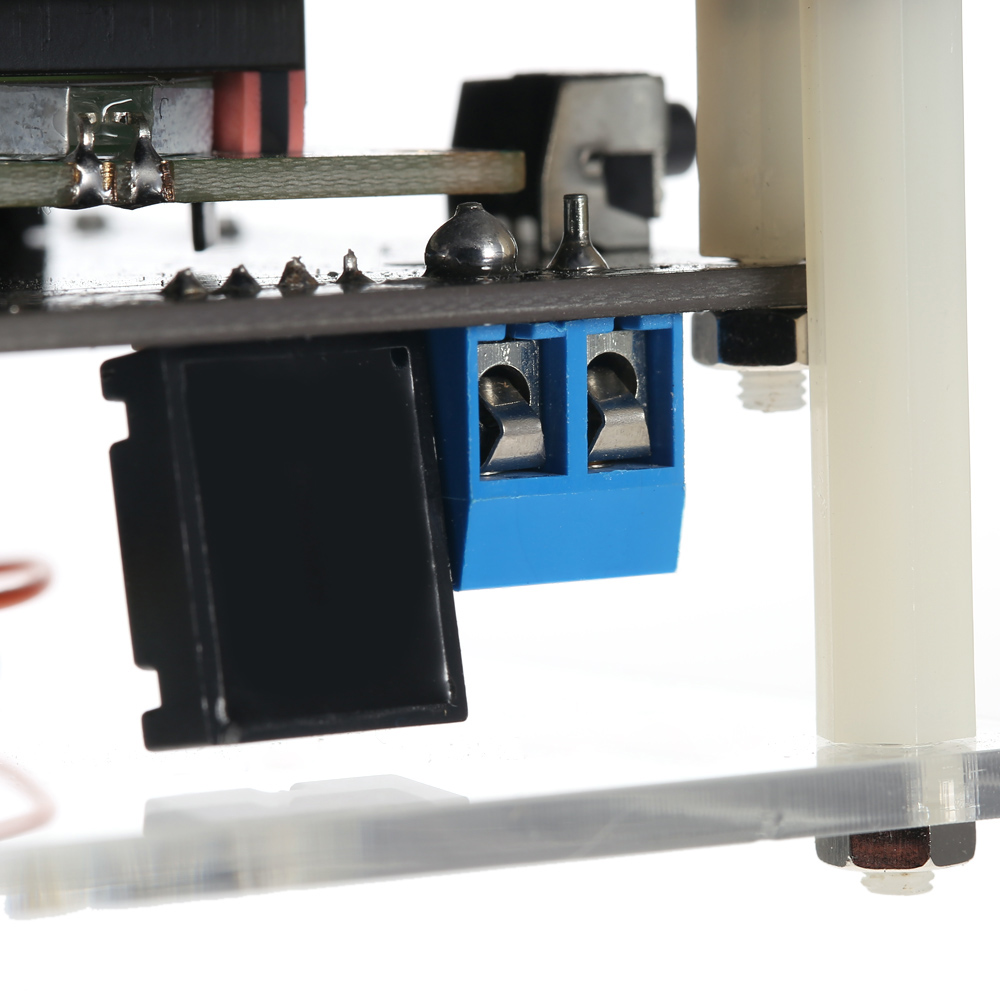

Can also externally connect with relay to control air purifier switch.
With Micro USB interface, powered by DC 5V.
Three LED indicators, great for environment monitoring.
Indicator Instruction:
Green Indicator: Normally ON(0-34 μg/m⊃3;): Good; Flash(35-74μg/m⊃3;): Medium
Yellow Indicator: Normally ON(75-114 μg/m⊃3;): Unhealthy for sensitive groups; Flash(115-149 μg/m⊃3;): Unhealthy
Red Indicator: Normally ON(150-249 μg/m⊃3;): Extremely unhealthy; Flash(249μg/m⊃3; or above): Hazardous
Specifications:
Display: 1602 LCD Digital Display
Particle Matter Measuring Range: 0.3~1.0μm; 1.0~2.5μm; 2.5~10μm
Particle Matter Counting Efficiency: 50%0.3μm, 98%>=0.5μm
Particle Matter Concentration: 0~500μg/m⊃3;
Resolution: 1μg/m⊃3;
Formaldehyde Effective Range: 0~1mg/m⊃3;
Max. Formaldehyde Range: 0~2mg/m⊃3;
Formaldehyde Resolution: 0.001mg/m⊃3;
Formaldehyde Error: <(+/-)5%FS
Single Response Time: <1s
Comprehensive Response Time: <=10s
Power Supply: Micro USB DC 5V
Operating Current: <=100mA
Static Current: <=200μA
Level: L: <0.8 3.3; H: >2.7 3.3
Operating Temperature: -10~50°C
Operating Humidity: 0-99%
Item Size: 65 * 63 * 24mm / 2.56 * 2.48 * 0.95in
Item Weight: 60g / 2.12oz
Package Size: 13 * 13 * 4cm / 5.12 * 5.12 * 1.57in
Package Weight: 110g / 3.88oz
Package List:
1 * Air Quality Detector Module
