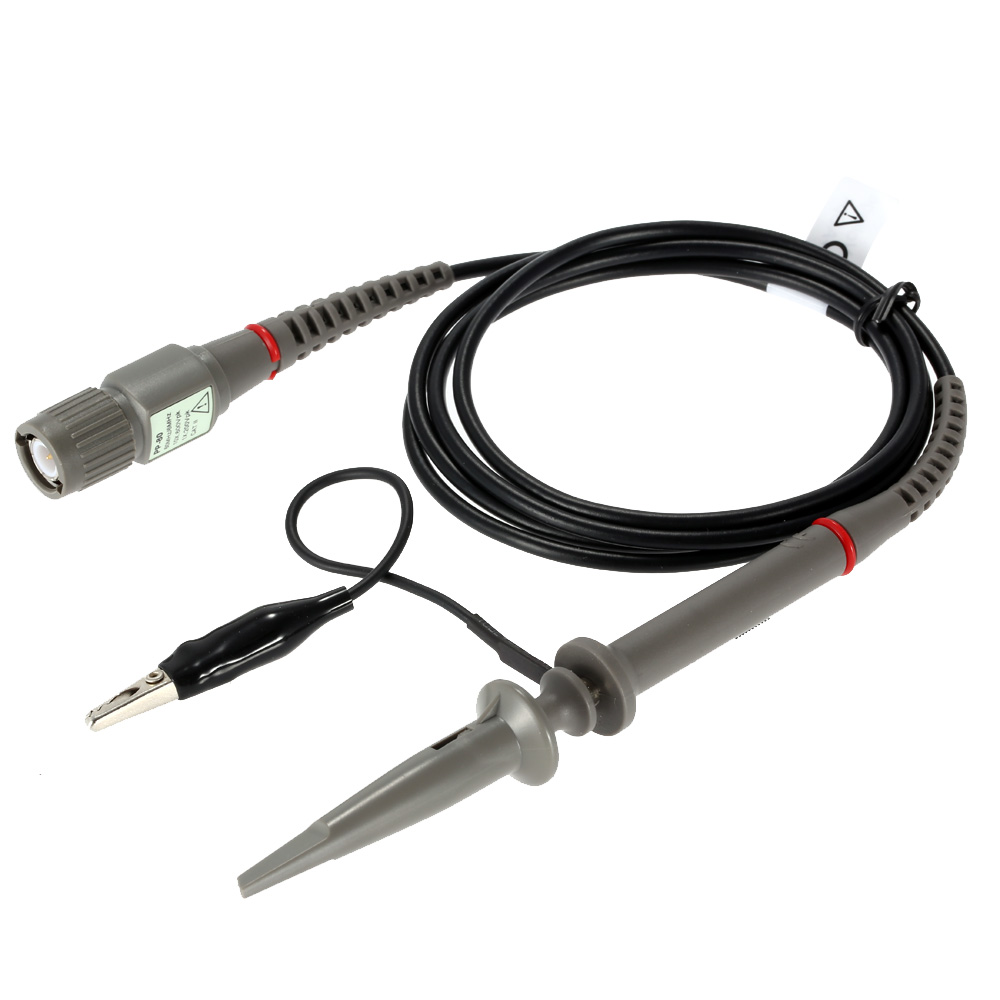

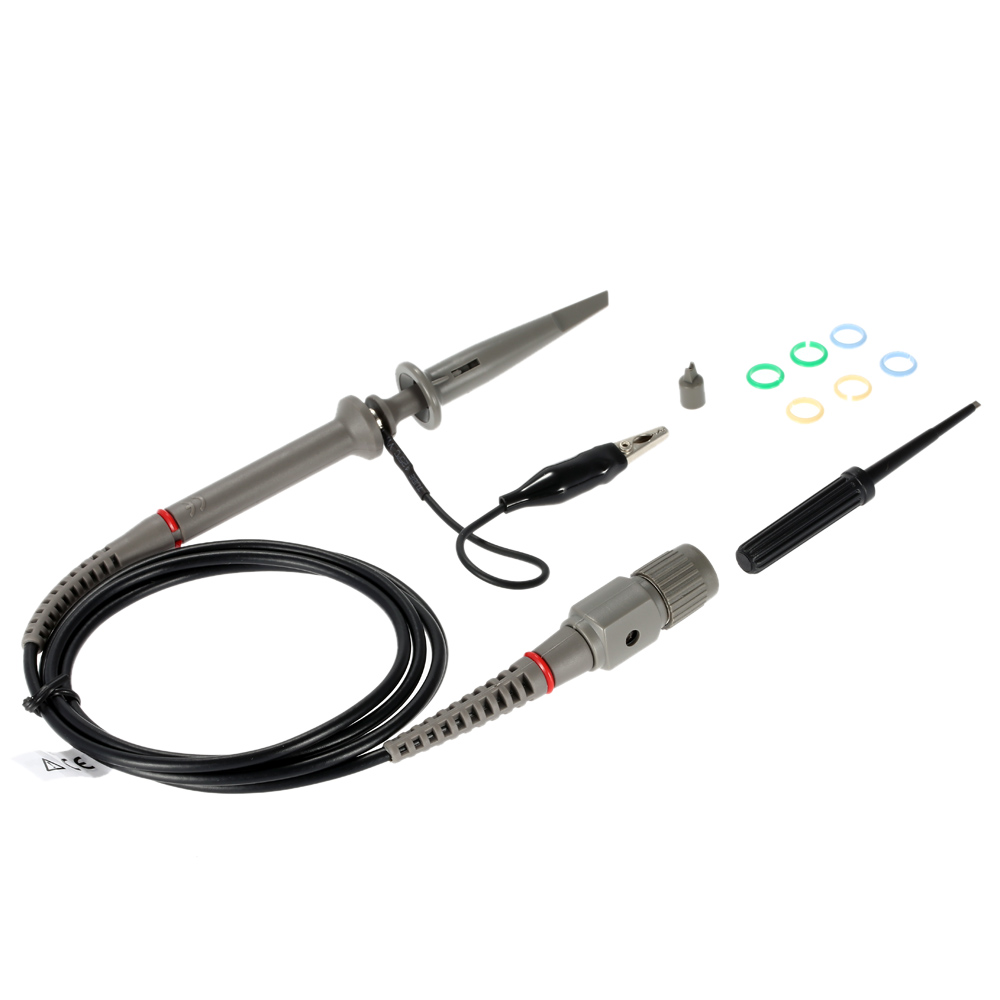

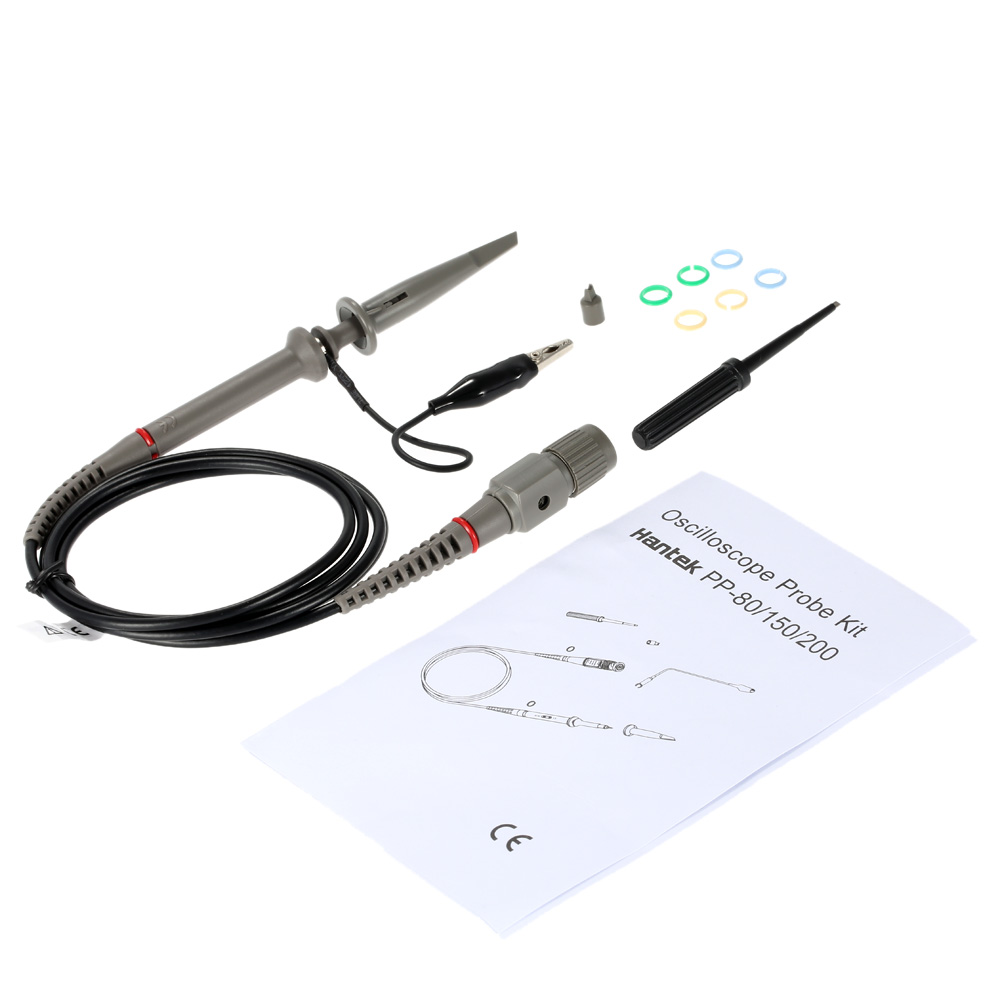

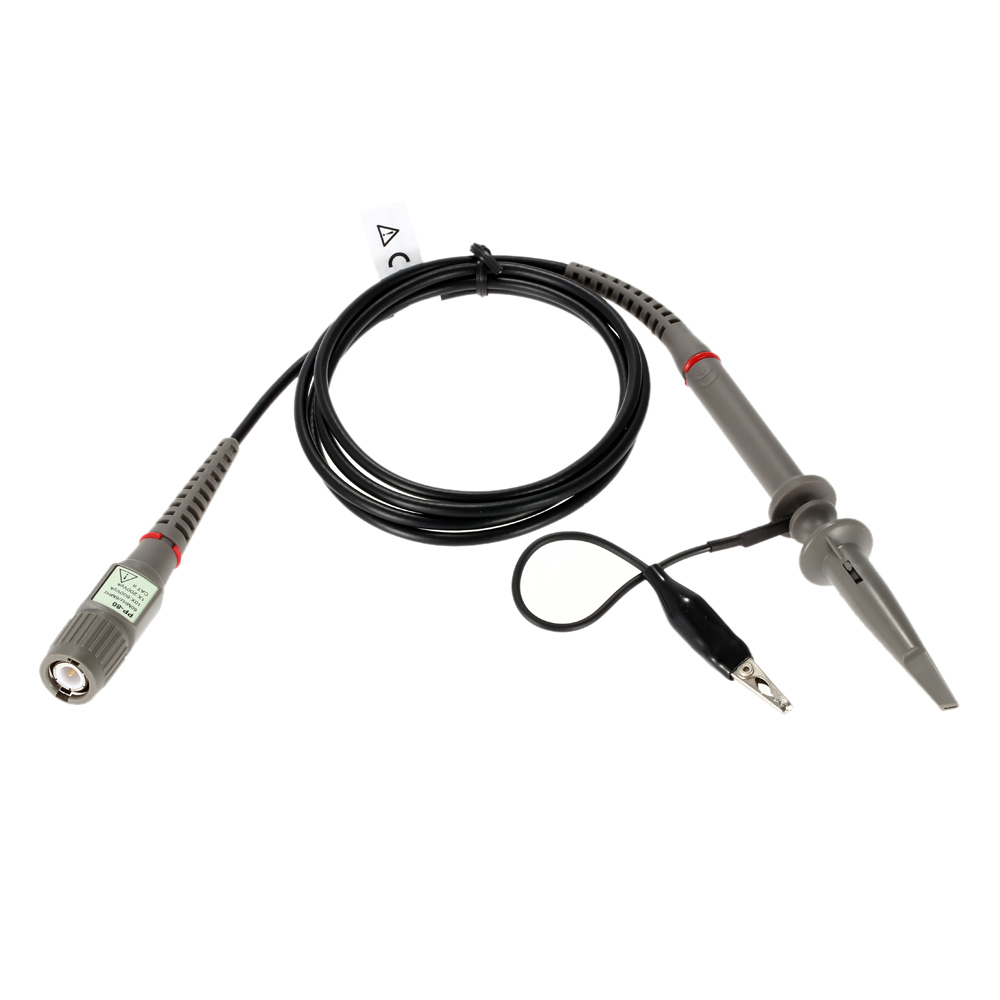

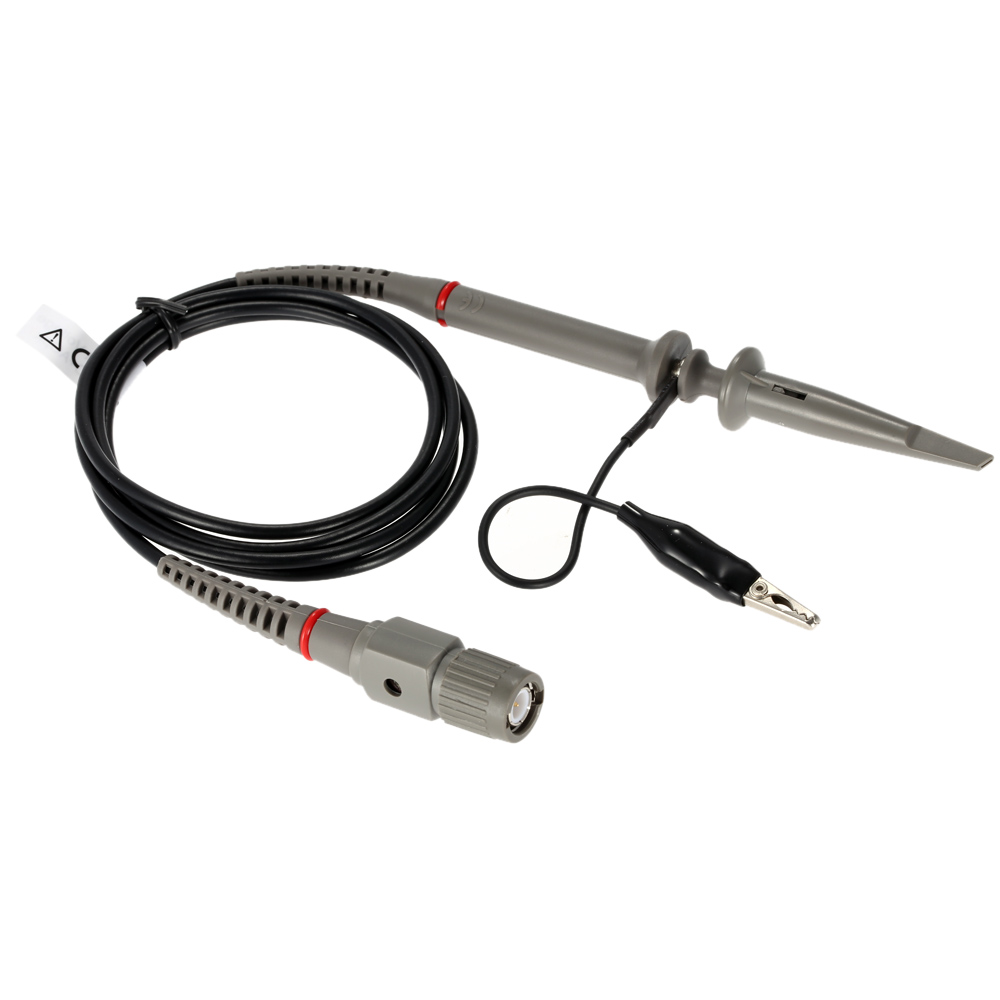

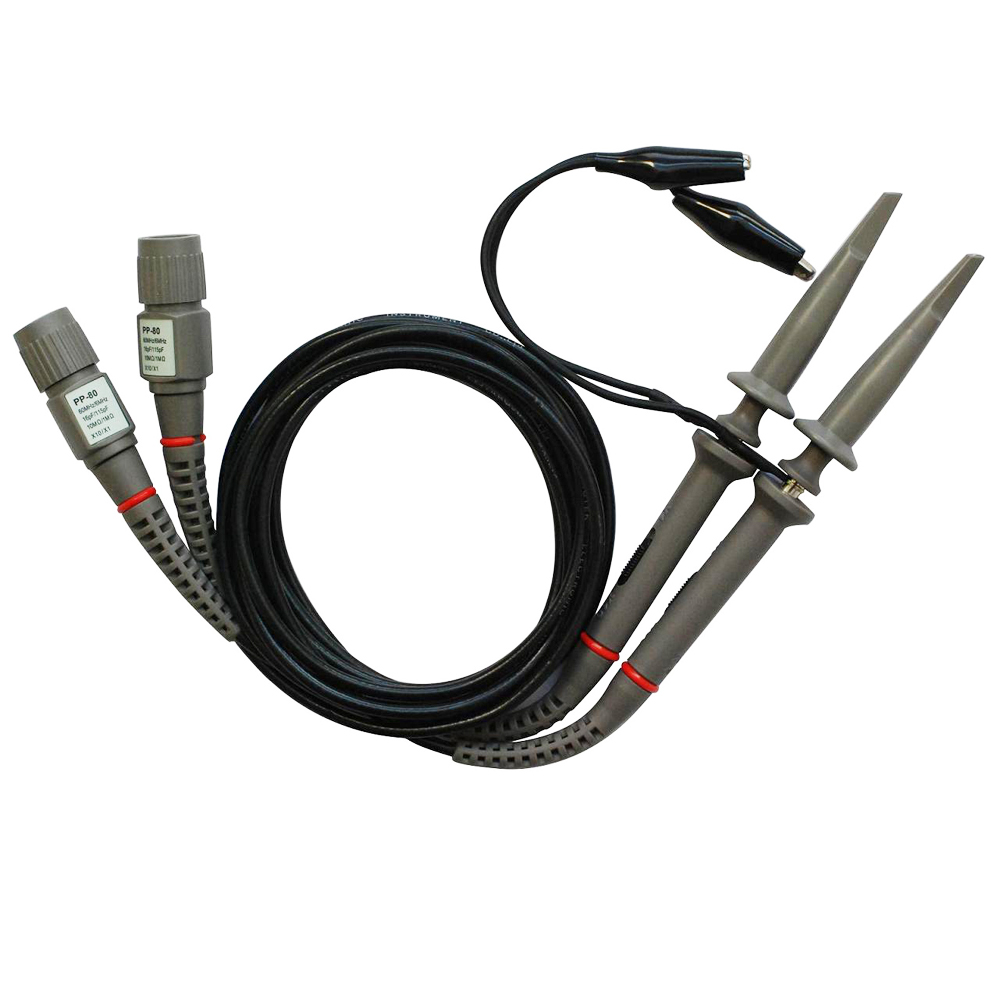

Hantek Quality Durabe Digital Oscilloscope Probe 60MHz Oscilloscope Clip Probe with Accessories Max.600V DC Peak AC x1 x10

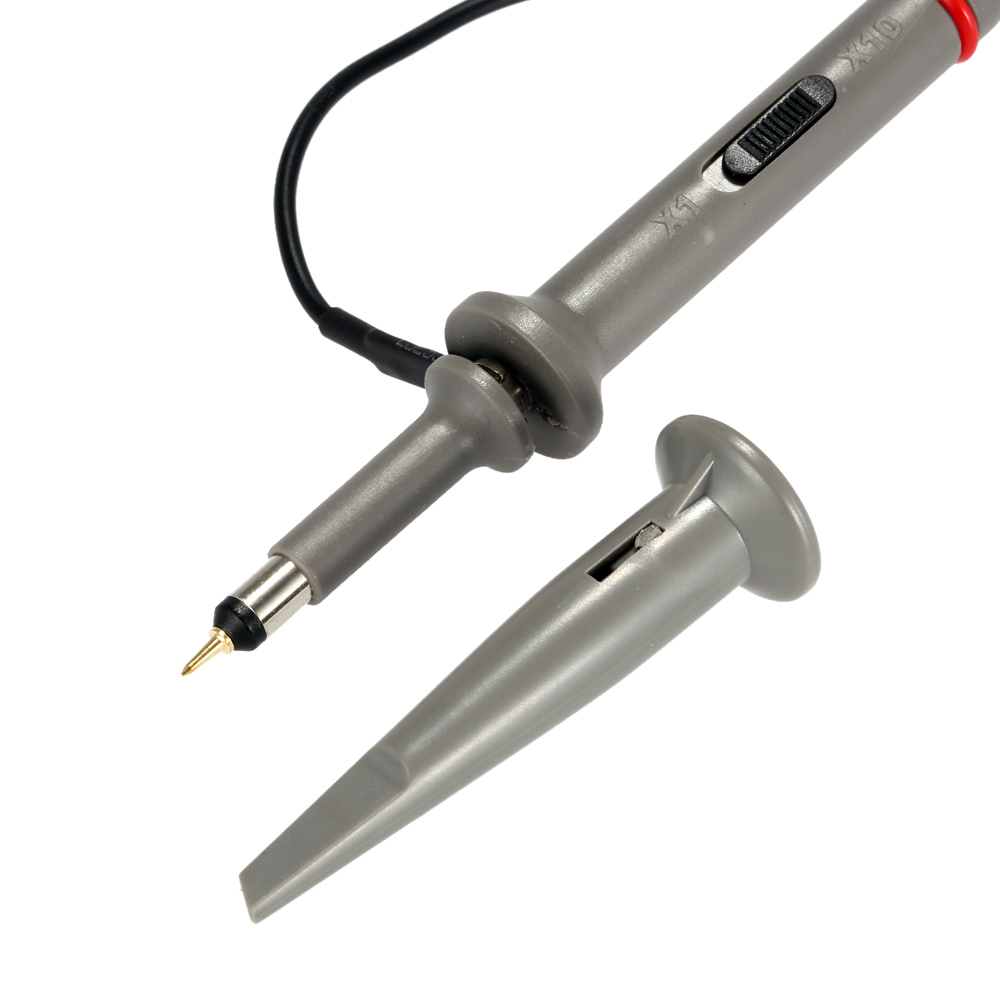

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.Features: High quality and reliable. Attenuation ratio: 1× and 10× adjustable. Portable design according with ergonomics. Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Safety standards: it has passed the CE Attestation of European Community. Application Fields: Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals.Specifications: Color: Black + Grey Type: PP-80 Attenuation: x1 x10 Input Resistance: 1MΩ: 10MΩ Input Capacitance: x1: 85pF-115pF x10: 18.5pF-22.5pF Compensation Range: 20pF ~ 40pF System Bandwidth: x1: DC-4MHz x10: DC-60MHz Input Voltage: x1: <200V DC +Peak AC x10: <600V DC +Peak AC Operating Temperature: -10 Centigrade~ +50 Centigrade / 14Fahrenheit~ 122Fahrenheit Non Operating Temperature:-20 Centigrade ~ +75Centigrade / -4Fahrenheit ~ 167Fahrenheit Humidity: ≤85% (Relative Humidity) Cable Length: 120cm / 47.2in Item Size: Approx. 17 * 2 * 2cm / 6.7 * 0.8 * 0.8in (ONLY Probe) Item Weight: Approx. 49g / 1.7oz Package Size: Approx. 20 * 13 * 2cm / 7.9 * 5.1 * 0.8in Package Weight: Approx. 73.8g / 2.6ozPackage List: 1 * Oscilloscope Probe 1 * Adjustment Tool 1 * Tip Locating Sleeve 6 * Color Circle 1 * Instruction
