Hantek Dual Channel PC USB Digital Storage Oscilloscope 60MHz+P4100 High Voltage Oscilloscope Probe 2KV 100:1 Test Probe

The oscilloscope is a 2 channel oscilloscope with stable performance and high accuracy. With 150MSa/s real-time sampling and 60MHz bandwidth.
The probe is designed to make measurement process simple. It has compact size and stable performance.
Features:
Oscilloscope:
Professional digital storage oscilloscope with 150MSa/s real-time sampling and 60MHz bandwidth.
With over 20 kinds of auto measurement functions, PASS/FAIL check function.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Waveform data can be saved in the excel, bmp, jpg formats.
USB 2.0 interface, no external power source required, easy to use.
FFT spectral analysis function.
Suitable for PC, product line maintenance or technical application.
Operating system: Win7, WinNT, WinXP, Win8, Vista.
One computer can connect with several oscilloscope at the same time.

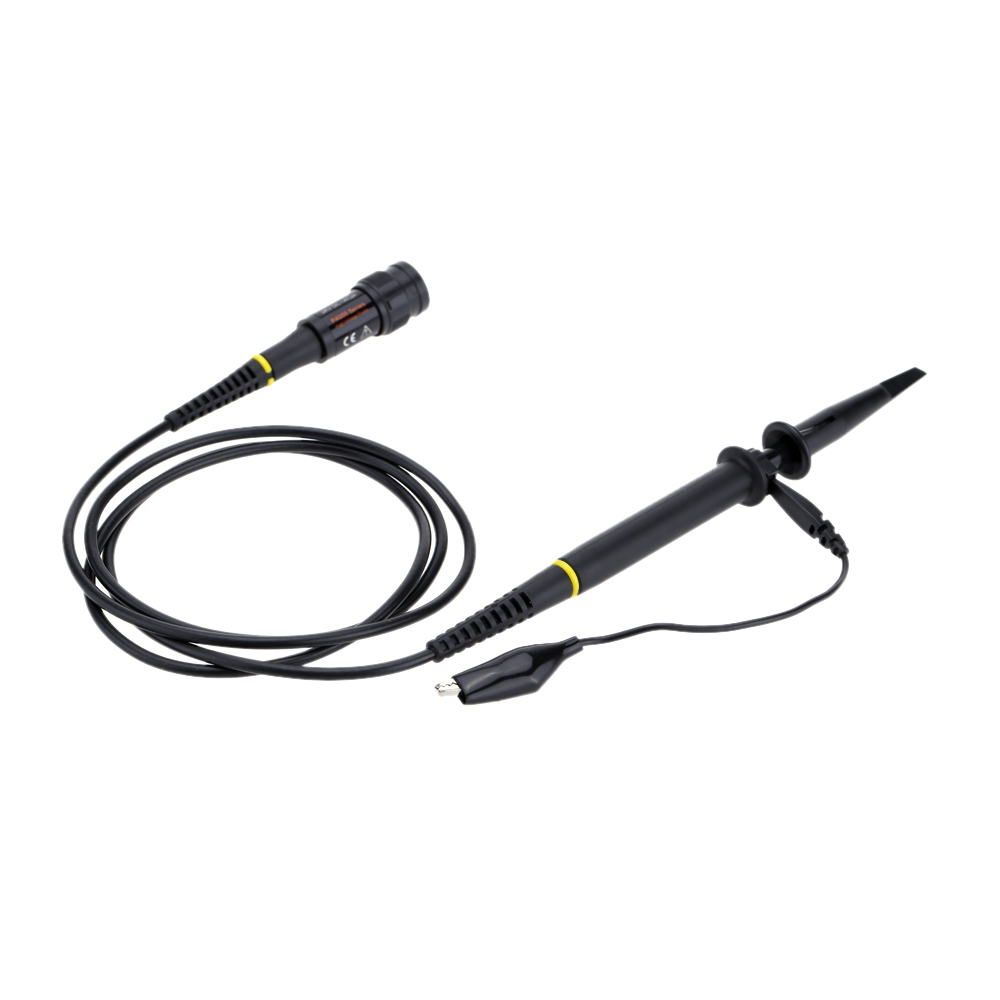

Test Probe:
Compact size, several functions combined in one, this probe is convenient to use.

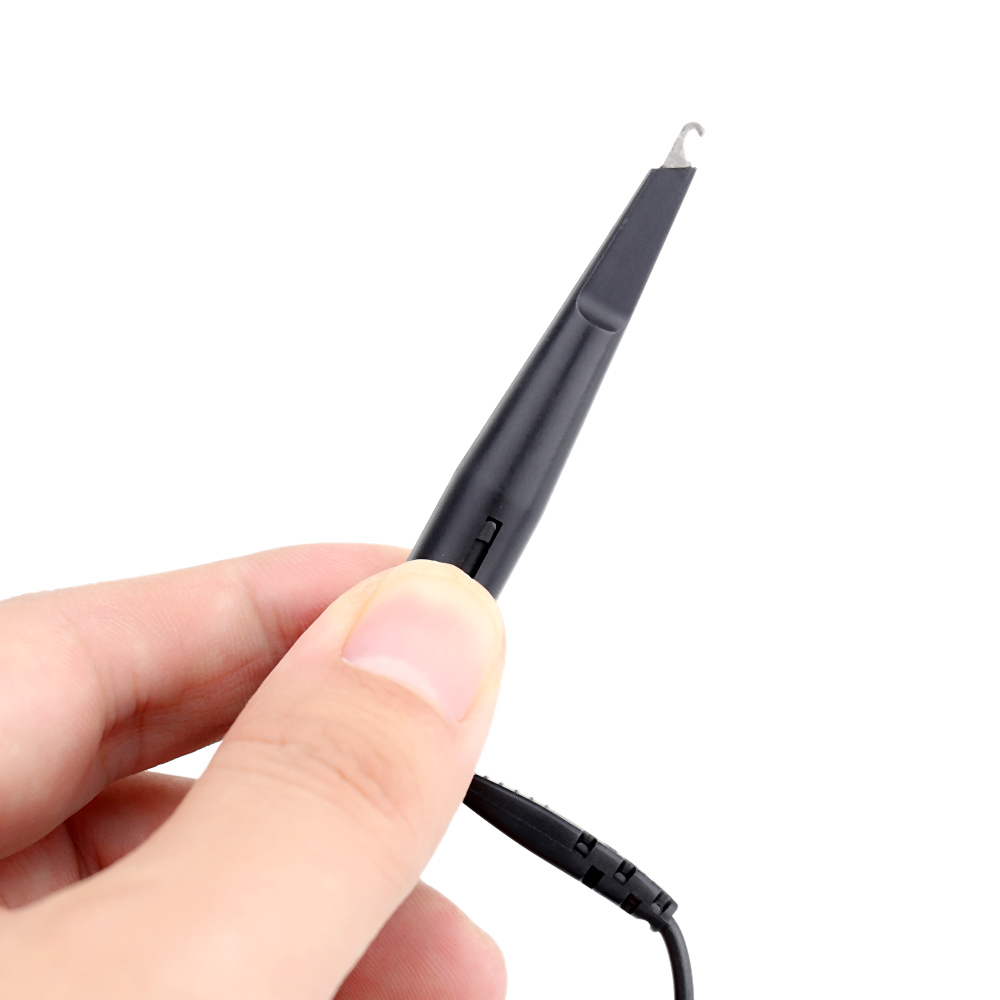

Detachable hook tip, the hook is well protected by the plastic case.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
Marker rings in different colors help to identify different channels.
Great choice for oscilloscope probe.
Specifications:

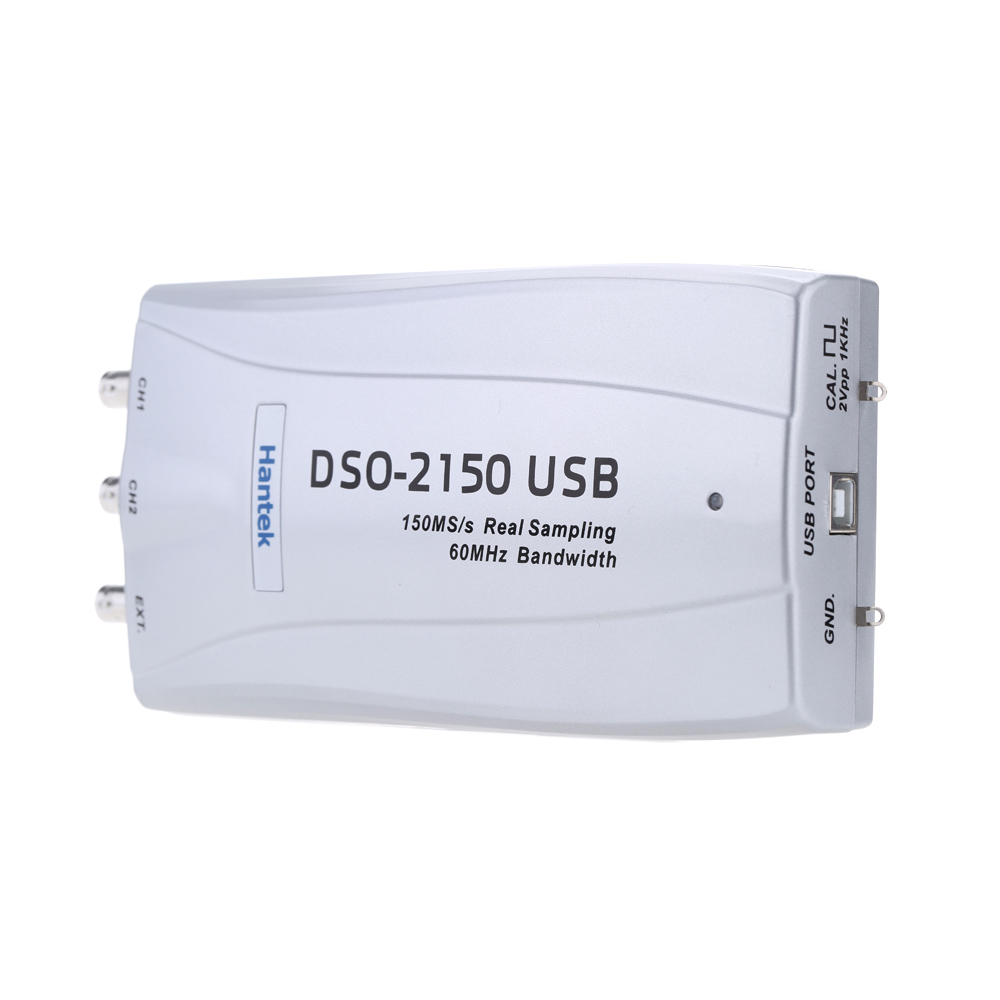

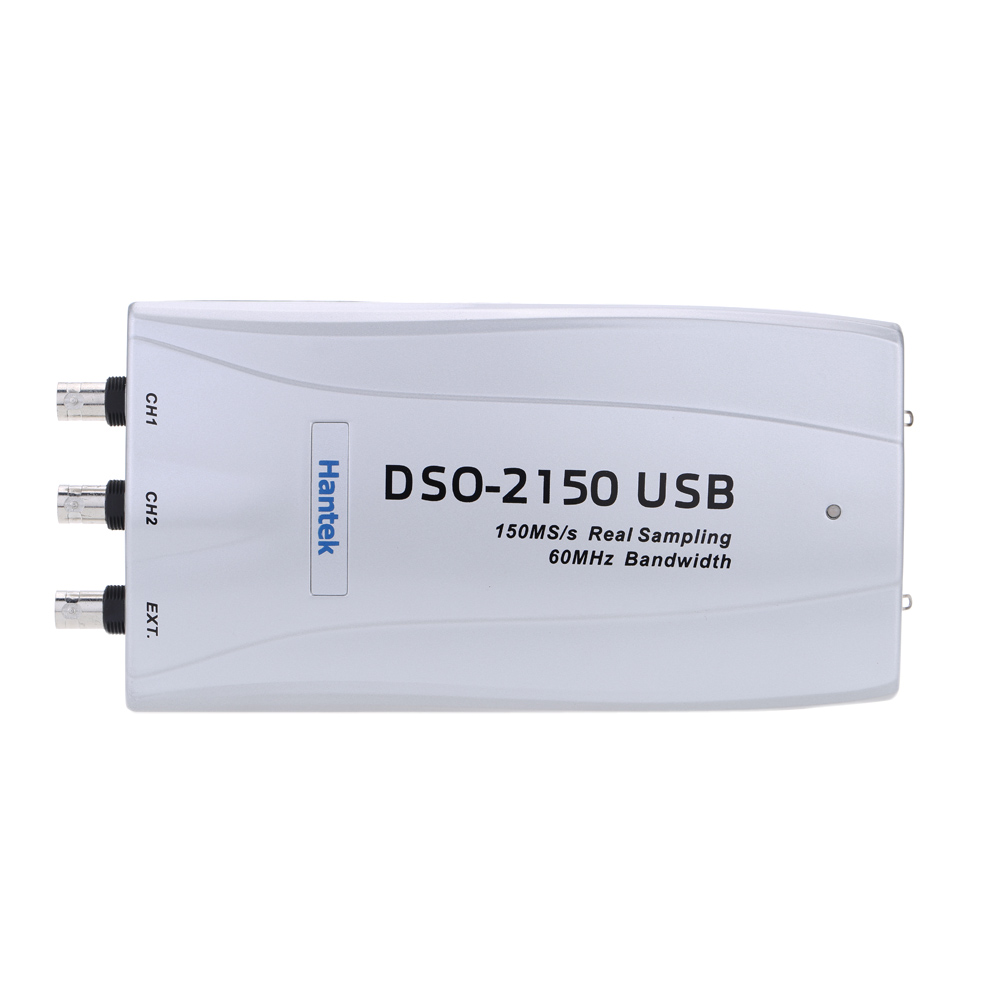

Oscilloscope:
Channel: 2 Channel
Bandwidth: 60MHz
Sampling Rat: Max.150MSa/s
Storage Depth: 10k-32kb/ch
Vertical Resolution: 8bit
Impedance: 1MΩ 25pF
Coupling: AC/DC/GND
Voltage Range: 10mV-5V, 9steps
Vertical Accuracy: ±3%
Timebase Range: 4ns-1h, 38steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Horizontal Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Source: CH1, CH2, EXT
Pre Trigger: 0-100%
Sampling Selection: Yes
Waveform Display: Port/Line, Average, Persistence, Intensity
Network: Open/Close
Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
Item Size: 18.5 * 9.5 * 3cm / 7.3 * 3.7 * 1.2in
Item Weight: 292g / 10.3oz
Package Size: 23 * 17 * 7cm / 9.1 * 6.7 * 2.8in
Package Weight: 673g / 23.7oz
Test Probe:
Band Width: 100MHz
Rise Time: 3.5ns
Attenuation Ratio: 100:1
Input Resistance: 100MΩ±2%
Input Capacitance: 6pF
Maximum Input: 2KV Working Voltage(Vp-p)
Compensation Range: 10pF-35pF
Operating Voltage: 0-50°C
Operating Humidity: 0-80%RH
Item Length: 15cm
Item Weight: 51g / 1.8oz

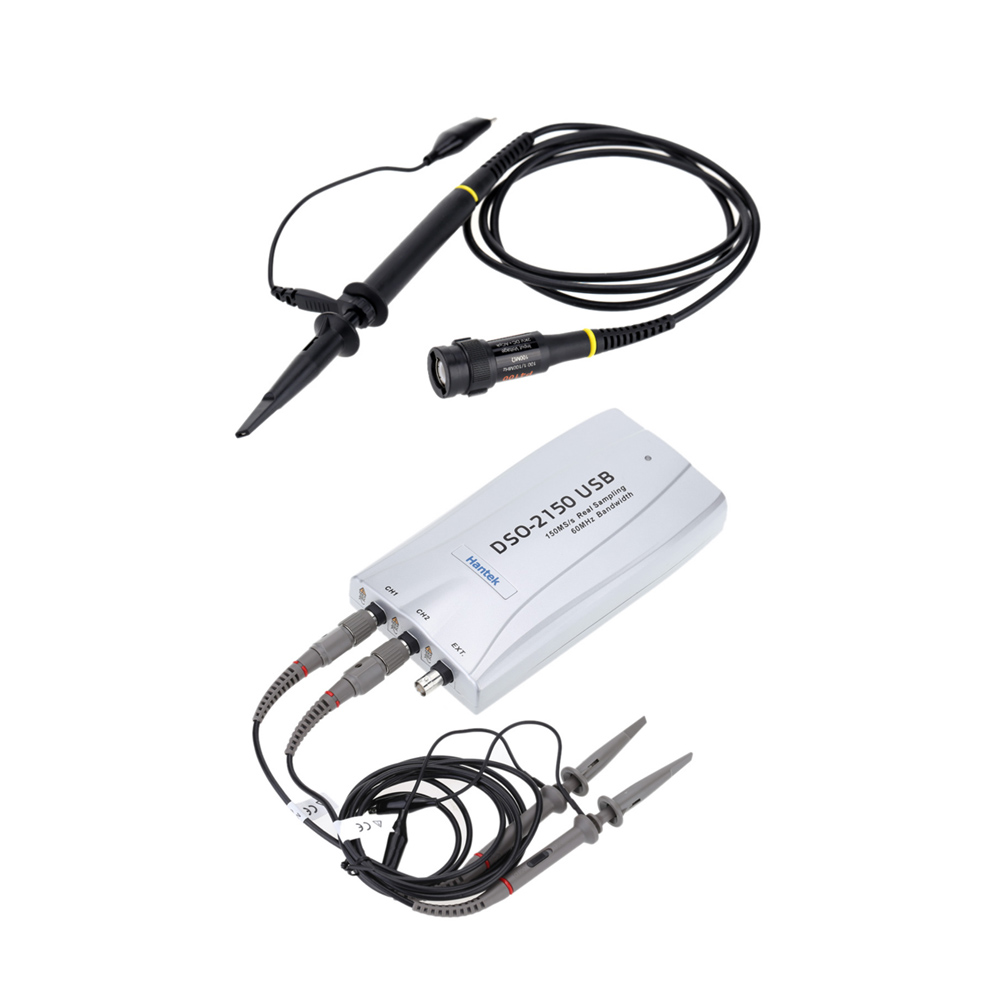

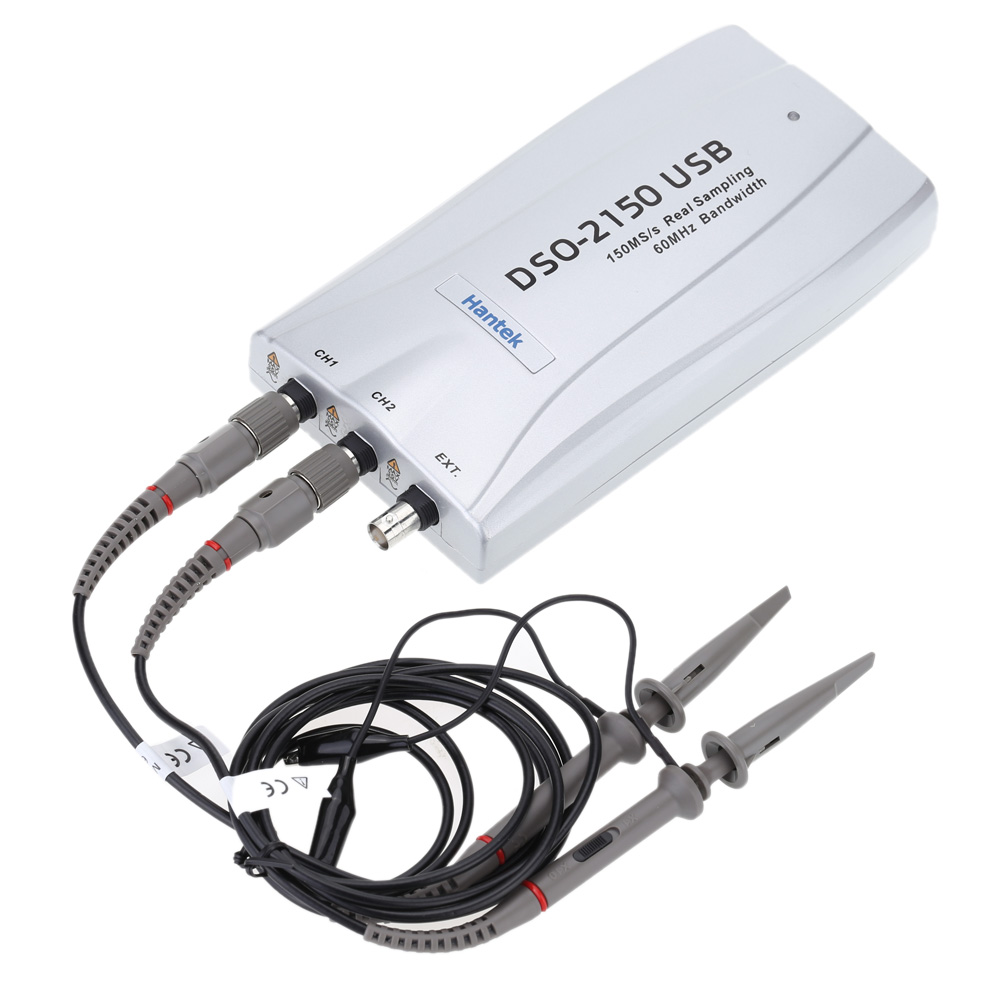

Package List:
1 * Digital Oscilloscope
1 * USB Cable
1 * CD
3 * Probes
2 * User Manual (English)
1 * Bag of Accessories
