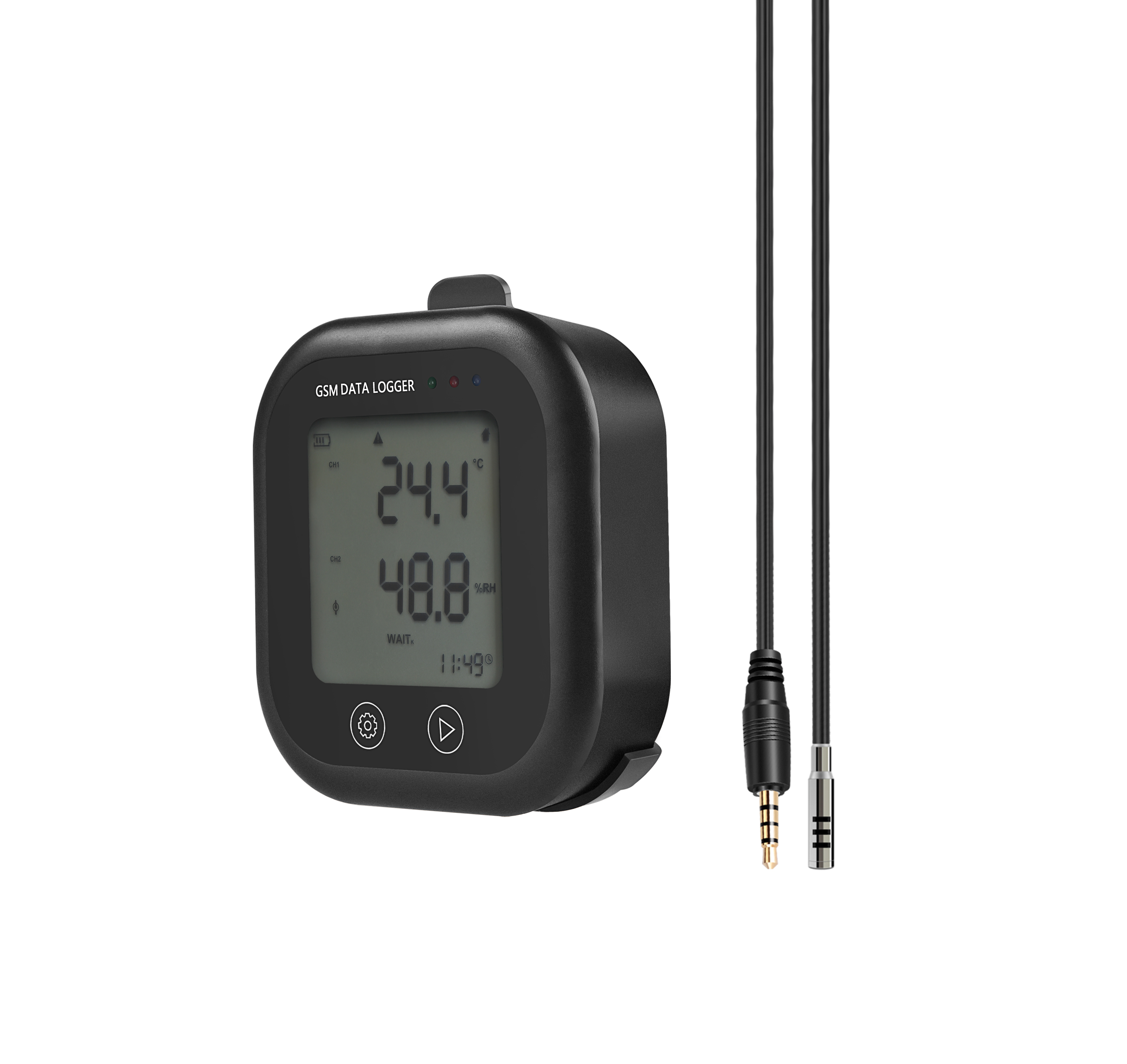

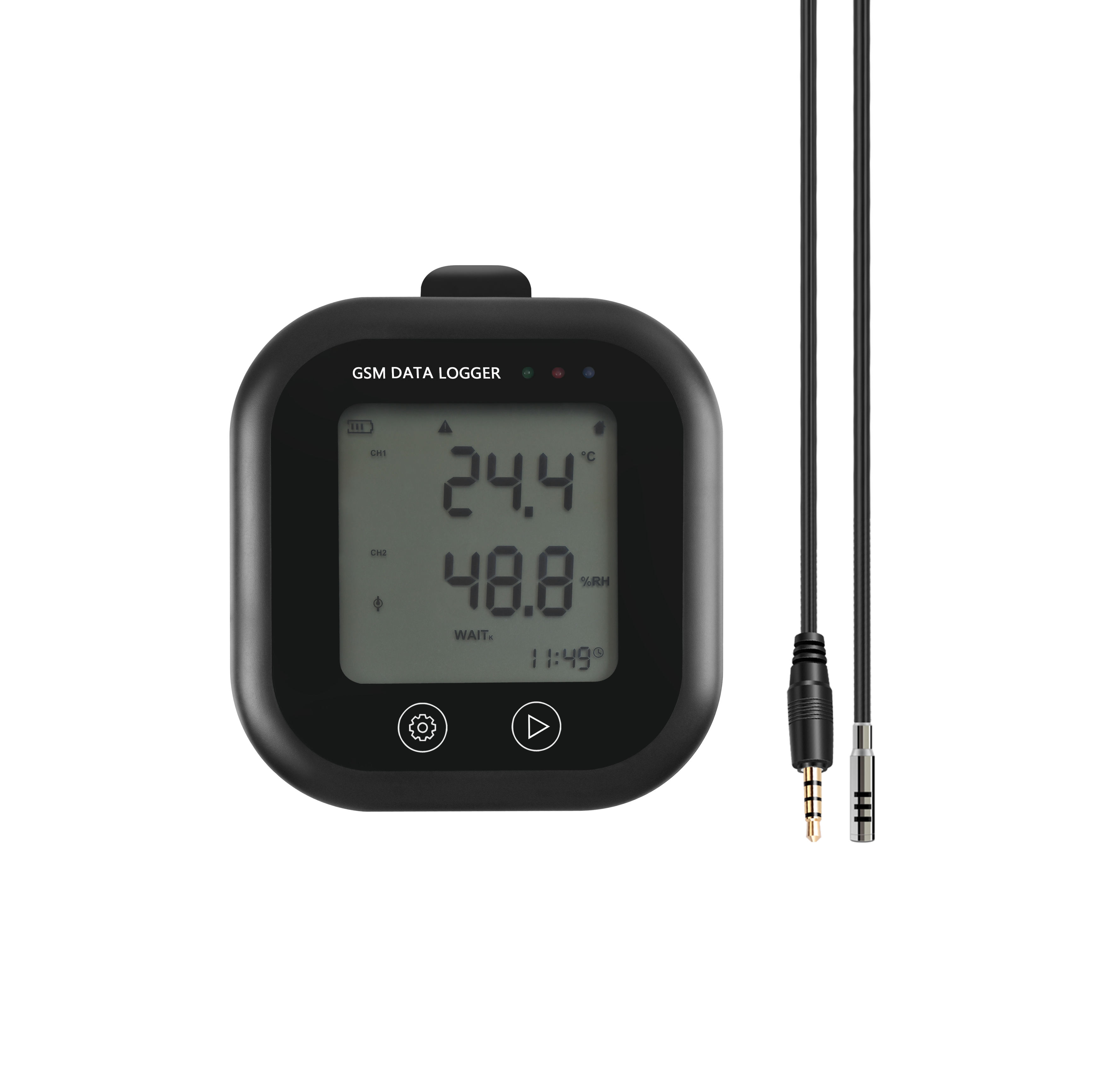

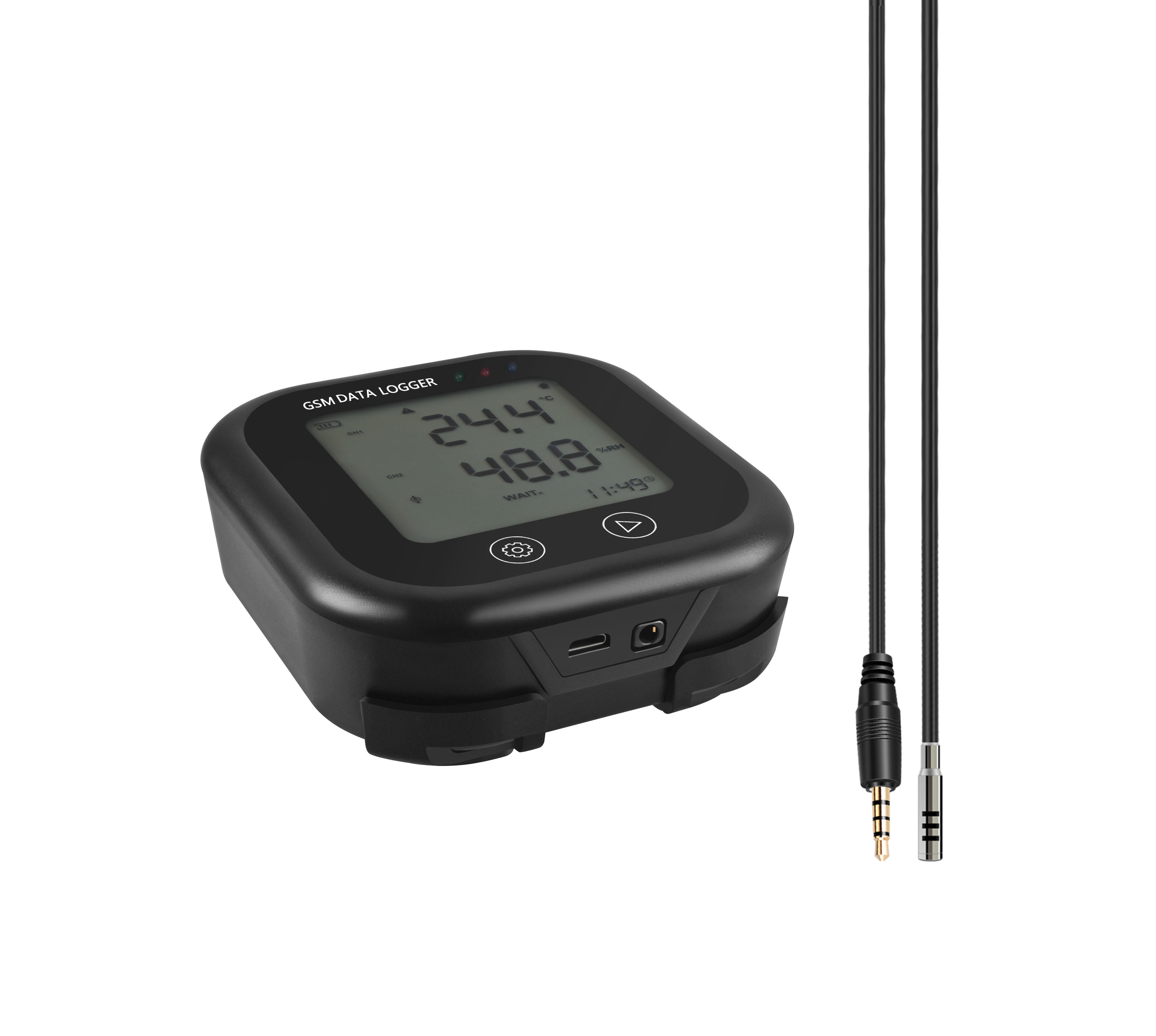

GSM-200E LCD Display SMS Alarm Temperature Humidity Data Logger for Warehouse Use Digital Temperature Data Logger

<<prev

GSM-200E LCD Display SMS Alarm Temperature Humidity Data Logger for Warehouse Use Digital Temperature Data Logger

SKU:

CK216499

Category: Electrical Instrument & Meters

$219.24

$172.20 - $219.24

Enquiry

Footer Group

Description

Product Description

GSM series data loggers are used to measured and recorded temperature and for wireless network platforms. Sending and receiving mobile phone messages is one of the distinctive features of this series of instruments.

GSM series data loggers are with professional PC software and mobile APP. Users can configure the functions and parameters of the instrument through the PC software or mobile phone APP, and can also use the mobile phone APP to view data in real time and manage messages. Users only need to connect the instrument (via USB) to the computer, then it will directly generate the report without additional software. Users can also export the report in multiple formats through PC software.

GSM-100E is using the normal temperature probe, the measuring range of its internal probe is -30~+65°C, and external probe is -40~+125°C.

On the basic of GSM-100E, GSM-200E added the humidify measuring function. Therefore it needs to be used with an external temperature and humidity probe. Therefore it needs to be used with an external temperature and humidity probe.

FEATURES:

Sending and receiving mobile phone messages	Can connect with 3 mobile numbers at the same time
With Mobile Phone APP	With PC software
Storage capacity is up to 500000 readings	Display max, min and average
Multiple probes optional	Measuring interval is optional from10 sec to 18 hours
Support report format of txt/csv/xls/dlg	Protection class IP65
Long standby time	Multiple selections of power supply
Data anti-lost when power off	Battery protection

Specifications

Model	GSM-100E	GSM-200E
Measuring Parameter	Temperature	Temperature, Humidity
Probe Type	Internal, External	External
Unit	°C, ℉	Temperature : °C, ℉ Humidity: %RH
Measuring Range of the Whole Machine	Internal: -30~+65°C External: -40~+125°C	External: -40~+125°C 0~100%RH
Measuring Accuracy of the Whole Machine	±0.2°C(0~+65°C) The rest of the range is shown in Figure 1 below	Temperature: ±0.2°C(0~+65°C) The rest of the range is shown inFigure1below Humidity: ±3%RH(10~90%RH, 25°C) ±4%RH(others)
Resolution	0.1°C	Temperature : 0.1°C;Humidity : 0.1%RH
Storage capacity	25920 or 500000 readings(Software optional)
Response Time(t90)	15 min(Internal Probe); 5 min(External Probe)
Measuring interval	5 seconds
Display refresh interval	5 seconds
Display	Segment LCD
Operation Temperature	-10°C~+50°C(Non-condensing)
Storage Temperature	-20°C~+60°C(Without battery)
Power Supply	4 pcs AA 1.5V alkaline batteries; USB 5V/2A
Battery Life	About 1 year(Condition: Battery capacity 2000mAh, operation temperature 25°C, thenumberofmessages will not be sent over 12 per day)
Protection Class	IP65
Size	1099635mm
Material	ABS
Weight	About 130g(Not including battery and probe)
Warranty	12 months
