DESCRIPTION:

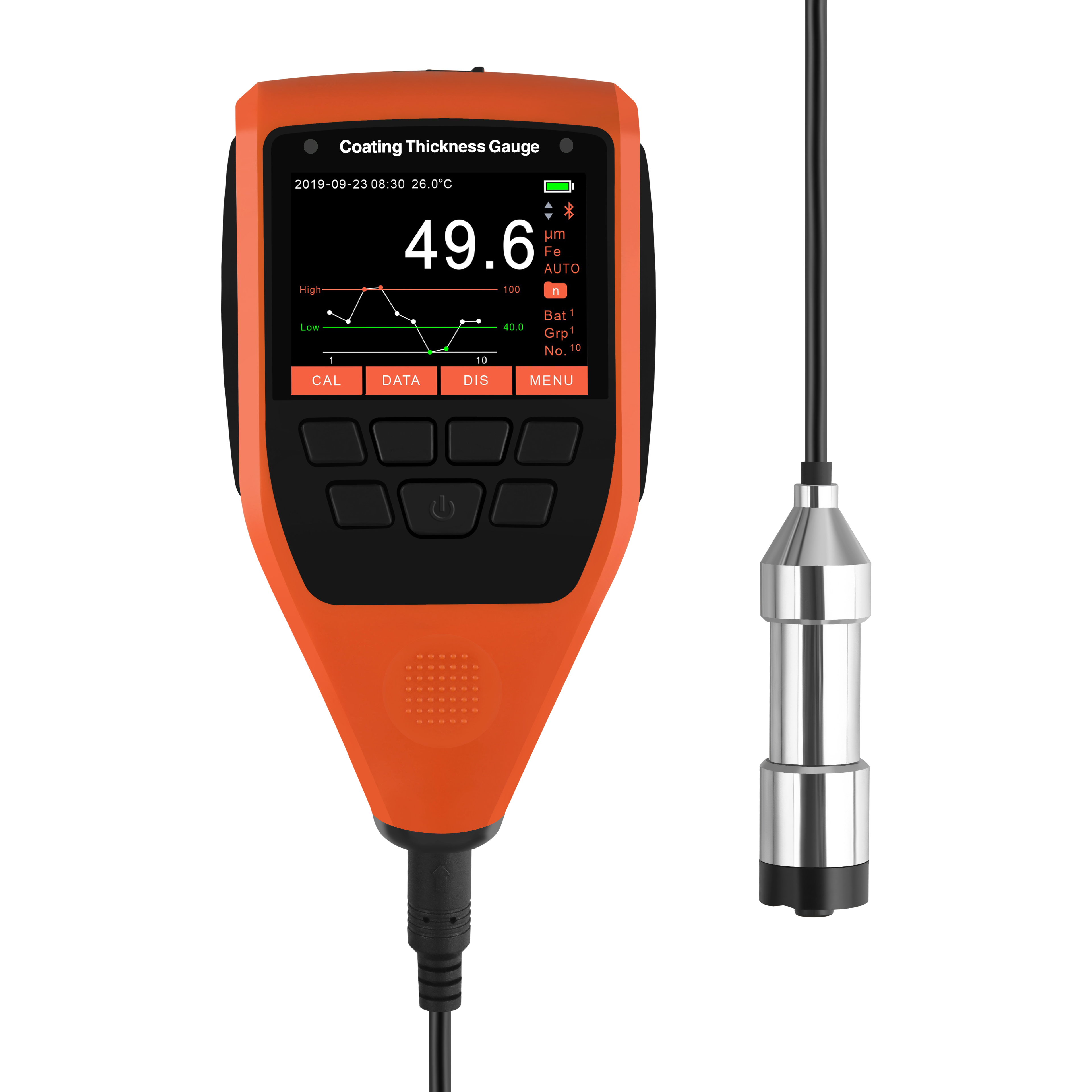

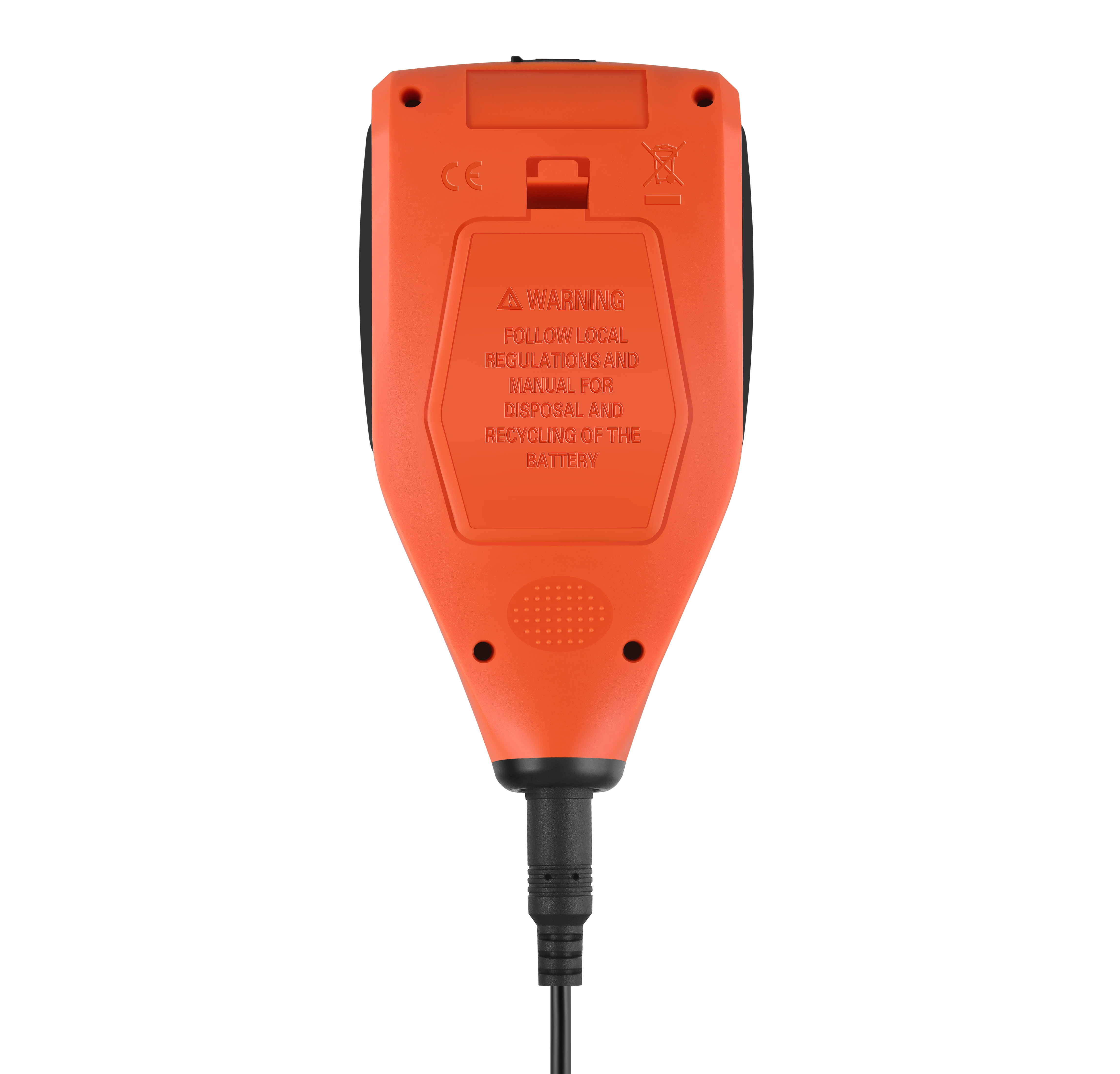

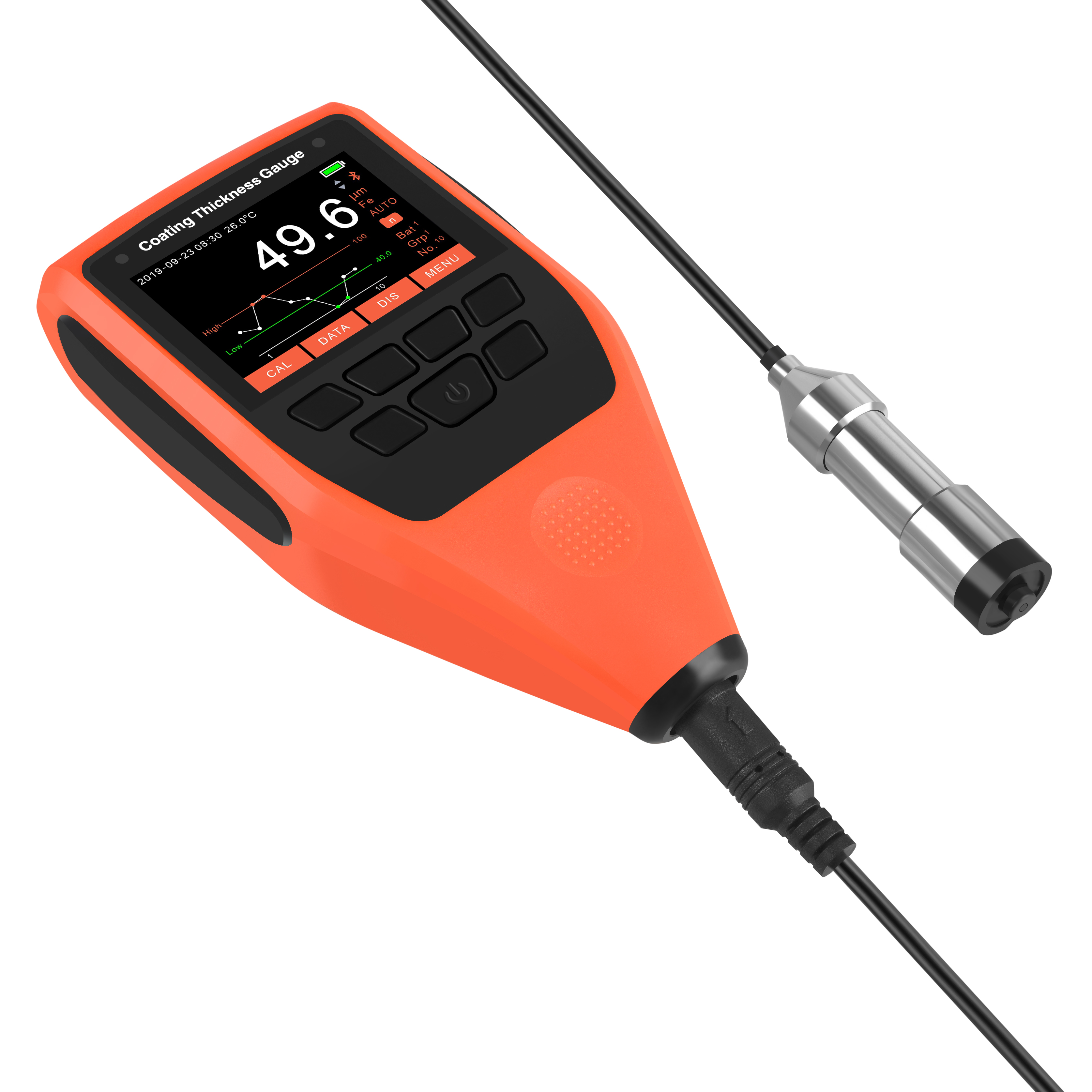

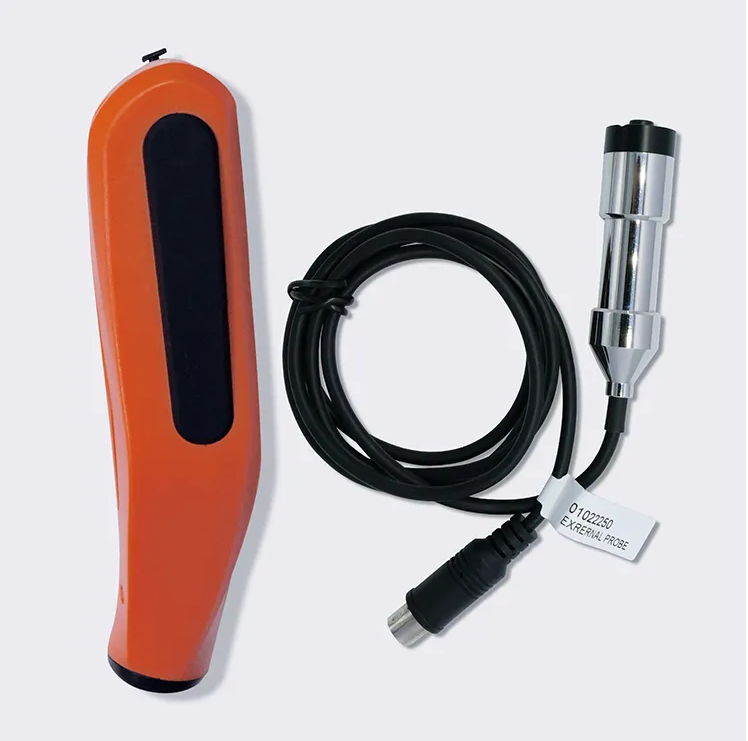

EC-777E thickness gauge with external probe can be equipped with a variety of separated probes for easy replacement. EC-777E is better suited to work in narrower spaces or on assembly lines compared with EC-777.

FEATURES:
•Double principle in one, ruby probe
•2.4 inch color screen
•With Bluetooth and APP function
•Car or general mode
•High resolution 0.1μm
•High accuracy ±(2%+1μm)
•Measuring range is 0~2000μm
(other ranges can be customized)
•Statistic analysis of data
•Standardized menu interface
•Display a curve, bar chart or trend chart
•USB to computer
•Support zero calibration and multi-point calibration
•External probe is optional (EC-777E)
•The maximum speed is 2 times/s
•Self-adaptive back light brightness
•Automatic rotation screen
•Sound volume adjustable
•Red LED alarm, blue and green LED status reminder
•Auto power-off
•Low power protective

APPLICATION:
•Car paint thickness detection
•Ship manufacturing
•Electroplating
•Mental anti-rust treatment
•Film thickness detection
•Metal parts processing

Model	EC-777	EC-777E
Probe type	Internal probe	External probe
Measuring Principle	Fe: Magnetic induction; NFe: Eddy currents
Measuring range	0~2000μm
Accuracy	±(2%+1μm)
Resolution	0.1μm(0~100μm); 1μm(>100μm)
Unit	μm, mm, mils, inch
Calibration	Zero calibration and multi-point calibration
Statistic	Number of readings, Max, Min, Mean, sample standard deviation, coefficient of variation, number below limit, number above limit
Chart	Curve, bar chart or trend chart
Storage	101310 measurement data
Probe trigger mode	Mechanical trigger, trigger force: 0.4~0.8N
Maximum measuring rate	2 readings/s
Display	2.4 inch color screen
Bluetooth & APP	Support
Operation environment	Temperature: -10~+50°C; Humidity: 20~90%RH (Non-condensation)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90%RH (Non-condensation)
Power supply	2 pcs 1.5V AA alkaline batteries;
	2 pcs 1.2V AA rechargeable batteries
Protection class	IP40
Size	1467632mm	Housing: 1467632mm
		Wire: Φ3.5*1000mm
		Probe: Φ17*67mm
Material	ABS	Housing: ABS
		Probe: stainless steel
Weight	About 137g (No battery)	Housing: about 137g (No battery)
		Probe: about 63g
Standards	CE,ROHS,ISO 2178,2360,GB/T 4956-2003,4957-2003,JJG-818-2005
Warranty	12 months
