DESCRIPTION:

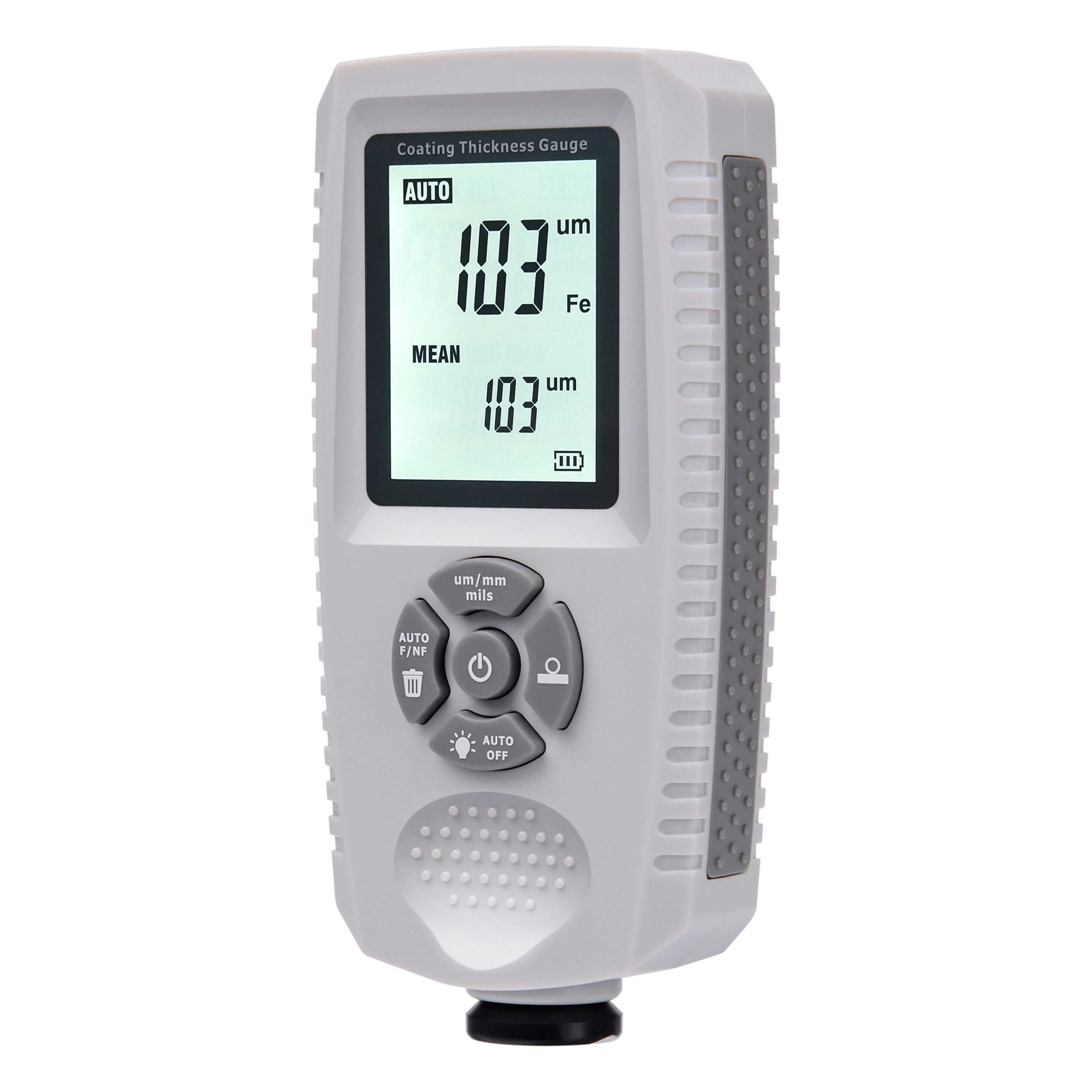

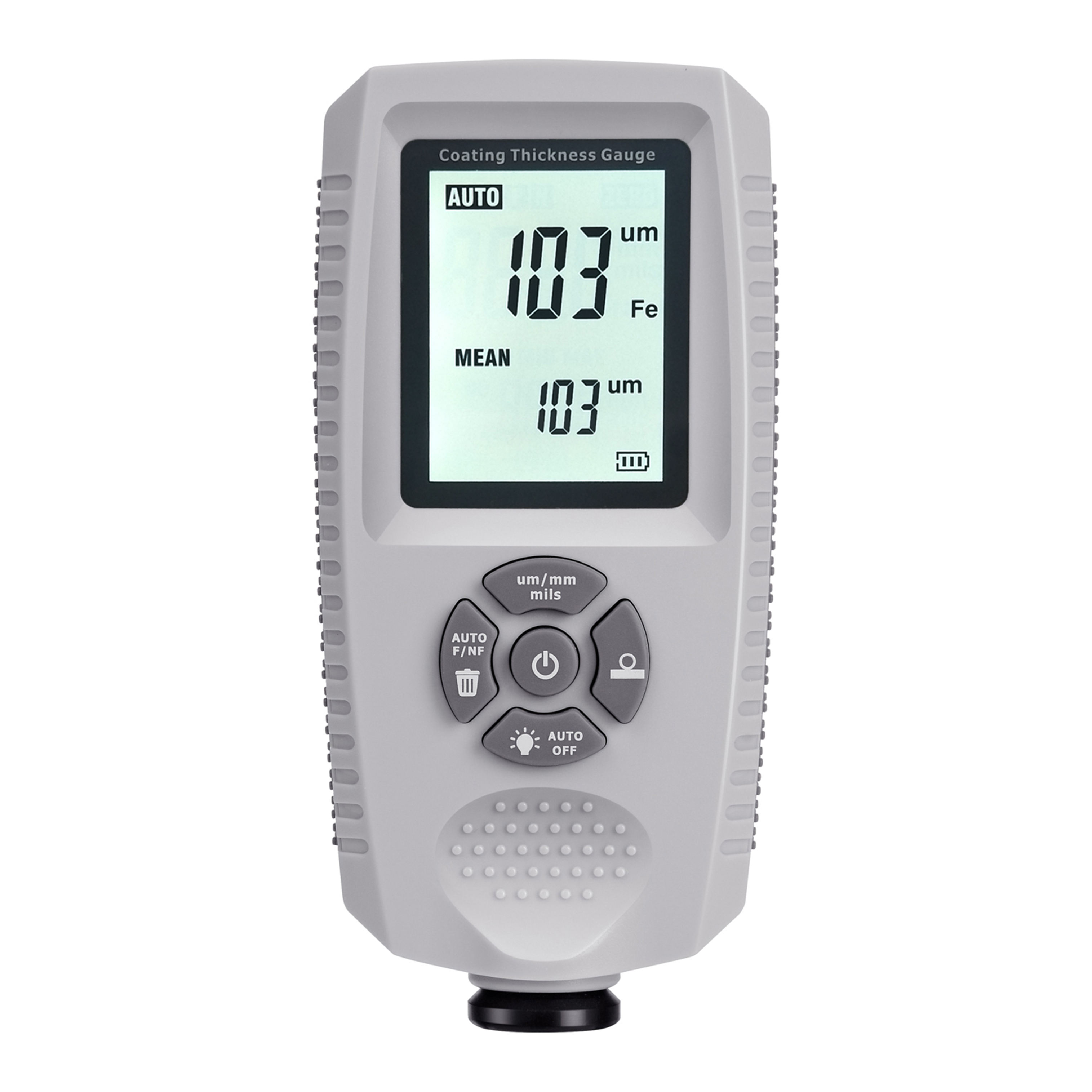

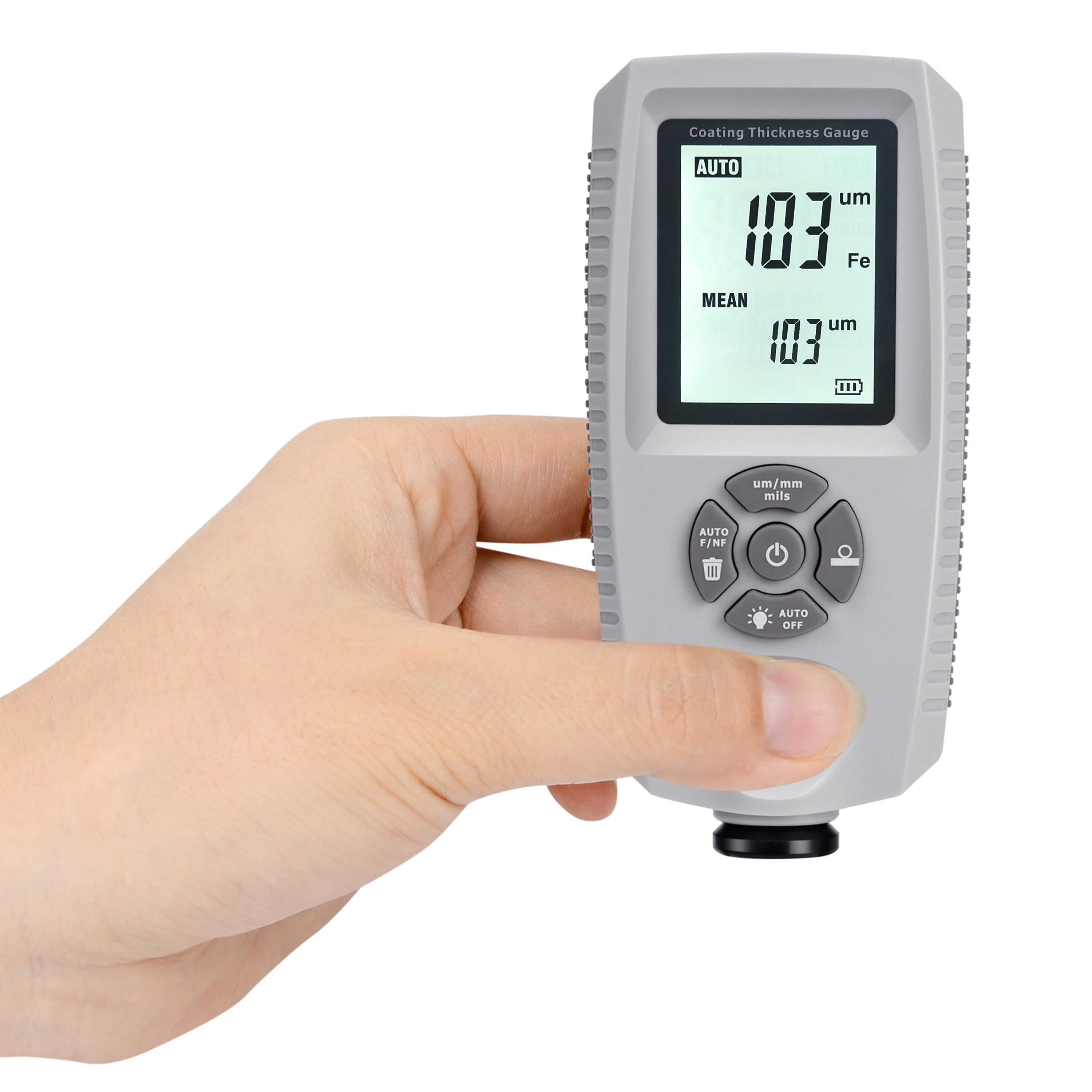

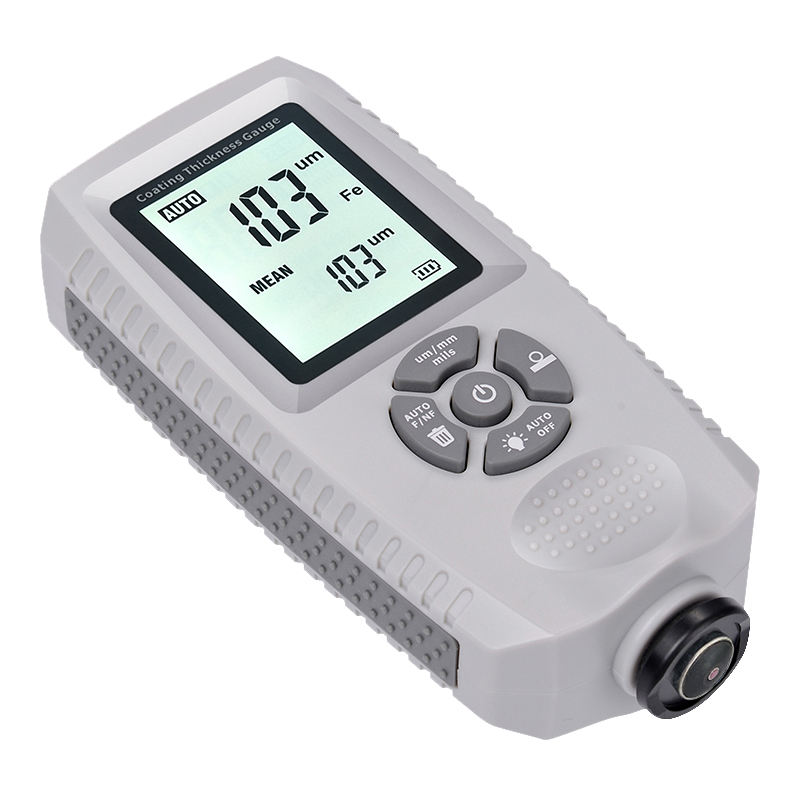

EC-500A thickness gauge has a built-in magnetic induction and eddy current effect integrated probe, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, cobalt).

Specific uses include measure the thickness of the paint or galvanized layer on the surface of iron and stainless steel, and the thickness of the paint or plastic film on the surface of aluminum and copper.

Features:
Ruby probe
Resolution up to 0.1μm
Precision ±(3%+1μm)
Measuring range 0~1500μm
Display minimum, maximum, average
User calibration support
Maximum measurement speed 2 readings/sec
Display with highlight backlight
Power off Automatically
Battery protection

APPLICATION:
Testing of automotive paint thickness
Ship manufacturing
Metal Anti-rust Treatment
Film thickness detection
Hardware processing
