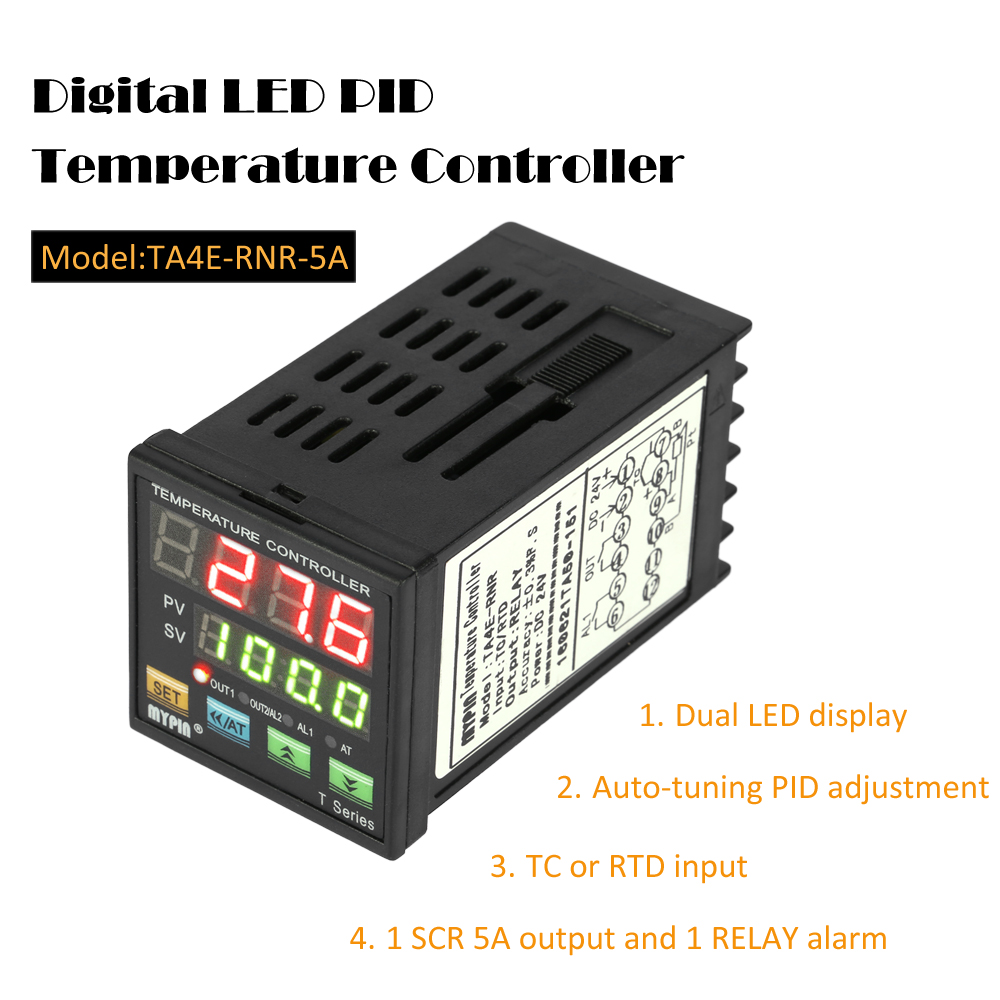

Digital LED PID Temperature Controller Thermometer Coil Heater Heating Cooling Control TC/RTD Input SCR Output 1 Relay Alarm

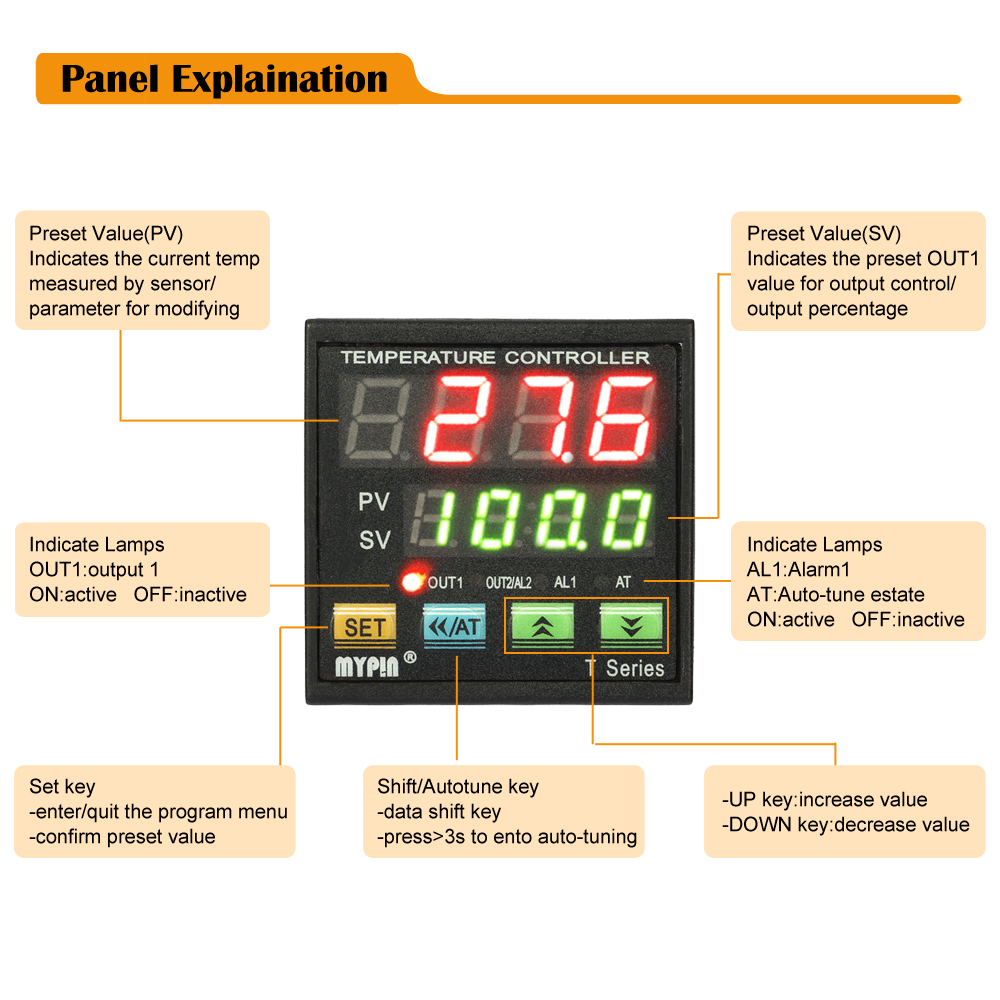

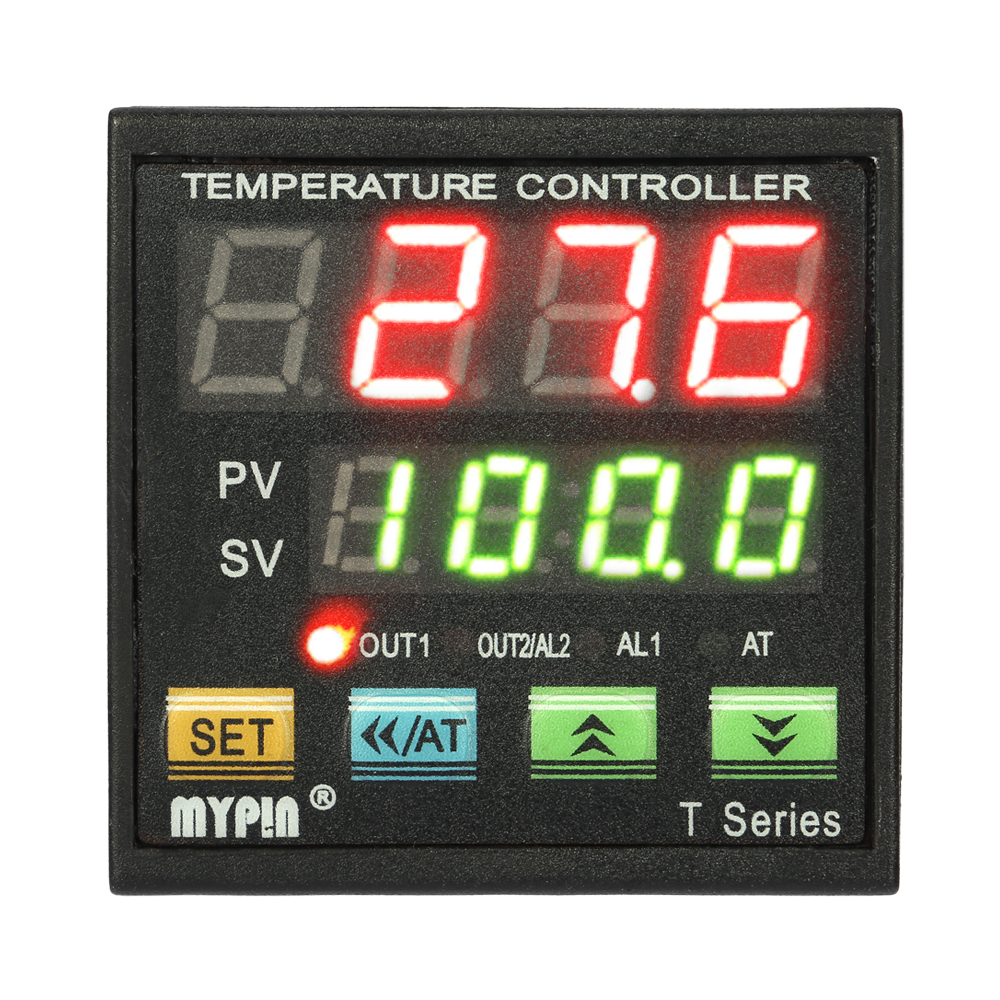

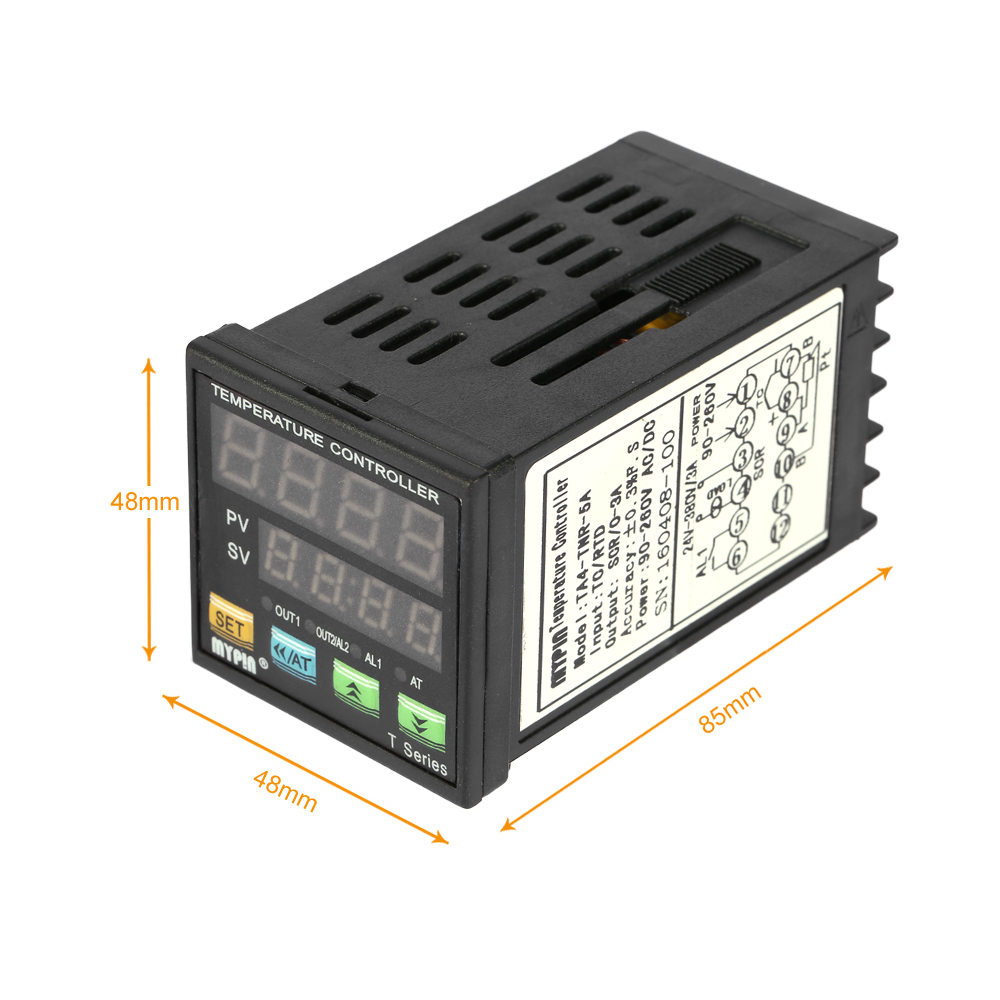

This is a dual display digital temperature controller that supports many types of thermocouple sensor. The instrument is widely applied to heating tube, heating coil, heating equipment and electronic cigarette to control the temperature.Features:Dual LED display, settable unit for Fahrenheit(°F) and Celsius(°C).The temperature display range is -200~1800°C, accuracy: 0.3%F.S±2dgt.Auto-tuning PID adjustment to choose for different applications to be controlled.Available for many TC or RTD input, precise, stable and simple for use.Widely applied to heating tube, heating coil, heating equipment and electronic cigarette to control the temperature.T: SCR; N: None; R: RELAYTNR-5A model represents the main control is SCR(Max. Load 5A), with only 1 alarm(RELAY).Specifications:Model: TA4-TNR-5APower Supply: 90~265V AC/DCPower Consumption: <3WDisplay Range: -200~1800°C / -328~3272°FAccuracy: 0.3%F.S±2dgtSampling Cycle: ≤300msMain Output: T: SCR/0-5AAlarm: RELAY: Normal Open AC250V/3A or DC 30V/5A COSφ=1Thermocouple Support: TC / RTD, K, J, E, S, Pt100 Environment Temperature: 0~50°CStorage Temperature: -10~60°CEnvironment Humidity: 35~85%RHItem Size: 85 * 48 * 48mm / 3.35 * 1.89 * 1.89inItem Weight: 113g / 4.01ozPackage Size: 10 * 5.5 * 6.5cm / 3.94 * 2.16 * 2.56inPackage Weight: 145g / 5.12ozPackage List:1 * Temperature Controller2 * Bracket1 * User Manual (English)
