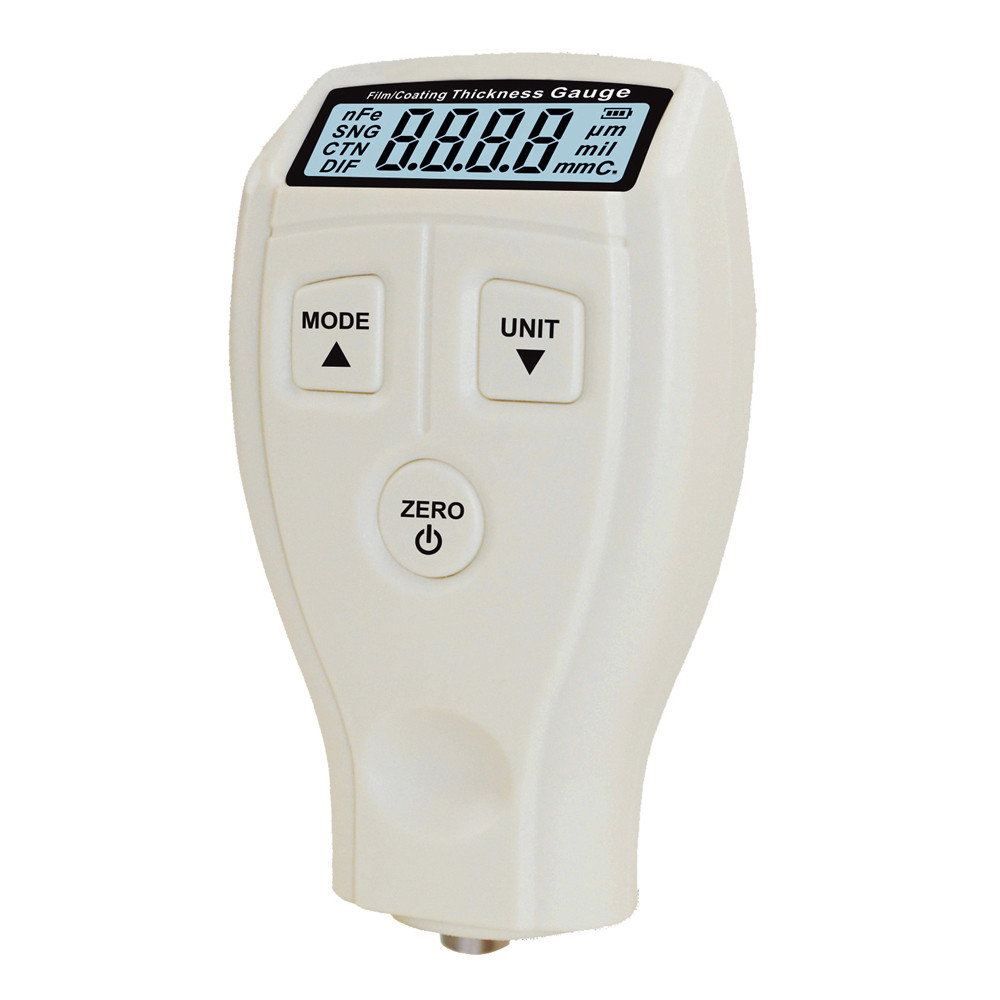

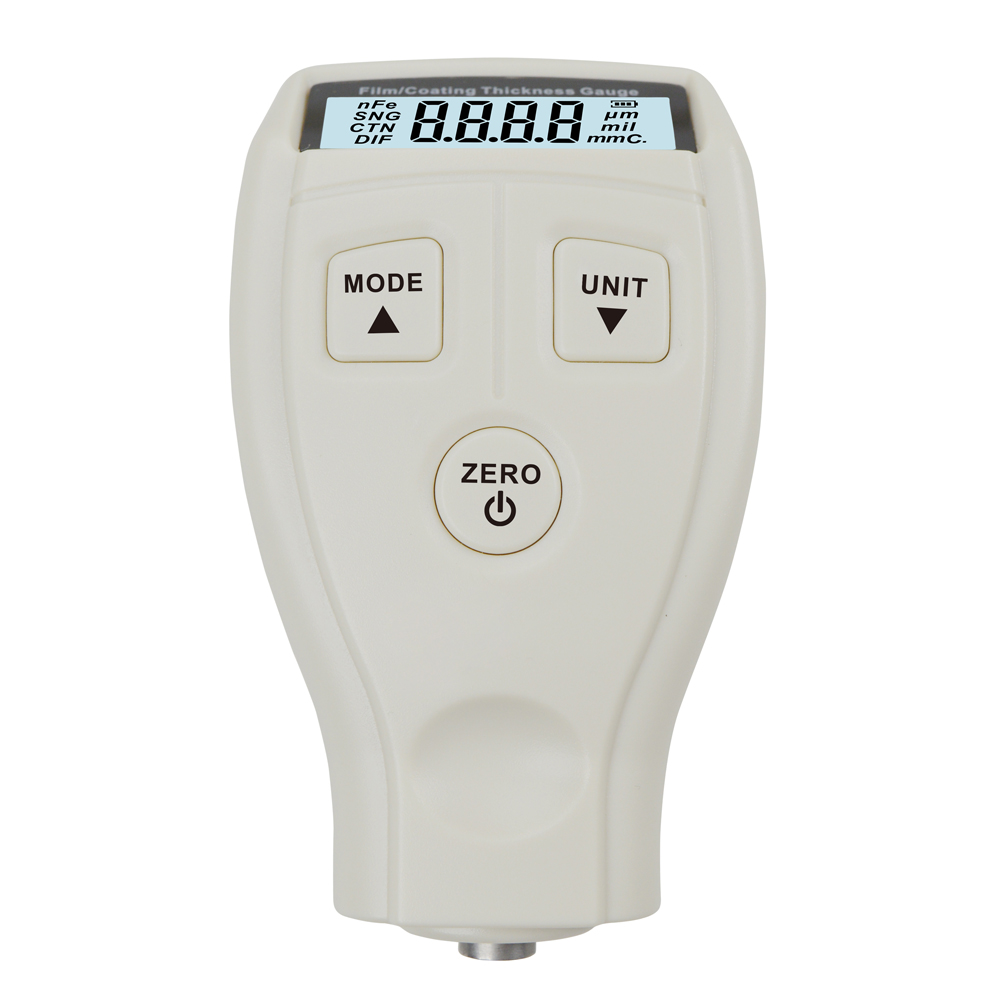

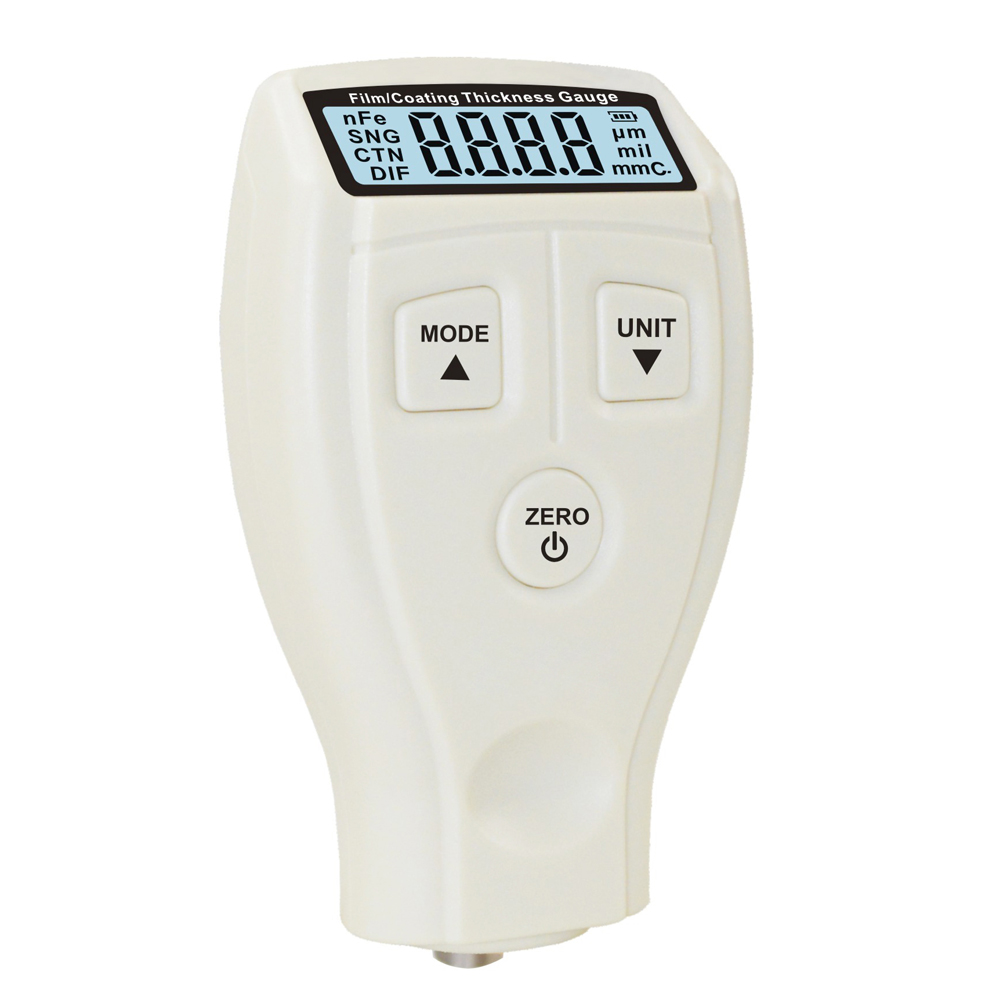

Digital Film/Coating Thickness Gauge Feeler Gauge with LCD Backlight Paint Electroplated Coating Measurement Range 0~1800

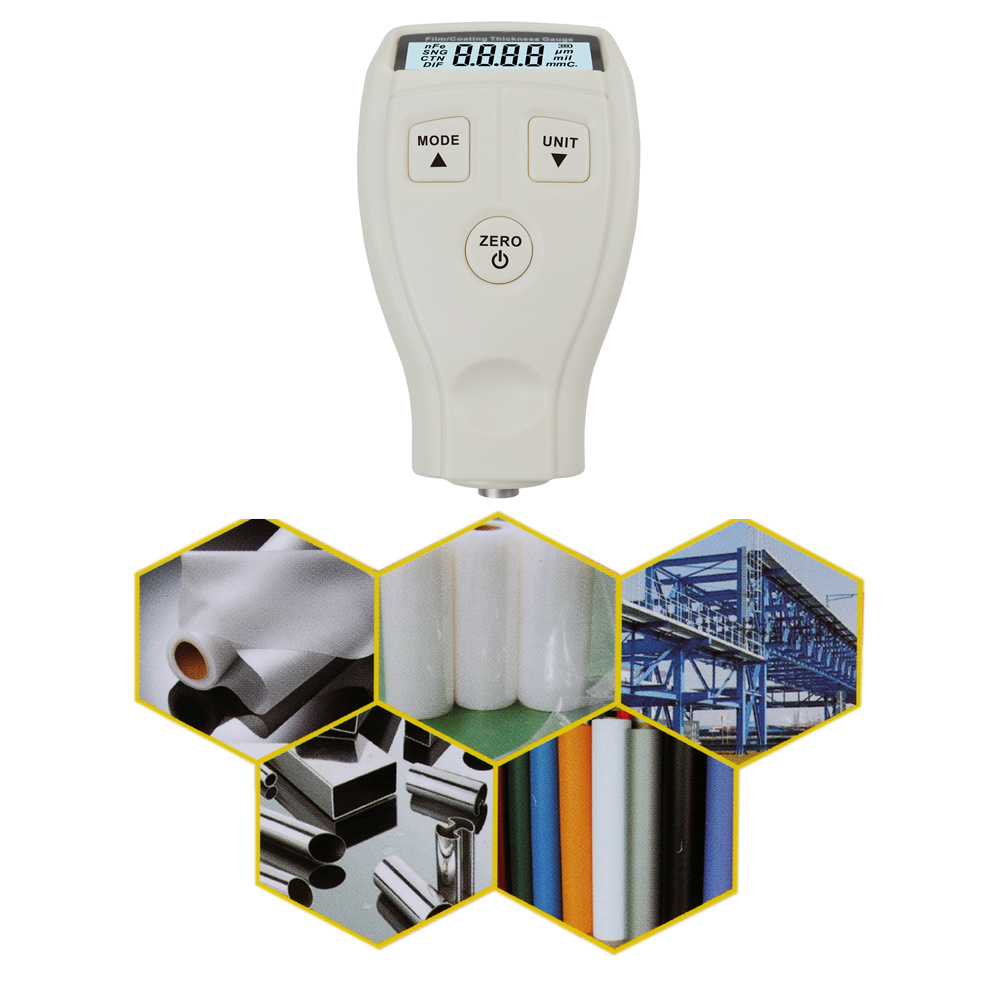

This product is a portable coating thickness gauge for fast, accurate and non-destructive measurement of the thickness of non-magnetic coatings(such as paint, electroplated coating and film) on magnetic metal substrates. This product has seen wide application in manufacture, metal working, chemical industry, commodity inspection and other fields.Features: Digital LCD backlight display for clear reading. Thickness measurement of non-magnetic surface coatings on magnetic metal substrates. 3 measurement modes: single measurement, continuous measurement and differential measurement. Zero-point calibration, 2-point calibration and basic calibration. Press UNIT to select the units(μm/mil) of measurement. Automatic shutdown function.Specifications: Color: White Measuring Range: 0~1800μm / 0~0.71mil Accuracy: (+/-)3%H+1μm Resolution: 0.1μm / 1μm / 0.1mil Min. Diameter of Substrate: 12mm Min. Thickness of Substrate: 0.5mm Min. Curvature Radius of Convex Substrate: 2mm Min. Curvature Radius of Concave Substrate: 11mm Power Supply: 2 * 1.5V AAA Batteries (NOT Included) Operating Temperature: 0-40°C Operating Humidity: 10-95% RH Item Size: 65 * 31 * 108mm / 2.56 * 1.22 * 4.25in Item Weight: 63g / 2.22oz Package Size: 17.1 * 9.8 * 4.7cm / 6.73 * 3.86 * 1.85in Package Weight: 132.5g / 4.67ozPackage List: 1 * Coating Thickness Gauge 1 * Substrate 6 * Standards 1 * User Manual (English)
