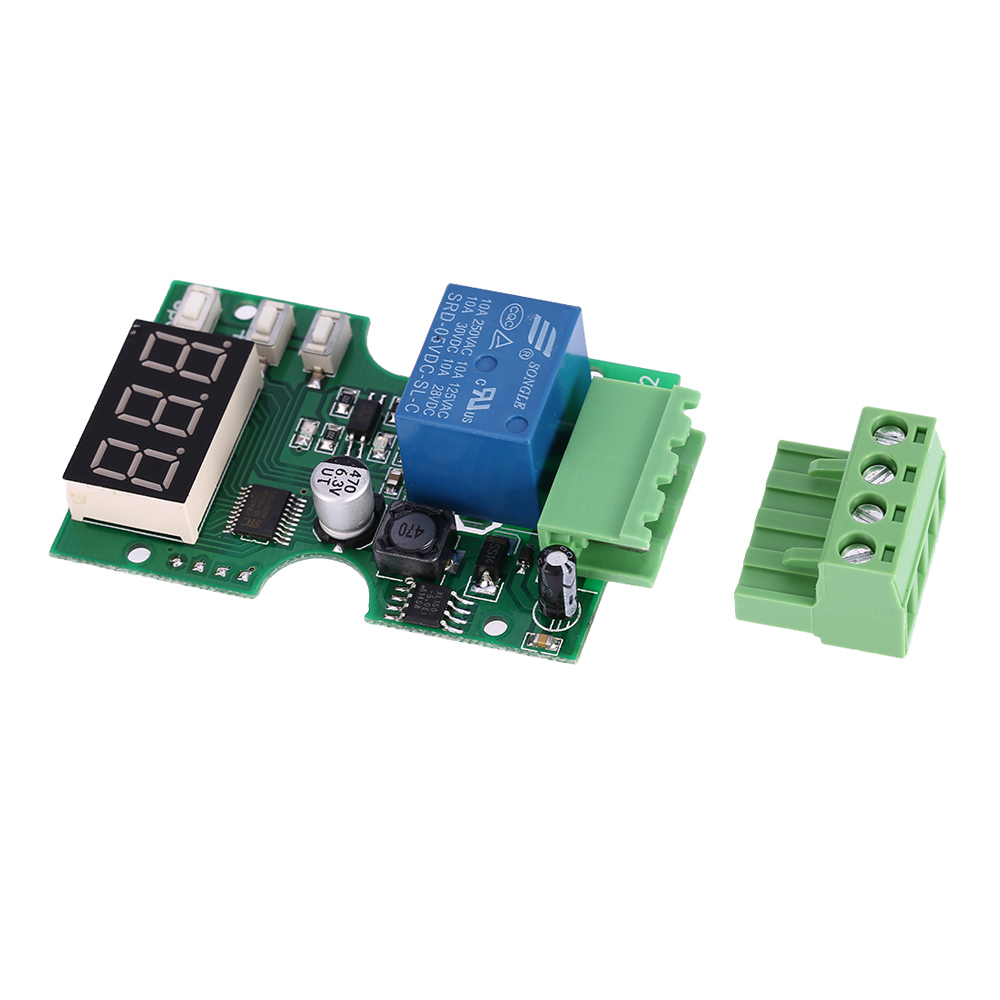

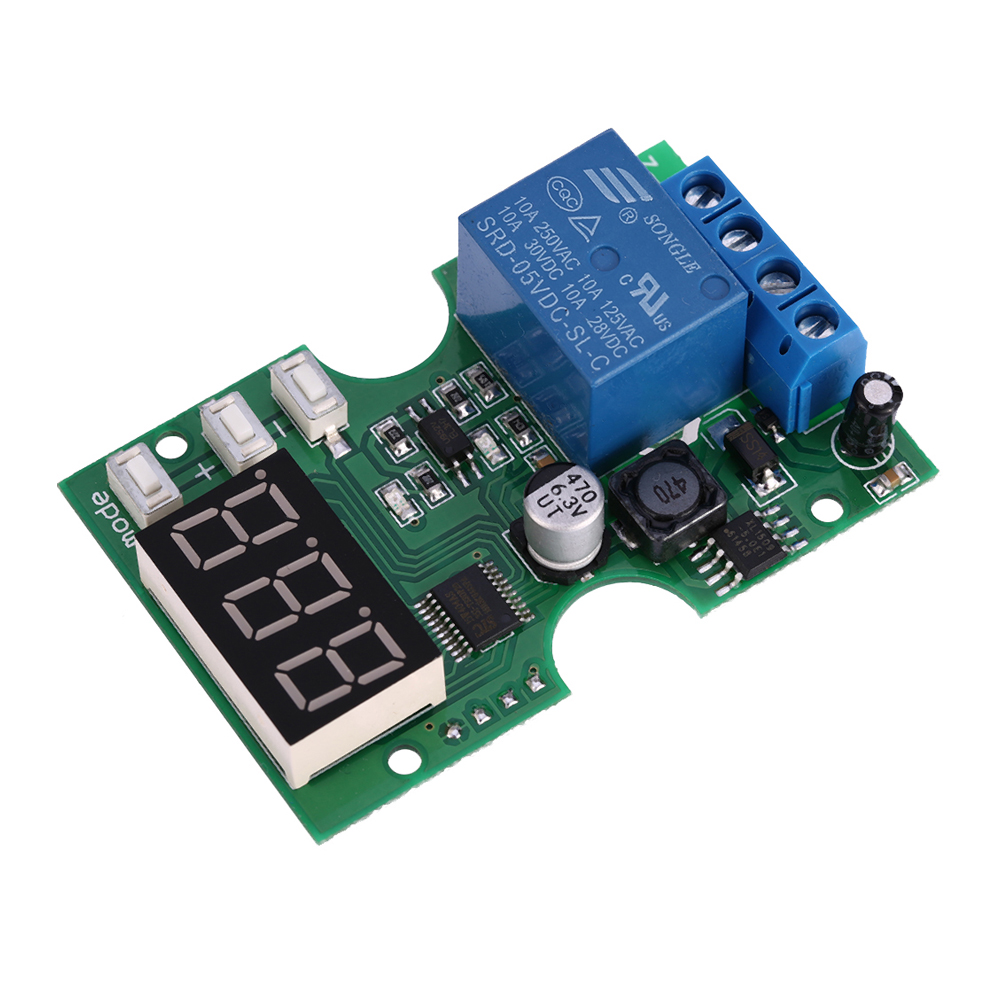

DC6-30V Voltage Test Module Voltage Meter Relay Output Control Delay Switch for Battery Charging/Discharging

This voltage controller, using microchip control and LED display the detection voltage, has features such as long life, low power consumption and strong stability. The relay output can be used to control the circuit on-off within 5A.
Features:
Adopts LED display the detection voltage, digital adjustment for on-off voltage values.
Can test DC 6-30V voltage, 5A relay output.
Delay Time setting: 0.1s-99.9s adjustable, anti-vibration function for protecting the circuit.
Memory function and error calibration function.
Power reverse protection and short-circuit protection.

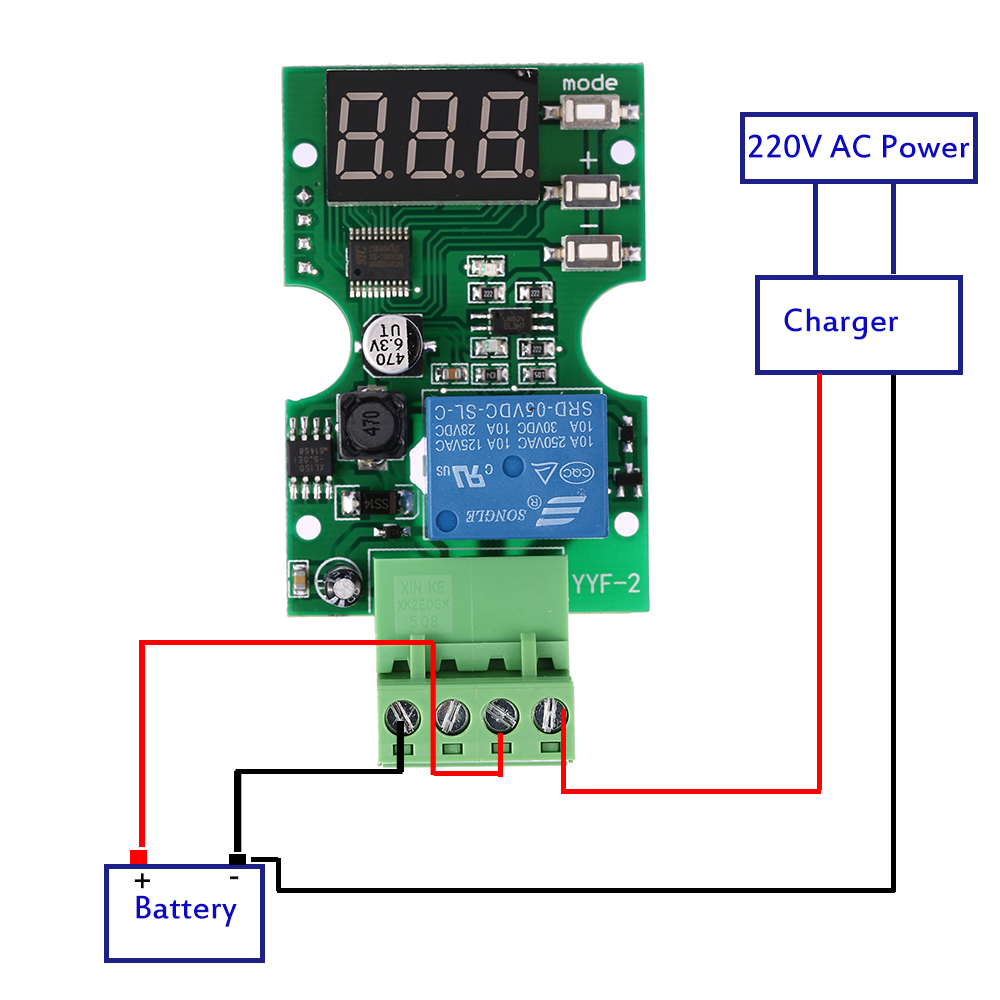

Applicable to detecting the battery charging/discharging.

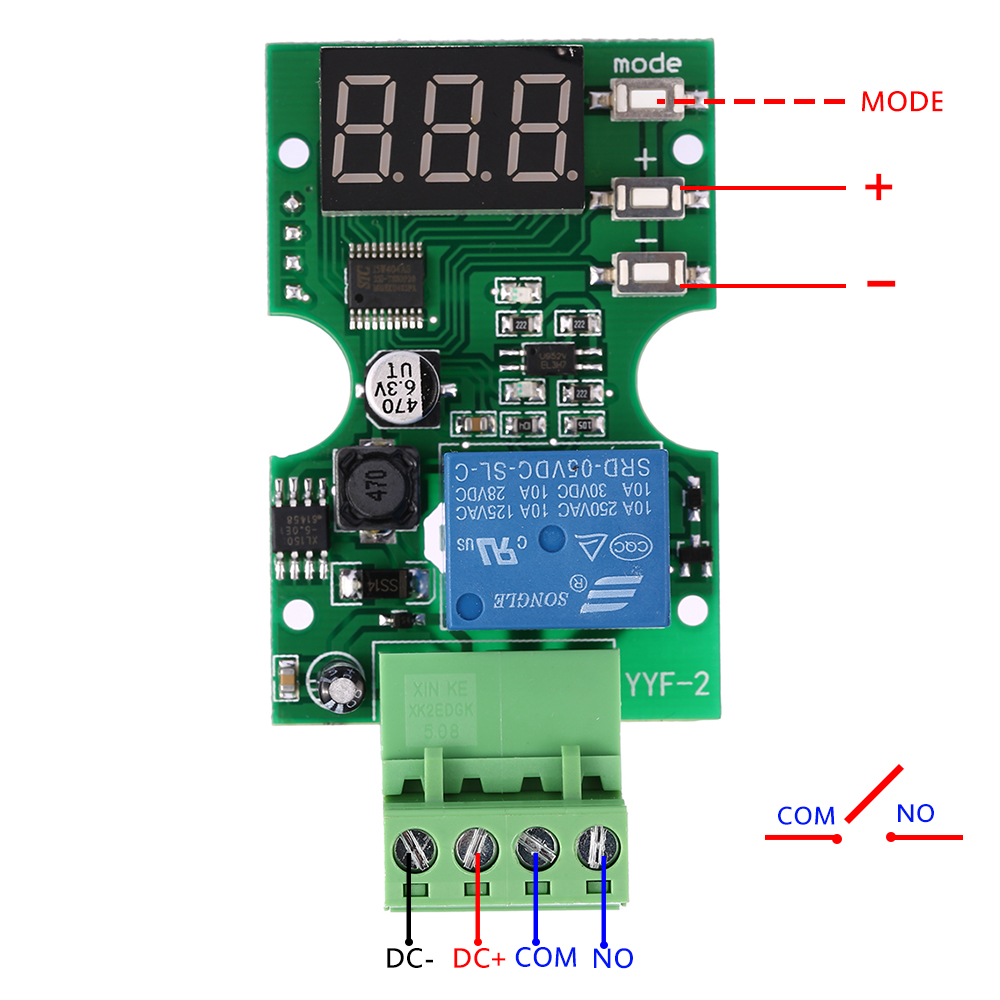

Functions Instruction:
P-1: Charging monitoring: when the voltage is lower than V1, relay closes; opens when higher than V2;
P-2: Discharging monitoring: when the voltage is lower than V1, relay closes; opens when higher than V2;
P-3: Interval close: relay closes when the voltage is between V1-V2, otherwise relay opens;
P-4: Interval open: relay opens when the voltage is between V1-V2, otherwise relay closes;
P-5: Error calibration and delay time setting, relay will not work in this state.
Specifications:

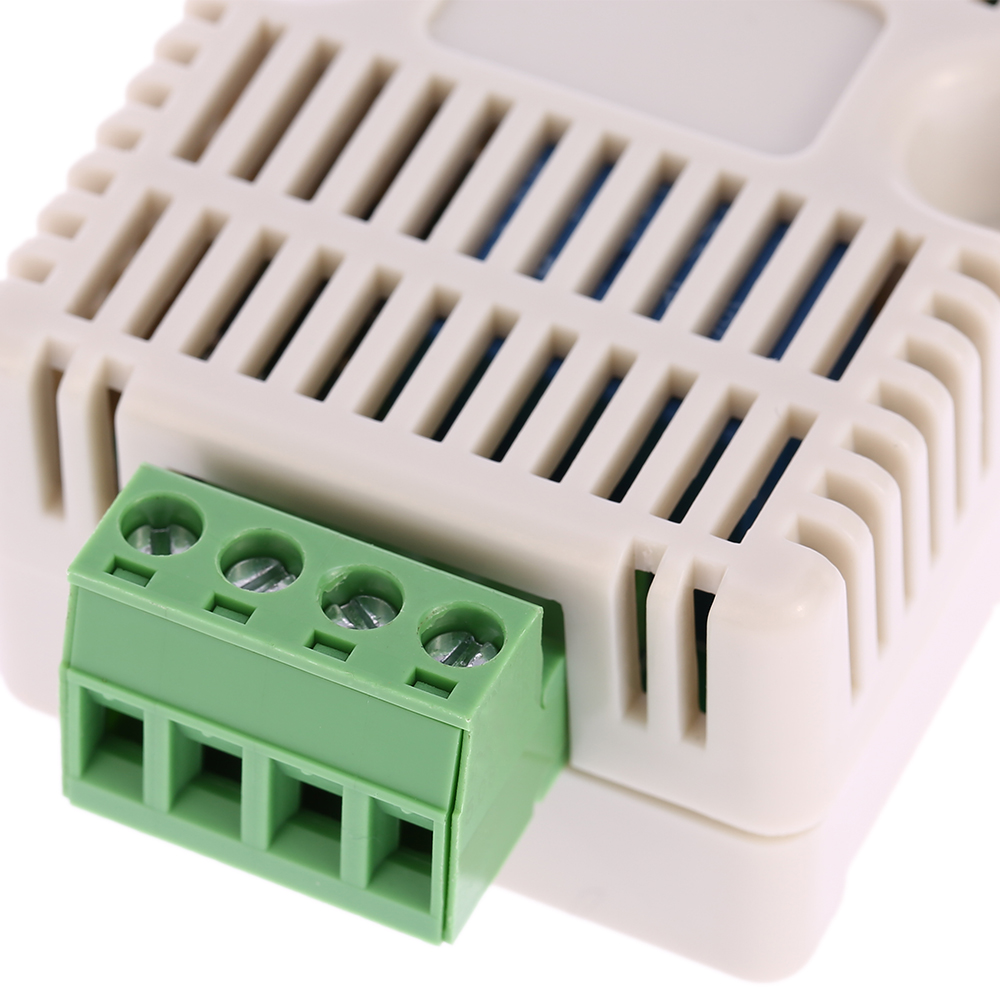

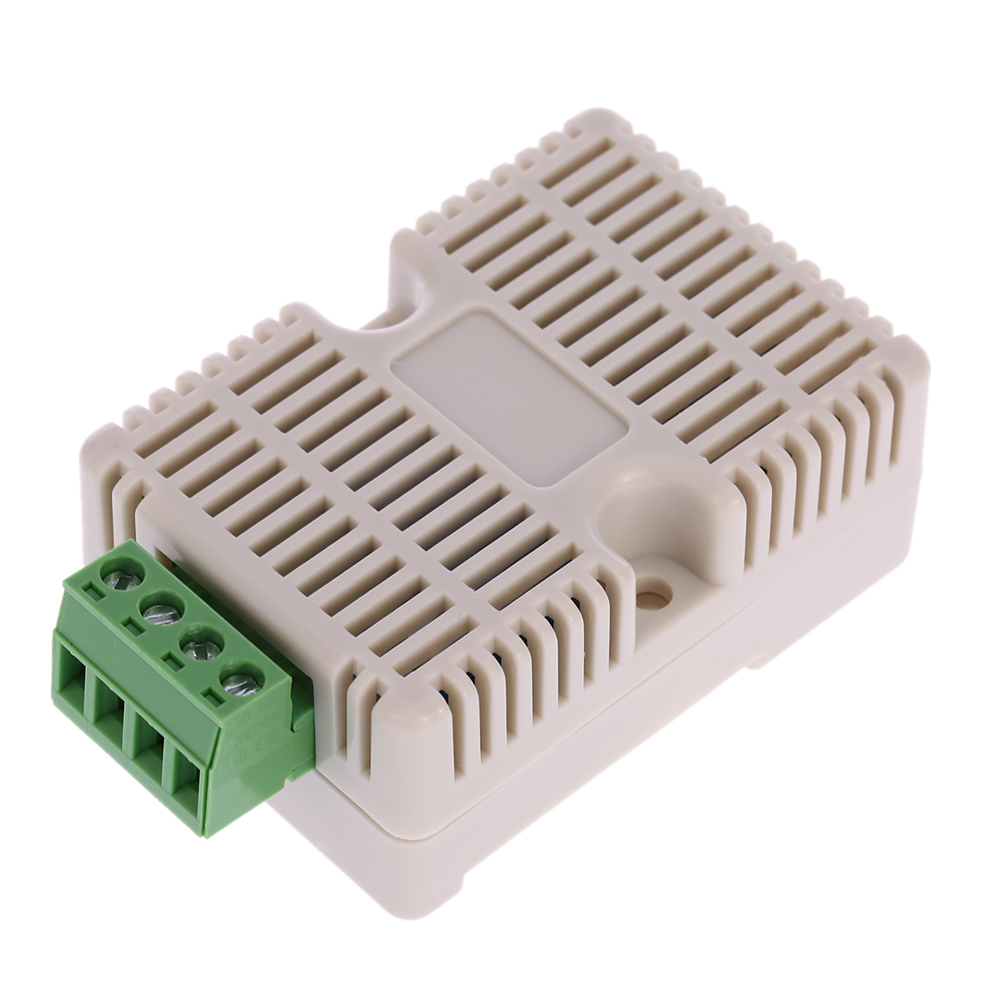

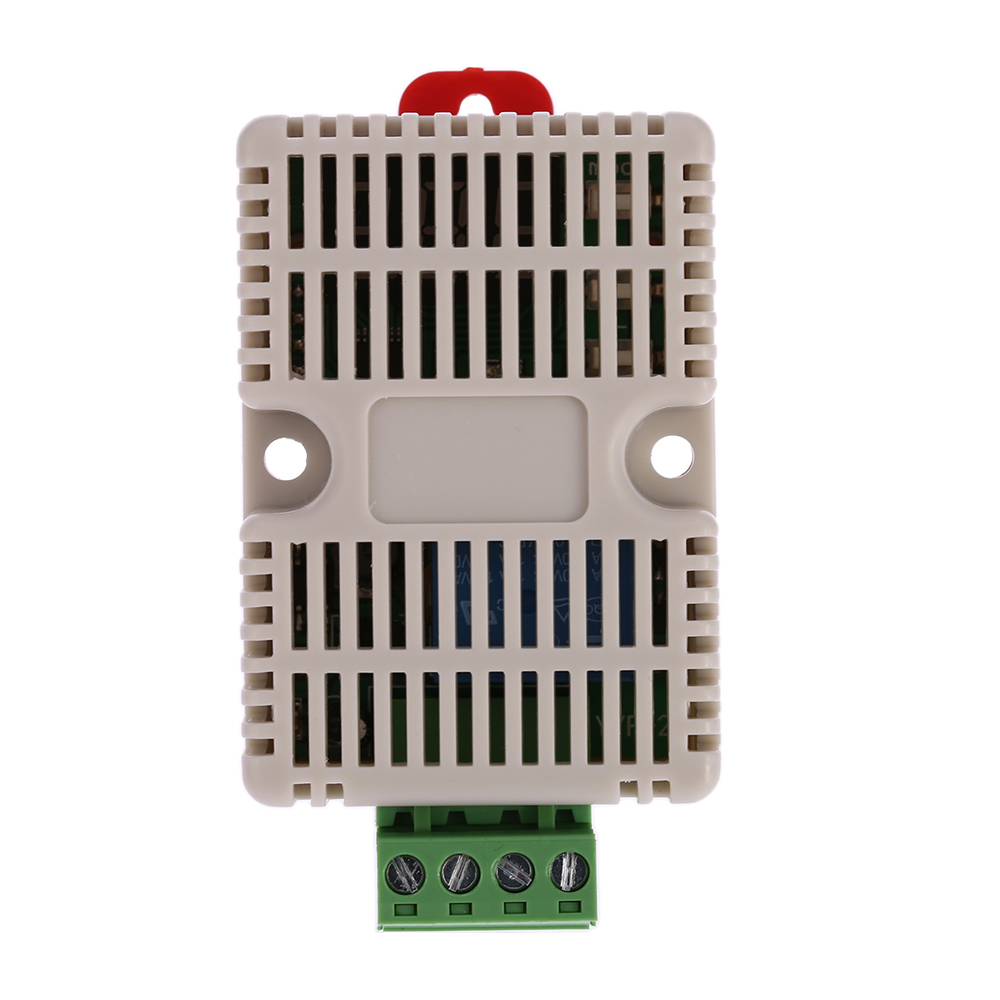

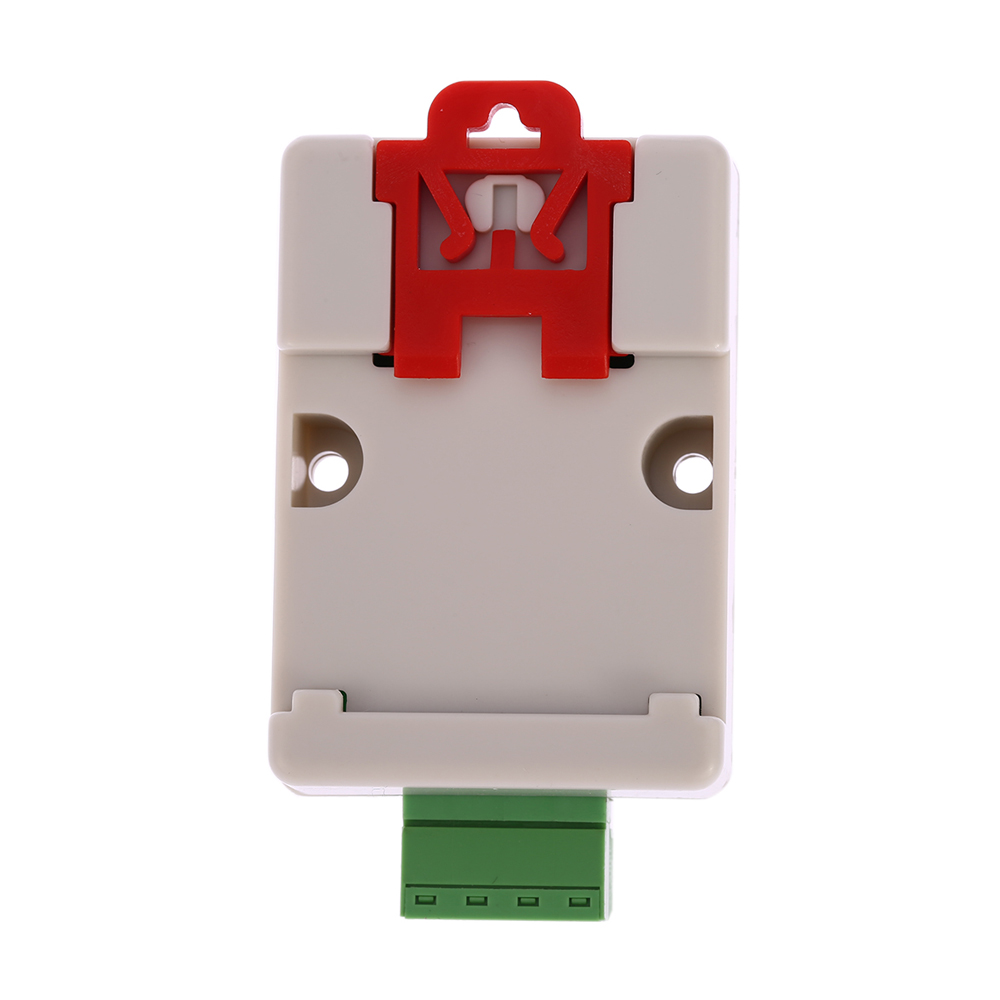

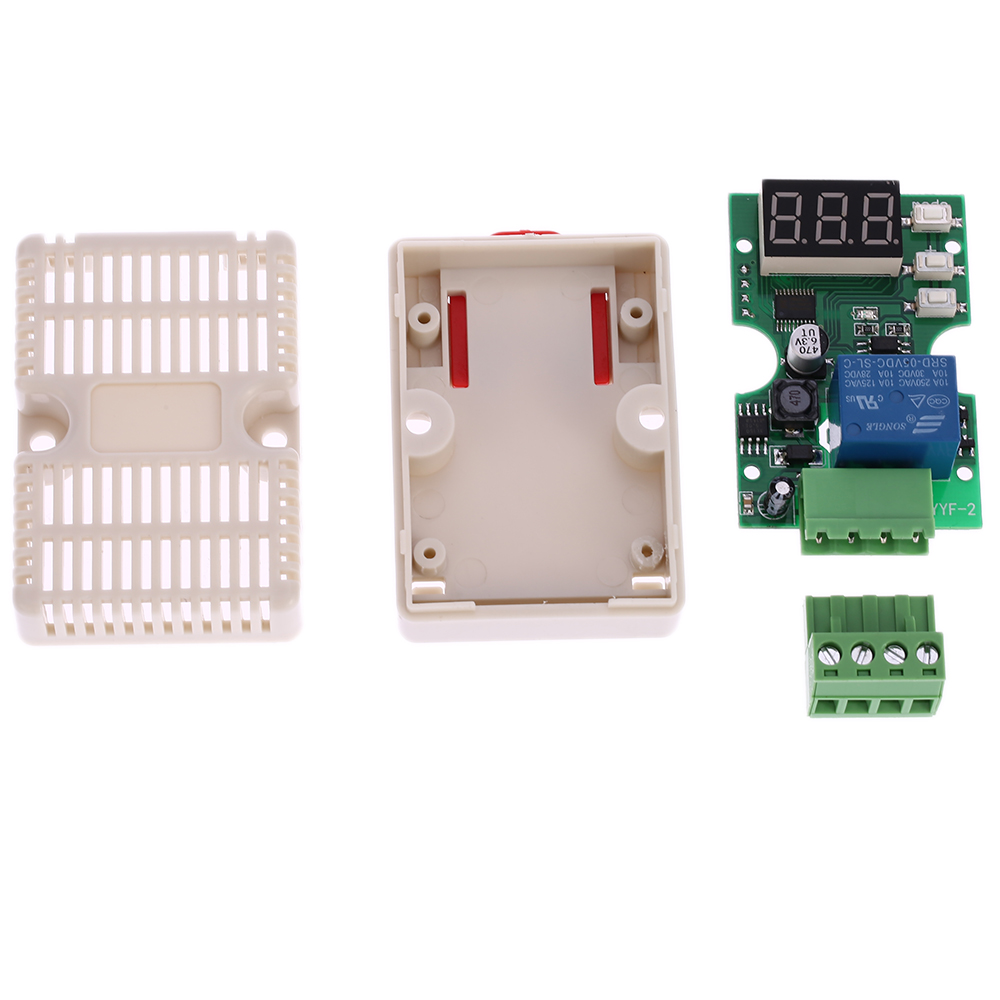

Type: With Case / No Case(Optional)
Input Voltage: DC 6-30V
Relay Output: 12V 5A
Accuracy: 0.1V
Dimension: With Case: 55 * 45 * 29mm; No Case: 58 * 38 * 16mm
Weight: With Case: 48g; No Case: 21g
Package List:
1 * Voltage Test Module
