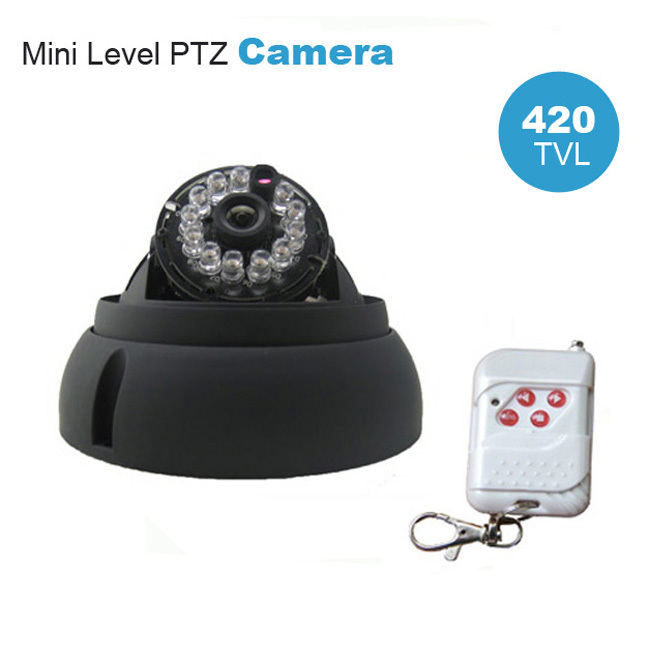

CCTV Sony CCD 420TVL Pan/Tilt IR Dome Security Camera 3.6mm Wide lens Surveillance Video Camera with Wireless Remote Control

Features:

1Mini Pan/Tilt Indoor Dome Camera

2Rotation Angle : 0-355°

3Rotation Speed:  Pan 9°/sec

4Automatic mode level rotation range: 16 limits / 22.5° each limit

5Control Mode: Wireless remote control

612pcs Taiwai Epistar Infrared Led, Night vision 5-10m

Specifications:

Model NO.                                                                         SAE185IR-3S42D

VIDEO

Image Device                                                                   1/3" Sony Super HAD CCD

Image senser                                                                   Sony 3142+Sony 633CCD(PAL)/632CCD(NTSC)

TV System                                                                        PAL/NTSC

Effective Pixels                                                                PAL:512(H) x 582(V);NTSC:512(H)*492(V)

Scanning System                                                            2:1 Interlace

Synchronization                                                               Internal

Horizontal Resolution                                                     420TVL

Min. Illumination                                                              0Lux(IR-ON )

S/N Ratio                                                                           >48dB

Video Output                                                                    1Vp-p,75ohm, BNC

LENS

Focal Length                                                                    Default 3.6mm (6mm/8mmLens optional)

FUNCTION

BACKLIGHT                                                                     AUTO

BRIGHTNESS                                                                  AUTO

GAIN                                                                                  AUTO

White Balance                                                                  ATW

Electronic Shutter Speed                                               PAL:1/50 ~ 1/100,000sec; NTSC:1/60  ~ 1/100,000sec

Infrared LED                                                                     12pcs Taiwan Epistar Infrared LED

IR Distance                                                                       5-10 Meters

Infrared Spectrum                                                           850nm

ENVIRONMENTAL

Operation Temperature                                                 -10~ +50

Storage Temperature                                                     -20~ +50

Vandal-proof Casing                                                      Indoor

ELECTRICAL

Input Voltage/Current                                                     DC12V,<280mA

Adapter Requirement                                                     DC12V 1A

MECHANICAL

Color                                                                                  Black

Dimensions                                                                      12*12*10 mm

Net Weight                                                                        400g/pcs
