CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

SKU:

CK71899

Category: NVR

$35.45

Enquiry

Footer Group

Description

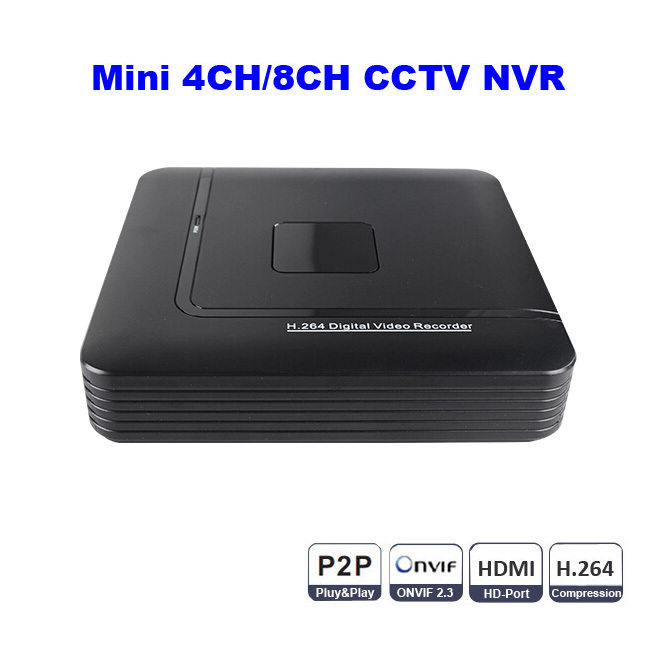

CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

1.H.264 High profile compression algorithm ideal for network NVR

2.Realtime live display up to 4/8 IPcameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5.Multiple control methods:IR remote controller,USB mouse and front panel press button

6.Smart video detection:motion detection,video blind,video loss

7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display

8.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported

9.Easy backup methods: USB devices,remote network and client software backup

10.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload

11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

12.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK..

13.Enable strong multi-way synchronization with max 1 channel playback, realize the zero-delay between playback channels

14. Support Onvif

15. Support cloud (xmeye.net),no need to do router mapping, just 1 step go to internet with cloud technology

CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

System	Model	N1004F	N1008F
	Main Processor	HI3515A	HI3520D
	Operating System	Embedded LINUX
	System Resources	Pentaplex function:live,recording,playback,backup & remote access
	Operation interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/4
Video	Video Standards	PAL 625 line,50 f/s;NTSC 525 line,60 f/s
	Video Compression	H.264 High profile
	quality supervision	Monitor: D1; VGA: high definition; HDMI: hd

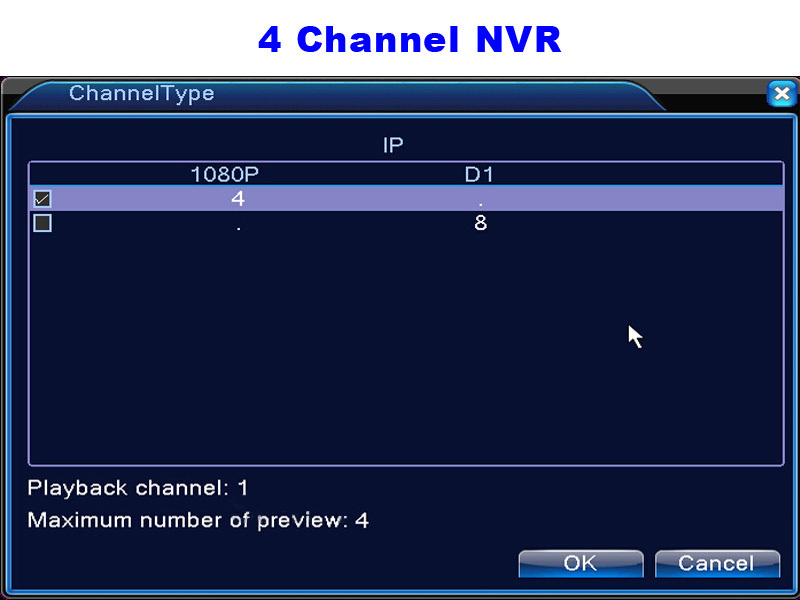

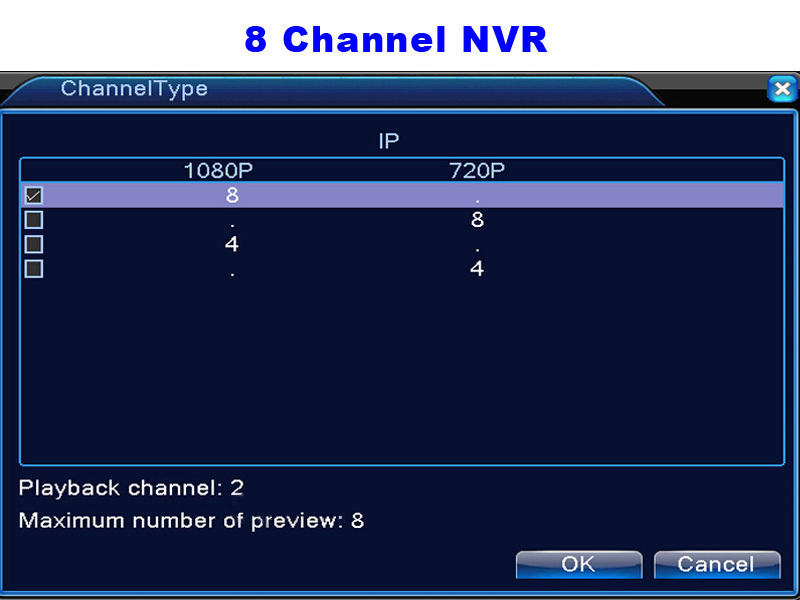

	Video Input(IP)	4*1080P	81080P/8720P/16*D1
	Video Recording	1080P/960P/720P/960H/D1/HD1/CIF/QCIF
	Motion Detection	Zones:396(22*18)detection zones, Multi-level sensitivity can be set (Local channels only)
Audio	Audio Conpression	G711A
	Bidrectional Talk	N/A
Record & Playback	Recording Mode	Manual>Alarm>Video Detection>Continuous
	Playback	1/4channel playback simultaneously
	Search Mode	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup	Space Occupation	Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch, D1 16~20G/day/ch ; Audio: 691.2M/day/channel
	Video saved	Local HDD,network
	Backup Mode	Network download/Flash stick/USB/SATA

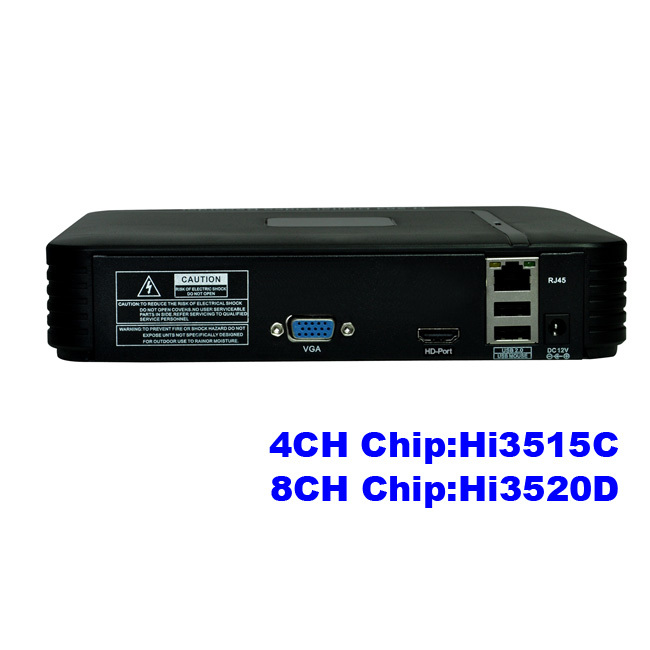

Interface	Video Input(BNC)	N/A

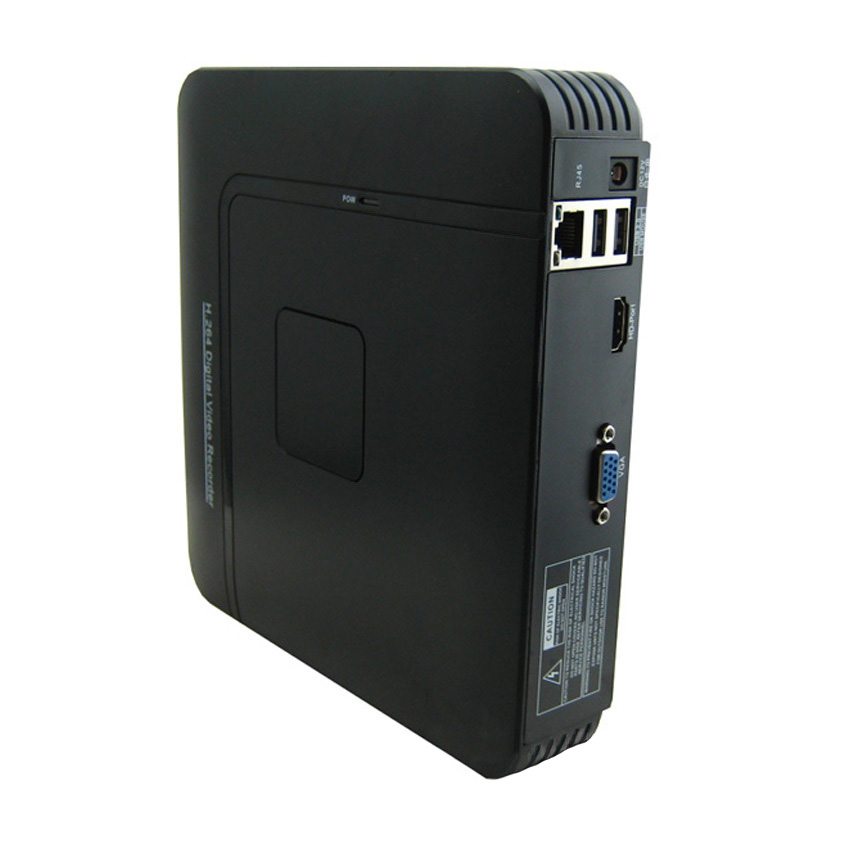

	Video Output	1ch BNC output, 1ch VGA output, 1ch HDMI
	Audio Input	N/A
	Audio Output	1 channel RCA
	Alarm Input	N/A
	Relay Output	N/A
	Net Interface	RJ-45 10M/100M
	PTZ Control	N/A
	3G/WIFI	NO
	USB Interface	2* USB2.0 port for mouse and backup
	Hard Disk	1 SATA port(Max 1 x 3T)
Environmental	Power Supply	12V/2A

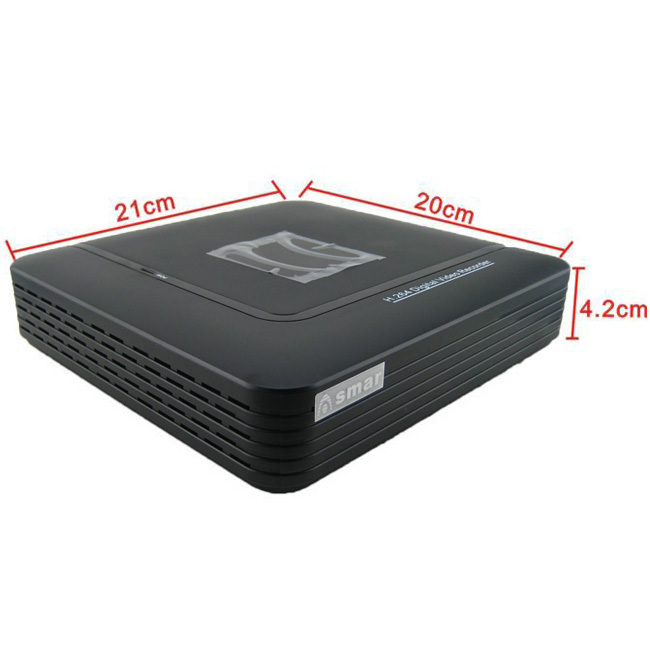

	Dimension	L220W250H40
	ONVIF	SUPPORT

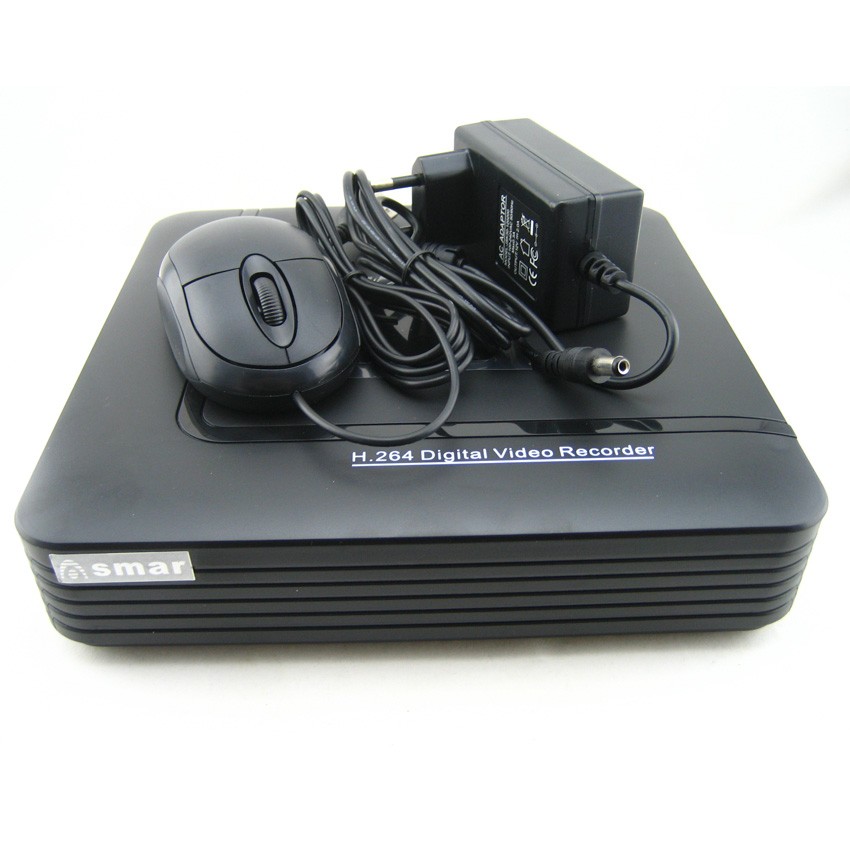

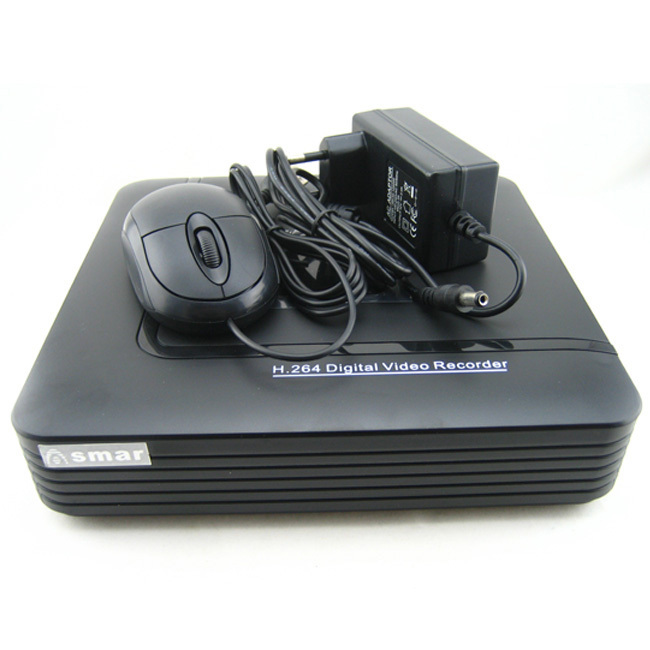

CCTV DVR*1

Power Supply*1

USB Mouse*1

User Manual*1

CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

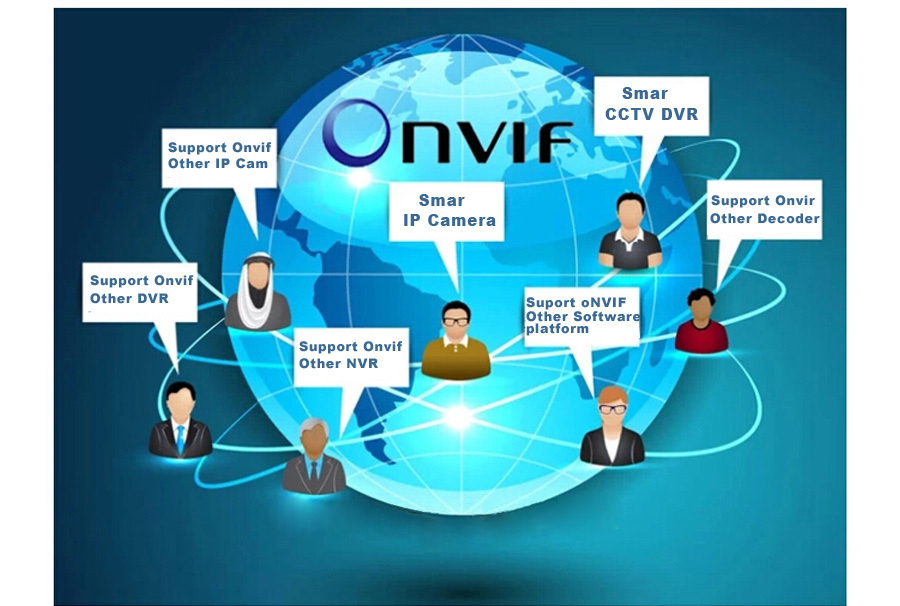

This DVR Support ONVIF protocol, It's can compatible with our own brand of the network video products, but also compatible with other brand of the network video products for Onvif, It can implement multiple devices connected to each other, mutual communication.

PC & Smartphone Remote View

Anytime, Anywhere...Using the latest network technology, plug and play, you can remote view via smart phones, tablets, notebook or PC CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

Smartphone Surveillance

Support all kinds of Mobile phone monitoring(iPhone, Windows, Mobile, BlackBerry, Symbian, Android), But support P2P function only (Android, iPhone). CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price

Directions for use

How connect IP Camera to NVR? What equipment is needed?

Answer: NVR Only 1ch RJ45 network interface, can’t connect to NVR directly, you must be add a Router or Switch.If you have 4 ip cameras or 8 IP Cameras,you must be add a 4 port or 8 port of Router or Switch….If you had one 1 port of Router, only add one 4 port or 8 port of Switch.

How to Connect?

At first, please connect IP Camera to Router or Switch,then connect Router/switch to NVR.

Looking at the Network Monitoring System diagram.

CCTV Mini HD NVR 4CH Video Recorder Onvif 8 Channel H.264 Network DVR For 720P 1080P IP Camera Security System P2P Best Price
