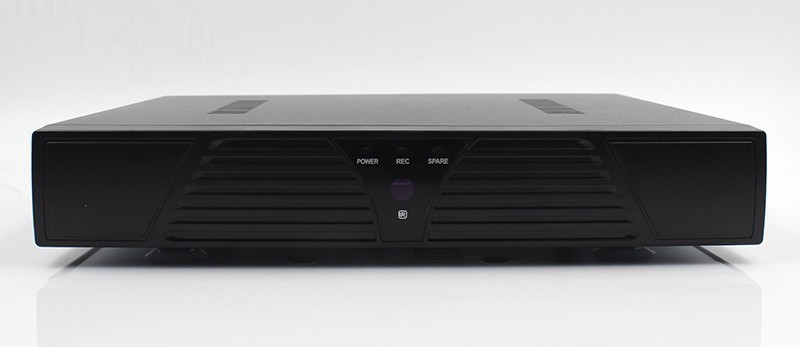

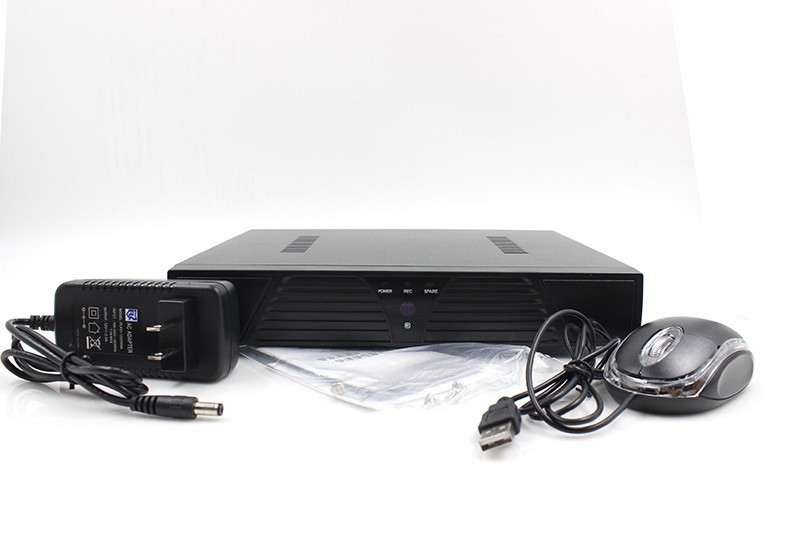

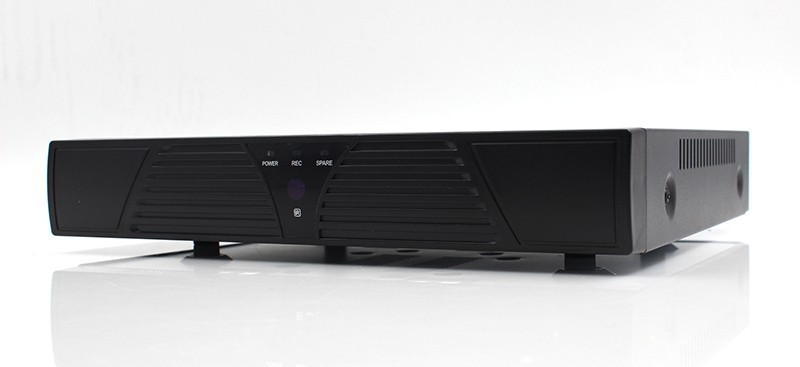

CCTV 16CH NVR Onvif H.264 HDMI High Definition 1080P Full HD 16 channel Network Video Recorder CCTV NVR For IP Camera system

SKU:

CK10309

Category: Accessories

$139.00

Footer Group

Description

Features :

With H.264 High efficiency Video Compression
Support 2ch playback
With unique time screen in front of the panel, and displays recorder.
Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
Support 1*HDD( 3TB), with 2*USB2.0 for backup, burning, upgrading operation
Stronger network service. support IE browse and CMS software

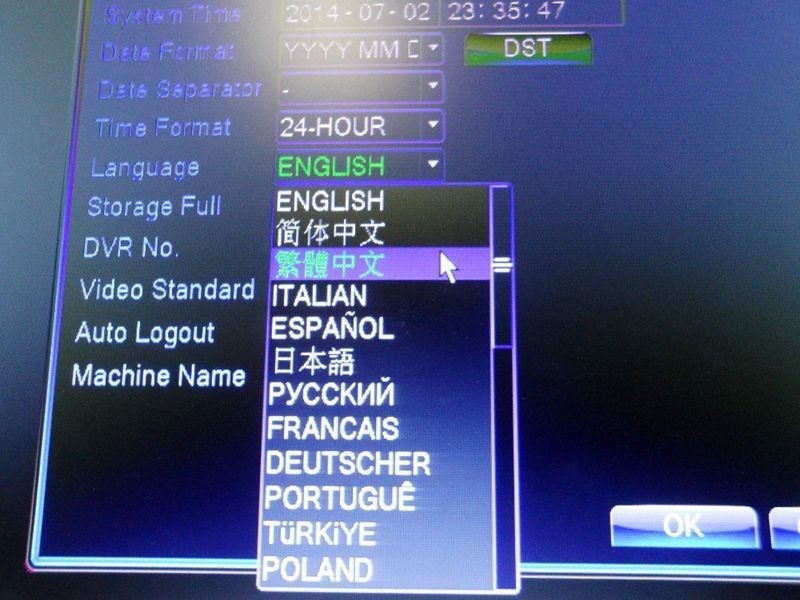

Support Chinese, Russian, English, Italian, Portuguese, Spanish, French, German ..... 30 language
Build-in 3322.org dyndns.net oray.net and myq-see.com free DDNS dynamic domain name
Built-in own free DDNS Domain Name Server: //www.secu-link.com:8080
With HDMI, Support 1080P high-definition (1920 * 1080P)
With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.
Support P2P cloud functions

	Model	NVR-N16FL
System	Main processor	Hi3521 chip
System	Screen display	1/8
Video	Video standar	PAL(625TVL,50 Fields / sec. ;NTSC(525TVL,60 Fields / sec. )
	Video quality	Monitor :D1;VGA: HD;HDMI:HD
	Coding capacity	1080P/720P/960H/D1/HD1/CIF/QCIF

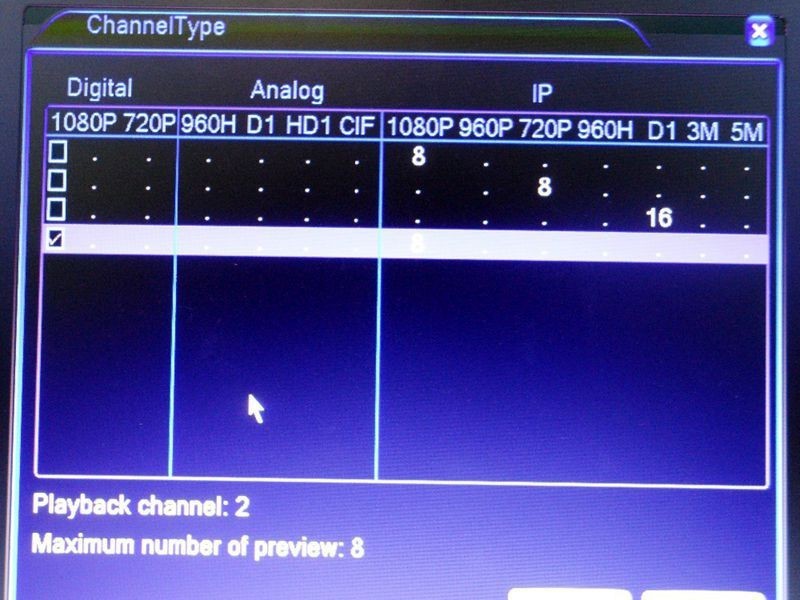

	Digital input	16960P or 16720P or 8*1080P
	Motion Detection	Each screen can be set to 192 (16 × 12) detection area; multi-level sensitivity can be set
Video playback	Video mode	Manual> Alarm> Motion detection> timing
	Local Playback	Single
	Video inquiry	Point-in-time retrieval, calendar search, event search, channel search
Storage backup	Space	CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
	Video save	HDD. Network
	Backup mode	Network backup,USB mobile HDD,USB Burner,DVD CD burning
Interface	Video input	No

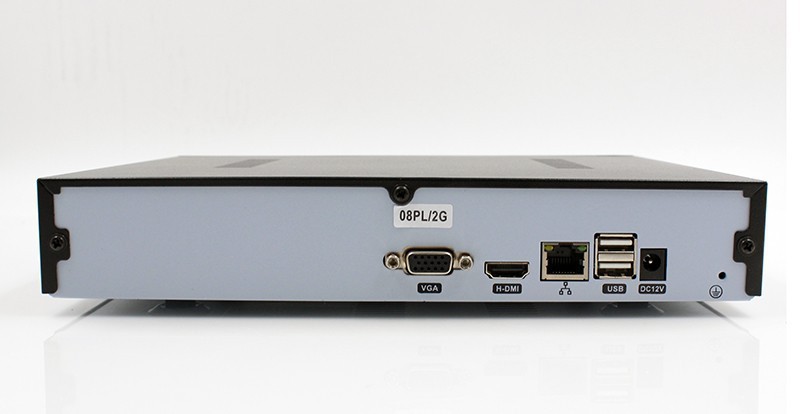

	Video output	1ch VGA output,1ch HDMI output (1920*1080P)
	Audio input	1ch RCA
	Audio output	1ch RCA audio output
	Alarm input	No
	Alarm output	No
	Network interface	RJ45 10M/100M/1000M
	PTZ control	NO
	USB interface	2*USB interface
	HDD	1 SATA (3TB)
Others	Power supply	12V/2A
	Size	390(width)x30(deepth)x100(hight)mm
	weight	2.2kg(not including HDD)
