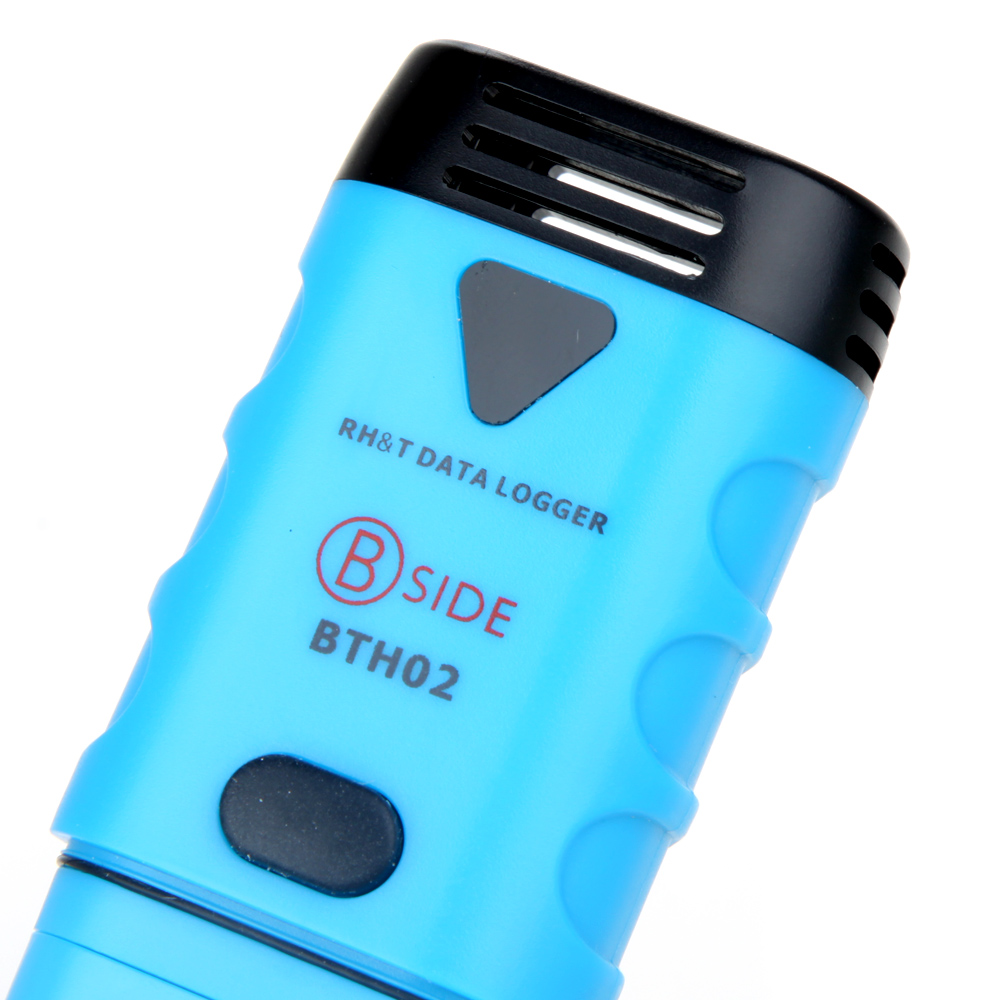

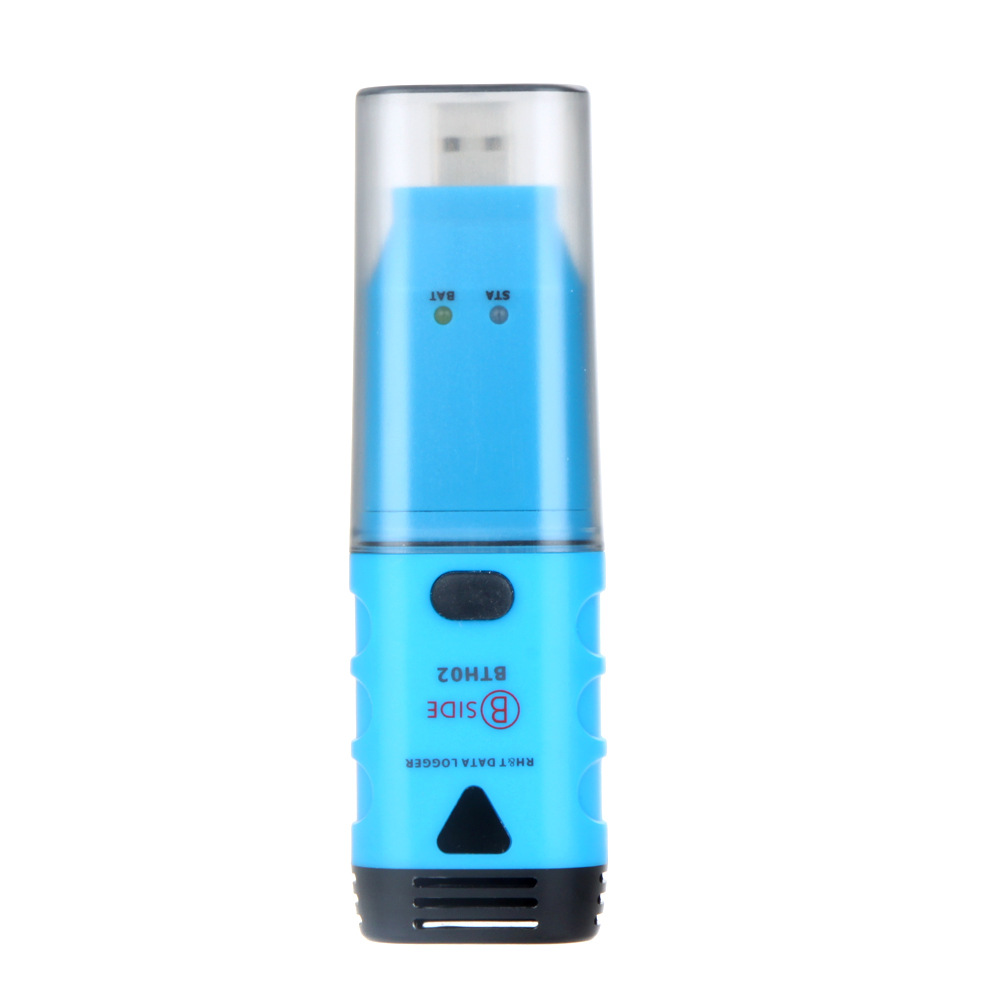

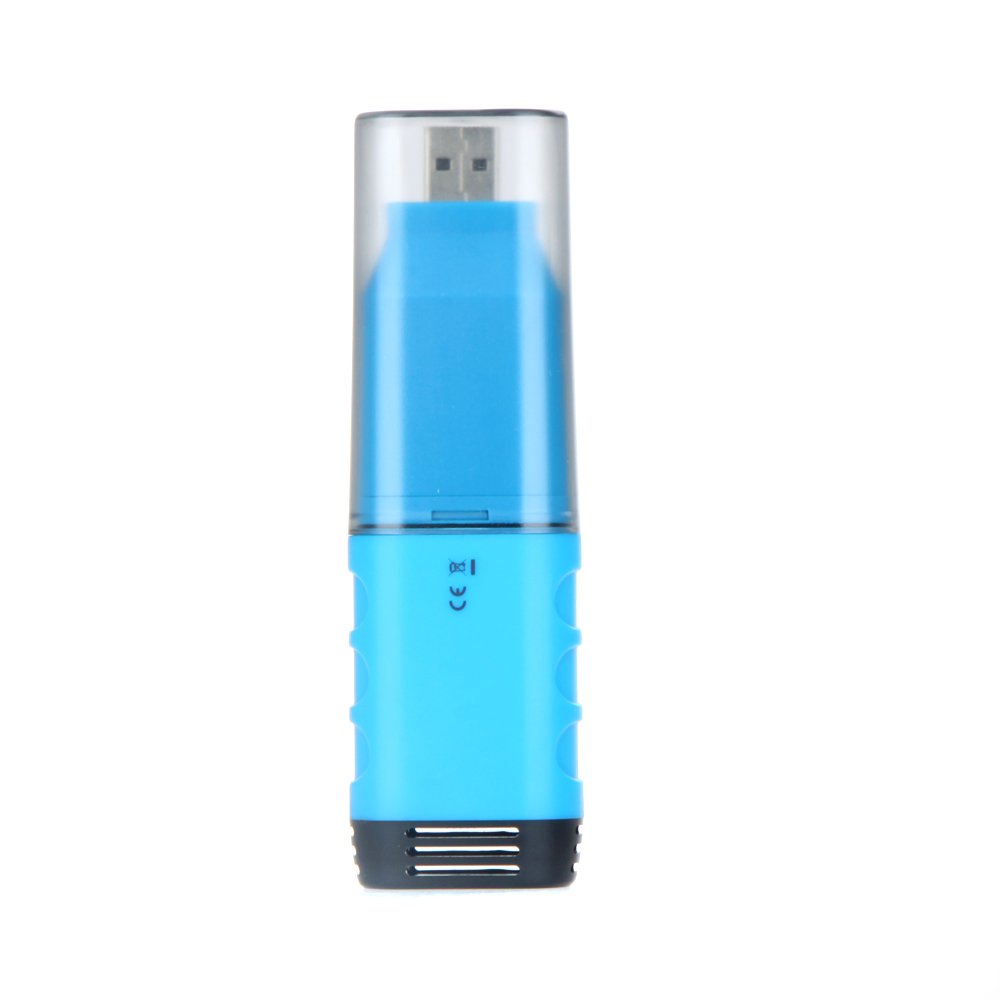

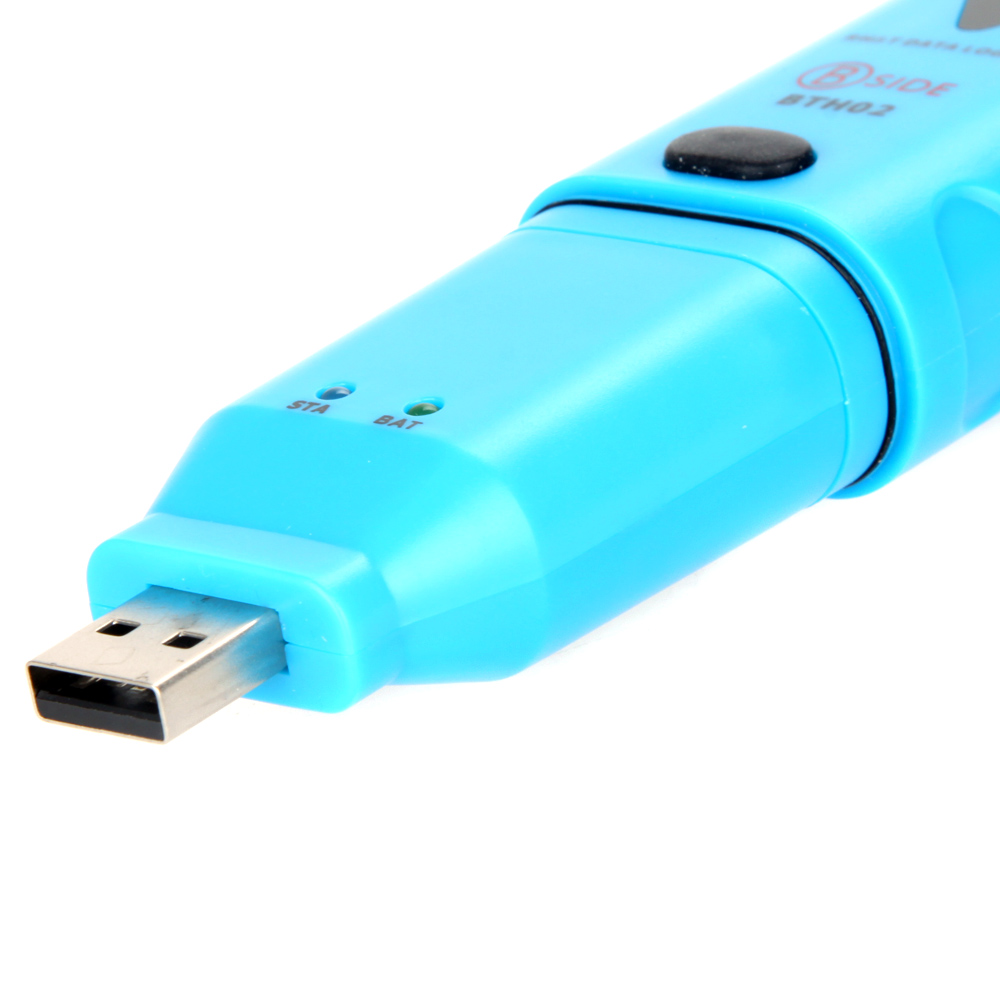

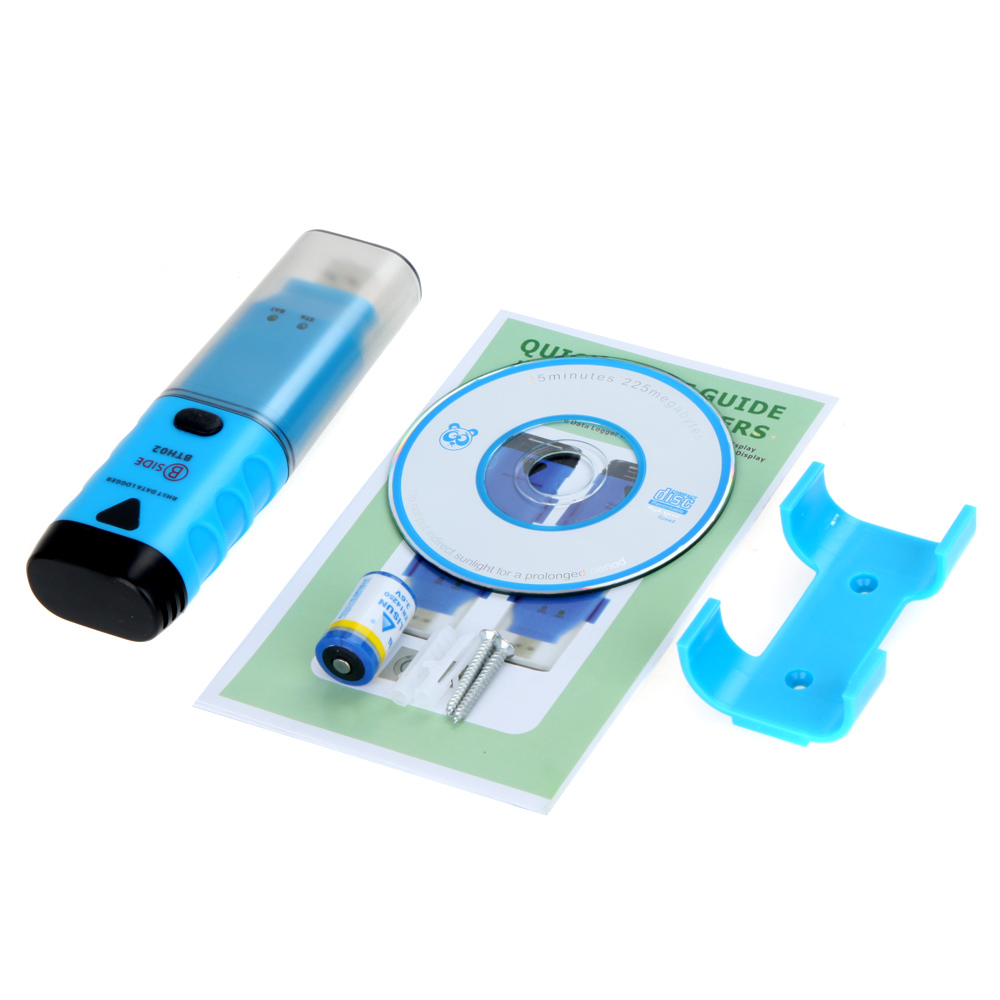

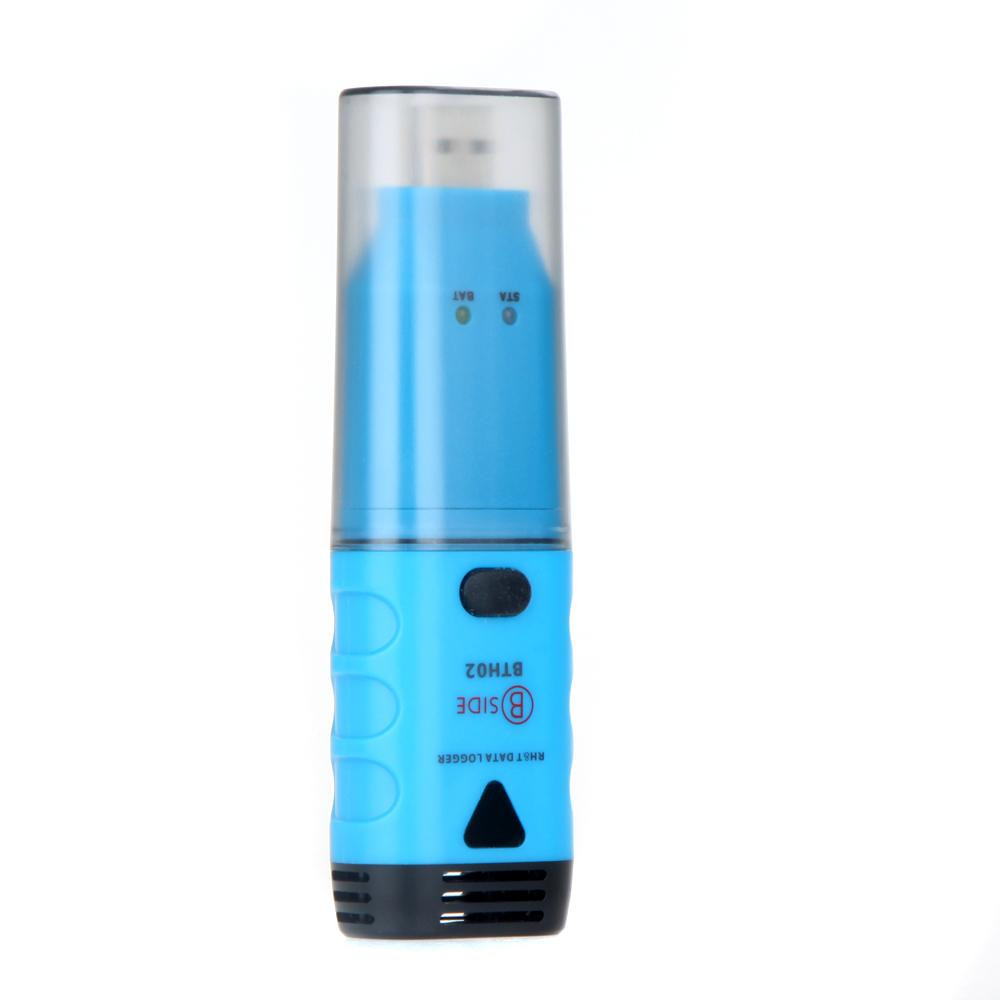

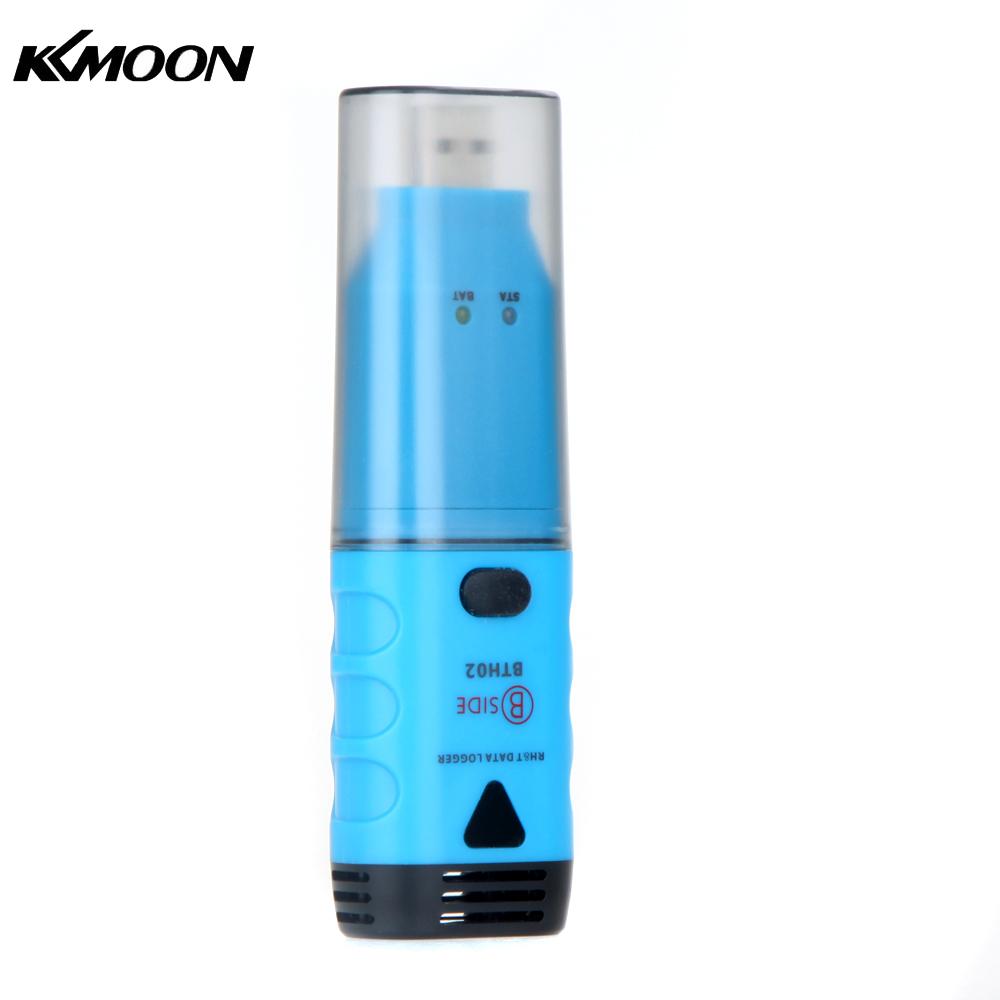

Bside Bth02 Waterproof Two Channel Temperature Humidity Dew Point Data Logger With USB Interface Data Logger Recorder
Features:Can name each channel and enable/disable specified channel freely LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via DGraphTMCan input formula to customize compound graph from selected logging dataCan create and customize new unit easily and freely for all measurement parametersLogging status indication via red/green LED and battery status indication via yellow LEDStart logging method: Immediately, Button, DelayedCan input two point calibration value for each channel when setupDew point calculated via software DGraphTMLCD: Memory Capacity 64KBytes(Total 32,000 readings for all channels)Sample Rate: Can be selected from 10 seconds to 12 hoursStop Method: Stop when memory full, overwrite when memory full, stop by button, and stop until specified number of sample points finishedSample Mode: Instant(default), average, maximum and minimumThis will decide how to dispose data at idle time between a sample intervalButton: Software config to start logging bybutton, or clear and reset LED alarm when LED alarm is holdLED: Red&green LED: Logger Status indication(Include Delay to Start, Logging, Alarm, Finished) (Sofware can disable this two LED for saving power)Yellow LED: Low battery indicationAlarm: User programmable high or low alarm limit for each channel(If necessary)LED alarm and holdPC Software: DGraphTM software and USB driver required (Included on CD)(Compatible with Windows XP, Windows Vista, Windows 7&8(32 bit & 64bit Versions)Use the software to setup, download, view graph and analyse dataPower Supply: Replaceable 1/2AA 3.6V 1200mAh Lithium Battery(Included)NOTE: USB interface can supply power directly if necessarySpecifications:Temperature measurement range: -35~80°C(-31~176°F)Accuracy: ±0.3°C(±0.5°F)Resolution: 0.1°C / 0.2°FHumidity range/accuracy/resolution: 0-100%RH / ±3%RH / 0.1%RH typicallyOperating Range: 0 to 100%RH -35 to 80°C(-31 to 176°F)Case Material: ABS, TPU, PCPackage size: 17 * 11 * 5cm / 6.8 * 4.4 * 2.0 inPackage weight: 155g / 5.5 ozPackage List:1 * BSIDE BTH02 Portable USB Temperature Data Logger Recorder1 * CD1 * Screws Part1 * User Manual1 * 1/2AA 3.6V 1200mAh Lithium Battery
