balck 8CH 960H Video Recorder Security CCTV System Kits+ Black 700TVL Indoor Camera +1TB HDD Security Camera System

SKU:

CK10328

Category: CCTV Kit

$233.64

Enquiry

Footer Group

Description

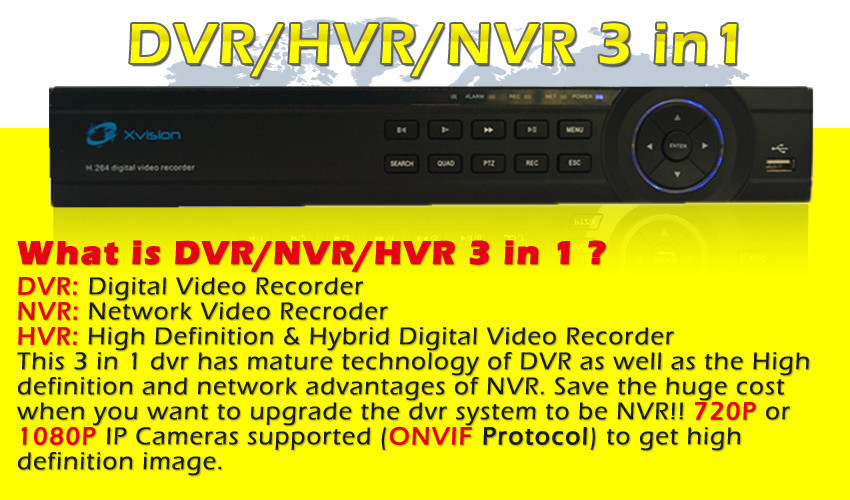

8CH 960H Video Recorder Security CCTV DVR System+ Black 700TVL Indoor Camera +1TB HDD

Product Feature:

Full 8 Channel 960H Real Time (960H)960X480 Pixels 60FPS

HDMI 1080P OUTPUT

PTZ/ALARM 4 CH INPUT/1 Ch Output

USB BACK UP

1 SATA HDD INTERFACE UP TO 2TB

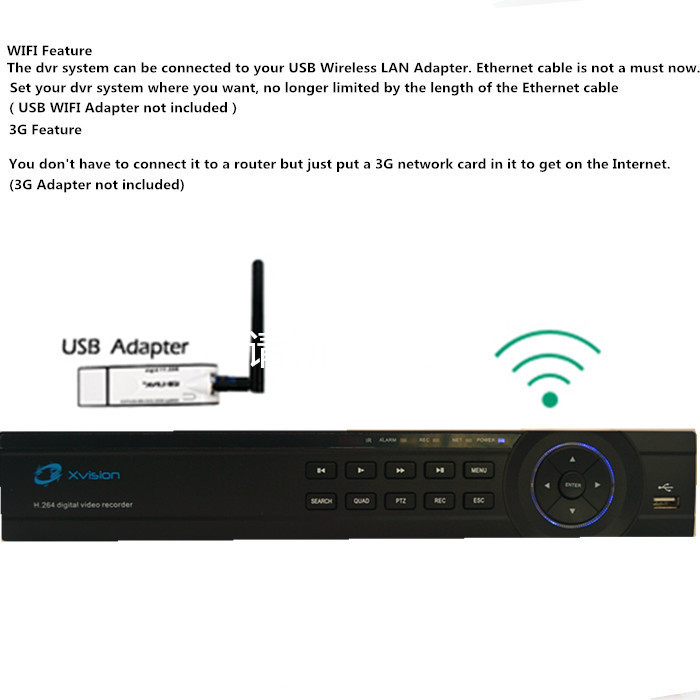

Mobile Network/ICLoud Support

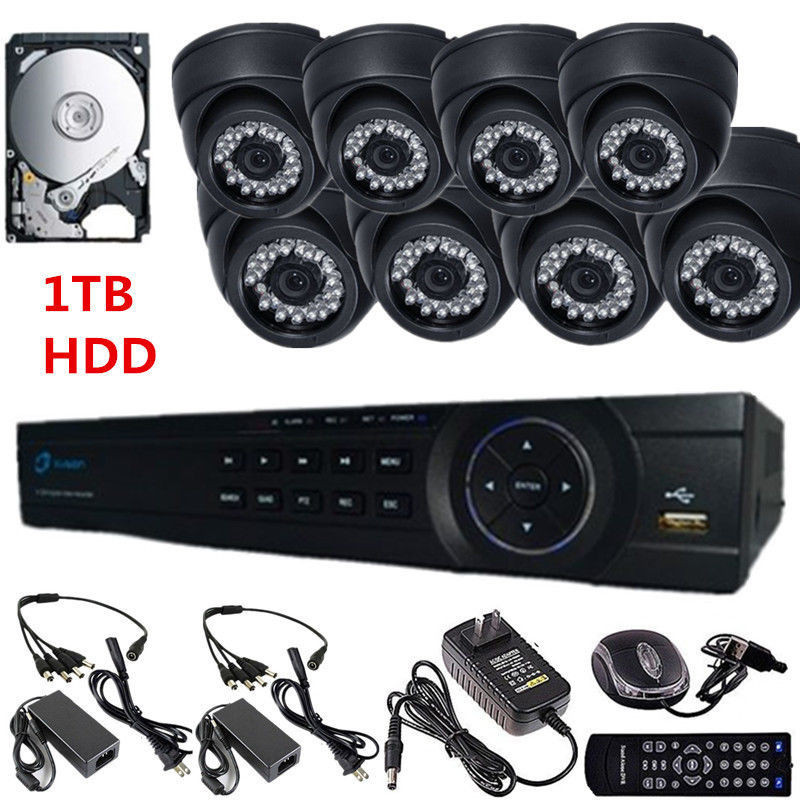

Item Includes:

1 x 8 Ch DVRNoWIFI USB adapter included!

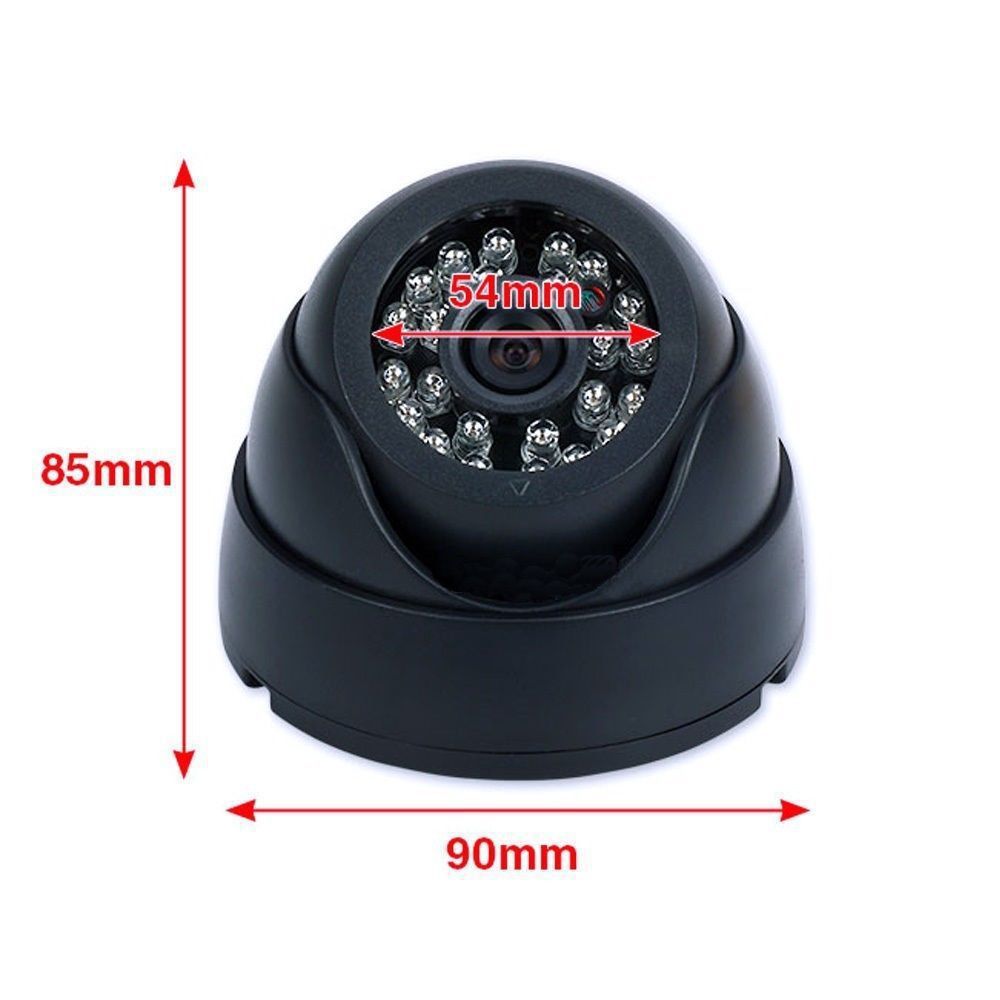

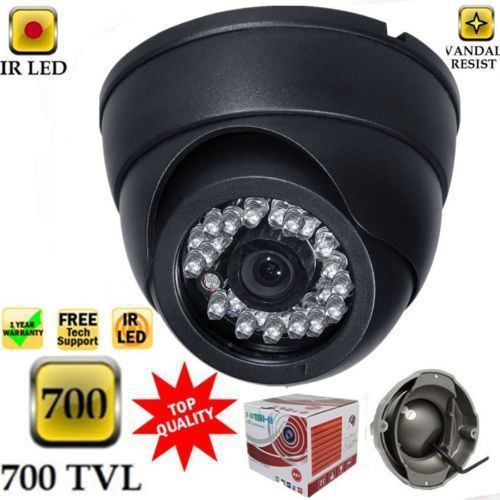

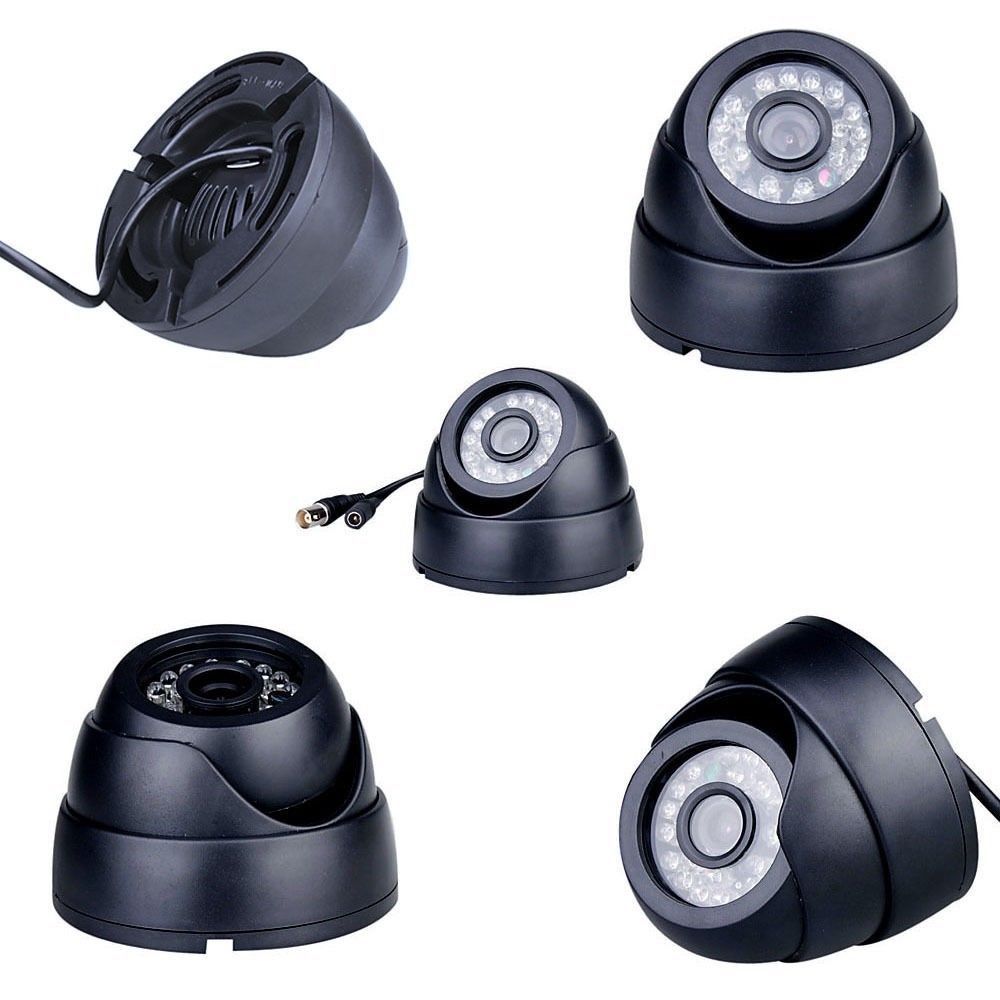

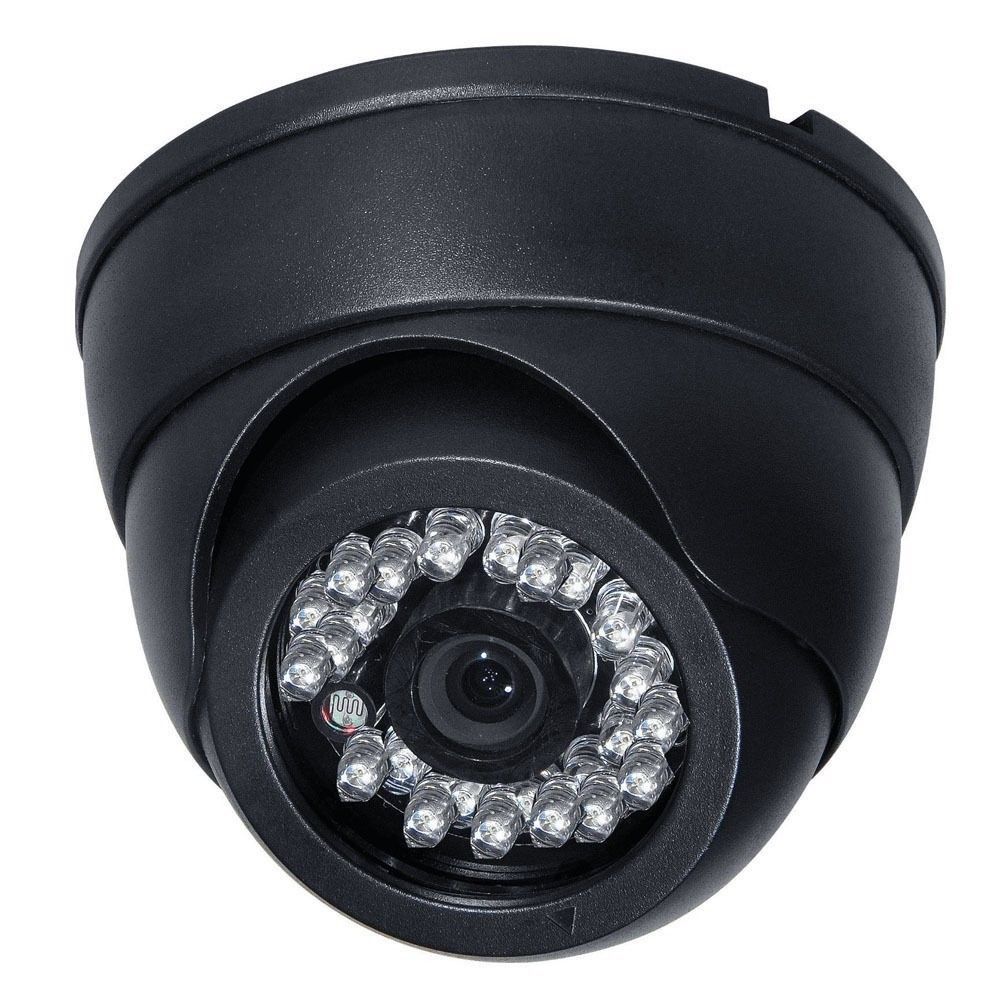

8 x Black 1/3"CMOS 700TVL Indoor Camera

1 x Power Adapter

1 x Mouse

1 x Remote Controller

2 x 5A Power Adapter to Supply the power of 4 Cameras

2 x 4 Way Splitter

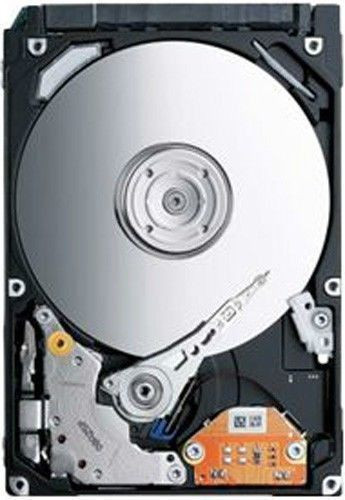

1 x Toshiba 1TB SATA3 7200RPM Hard Drive Disk

Specifications:

Model:		8CH D1 DVR
Video Compression		H.264
Video System		NTSC/PAL
Operation System		Linux(embedded)
Video-input /output		8CH input /1CH output(BNC)
Audio input /output		2CH input /1CH output(RCA)
Display	resolution	PAL:960×57625fps(each CH, Frame) NTSC:960×48030fps(each CH, Frame)
	feature	single/ Quad/S.E.Q.

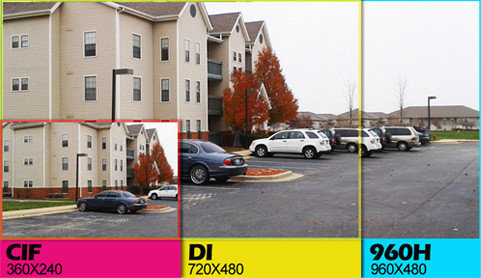

Record (only record)	resolution	PAL :D1 mode 360×288(CIF),720x288(HD1),720x576(D1)
		960H mode480×288(WCIF),960×288(WHD1),960×576W(D1)
		NTSC:D1 mode360×240(CIF),720x240(HD1),720x480(D1)
		960H mode480×240(WCIF),960×240(WHD1),960×480(WD1)
	speed	PAL: (each CH Frame) CIF/HD1/D1:25fps, WCIF:25fps; WHD1/ WD1:9fps
		NTSC:(each CH, Frame)CIF/HD1/D1:30fps, WCIF:30fps; WHD1/ WD1:11fps
Recording Mode		Continuous/Manual/Motion detect /Sensor/Alarm recording
Playback Channel		1/4/9ch
Playback speed(simultaneously 8CH Record)		PAL: (each ch, Frame)
		CIF /HD1/D1 :25fps(1CH-4CH ) ;
		CIF /HD1/D1 :12fps(8CH )
		WCIF:25fps, WHD1/ WD1:9fps
		NTSC: (each ch, Frame)
		CIF /HD1/D1 :30fps(1CH-4CH ) ;
		CIF /HD1/D1 :15fps(8CH ) ;
		WCIF:30fps,WHD1/ WD1:11fps
Sensor & Alarm I/O		2ch sensor input
		1 channel alarm out
Network		LAN, DHCP, Dynamic IP and DDNS
HDD interface		1SATA HDDs, up to 2TB
Multiplex Operation		live display, record, playback, backup and network
USB		2xUSB(for mouse and backup/upgrade)
PTZ Control		Built in RS485, support Pelco-P & Pelco-D
Mobile Surveillance		Support Mobile Phones based on Windows mobile, Symbian, iPhone, Blackberry and Android operation system
VGA		800600,1024768,12801024,1440900,1920*1080
HDMI		1080P
Power Supply		DC 12V 2A
Dimension(WxDxH)		300X227X53mm
