Auto Range Auto Power off Multimeter Voltage Current Capacitance Resistance Frequency Tester with Temperature Test Data Logger

This instrument is a hand-held intelligent multifunctional measurement instrument, integrating noise, temperature and digital multi-meter into one. With large LCD digital display (these sets of data display) and backlight, it’s easy for user to read, with overload protection and battery under-voltage indication. Whether for professional, factories, schools, amateurs or family, it’s an great multi-functional instrument.
Features:
Auto range. Convenient exchange makes your measurement more accurate.
Relative value measurement function. In this mode, the instrument display value = actual value-set reference value.

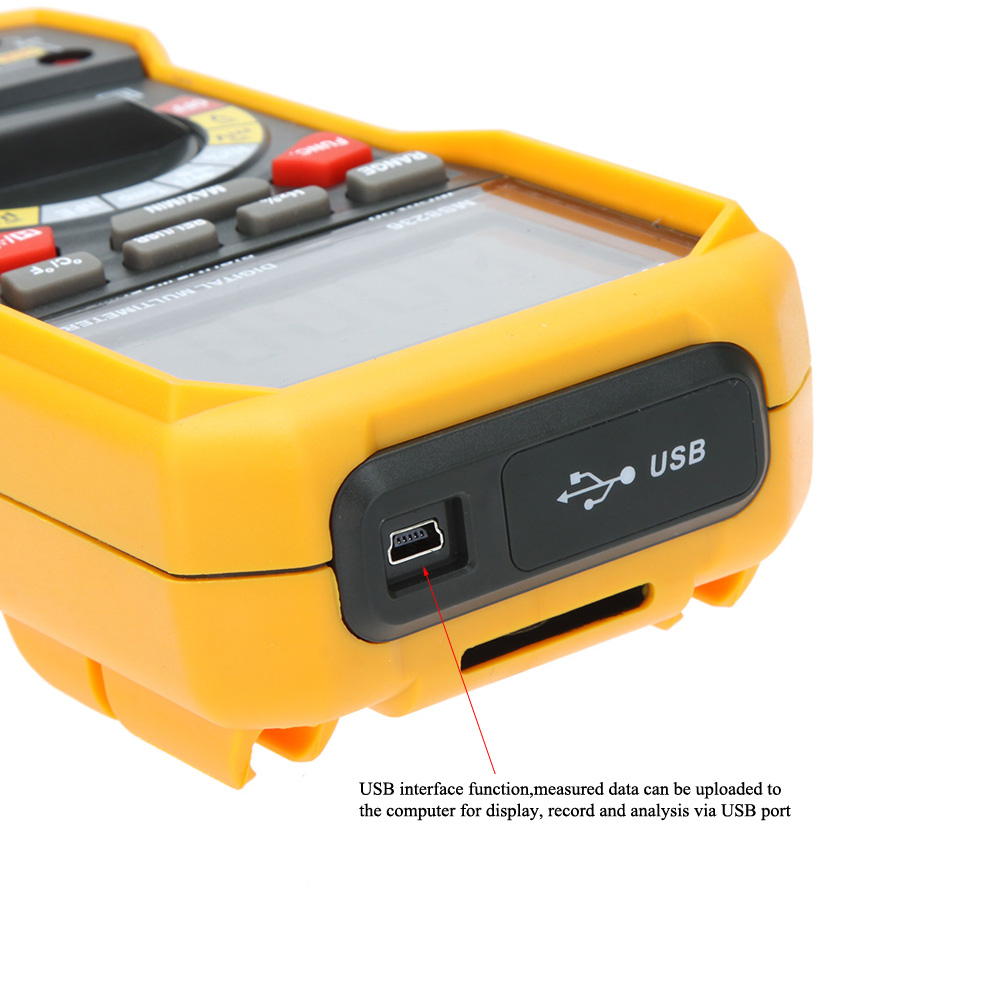

USB Interface function. The measured data stored in the instrument can be uploaded to computer for display, record and analysis.
Large LCD screen with backlight can help the user see the data clearly even in the night.
Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.
Specifications:
DC Voltage: 60mA / 0.01mV, 600V / 0.1mV, 6V / 1mV, 60V / 10mV, 600V / 100mV, 1000V / 1V
AC Voltage: 60mV / 0.01mV, 600mV / 0.m1V, 6V / 1mV, 60V / 10mV, 600V / 100mV, 750V / 1V
DC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 1mA
AC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 10mA
Resistance: 600Ω / 0.1Ω, 6kΩ / 1Ω, 60kΩ / 10Ω, 600kΩ / 100Ω, 6MΩ / 1KΩ, 60MΩ / 10KΩ
Capacitance: 10nF / 0.001nF, 100nF / 0.01nF, 1000nF / 0.1nF, 10mF / 0.001mF, 100mF / 0.01mF, 1000mF / 0.1mF, 10mF / 0.001mF
Frequency and Duty: 10Hz / 0.001Hz, 100Hz / 0.01Hz, 1000Hz / 0.1 Hz, 10kHz / 0.001 kHz, 100kHz / 0.01Hz, 1000kHz / 0.1Hz, 10MHz / 0.001Mhz
Temperature: -20~1000 Degrees emperature Measurement Range: -20Degrees~1000Degrees, -4 Fahrenheit~1832 Fahrenheit
Item Size: 19.5 * 9.5 * 6cm
Item Weight: 378g (without battery)

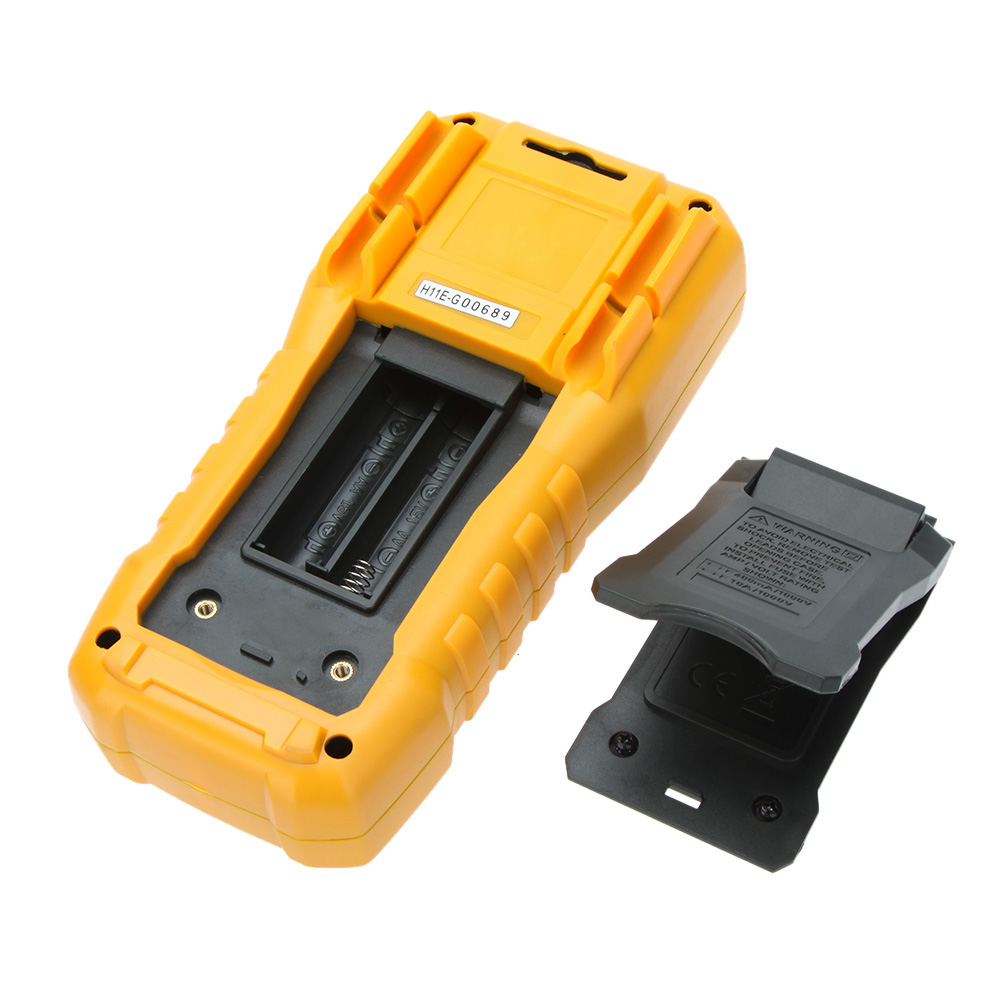

Power Supply: 4 * 1.5V AA Battery (not included)
Package information:
Package Size: 23 * 15 * 7cm / 9.05 * 5.9 * 2.8in
Package Weight: 751g / 1.7lb
Colorful Gift Box
Package List:

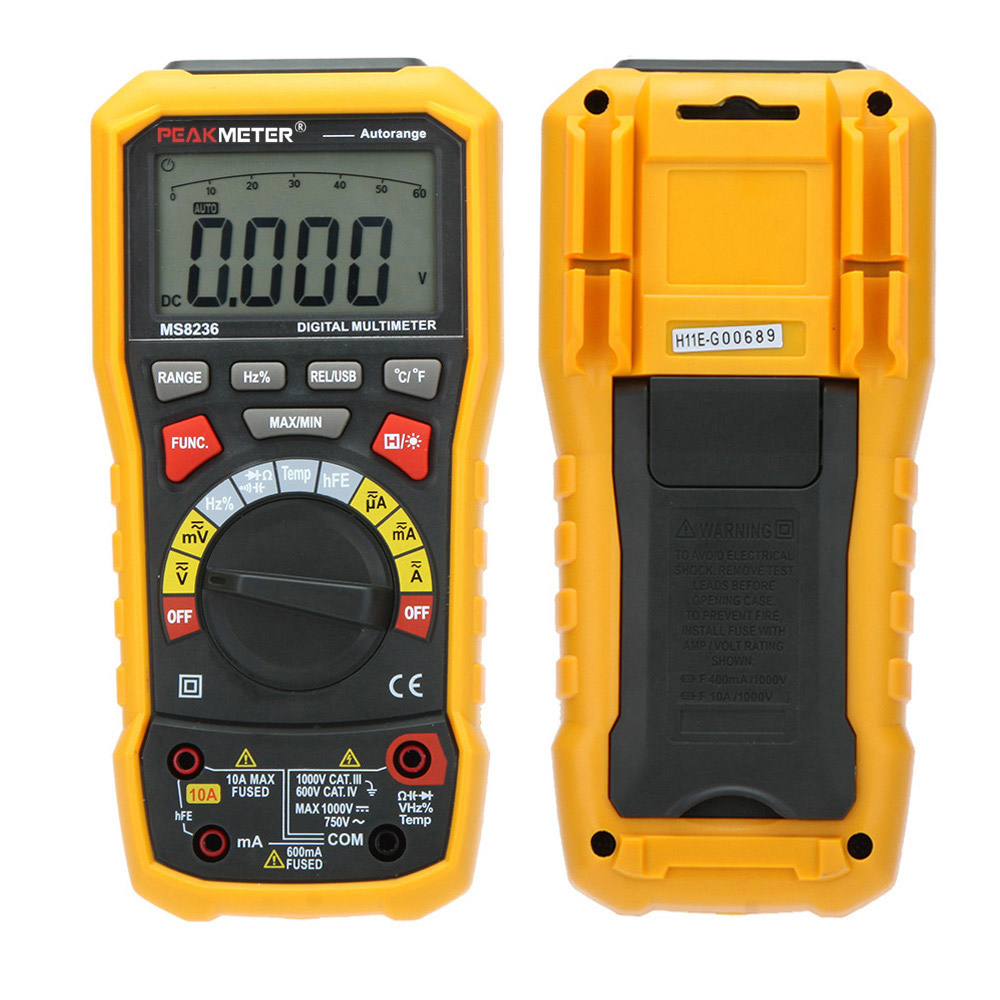

1 * PEAKMETER MS8236 Digital Multimeter

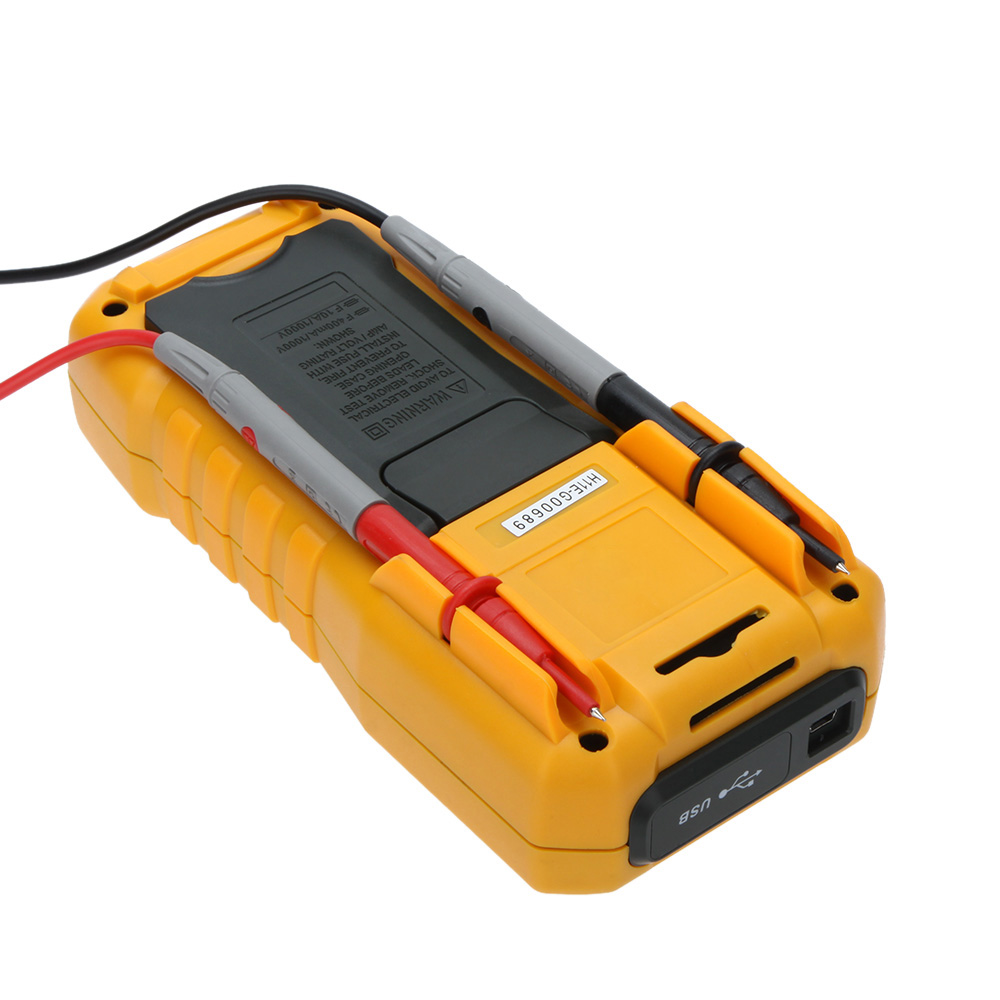

1 * Pair Test Leads
1 * English Operating Manual
1 * USB Data Cable
1 * Temperature Probe
1 * Multi-Function Socket
