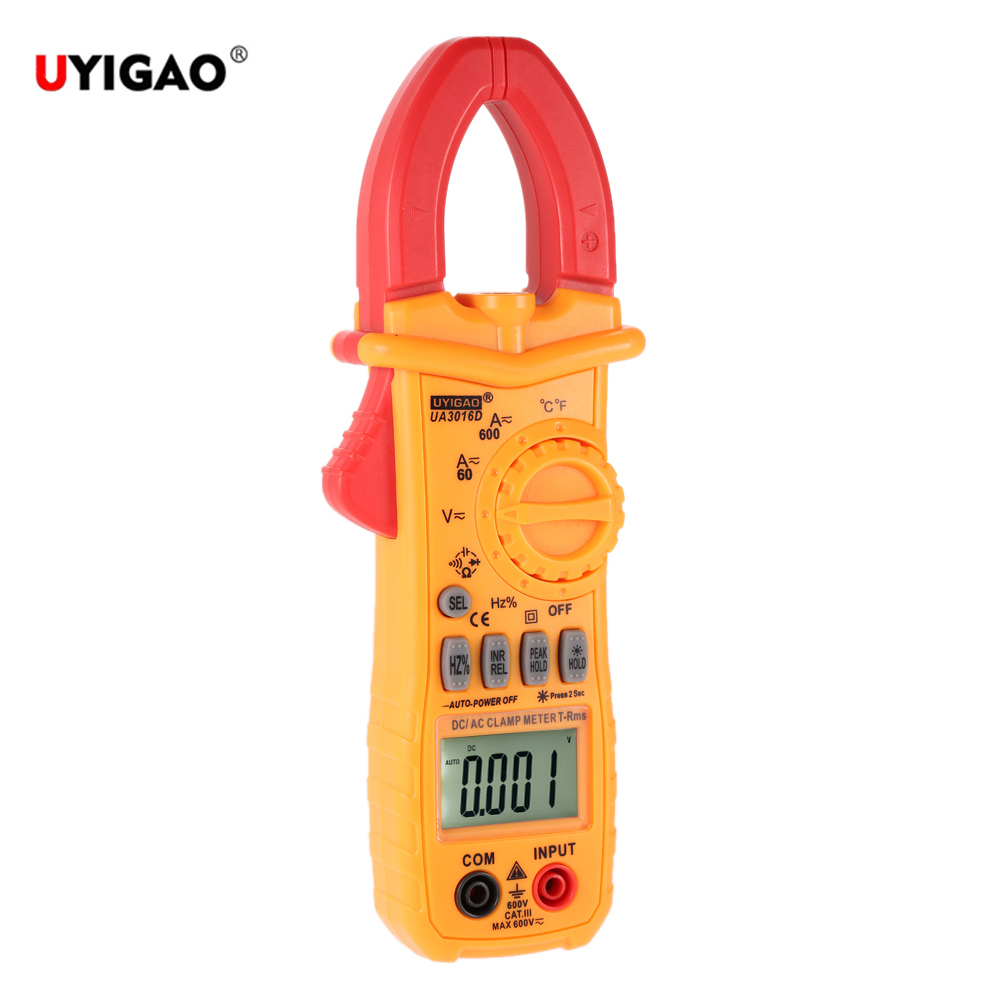

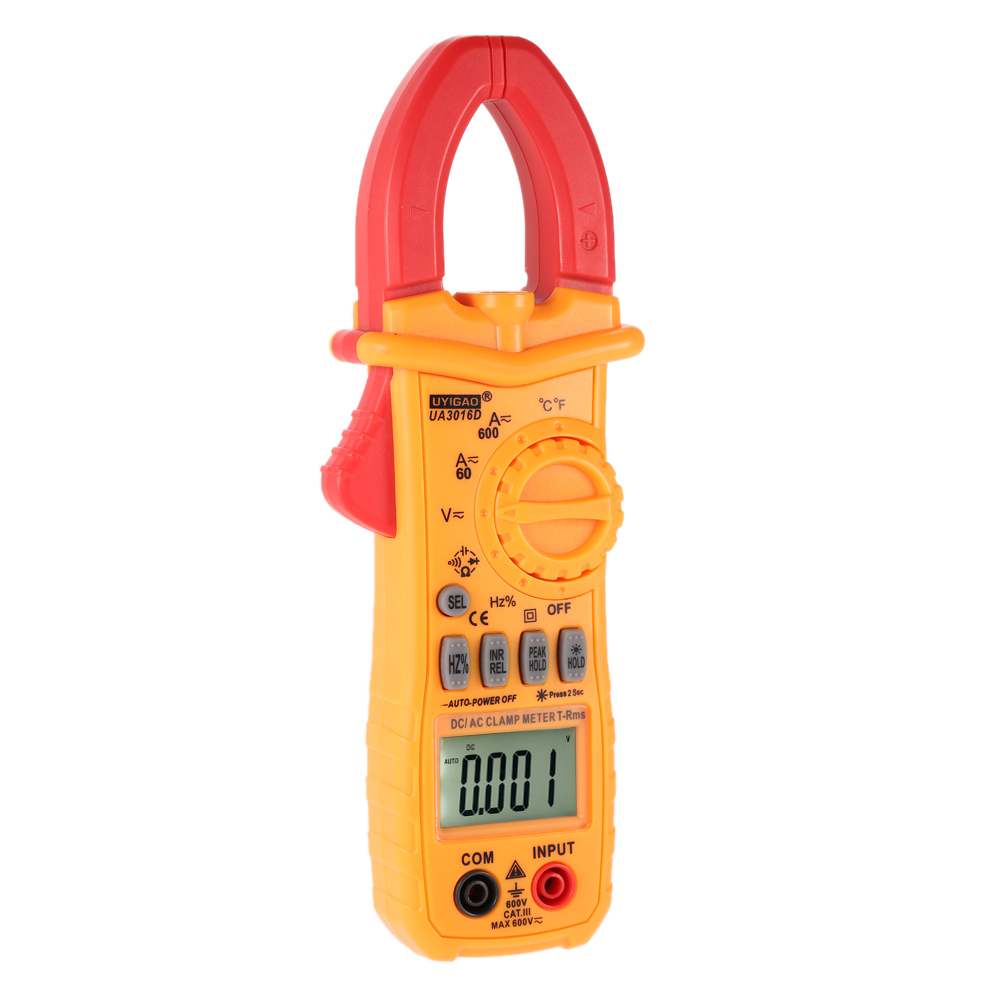

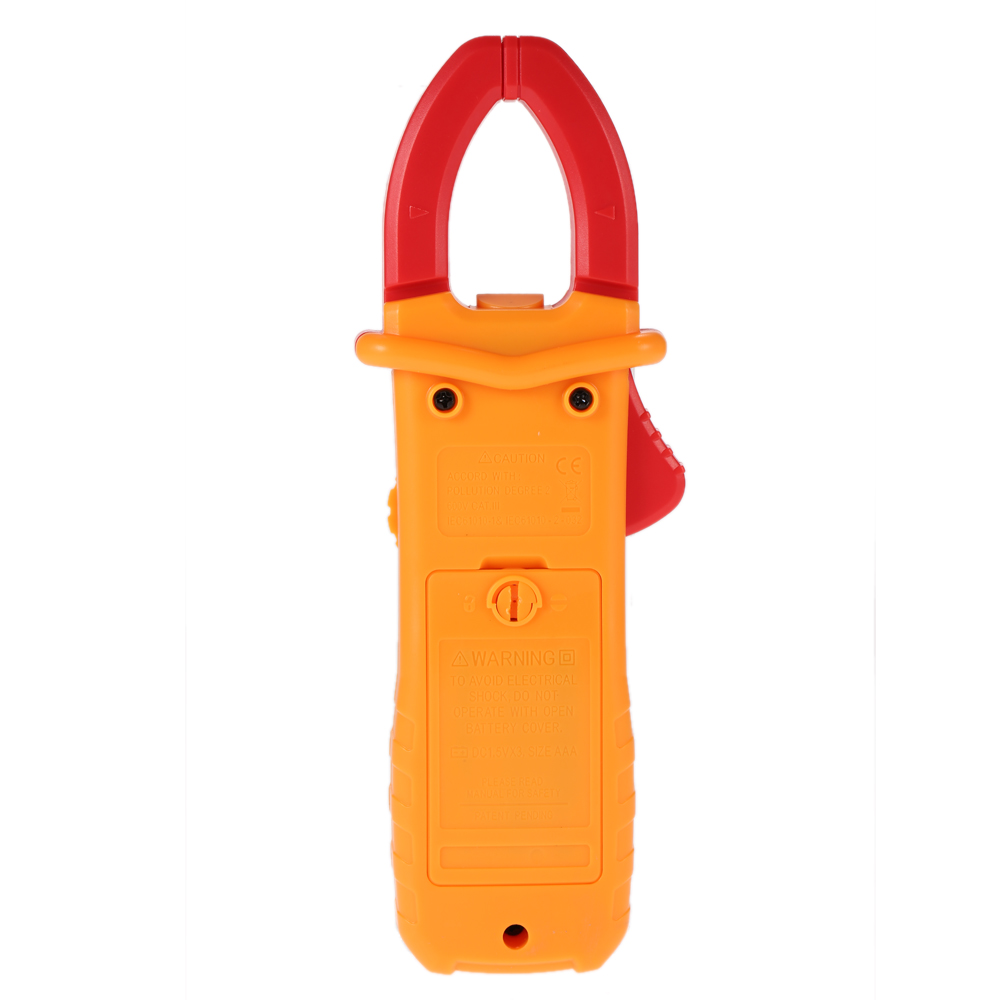

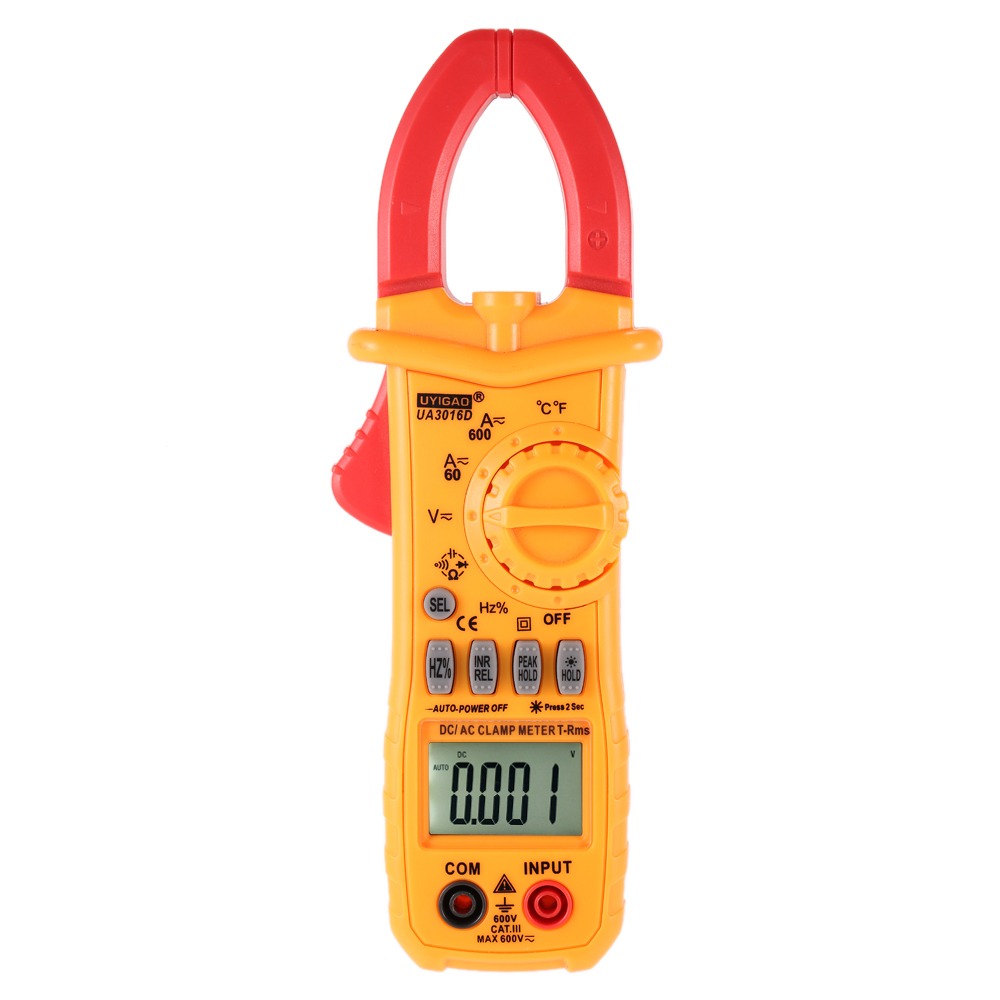

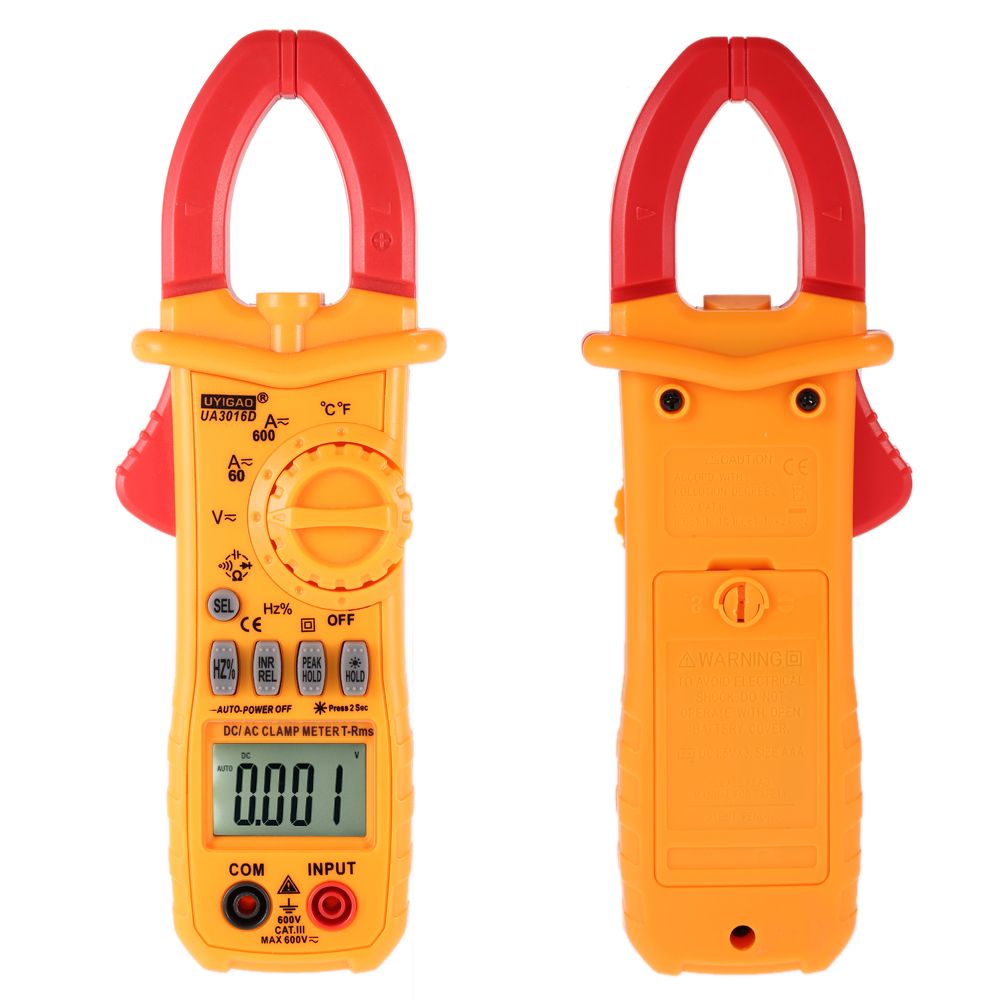

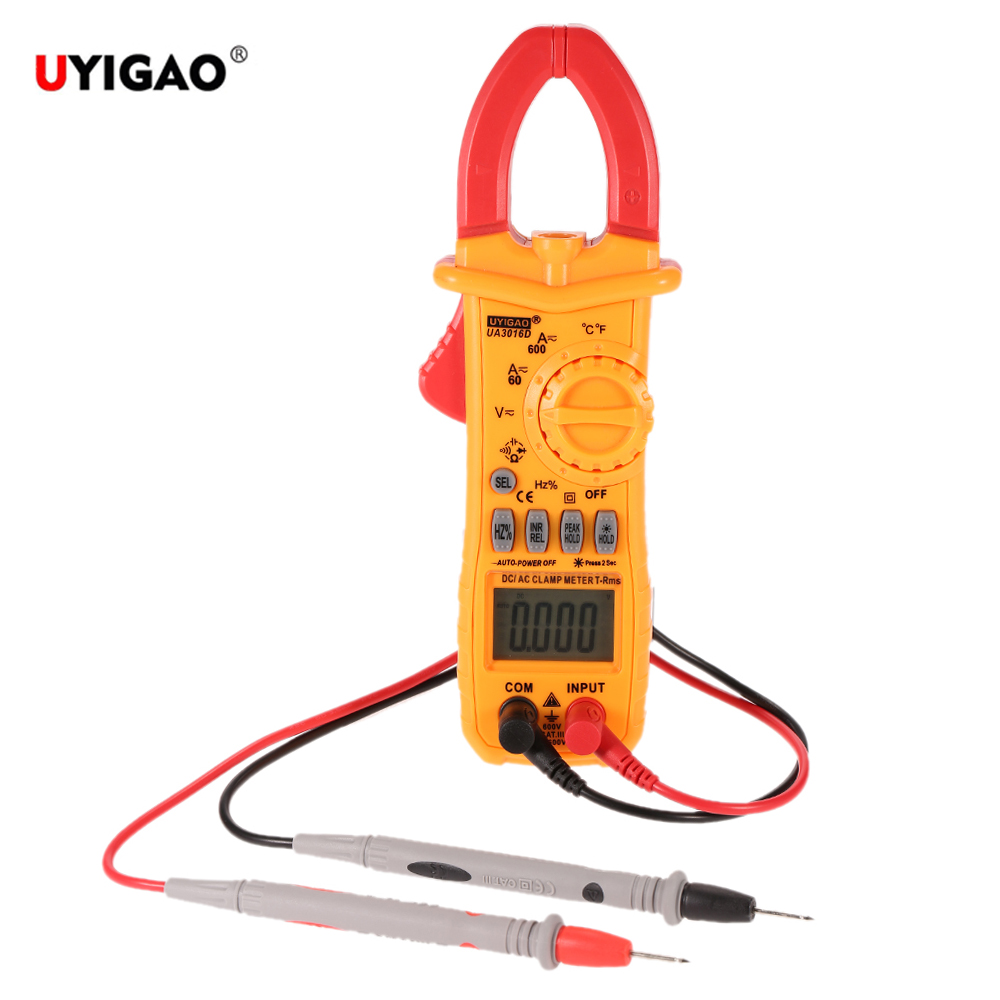

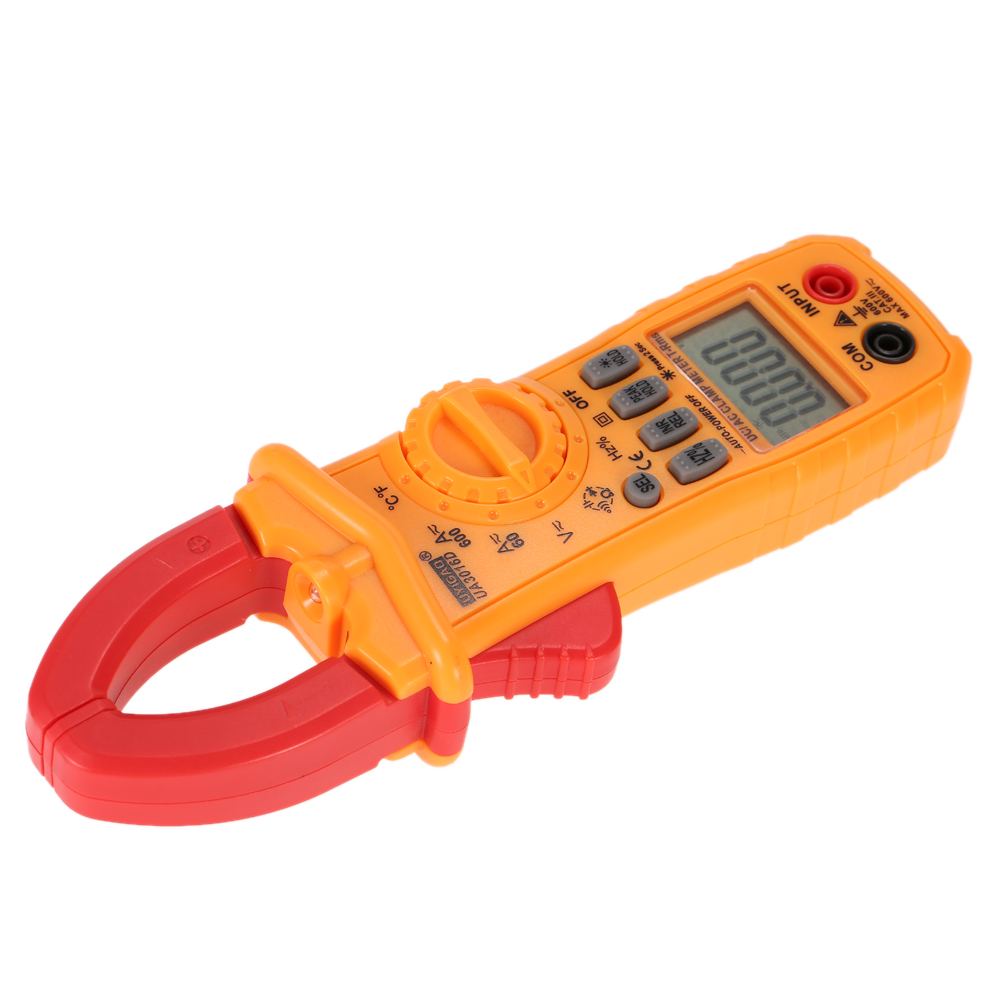

AC/DC Handheld Digital Clamp Meter Electronic Multimeter Voltage Current Resistance Temperature Frequency Surge Current Tester

This LCD Digital AC/DC clamp multimeter is a portable clamp meter. It is ideally suited for field, laboratory, shop and home applications.
Features:
Manual back light LCD screen, the maximum display value is 5999.
Multi-purpose clamp meter can measure AC/DC voltage, AC/DC current, surge current, temperature, frequency, capacitance measurement, duty ratio, continuty test, resistance and diode.
Low voltage indication and overload protection.
High resolution and auto range(some current range is manual range).

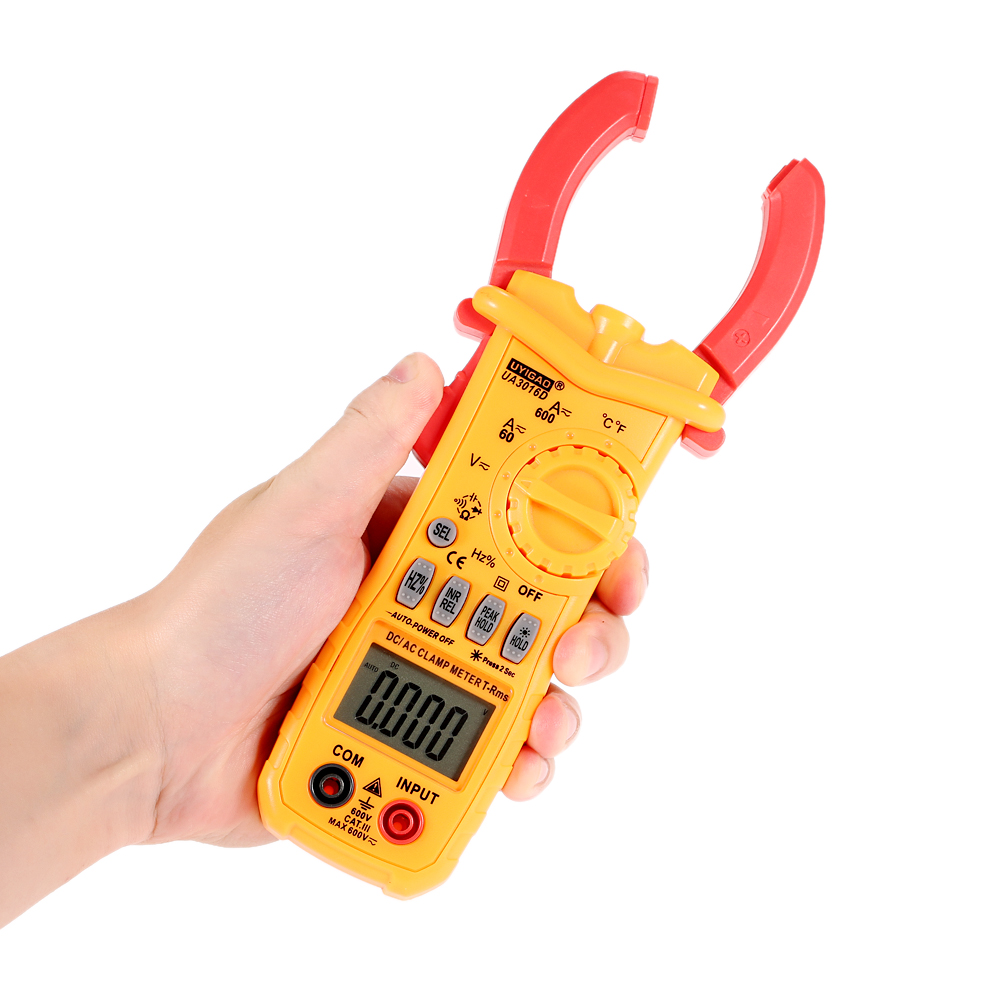

Small and portable to carry and use.
Data hold, auto range and auto power off.
Specifications:
Brand Name: UYIGAO
Color: Orange + Red
Material: ABS

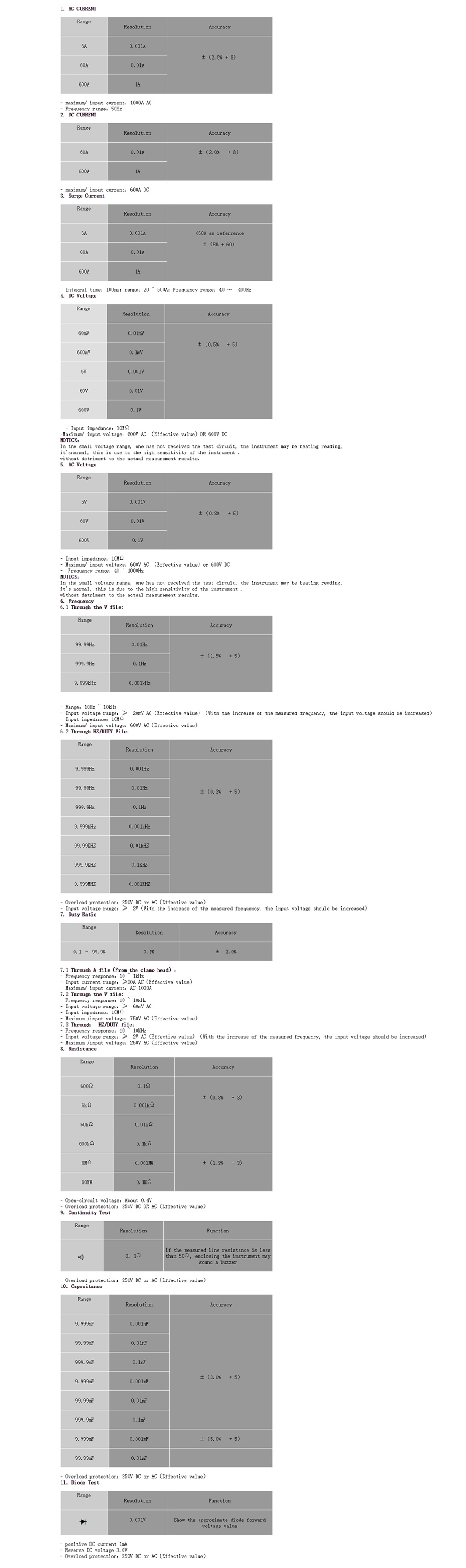

Technical Index:

1. AC CURRENT

Range	Resolution	Accuracy
6A	0.001A	±(2.5% + 8)
60A	0.01A
600A	1A

- maximum/ input current:1000A AC
- Frequency range:50Hz
2. DC CURRENT

Range	Resolution	Accuracy
60A	0.01A	±(2.0%  + 8)
600A	1A

- maximum/ input current:600A DC
3.
Surge Current

Range	Resolution	Accuracy
6A	0.001A	<60A as referrence ±(5% + 60)
60A	0.01A
600A	1A

 Integral time:100ms;range:20 ~ 600A;Frequency range:40 ~ 400Hz
4. DC Voltage

Range	Resolution	Accuracy
60mV	0.01mV	±(0.5%  + 5)
600mV	0.1mV
6V	0.001V
60V	0.01V
600V	0.1V

 - Input impedance:10MΩ
-Maximum/ input voltage:600V AC (Effective value)OR 600V DC
NOTICE:
In the small voltage range, one has not received the test circuit, the instrument may be beating reading,
it'snormal, this is due to the high sensitivity of the instrument .
without detriment to the actual measurement results.
5. AC Voltage

Range	Resolution	Accuracy
6V	0.001V	±(0.8%  + 5)
60V	0.01V
600V	0.1V

- Input impedance:10MΩ
- Maximum/ input voltage:600V AC (Effective value)or 600V DC
- Frequency range:40 ~ 1000Hz
NOTICE:
In the small voltage range, one has not received the test circuit, the instrument may be beating reading,
it's normal, this is due to the high sensitivity of the instrument .
without detriment to the actual measurement results.
6. Frequency
6.1
Through the V file:

Range	Resolution	Accuracy
99.99Hz	0.01Hz	±(1.5%  + 5)
999.9Hz	0.1Hz
9.999kHz	0.001kHz

- Range:10Hz ~ 10kHz
- Input voltage range:≥ 20mV AC(Effective value)(With the increase of the measured frequency, the input voltage should be increased)
- Input impedance:10MΩ
- Maximum/ input voltage:600V AC(Effective value)
6.2
Through HZ/DUTY File:

Range	Resolution	Accuracy
9.999Hz	0.001Hz	±(0.3%  + 5)
99.99Hz	0.01Hz
999.9Hz	0.1Hz
9.999kHz	0.001kHz
99.99KHZ	0.01kHZ
999.9KHZ	0.1KHZ
9.999MHZ	0.001MHZ

- Overload protection:250V DC or AC(Effective value)
- Input voltage range:≥ 2V(With the increase of the measured frequency, the input voltage should be increased)
7. Duty Ratio

Range	Resolution	Accuracy
0.1 – 99.9%	0.1%	± 3.0%

7.1 Through A file(From the clamp head):
- Frequency response:10 ~ 1kHz
- Input current range:≥20A AC(Effective value)
- Maximum/ input current:AC 1000A
7.2 Through the V file:
- Frequency response:10 ~ 10kHz
- Input voltage range:≥ 60mV AC
- Input impedance:10MΩ
- Maximum /input voltage:750V AC(Effective value)
7.3 Through  HZ/DUTY file:
- Frequency response:10 ~ 10MHz
- Input voltage range:≥ 2V AC(Effective value)(With the increase of the measured frequency, the input voltage should be increased)
- Maximum /input voltage:250V AC(Effective value)
8. Resistance

Range	Resolution	Accuracy
600Ω	0.1Ω	±(0.8%  + 3)
6kΩ	0.001kΩ
60kΩ	0.01kΩ
600kΩ	0.1kΩ
6MΩ	0.001MW	±(1.2%  + 3)
60MW	0.1MΩ

- Open-circuit voltage:About 0.4V
- Overload protection:250V DC OR AC(Effective value)
9. Continuity Test

Range	Resolution	Function
	0. 1Ω	If the measured line resistance is less than 50Ω, enclosing the instrument may sound a buzzer

- Overload protection:250V DC or AC(Effective value)
10. Capacitance

Range	Resolution	Accuracy
9.999nF	0.001nF	±(3.0%  + 5)
99.99nF	0.01nF
999.9nF	0.1nF
9.999mF	0.001mF
99.99mF	0.01mF
999.9mF	0.1mF
9.999mF	0.001mF	±(5.0%  + 5)
99.99mF	0.01mF

- Overload protection:250V DC or AC(Effective value)
11. Diode Test

Range	Resolution	Function
	0.001V	Show the approximate diode forward voltage value

- positive DC current 1mA
- Reverse DC voltage 3.0V
- Overload protection:250V DC or AC(Effective value)

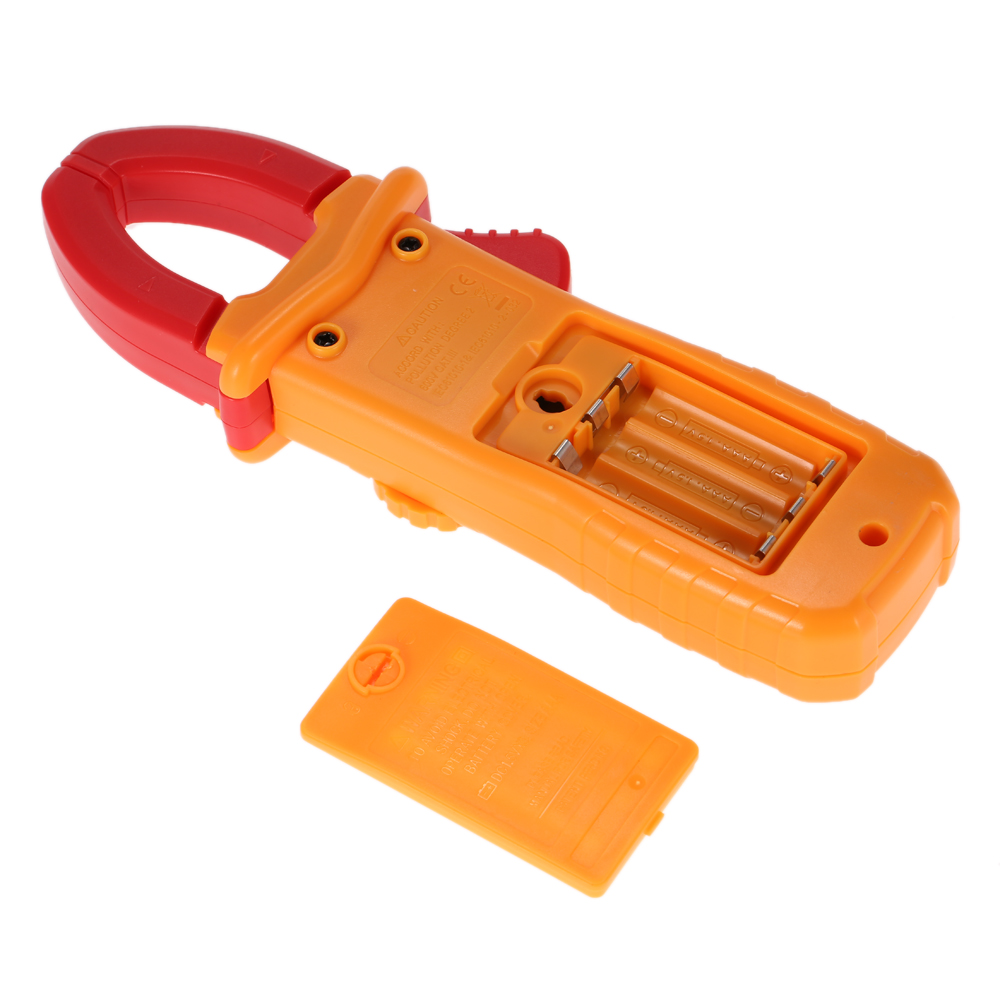

Power Supply: 3 * AAA 1.5V Batteries (Not included)
Maximum Display: 5999
Sampling Time: about 3 times / sec
Automatic Power Off: 15Minutes

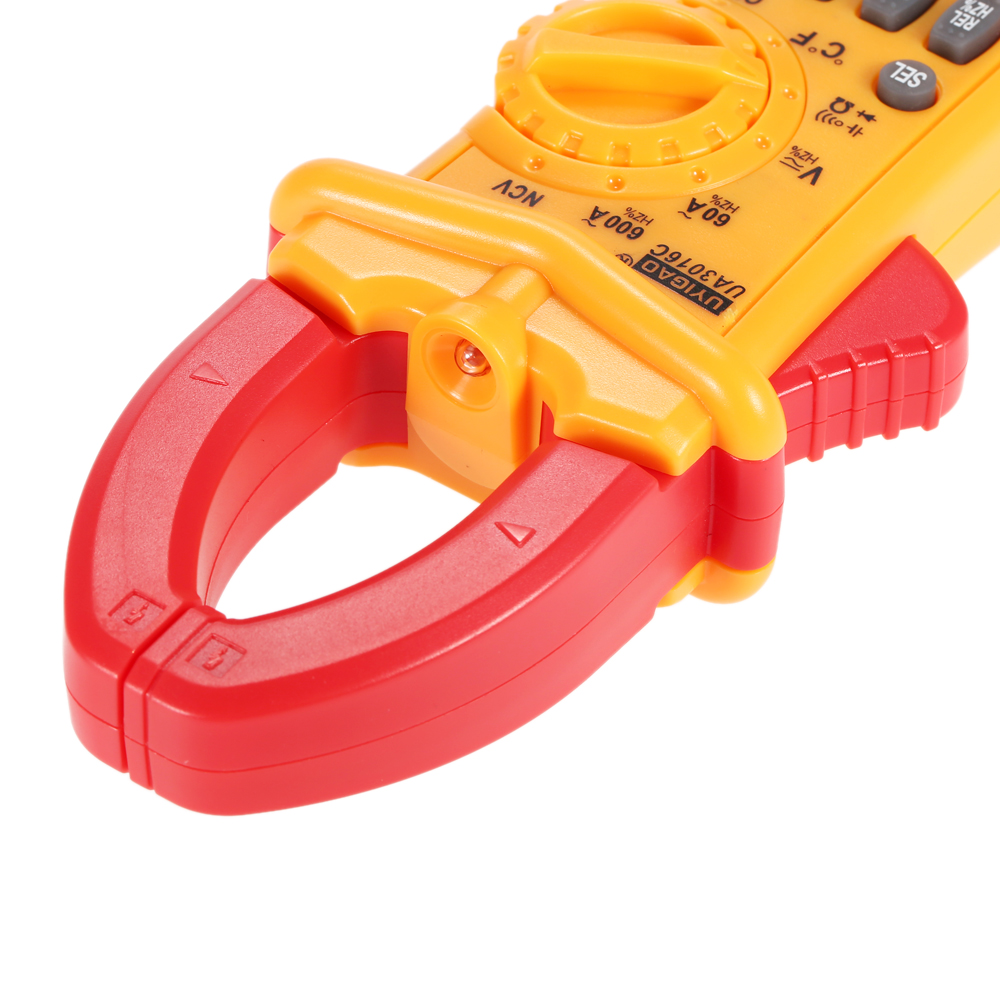

Opening Size of Jaw: 28mm / 1.10in
Display Size: 35 * 24mm / 1.38 * 0.94in
Item Size: Approx. 210 * 78 * 35mm / 8.27 * 3.07 * 1.38in (L * W * H)
Item Weight: Approx. 229.2g / 8.08oz
Package Size: Approx. 29 * 15 * 4cm / 11.42 * 5.91 * 1.57in (L * W * H)
Package Weight: Approx. 456g / 16.1oz

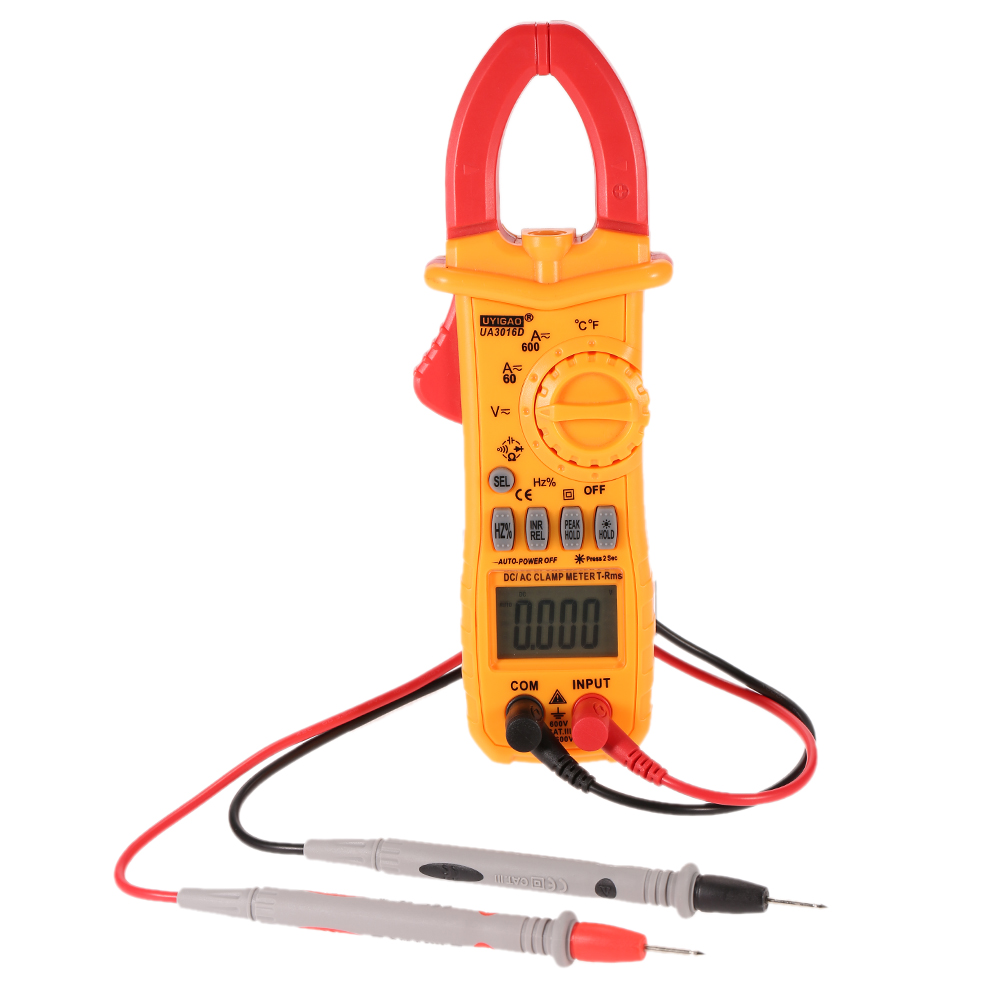

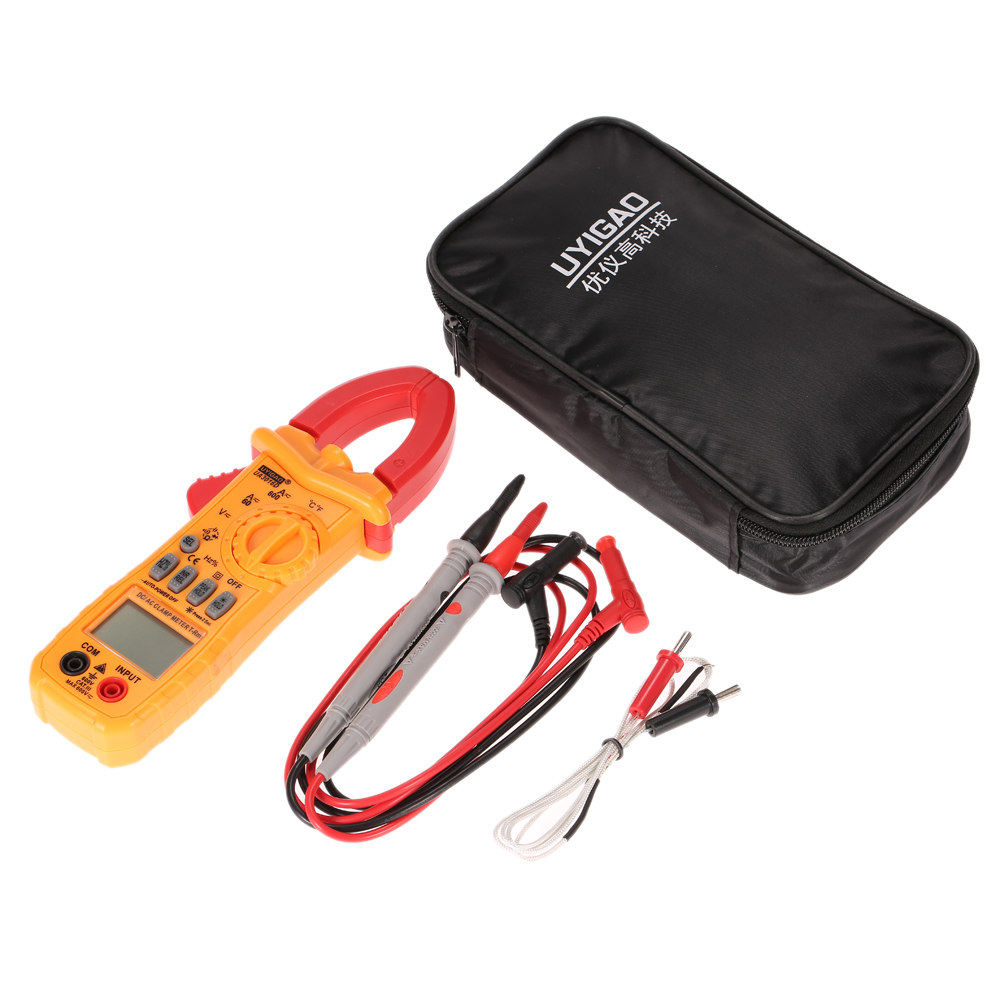

Package List:
1 * Clamp Meter

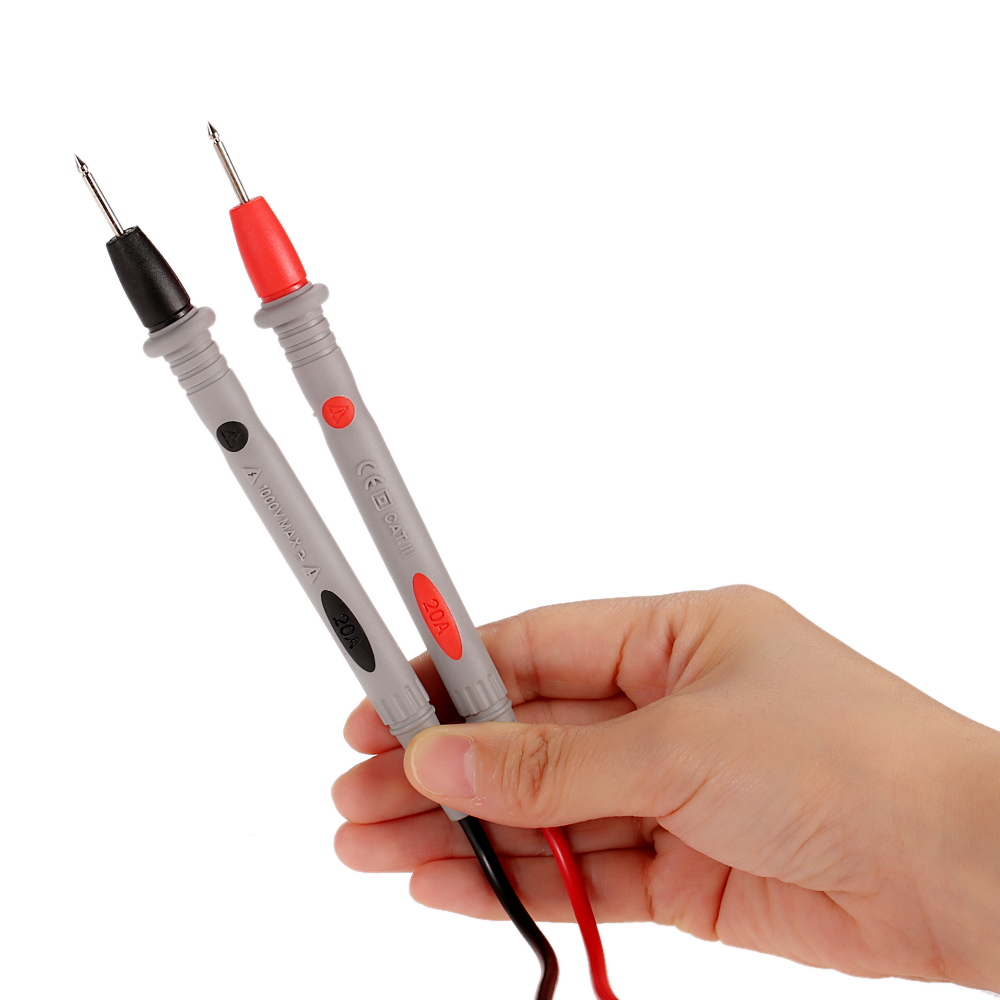

2 * Test Leads
1 * Temperature Probe(K type thermocouple)
1 * Shockproof Sheath
1 * User Manual
