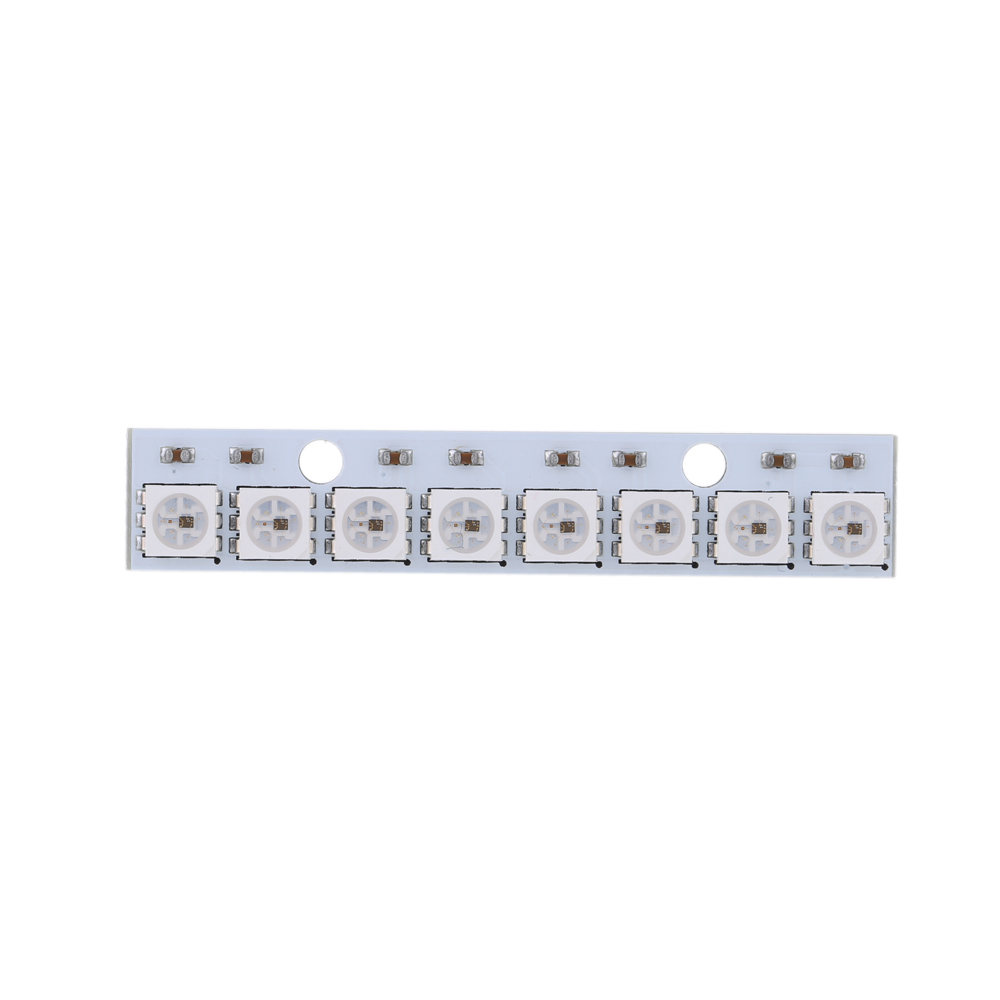

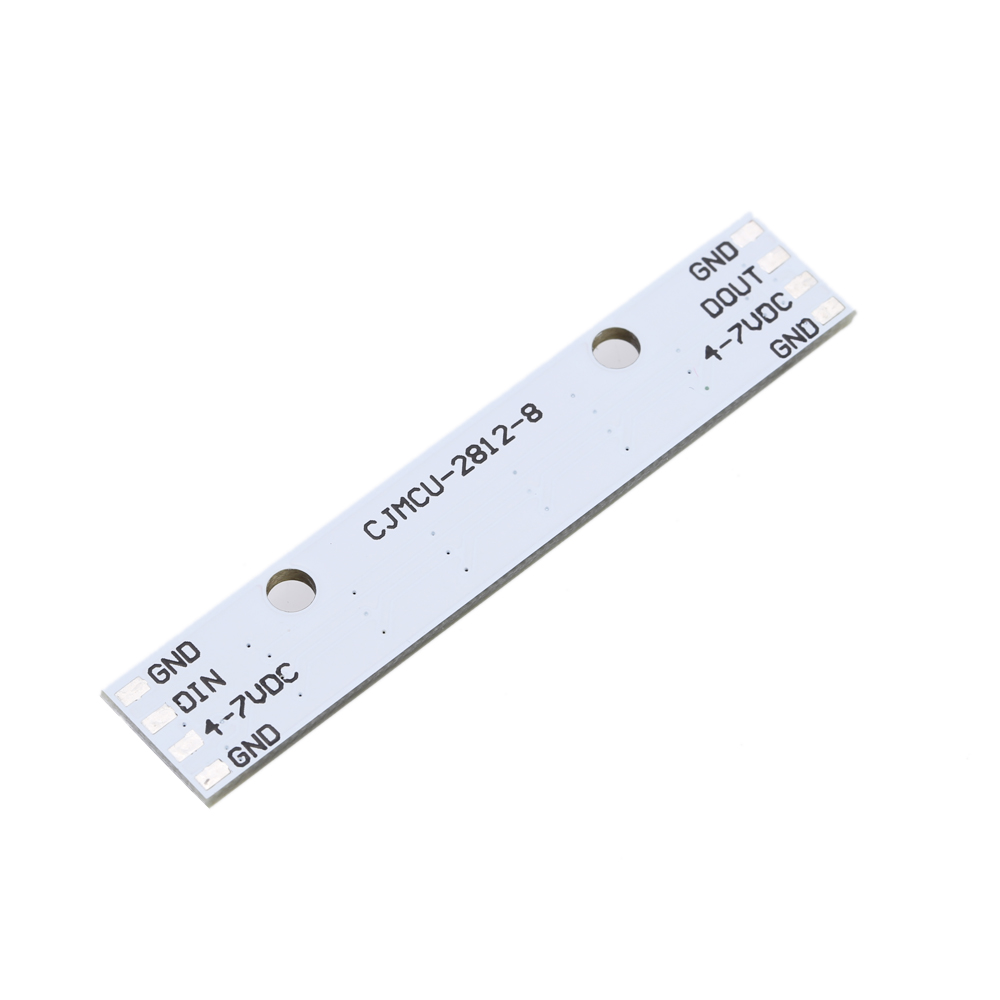

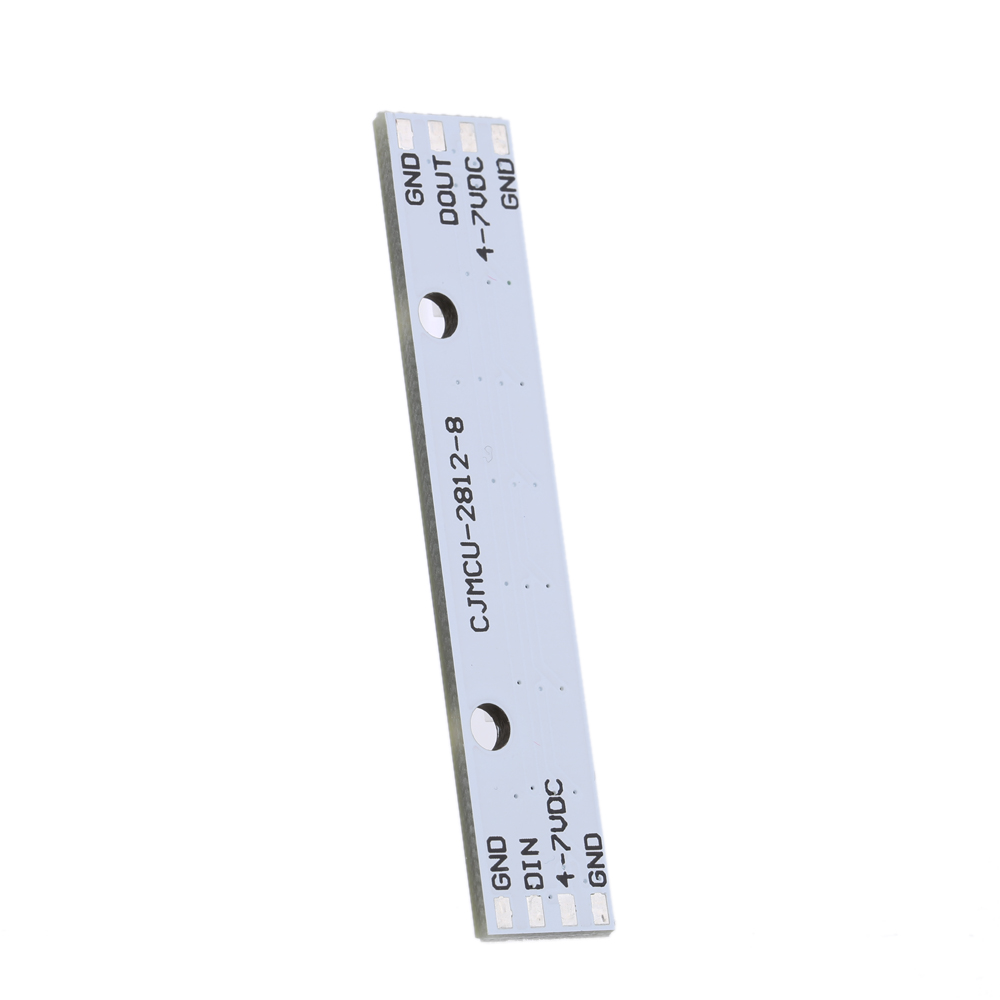

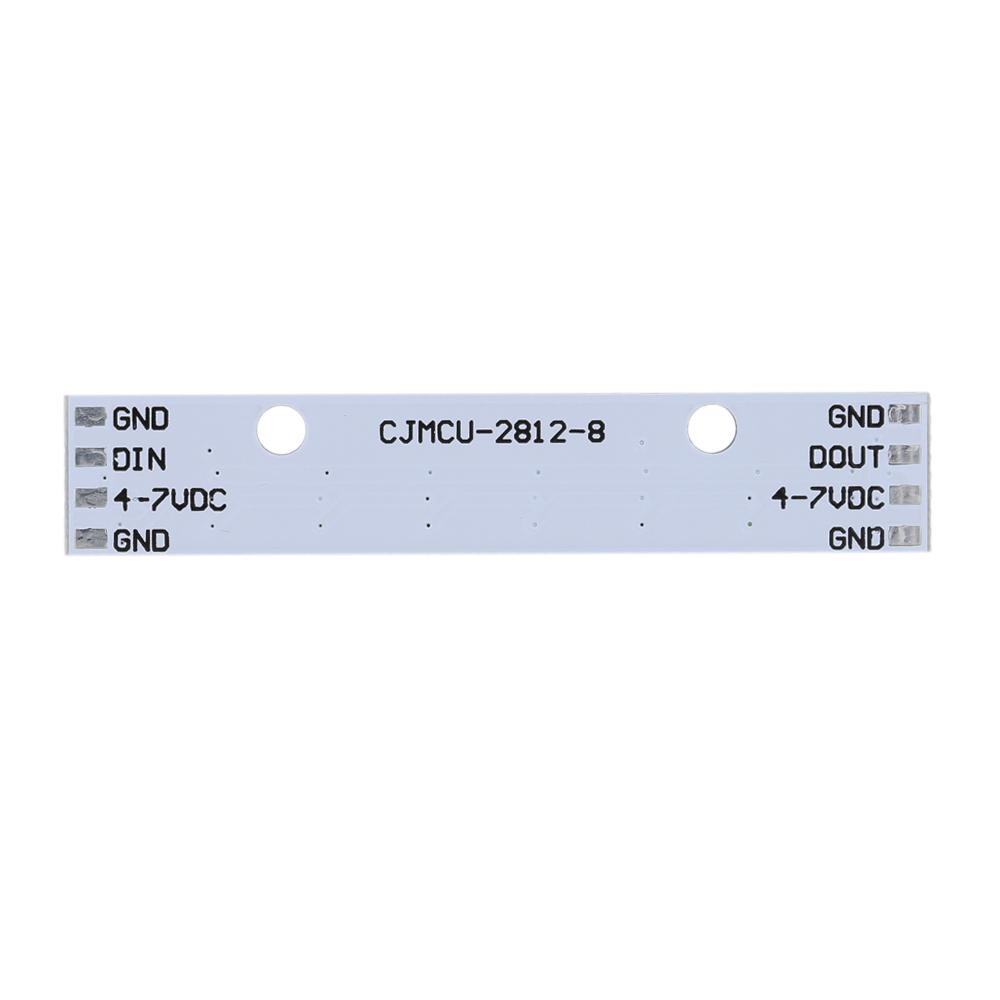

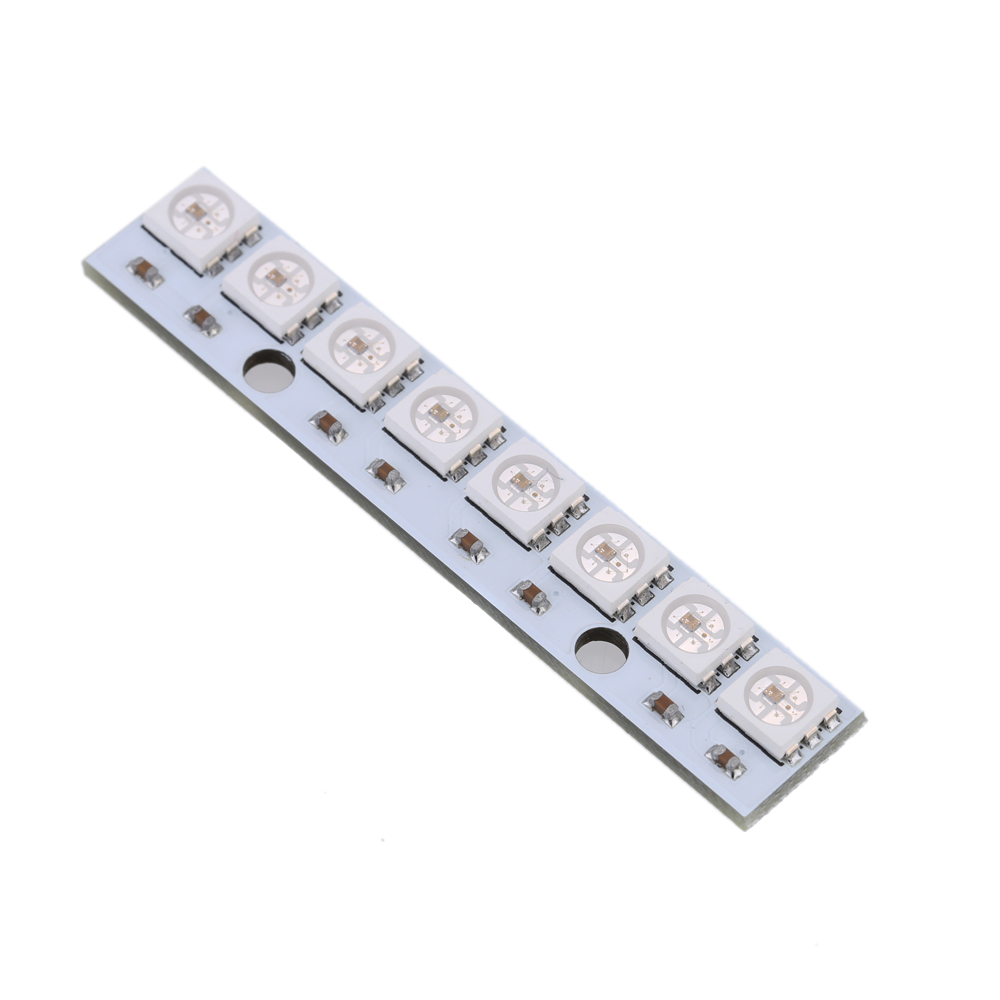

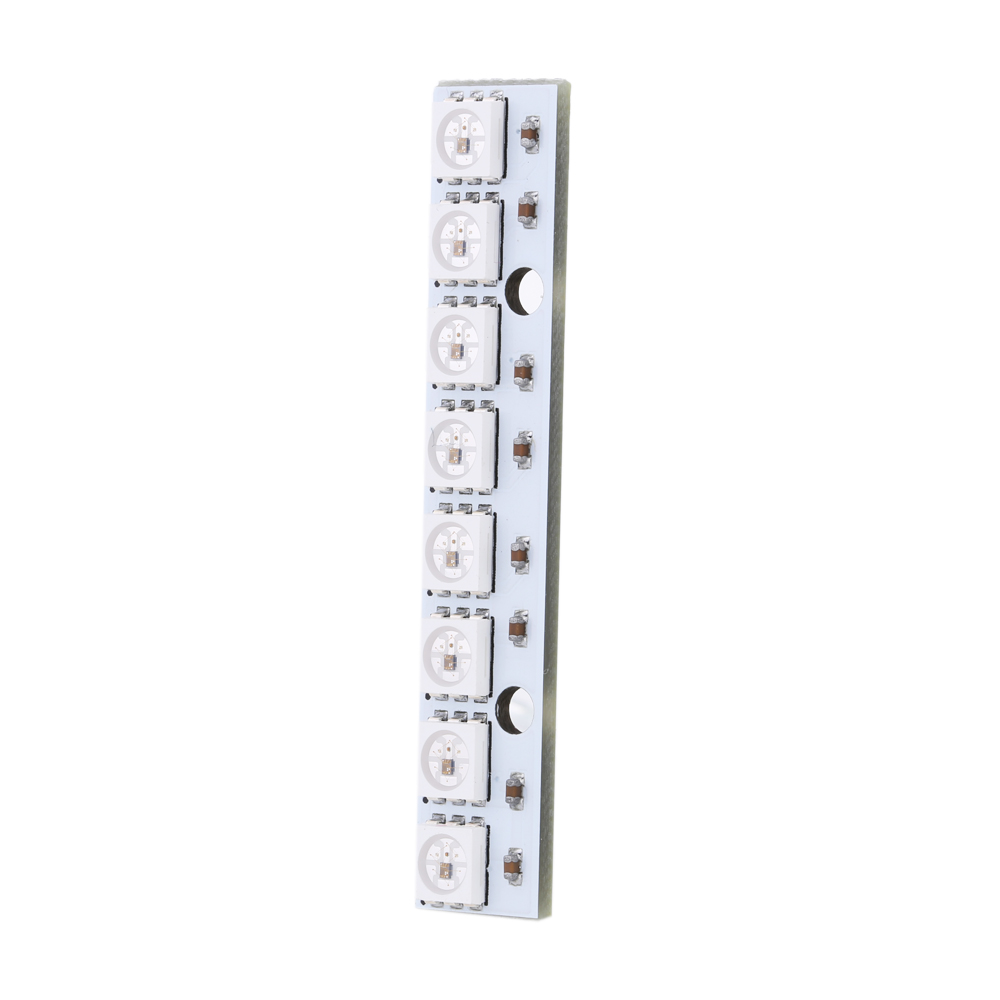

8 Bit Driver Lights Development Board Module WS2812 5050 RGB LED Built-in Full-color Driver Lights Development Board Module
It is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. Features:Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.Built-in electric reset circuit and power lost reset circuit.Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.Cascading port transmission signal by single line.Any two point the distance more than 5m transmission signal without any increase circuit.When the refresh rate is 30fps, low speed model cascade number are not less than 512 points, high speed mode not less than1024 points.Send data at speeds of 800Kbps.The color of the light were highly consistent, cost-effective.Specifications:Color: BlackApplication: Full-color module, Full color soft lights a lamp strip, LED decorative lighting, Indoor/outdoor LED video irregular screen.Item Size: 5.4 * 1 * 0.3cm / 2.1 * 0.4 * 0.1inItem Weight: 2.7g / 0.1ozPackage Size: 7.7 * 6 * 0.3cm / 3.0 * 2.4 * 0.1inPackage Weight: 3g / 0.1ozPackage List:1 * LED Lamp Panel 8 Bit
