720P IP CameraE50-NX3C1303AM

Model NO.                                                             50-NX3C1303AM

Camera

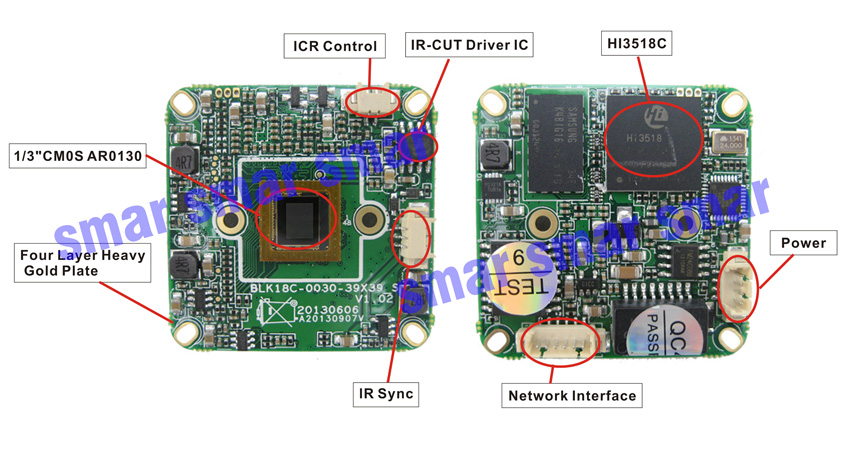

Image Device                                                       1/3" High Sensitivity CMOS

Image senser                                                      0130

DSP                                                                       HI3518C

TV System                                                             PAL/NTSC

Effective Pixels                                                     1280(H) x960(V)/1280(H) x 720(V)

Min. Illumination                                                  0Lux(IR-ON )

Day/Night                                                               ICR

Infrared LED                                                         42pcs Taiwan Dingyuan IR LED

IR Distance                                                          30-35 Meters

Infrared Spectrum                                                 850nm

Lens

Focal Length                                                        (Default:2.8-12mm)4-9mm Optional

Compression

Video compression                                            H.264 Main Profile/JPEG capture

Video Bite Rate                                                  100Kbps~6Mbps

Audio compression                                            G.711a


Max Resolution                                                    1280(H) x 720(V)

Frame Rate                                                          PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

Image settings                                                    Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage                                                                  Network storage

Intelliget Alarm                                                     Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol                                                                 TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

(HTTPS,SIP ,802.1x,IPv6 optional)

Basic                                                                      Anti-flicker, dual stream, heartbeat, password protection

Interface

Communication Interface                                  1 RJ45 10M/100M self-adaptive Ethernet interface

Video output                                                         1Vp-p Composite Output(75/BNC)

General

Operating condition                                           -10~60,humidity 90% less (non-condensing)

Power supply                                                     DC12V±10%

Current                                                                <400mA

Dimensions                                                         150*150*135mm

Net Weight                                                           820g/pcs
