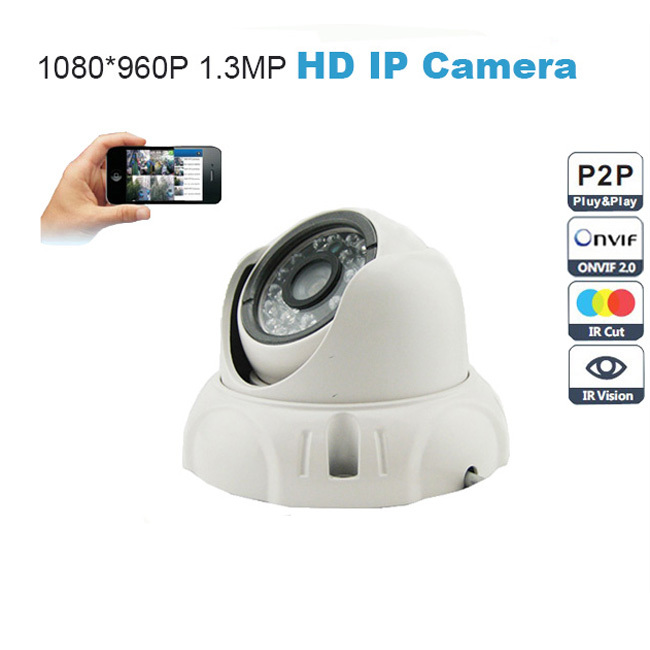

IP Camera 50-NX3C1303A

1. This module uses Huawei Hass Hi3518C + AR0130 as the core,Pixel can reach 1280 X 960P, which is 1.3 million pixels.

2. Using XM CMS client, Supports P2P remote, does not need to open router ports without port mapping, Easy remote access.

3. Also supports mobile phone remote access easily, AS: Apple, Android, Win, Symbian, Blackberry.

4. Support for international Onvif agreement, compatible XM, Hikvision, Dahua and other well-known manufacturers of NVR

 Model NO.                                                            50-NX3C1303A

Camera

Image Device                                                       1/3" High Sensitivity CMOS

Image senser                                                      0130

 DSP                                                                      HI3518C

TV System                                                             PAL/NTSC

Effective Pixels                                                     1280(H) x960(V)/1280(H) x 720(V

Min. Illumination                                                  0Lux(IR-ON )

Day/Night                                                                ICR

Infrared LED                                                          24pcs Taiwan Dingyuan IR LED

IR Distance                                                         15-20 Meters

Infrared Spectrum                                              850nm

Lens

Focal Length                                                      (Default:3.6mm)6mm/8mm Optional

Compression

Video compression                                            H.264 Main Profile/JPEG capture

Video Bite Rate                                                  100Kbps~6Mbps

Audio compression                                         G.711a


Max Resolution                                                  1280(H) x 720(V)

Frame Rate                                                          PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

Image settings                                                     Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage                                                                  Network storage

Intelliget Alarm                                                    Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol                                                                  TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

(HTTPS,SIP ,802.1x,IPv6 optional)

Basic                                                                       Anti-flicker, dual stream, heartbeat, password protection

Interface

Communication Interface                                  1 RJ45 10M/100M self-adaptive Ethernet interface

Video output                                                           1Vp-p Composite Output(75 /BNC)

General

Operating condition                                           -10 ~60 ,humidity 90% less (non-condensing)

Power supply                                                     DC12V±10%

Current                                                                  <280mA

Dimensions                                                           120*120*95mm

Net Weight                                                               550g/pcs
