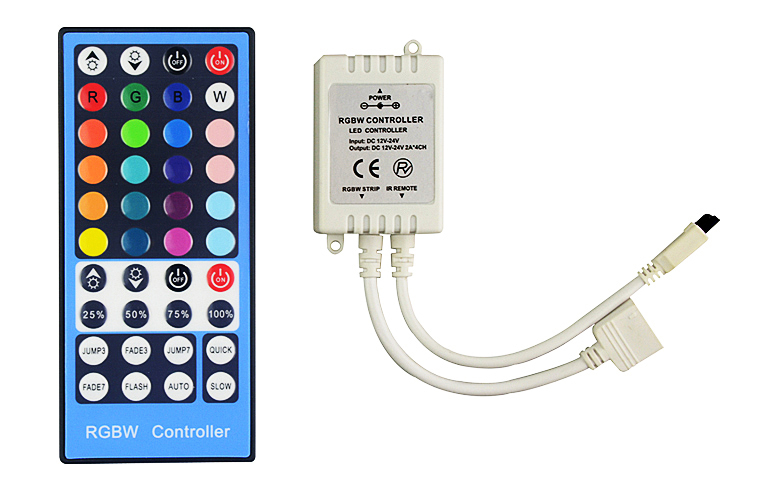

This RGBW controller is divided into RGB and W two parts, it can be turn on / OFF RGB part and W part independently, and can controlled their brightness and their color independently, such as, when turn on RGB part, it can change RGB part's color and brightness; and can turn on W part at the same time, and can turn on / OFF W part or adjust its brightness When at 3/7 color Fade model, can adjust their changing speed;. when at 3/7 color Jump mode, can adjust their brightness and adjust changing speed.





Working temperature: -20-60 ° C

Supply voltage: DC12-24V

Product Size: L50 * W35 * H23mm

Net weight: 90g

Output: 4 CMOS drain-open output

Connection method: common anode

Power: 12V <96W, 24V <192W (8A)

Max load current: 2A * 4CH
