Model No   .

285BIR-CSP-3S48CPT10/3S70CPT10

Image sensor

Sony Effio 4140+633CCD

Sony Effio 4140+811CCD

Signal model

PAL/NTSC

Horizontal resolution

480 TVL

700 TVL

Effective pixel

PAL:795(Horizontal)x 596(Vertical)

PAL:976(Horizontal)x 582(Vertical)

Minimum illumination

0Lux(IR On)

S/N radio

≥60dB(Enhanced)

Backlight compensation

On/Off

White balance

Auto

Electronic shutter

1/50~1/12000 seconds

Focus length

3.9~39.0mm

Optical focus

10X

Focus

Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function

Presets

256

Patrol track

4groups, each can record 100 actions

Cruise track

Total 30 presets can join cruise, can setting the presets' residence time

Other scan

Support Horizontal scan, deuce area scan, scan random

Rotation range

Horizontal 360°unlimted rotation, Vertical 180°,auto reversal

Rotation speed

Horizontal & Vertical Min 0.01°,Max 300°/S

Communications

RS-485, PELCO D, PELCO P

OSD

Yes

Temperature control

built-in

IR Led

42 Pcs Led

IR distance

40m

Power supply

DC12V/2A

Material

Aluminum shell, waterproof IP66

Work environment

-20&deg;C~+50&deg;C (select temperature control accessories), <95%RH

Installation

Ceiling Bracket

Package:

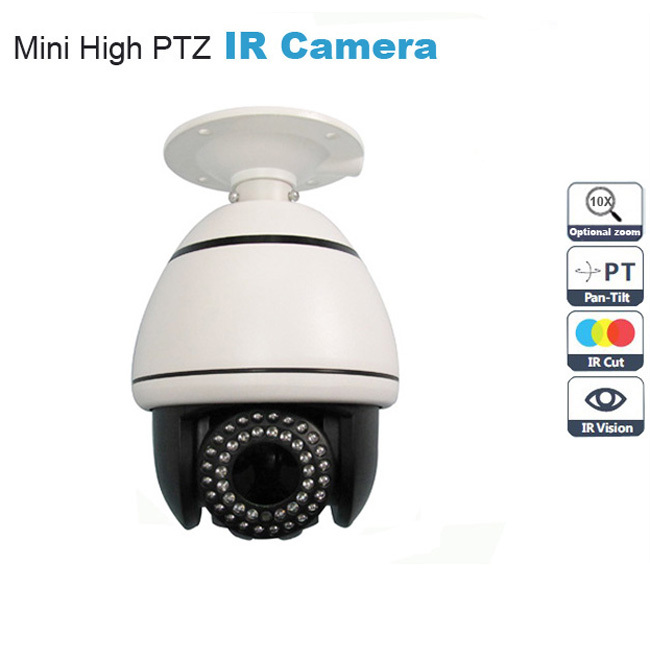

1 x 4" Mini PTZ Camera

1 x Power Supply-DC12V 2A

1 x Ceiling Bracket

1 x Operation Manual
