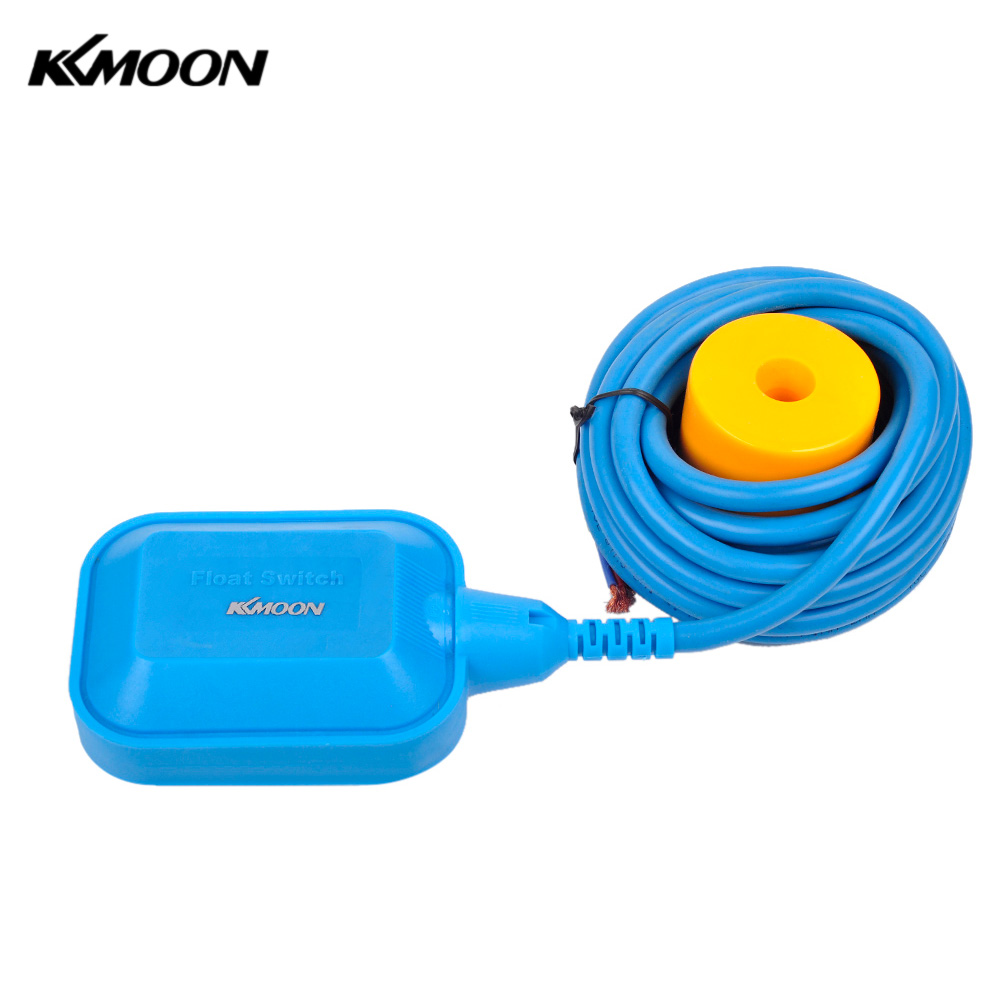

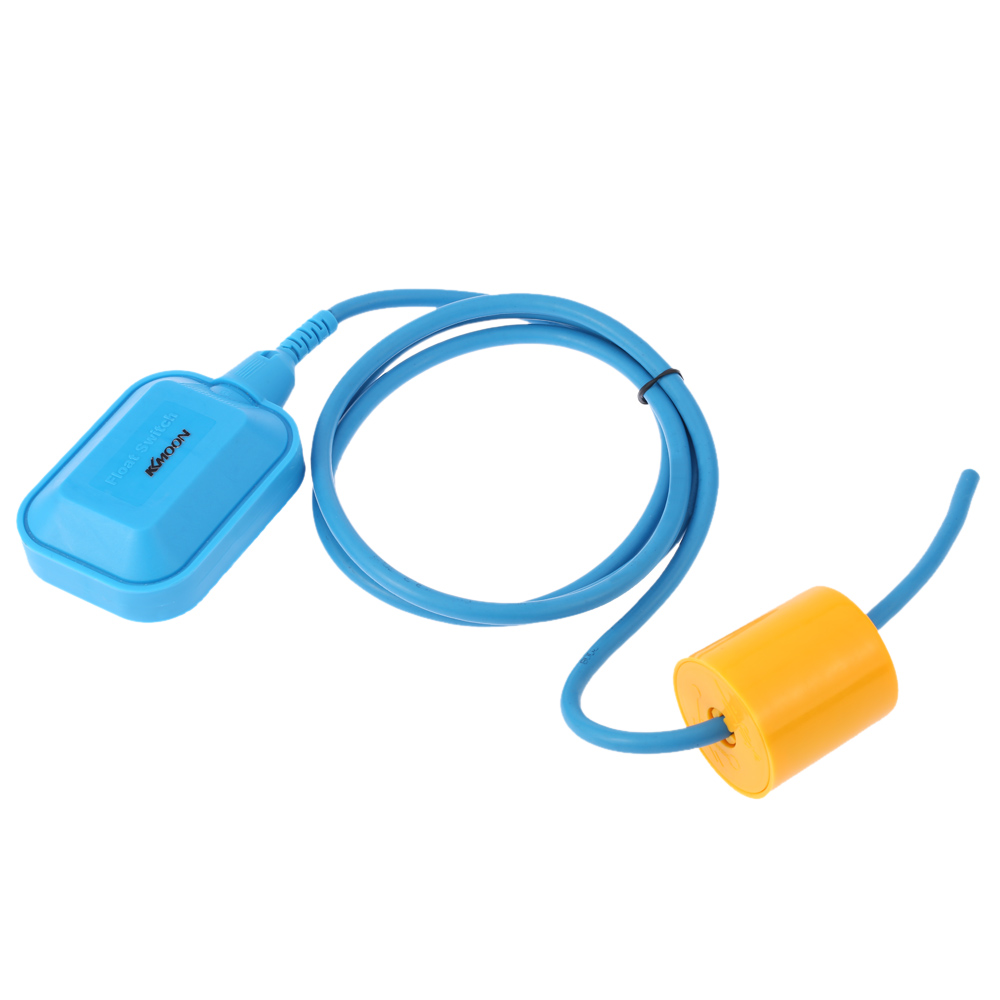

float switch Automatic water level Liquid Level Controller High Temperature Resistant float switch Sensor for Water Tank Tower

Useful float switch helps to control the water level. With high quality silicone cable which is high temperature resistant, it is more practical. Automatic operation helps to save much time. It can be widely used in water tank, pool, oil, weak acid and weak base container, etc.
Features:

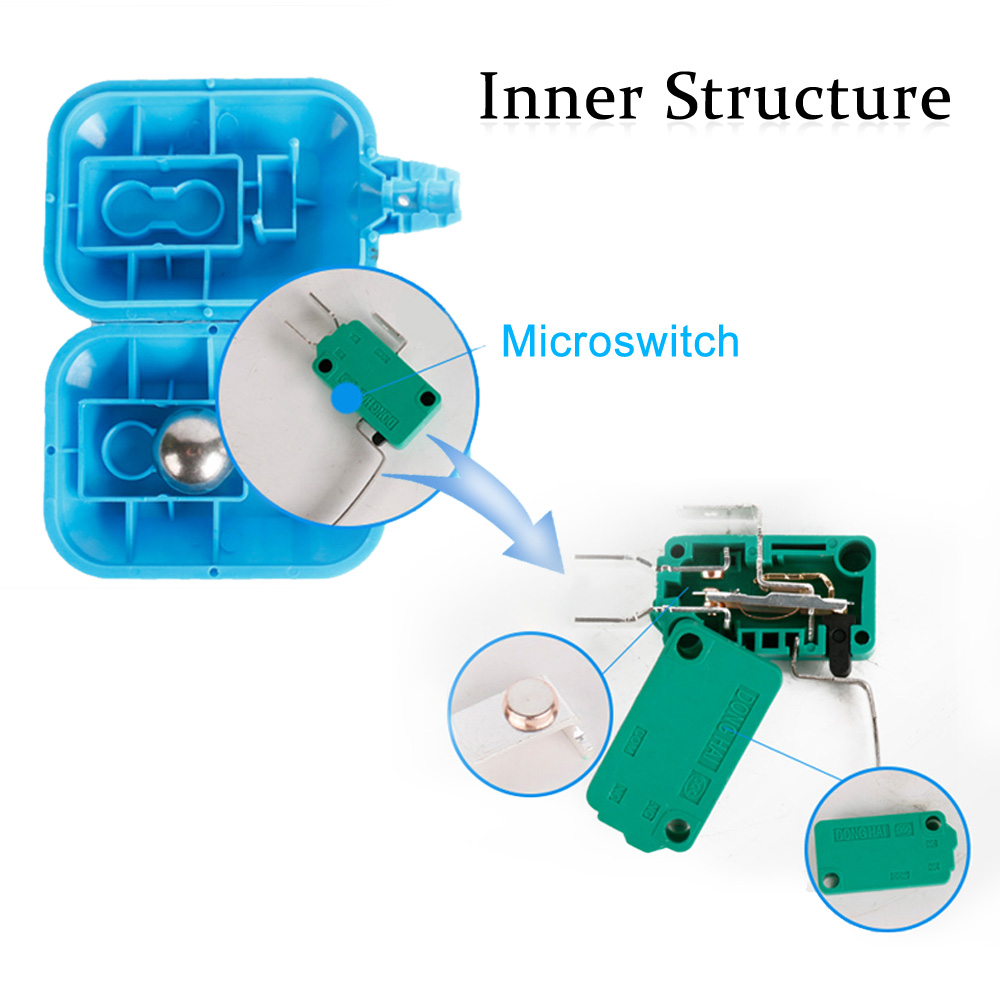

This float switch is an automatic controller for liquid level.

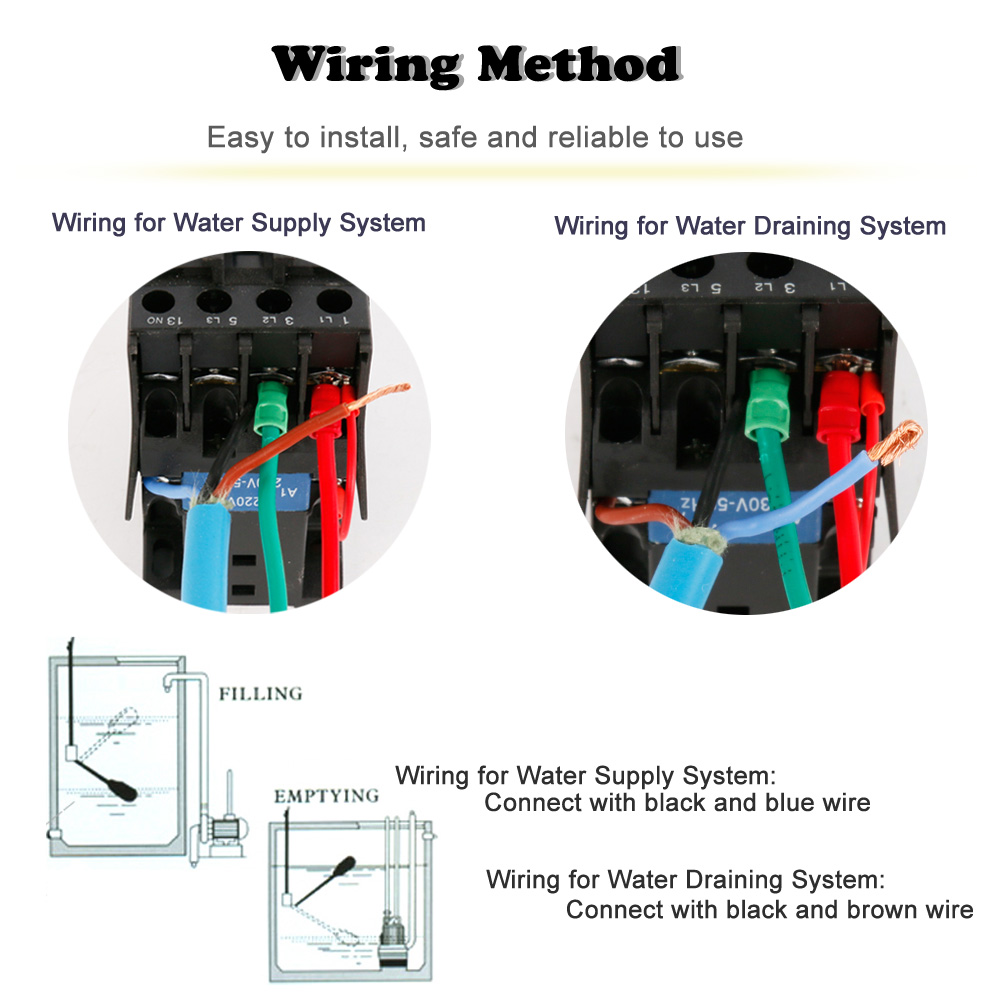

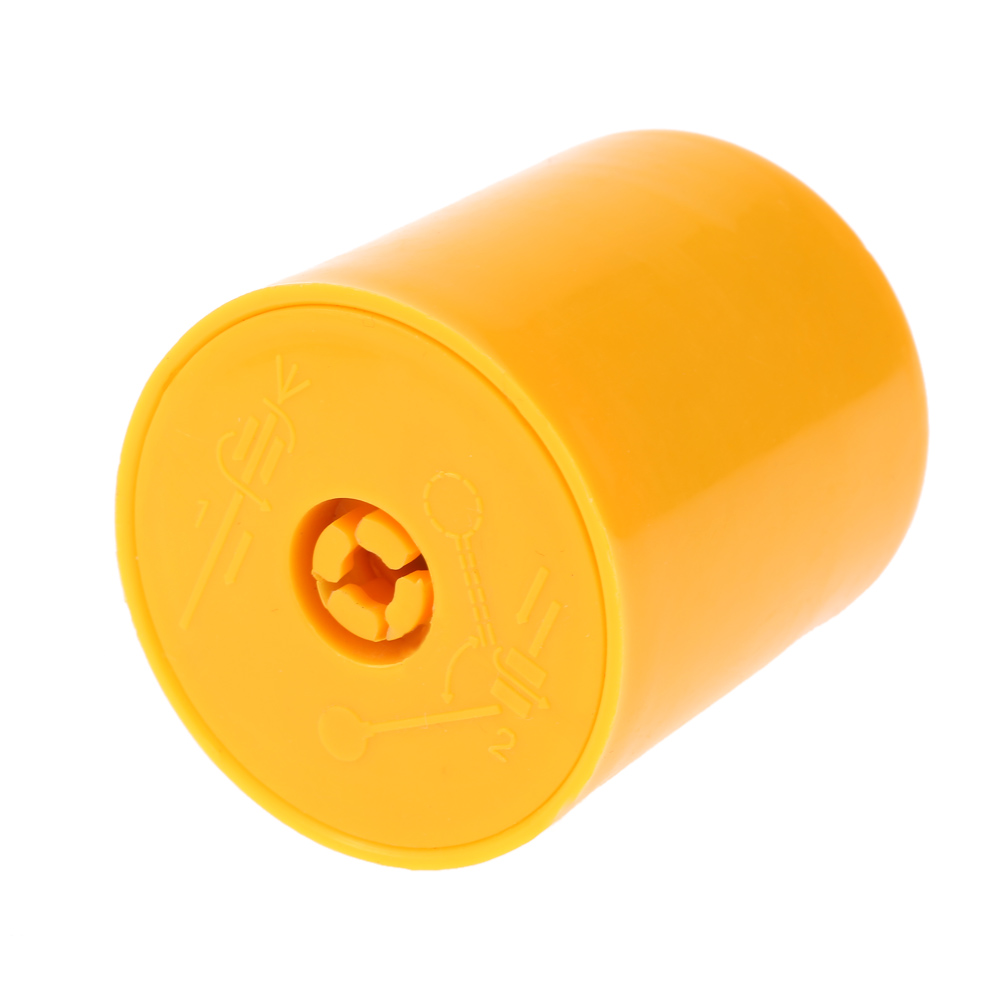

Put the cable through the counter weight and fix on the position as required to control liquid level.
The motor below 1100W can use this flow switch directly.
It is easy to operate and install, safe and reliable.

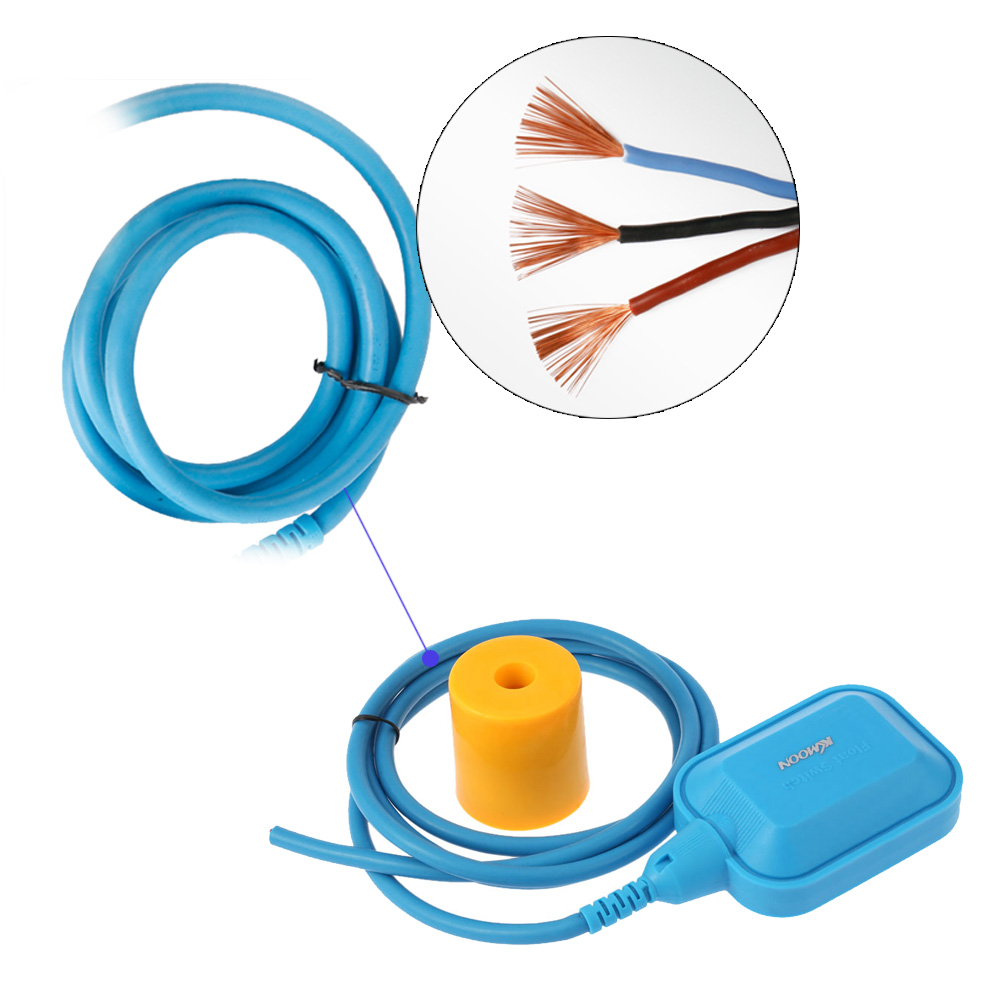

High quality silicone cable, high weather resistance, can be used in sewage.
Widely used in water tank, pool, oil, weak acid and weak base container for home or factory use, etc.
Specifications:
Cable Length: 2m
Working Voltage: <=AC220V, safe voltage :DC 24V/12V is recommended(cooperating with relay)
Rated Current/Inductive Load: 4A/220V
Max. Thermal Current: 10A 250V
Operating Temperature: 0-80°C
Power Range: <=1100W
Working Pressure: 0.1MPa
Control Range: >=0.3m
Protection Level of Case: IP65

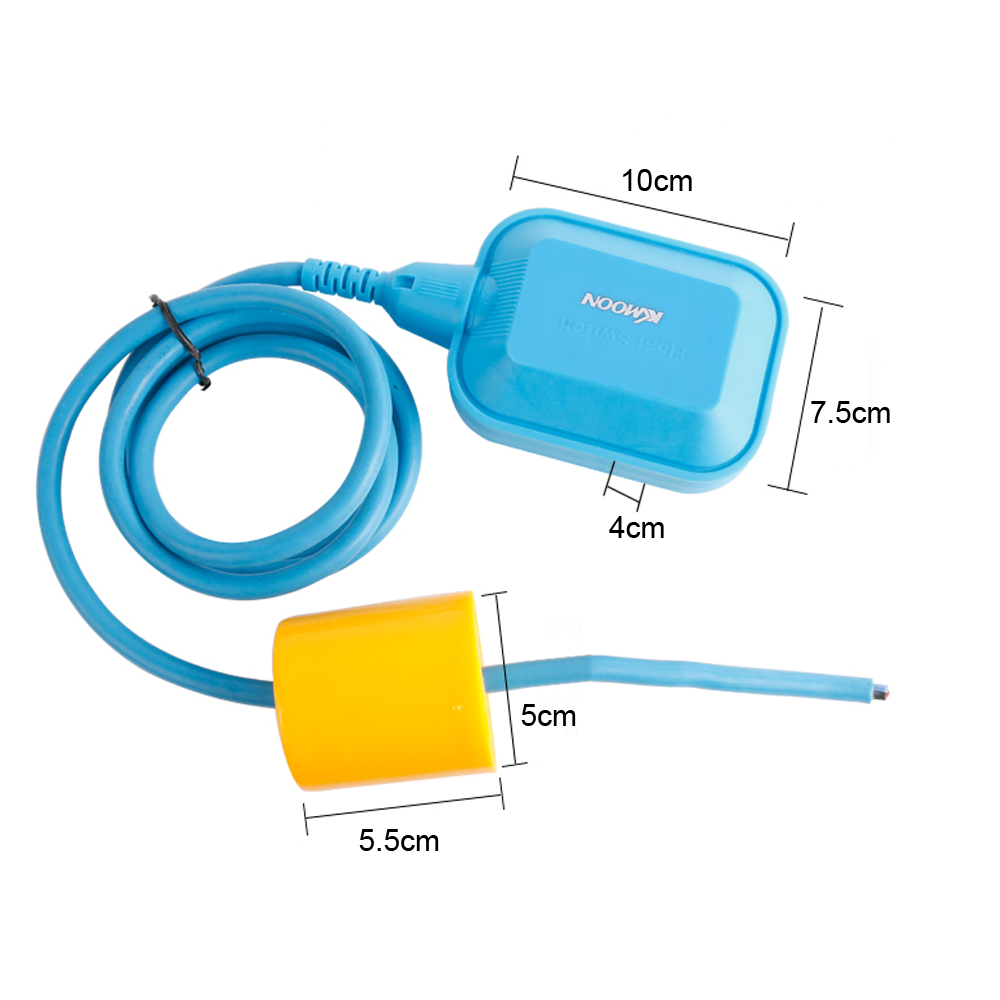

Counter Weight Size: 5 * 5.5cm / 1.97 * 2.17in(D * H)
Float Switch Size: 10 * 7.5 * 4cm / 3.94 * 2.95 * 1.57in
Package Size: 21 * 7.5 * 10.5cm / 8.27 * 2.95 * 4.13in
Item Weight: 477g / 16.84oz
Package Weight: 536g / 18.91oz
Package List:
1 * Set of Float Switch
