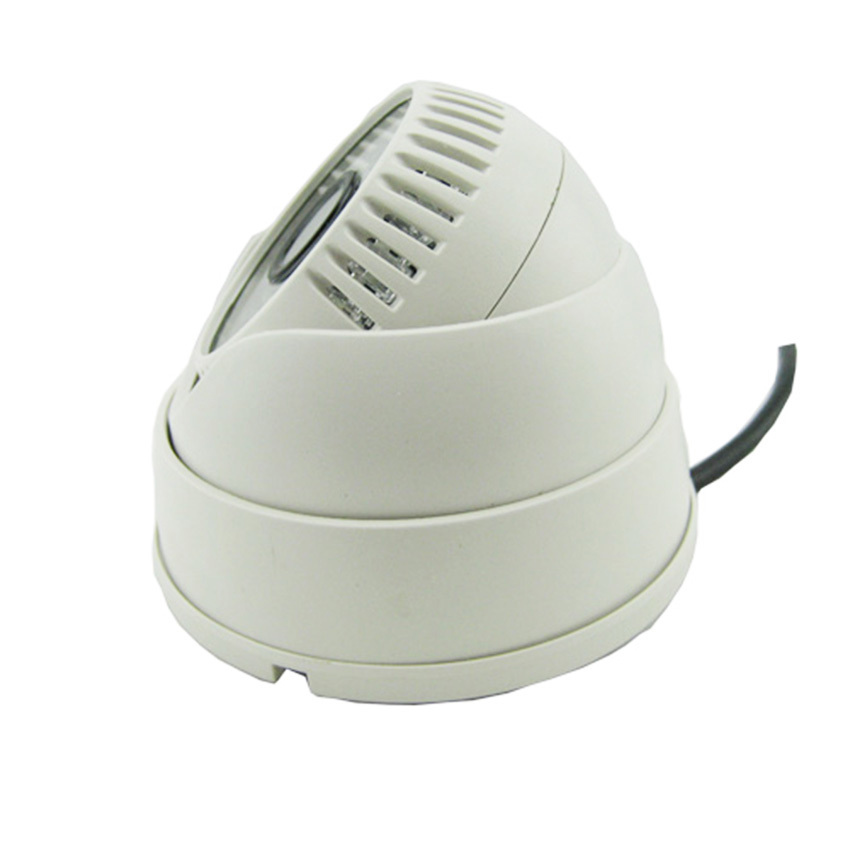

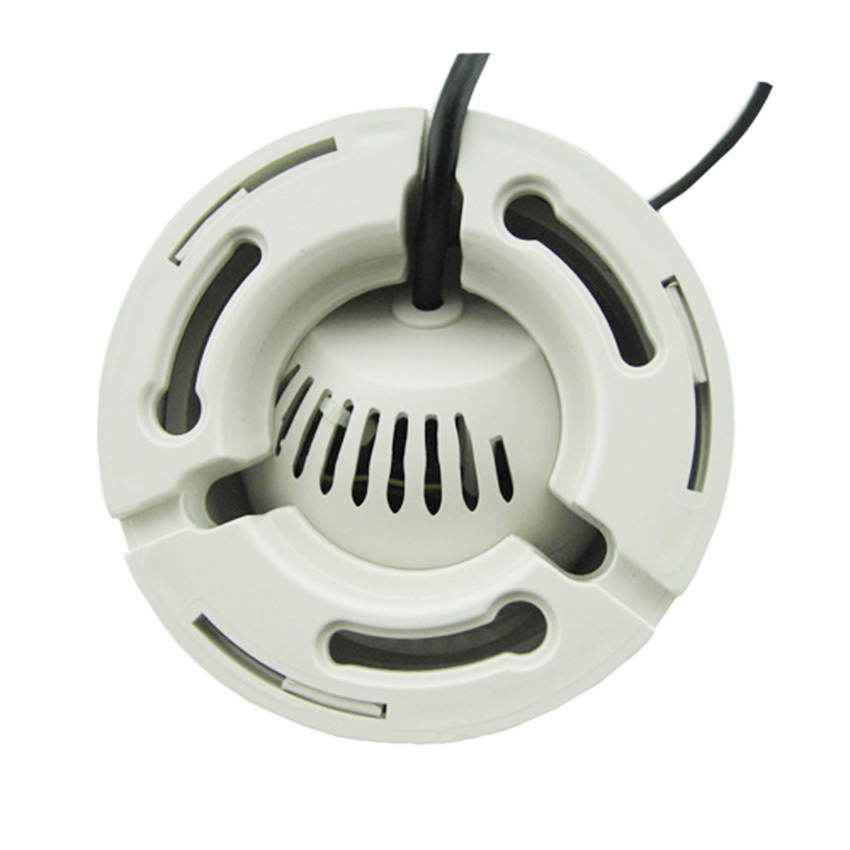

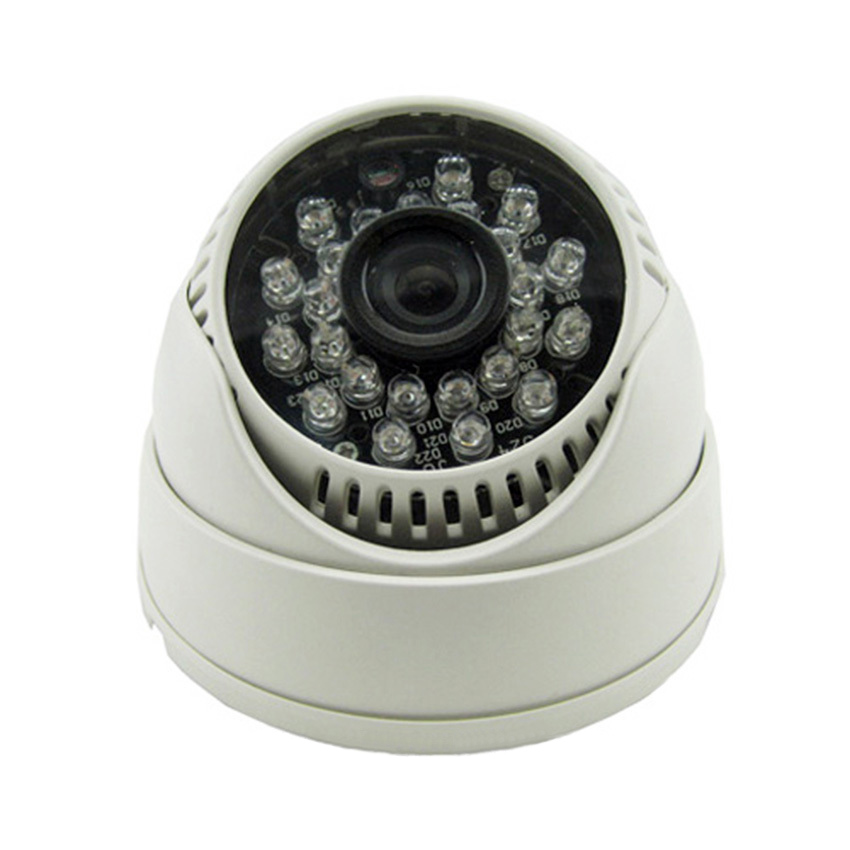

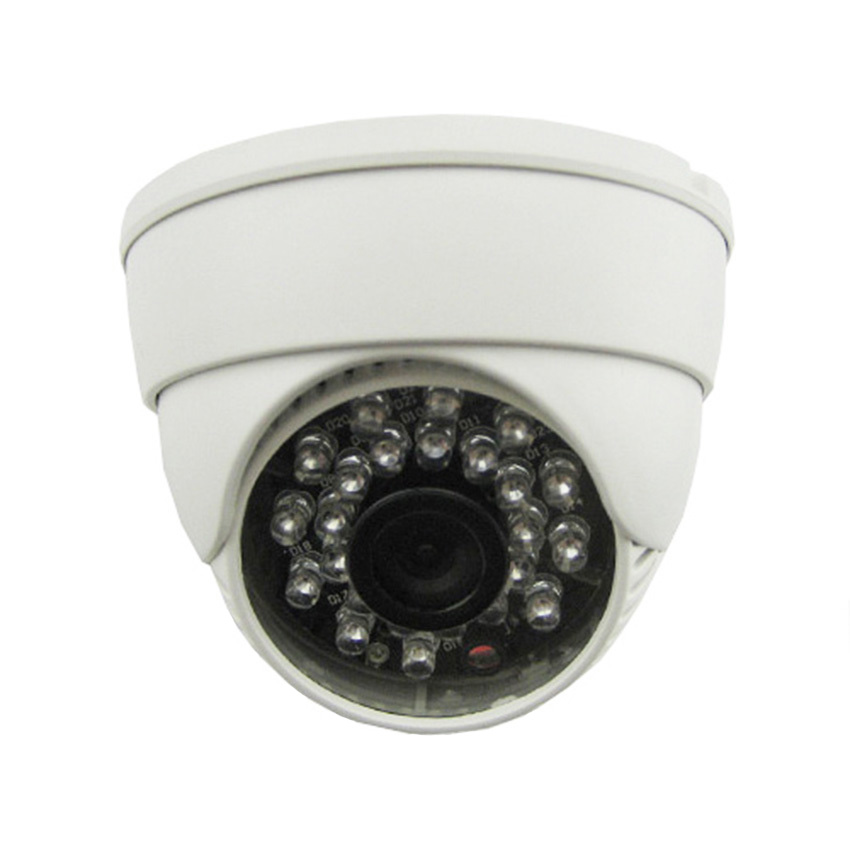

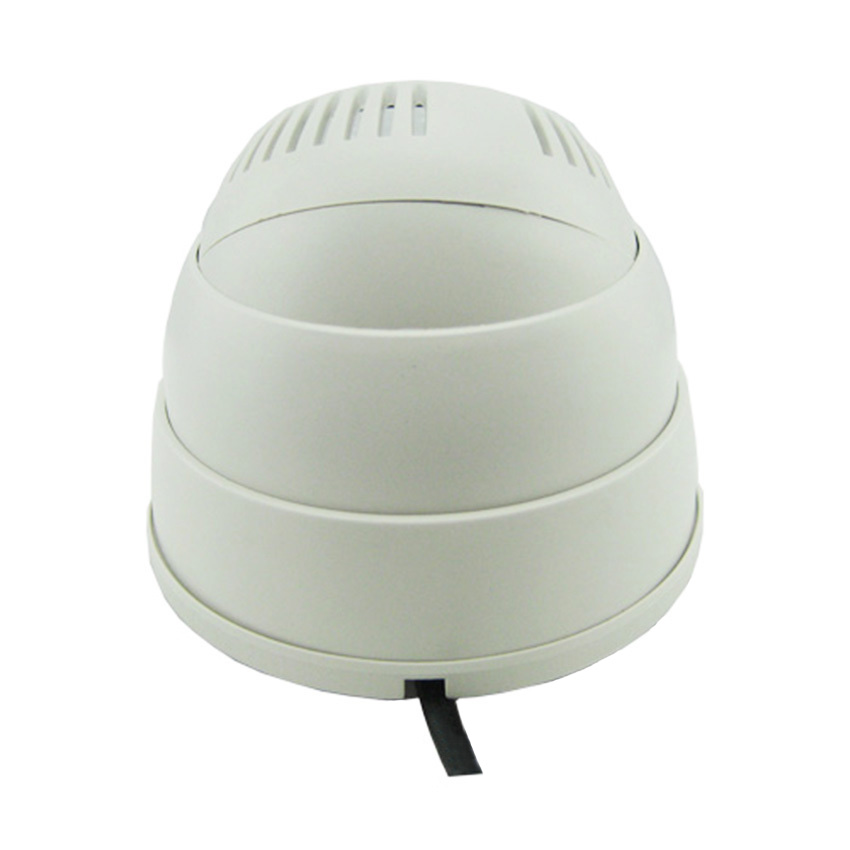

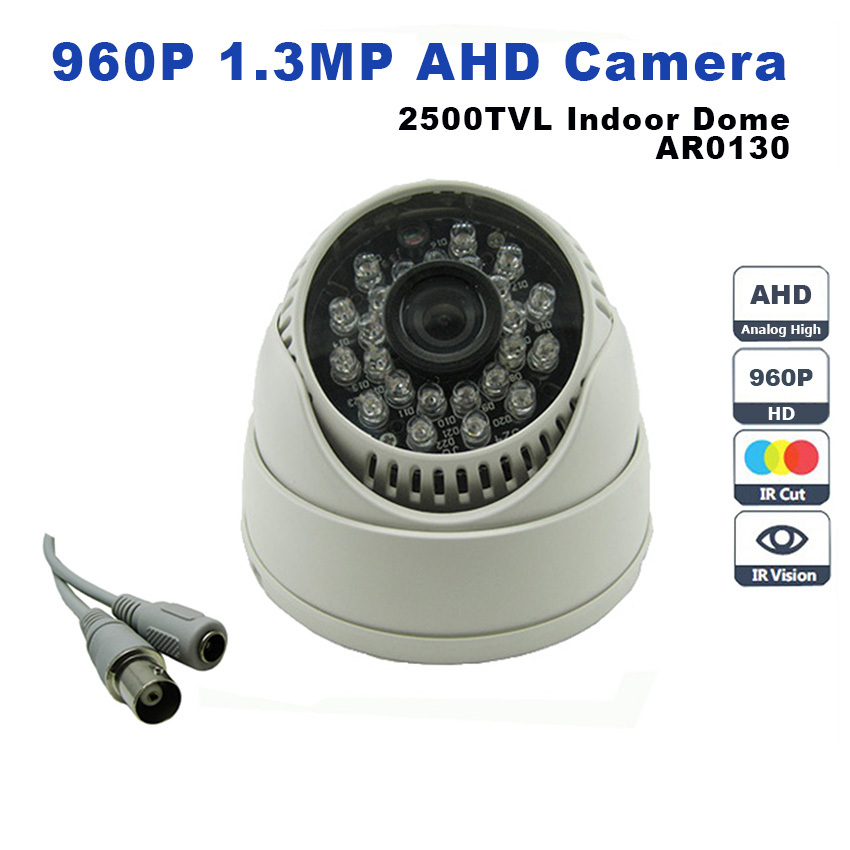

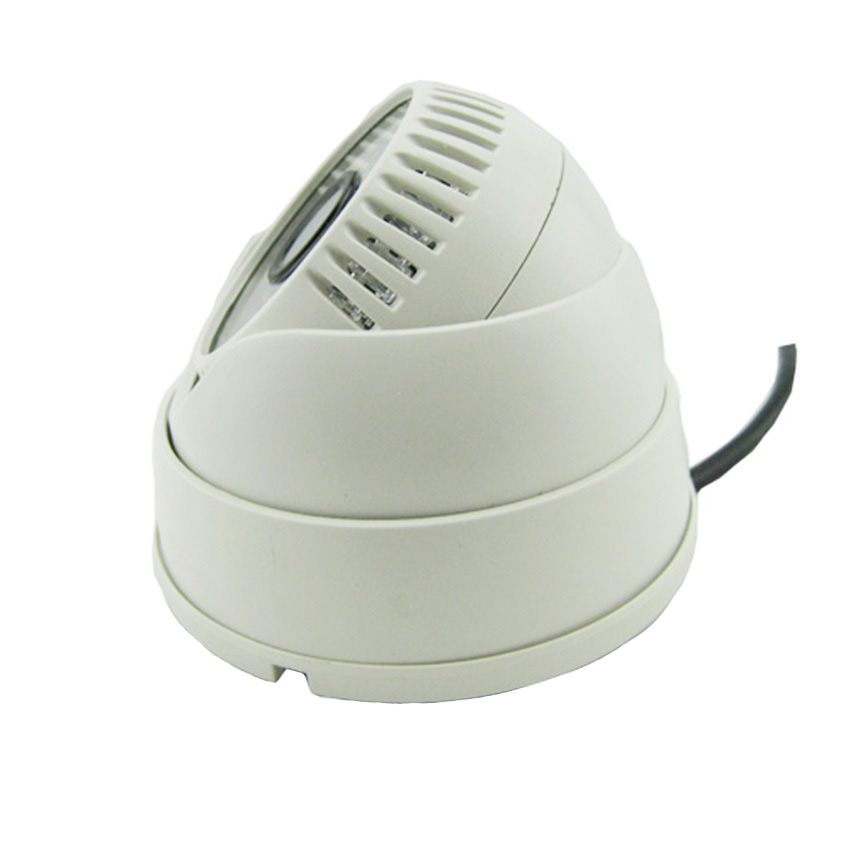

2500TVL Analog High Definition Indoor Dome CCTV Camera 1/3 AR0130  Sensor 960P 1.3MP AHD Camera 24 Infrared LED IR Cut Filter Hot

1.3 Megapixel CMOS AHD Chip ,AR0130

MUST work with AHD DVR which support AHD-M Mode!

Best choice for project reconstruction.

You can upgrade an old analog security system to 1.3MP HD cameras without changing cable routes.

AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

Usually use Coaxial-Cable,SYV-75-5 cable can transfer video over 500meters.

Model NO.                                    SAE50-AX3CM130

VIDEO

Image Device                                              1/3"CMOS 1.3 Megapixel low illumination level

SENSOR                                                      AR0130

TV System                                                    PAL/NTSC

Resolution                                                    1280 (H) x 960 (V) /25fps

Min. Illumination                                         0Lux(IR-ON )

S/N Ratio >50Db(AGC OFF)

Video Output                                              1CH AHD HD/CVBS Standard Singal

Output(Switchable)

Output(Switchable)

LENS

Focal Length                                           Standard 1080P 3.6mm (6mm/8mm)optinal

OPERATIONAL

SHUTTER/AGC                                      Auto 1/50(1/60) ~ 1/10000 )

AGC                                                           AUTO

BACKLIGHT Compensation                 AUTO

White Balance                                         AUTO

Day/Night                                                  IR-CUT Switch

Max Transmission Distance                Over 500m via 75-5 coaxial cable

IR

Infrared LED                                         24pcs TYNTEK F5 12mil LED

IR Distance                                           10-20 Meters

Infrared Spectrum                               850nm

ICR                                                         IR-CUT

ENVIRONMENTAL

Operation Temperature                     -10~ +40

Storage Temperature                         -20~ +50

ELECTRICAL

Input Voltage/Current                          DC12V,<300mA

Adapter Requirement                          DC12V 1A

MECHANICAL

Shell Materia                                         ABS Plastic

Color                                                       White

Dimensions                                          100*100*90mm

Net Weight                                             250g/pcs

 1*960P 1.3MP AHD  Camera

Note:960P AHD Camera Must Work With AHD DVR Which Supports AHD-M,We Recommend this AHD-M DVR for you. Please click below the Picture:

In order to make you enjoy better service,We will recommend the related products, Such as: 720P /960P/1080P AHD Camera; AHD-M DVR For 720P/960P AHD Camera; AHD-H DVR For 1080P AHDH Camera;  If you have the demand, please click on these links below:

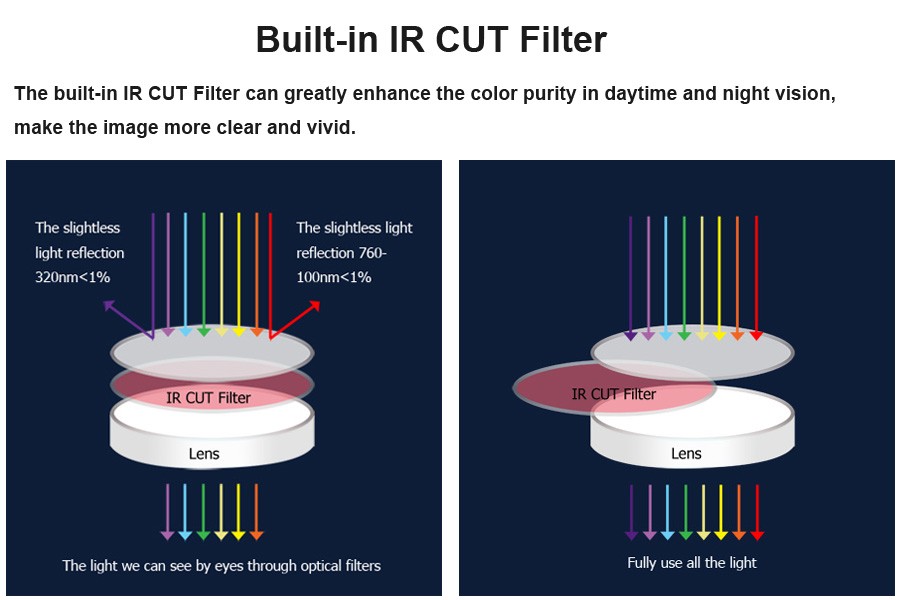

Mechanical IR-Cut Filter

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.

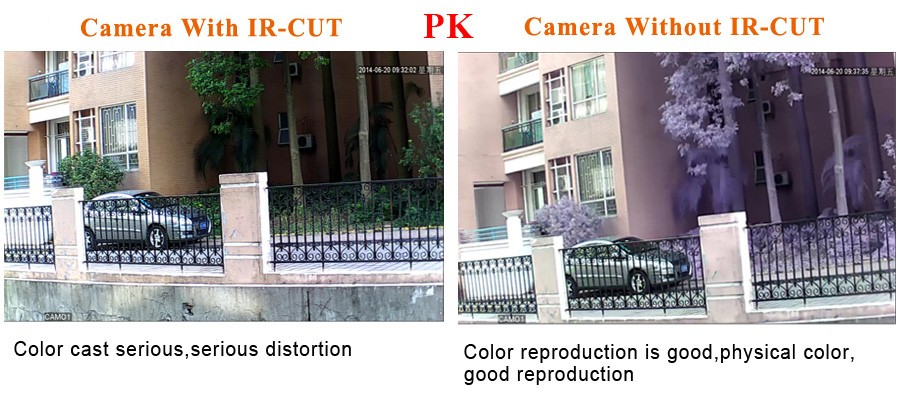

What is an IR Cut Filter?

An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

NOTE: Not all Day/Night Cameras have an Auto IR Cut filter.

What is AHD?

AHD is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).

In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

AHD is a novel technique pioneered These products and applications enable seamless and friendly transition of video surveillance systems from analog to digital, be it all-new digital installations or upgrades from existing analog installations.

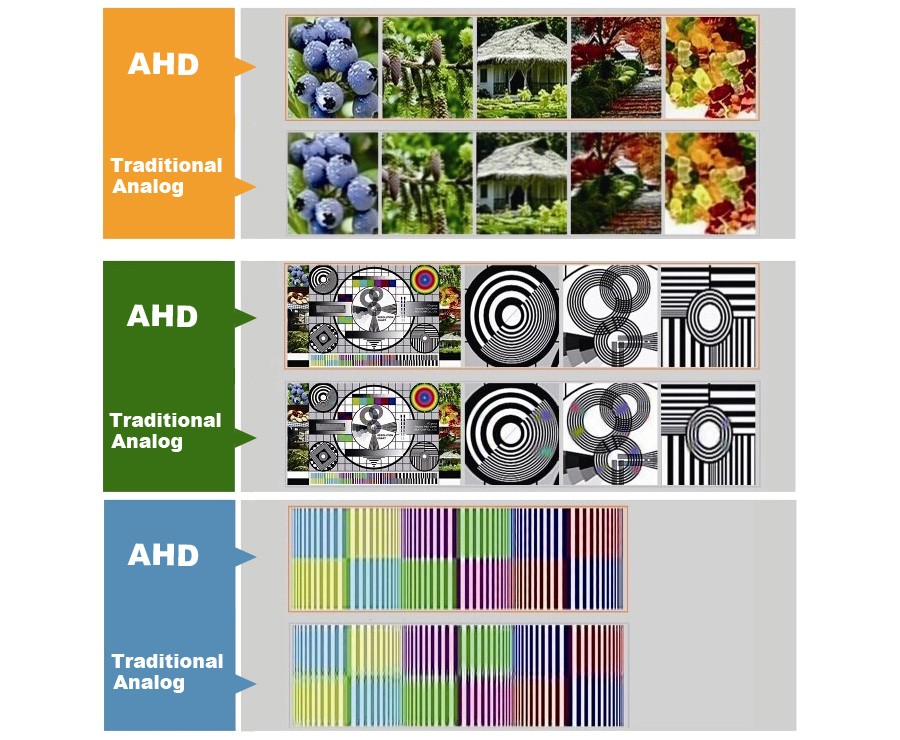

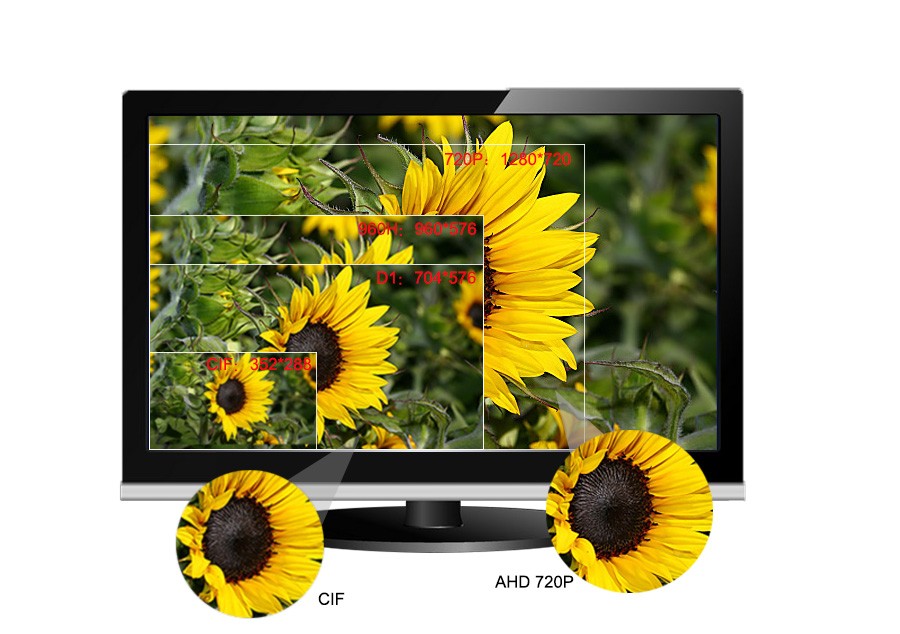

AHD Cameras Image Quality

AHD features:

High image quality at the resolution of 720p/960p

The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.

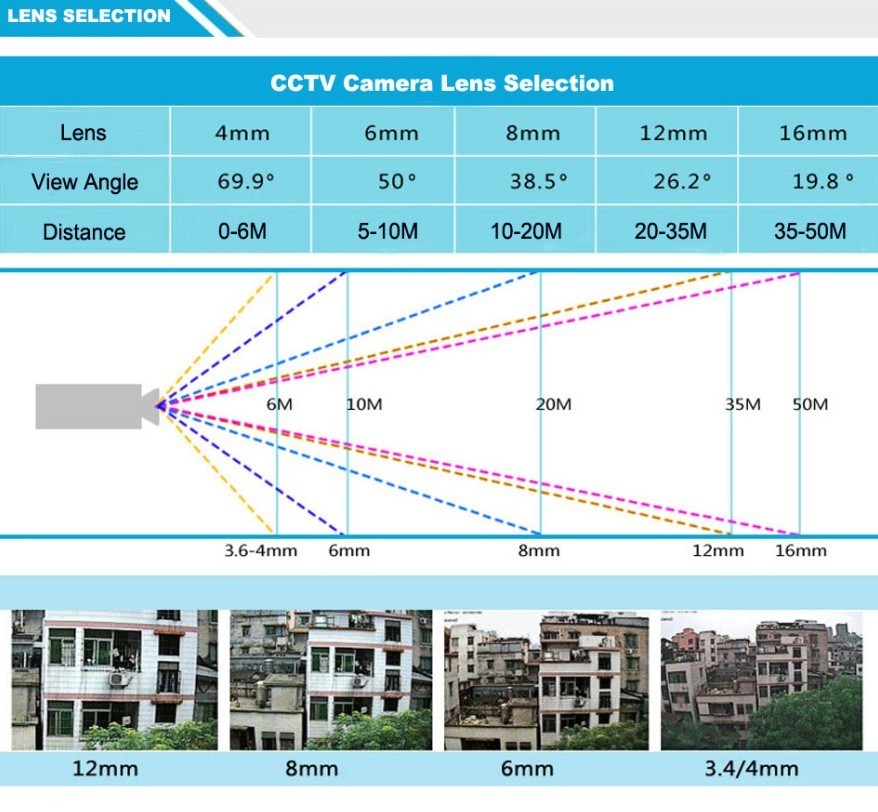

How to choose Lens?
