24CH POE Switch 6TB HDD 16CH NVR KIT CCTV System Outdoor Security POE Camera System 1080P 2MP HD IR Night Vision Surveillance

SKU:

CK10217

Category: POE Camera

$4,395.00

Enquiry

Footer Group

Description

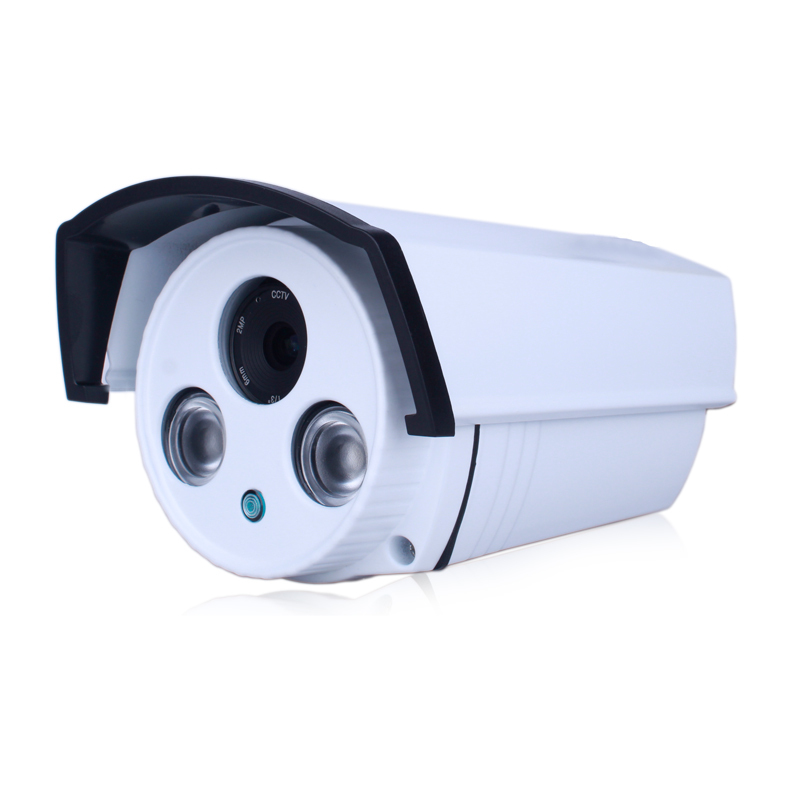

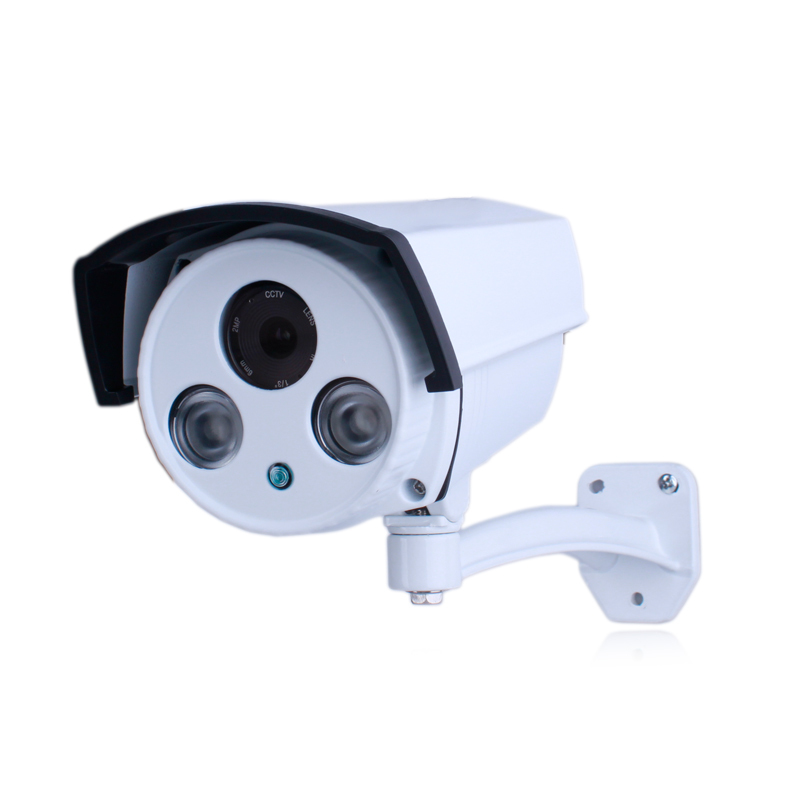

Anran Security Network POE Camera
Main Features	H.264 Main Profile @level 3
	Main stream:1920x1080;Sub stream:704x576
	Dual H.264 Stream, Resolution, Frame rate, Bit rate adjustable
	Build in Motion Detection, Privacy Mask, image snapshot,Title OSD
	Image Controls: Brightness, Saturation, Contrast, Hue adjustable
	Support RTSP Compatible with AVI Media Player
	Onvif 2.0 Compliant;Support Dahua/ Hikvision/ Blue Iris/Axxon/NUUO/ Synology/iSpy/ Qnap/ Digifort Software
	Support P2P function , Easy remote monitoring
	Support POE:802.3af
	Smart Phone Support: iPhone, iPad, BlackBerry, Windows Mobile, Android
	Support WEB Remote Config,Alarm input actived to record,Snapshot,Mobile software,MYEYE,SDK
	Suitable for Retail stores,Hotels,School,Parking lot,Colleges and Offices.
Model	Brand Name	Anran Security
	Model Number	AR-HK02W-POE2.0
	Style	Bullet Camera
Camera	Processor	Hi3516C
	Sensor Type	1/2.5" SONY CMOS Sensor Progressive Scan
	Effective pixels,Resolution	2.0 Megapixel 1920x1080 (1080P) 25Fps
	Lens	The default 6mm(4mm,8mm,12mm For Optional)
	Focal length	2.8mm	3.6mm	4mm	6mm	8mm	12mm	16mm
	Viewing Angle	89.7°	75.7°	69.9°	50°	38.5°	26.2°	19.8°
	Suitable for distance	0-2M	0-3M	3-5M	5-10M	10-20M	20-35M	35-50M
	Infrared Light	2 Array Leds.IR Range 20m (60 feet)
	Day and Night Switch Mode	Auto, dual IR-Cut filter
	Min.Illumination	Colour 0.01 Lux,F1.2,B/W 0.001 Lux,F1.2
	Max S/N Ratio	39dB
Video Encoding	Video Compression	H.264 Main Profile; AVI Baseline
	Main Stream	FHD 1920*1080P 1-25fps
	Video Bitrate	0.1Mbps~6Mbps,Supports CBR/VBR
Functions	Title OSD	Supports Channel name, Date, And video stream information overlay
	Privacy Mask	4 Configurable Regions
	Special features	Auto Exposure Control (AEC); Auto White Balance (AWB);
		Auto Band Filter (ABF); Auto Black Level Calibration (ABLC); Support digital WDR
	Intelligent Alarm	Video Motion, Video Blind,Video Loss
	Alarm Way	Email Alarm or FTP
	Image Orientation	Image Flip and Mirror
	Network protocol	TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP
	ONVIF protocols	Support 2.0 Version
	Recording	Recording set up to record by motion trigger, alarm trigger, manual, or schedule
	Remote View	IE 6.0 or later, firefox
Interface	Network Interface	10/100M BASE-TX,RJ-45 connector
General Specifications	Operating Temperature	-20°C~50°C (-4°F ~ 122°F)
	Operating Humidity	0% -85% RH
	Power Supply	DC12V 2.0A(POE camera does not include the power supply when delivery)
	Power Consumption	9W (MAX)
	Waterproof / Weatherproof	Yes
	Appearance material	Metal
	Weight	1.2kg

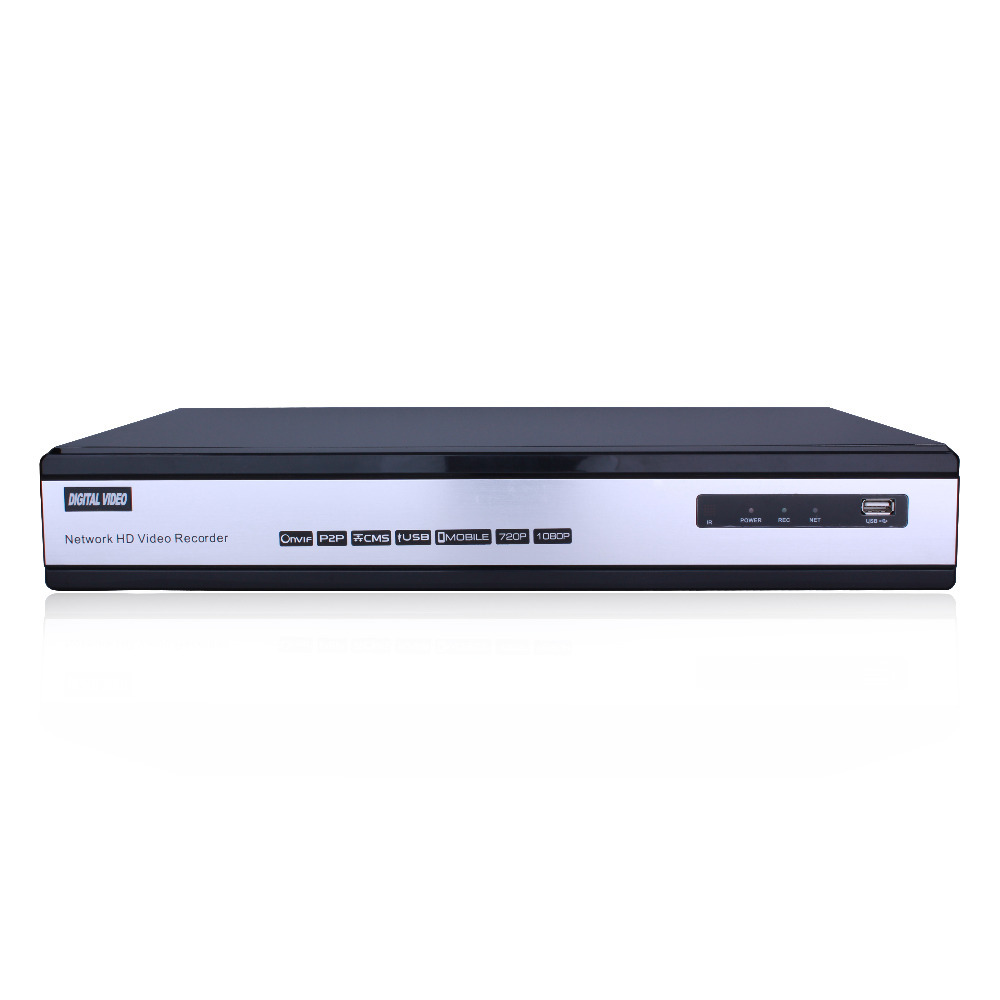

RA-NVR6016F-PL:

Support

Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,Japanese,Portuguese,Russian,Thai,Turkish,Brazilian,Bulgarian,

Farsi,French,German,Hebrew,Hungarian,Polish,Romanian,Spanish,Swedish,Vietnamese

Support smart mobile and network (IE&Firefox)

real time remotely monitoring,such as iPhone,Blackberry,Android,Nokia and windows mobile.

Features

1.H.264 High profile compression algorithm ideal for standalone DVR

2.Realtime live display up to 16 cameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5.Multiple control methods:IR remote controller,USB mouse and front panel press button

6.Smart video detection:motion detection,video blind,video loss

7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display

8.Pan Tilt Zoom and Speed Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,auxiliary function supported.

9.Easy backup methods: USB devices,remote network and client software backup

10.Alarm triggering screen tips,Buzzer,PTZ preset,e-mail &FTP upload

11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

12.Powerful network software:built-in web server,multi-DVR Networking access for remote live viewing,recording,playback,setting,

system statu,event log,e-mail & ftp function.

13.Support DHCP/PPPOE/FTP/DNS/DDNS/NTP/Email alarm/IP right management/IP search/network alarm center functions,

support web client, standalone client and SDK.

14.With the sound system for the protection circuit,unique triple watchdog function,very low power consumption,to ensure

the equipment never be hang up.With the unique black box technology, monitor the whole run process of the equipment,

15.Enable strong multi-way synchronization with max 4CH playback,realize the zero-delay between playback channels.

16.Support Onvif 2.0

17. Support XM cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with XM cloud technology.

System	Model	NVR6016F-PL
	Main Processor	HI3521*1
	Operating System	Embedded LINUX
	System Resources	Pentaplex Function:Live,Recording,Playback&Remote Access
	Preview	1/4/8/16
	Control Device	Front Panel,USB mouse,IR Remote Control
Video	Video Standards	PAL 625 line,50 f /s; NTSC 525 line,60 f /s
	Video Compression	H.264 High Profile
	Video Recording	1080P:PAL 1Fps/s-25Fps/s;NTSC 1Fps/s-30Fps/s;
	Motion Detection	Zones:192(1612)detection zones,Sensitivity:1-6(6 is highest)
	Motion Detection	Trigger recording,PTZ Movement,Tour,alarm:e-mail& FTP
	TV Output Adjustment	Adjust TV Output Color & Display Zone
Audio	Audio Compression	G711A
Audio	Bidirectional Talk	Not Support
Record & Playback	Recording Mode	Manual>Alarm>Video Detection>Continuous
	Playback	1/2/4 Channels Playback Simultaneously,
		Pause,Stop,Rewind,Fast Play,Slow Play,Next File,Previous File.
		Repeat,Shuffle,Backup selection
	Search Mode	Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Storage & Backup	Space Occupation	Video: 1080p 40-50G/day/ch;720p 26G/day/ch.
	Space Occupation	D1 16~20G/day/ch ; Audio: 691.2M/day/ch
	HDD Management	Hard disk hibernation technology, HDD faulty alarm & Raid (Redundancy)
	Backup Mode	Network Download/USB Flash Stick

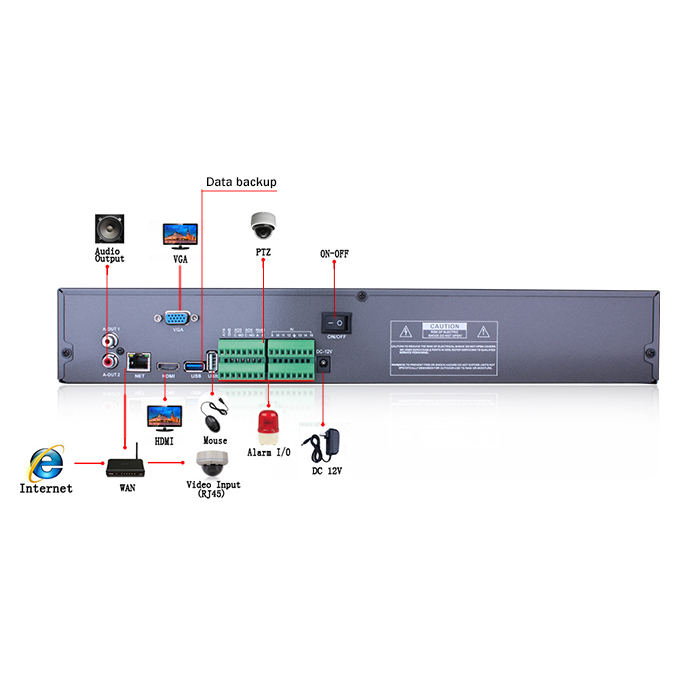

Interface	Video Input	N/A
	Video Output	1CH VGA Output,1CH HDMI Output
	Audio Input	N/A
	Audio Output	2 Channel
	Alarm Input	16 Channel
	Relay Output	4 Channel
	Net Interface	RJ-45 10M/100M
	3G/WIFI	Support(Usb extension)
	USB Interface	2* USB2.0 Port for Mouse and Backup
	Hard Disk	4 SATA Port (Max 4 x 3T)
Environmental	Power Supply	12V/6A
	Power Consumption	<10W
	Working Temperature	-20°C~50°C (-4°F ~ 122°F)
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	420mm280mm70mm
	Weight	5.6KG
	Mounting	Desktop

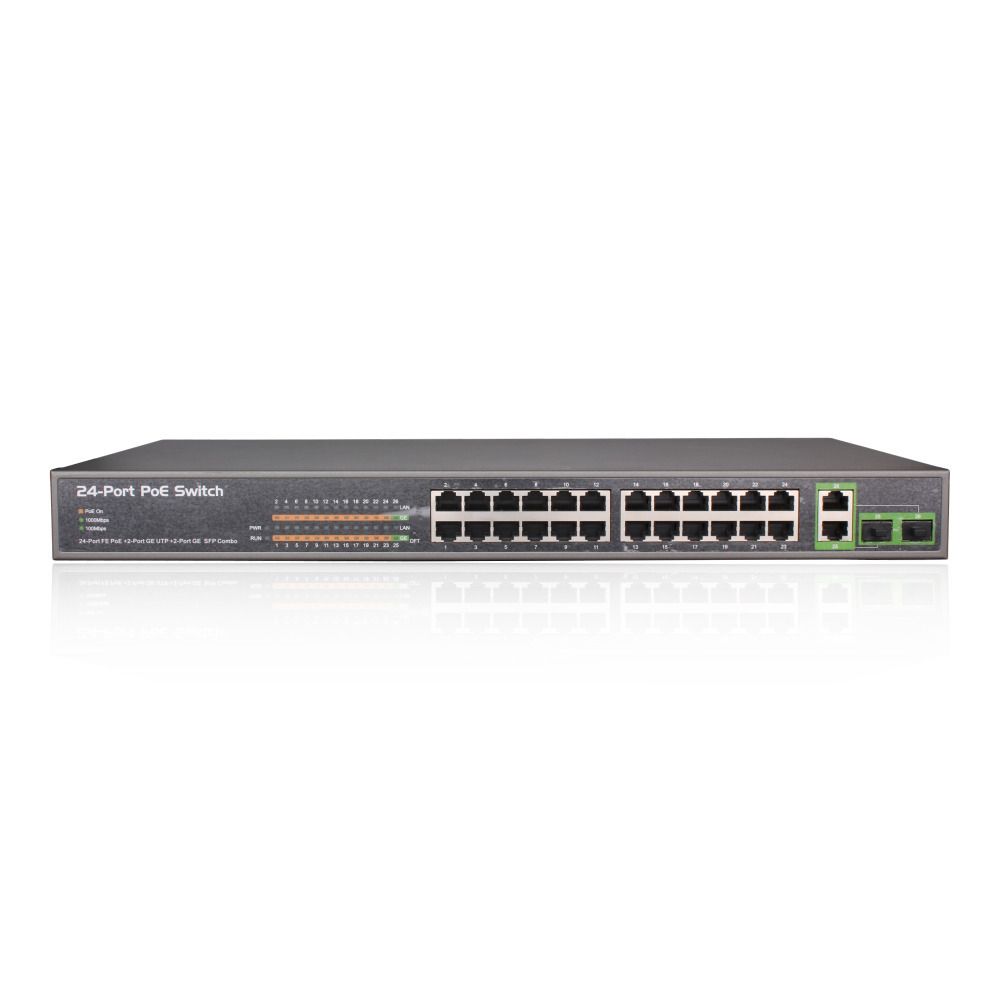

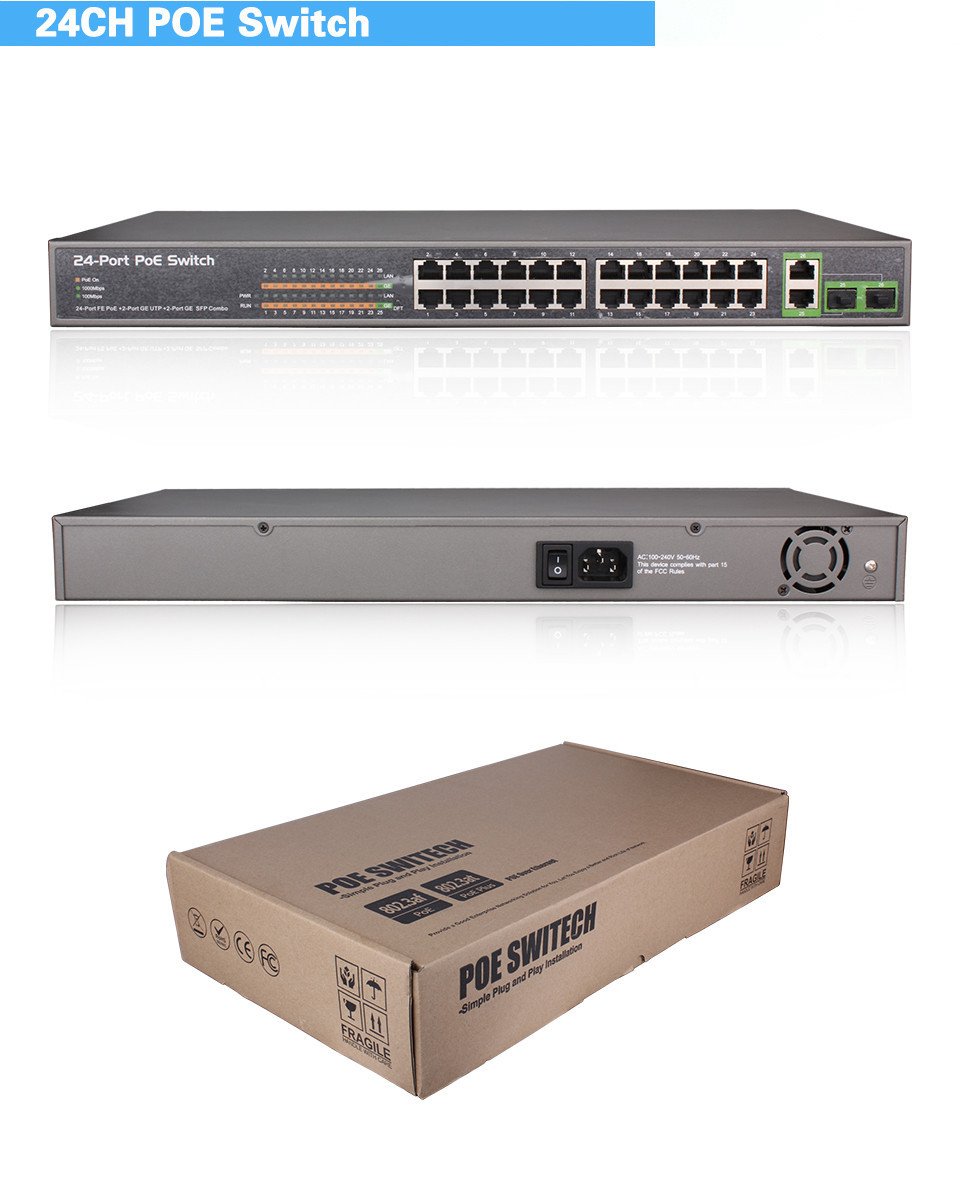

Model	AR-WSP2624GS
Port	24 10/100 base Ethernet port (PoE)
	2 10/100/1000 base-t Ethernet port
	2 1000 base-XSFP gigabit SFP port (Combo)
	24 ports support PoE function;Mode-A 1/2(+)/3/6(-)
	Auto MDIMDIX
Network Medium	10 base-t: 3, 4, 5 unshielded twisted pair (100 meters) or less
	100 base - TX: more than 5 classes and unshielded twisted pair (100 meters) or less
	1000 base - TX: more than 5 classes and unshielded twisted pair (100 meters or less
	IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab
	IEEE802.3x,IEEE802.1D,802.3at
	IEEE802.3af,IEEE802.1Q,IEEE802.1p,IEEE802.1x
	IEEE802.1W,SNMP,IGMP
IEEE802.3af	Support 24 port / 15.4 W
IEEE802.3at	Support 12 port / 30 w
overall power consumption	400 w ac input/machine maximum;
overall power consumption	PoE370W
LED pilot lamp	Power,Link/Act(Lights flashing),100Mbps(Green),1000Mbps(Orange),PoE Power Output (Orange)
*Size(LWH)*	440mm250mm44mm
Weight	5KG
working environment	Working temperature: 0°c~ 45°c
working environment	Working humidity: 10% ~ 95% without condensation
Input Voltage	AC100-240V;50/60HZ
overload protection	The largest 100 w
Supported Standards	IEEE802.3,802.3u,802.3x,802.3af,802.3at
Supported Standards	CSMA/CD,TCP/IP
basic function	In line with the IEEE802.3 af/ats standard PD by electric equipment
	Port supply priority function
	wire-speed forwarding
	MAC automatic learning and aging
MAC address list	4 k mac, support set port MAC address learning maximum number
Forwarding rate	12.8Gbit/s
PoE manage	Support PoE port Settings
	Support port power supply priority setting
	Support PoE over temperature protection
VLAN	Support VLAN based on port
VLAN	QVLAN support based on 802.1
Port trunk	Support LACP and polymerization by hand
Port trunk	Maximum six gather groups, each group support up to eight ports
QOS configuration	Support for the rate at which port to receive a message and send a message to limit the speed
QOS configuration	Support port queue scheduling (SP, WRR)
Second ring network protocol	Support the STP/RSTP and equipment against the ring
MAC address administration	MAC address aging, MAC address filtering and static MAC addresses
multicast	support IGMPSnooping
multicast	support IGMPV1/V2
security feature	The user classification management, and password protection
security feature	Support IEEE802.1 X authentication
Port features	Support IEEE802.3 x flow control (full duplex)
	Support for port inhibition rate percentage of the broadcast storm
	Support the broadcast storm suppression based on PPS
Management and maintenance	support SNMPv1/v2
	WEB webmaster
	Support cable detection
	Support port loopback detection
	Support system logs, hierarchical alarm, debugging information output
