20M 5050 RGB LED Strip Light 60Leds/M SMD Flexible Bar Light+ Wireless RF Remote Dimmer +24A Amplifier+20 A Power Supply LS09

SKU:

LS26528

Category: 5050 Single Color

$70.00

Enquiry

Footer Group

Description

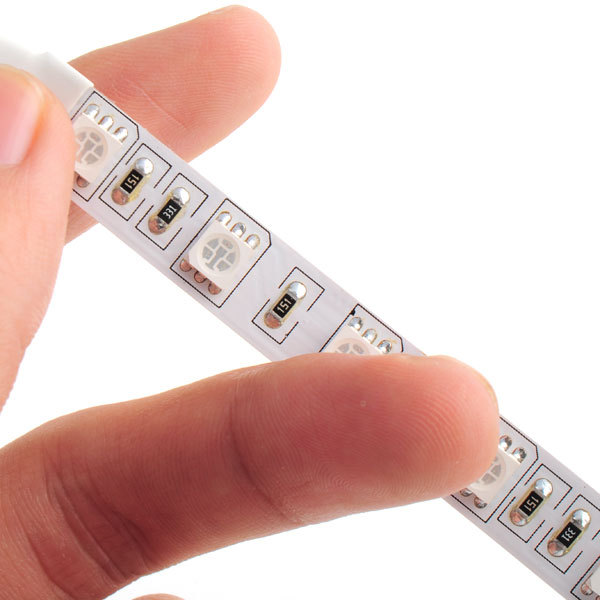

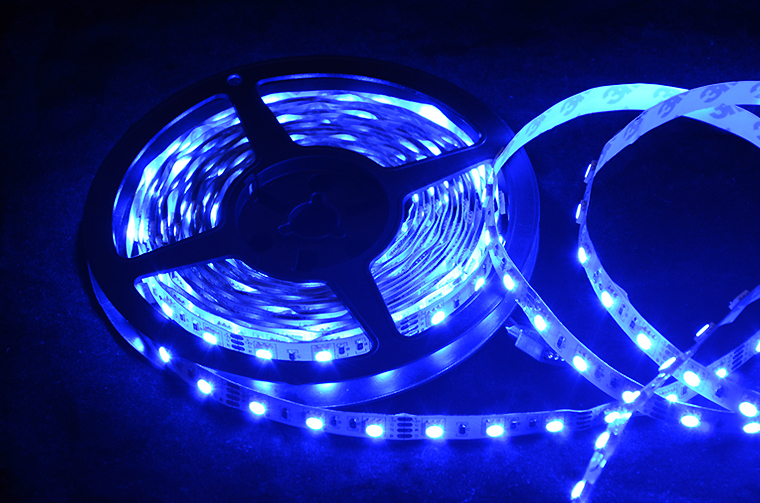

Led Strip Parameters:

Specification: Led Strip

Color: RGB 5050

View angle: 120 °

Working Voltage: 12VDC

LED Quantity: 60 leds / Meter

Working Current / Meter: about 1.0-1.2A

Output power: about 50-60W / 5 Meter

Working temperature: -20 to 50 °

Protection Rate: Non- waterproof

Luminous Flux: 390-450 Lumens / Meter

Size: L500cm (5M) x W1.0cm x T0.20cm

Features:

-Low Power consumption, Super-bright but running with low temperature

-All The light spread and completely smooth, luminous very even

-Every 3-LEDS cuttable without damaging the rest strips, according to your requirement

-Flexible Ribbon for curving around bends

-Self-Adhesive back with Adhesive tape for secure and easy application

-LED Type: High Quality 5050 SMD LED, high intensity and reliability, Long lifespan> 100,000 hours

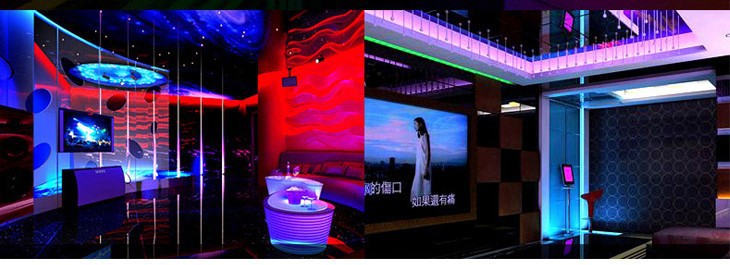

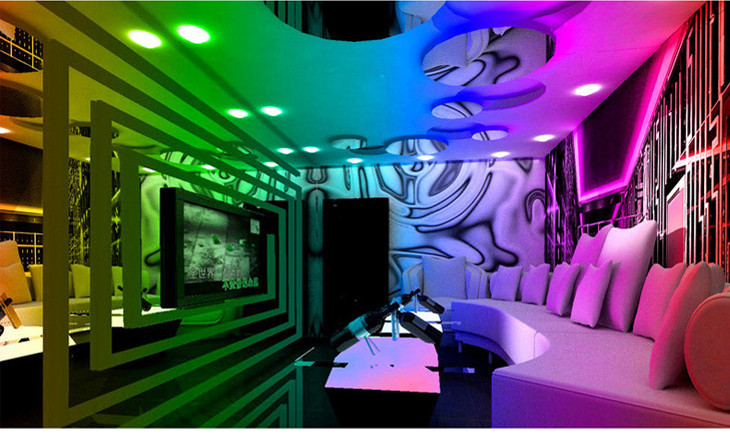

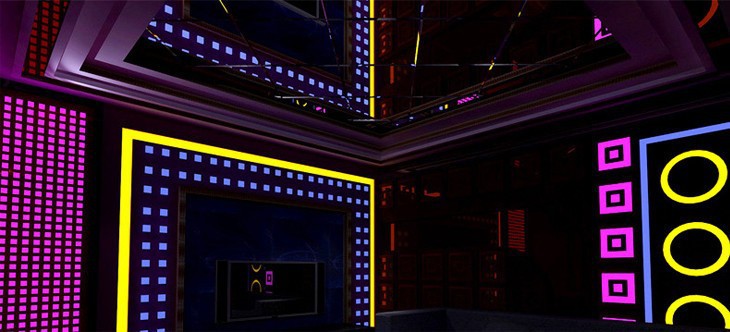

Application:

* Widely used for home decoration use, hotels, clubs, shopping malls

* Architectural decorative lighting, boutique atmosphere lighting

* Extensively applied in Backlighting, concealed lighting, channel letter lighting

* Emergency & security lighting, advertisement sign lighting

* Decorative lights for holiday, event, show exhibition

* Applicable for automobile and bicycle decoration, border or contour lighting

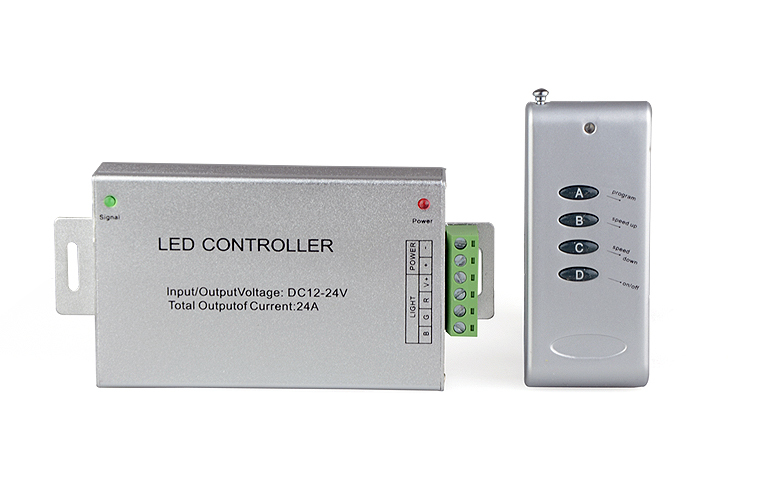

Operation Instructions of Controller:

Specifications:

Working temperature: -20-60 ° C Supply voltage: DC12-24V

Product size: L130 * W64 * H24mm Net weight: 185g

Output: Three CMOS drain-open output Connecting Mode: Common anode

Max load current: 8A each color

Control Method:

Adopt wireless control method, function of each button as below:

Button "A": is the style / color function key, could choose different color changes

Button "B": each press changing speed + 1

Button "B": each press changing speed-1

Button "D": the output switch.

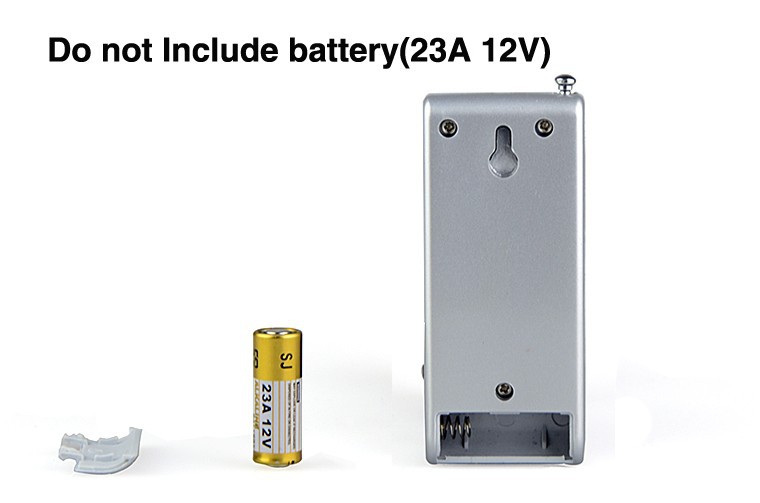

About 23A 12V batteries

- Because the battery is transport contraband, so our products are not included 23A12V batteries So you need to buy it in your country.

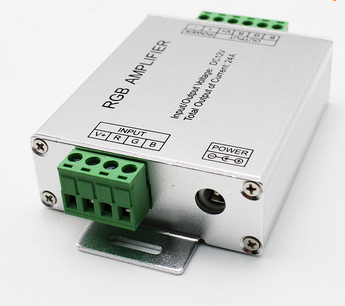

LED Amplifier specifications:

Working temperature: -20-60 ° C

Power Supply: DC12-24V

Connection mode: common anode

Dimensions: L105 * W65 * H25mm

Max Load Current: 8A for each color

Function:

It is used to receive RGB signal from LED controller and send the signal to another group of LED source.

Lighting Transformer Function:

Can be used for 5050-3528-5630-5730 LED Strip light etc.

Specifications:

Input: AC110-220V 50 / 60Hz

Out put: DC 12V 20A

100% full load burn-in test

Protections: overload / over voltage / short circuit

Cooling by free air convection

Weight: 664g

Size: 205x115 x55 (mm)

Tips:

110 / 220V is selected by switch (Before power on please check input voltage avoiding damage)

If you want to know more about this 20m led strip light, please contact us, we will send a video to you.

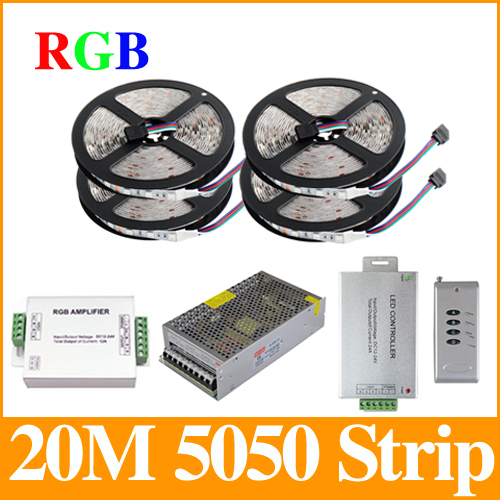

Package Include:

4 x 5M No-Waterproof Led strip 5050smd 60leds / Meter

1 x24A RGB LED Remote Controller (Not included 23A 12V Batteries)

1 x 12V / 20A 240W Switch Power Supply

1 x 12V / 24V 24A Aluminum Case Amplifier

2 x DC cable

2 x 4 pin connector
