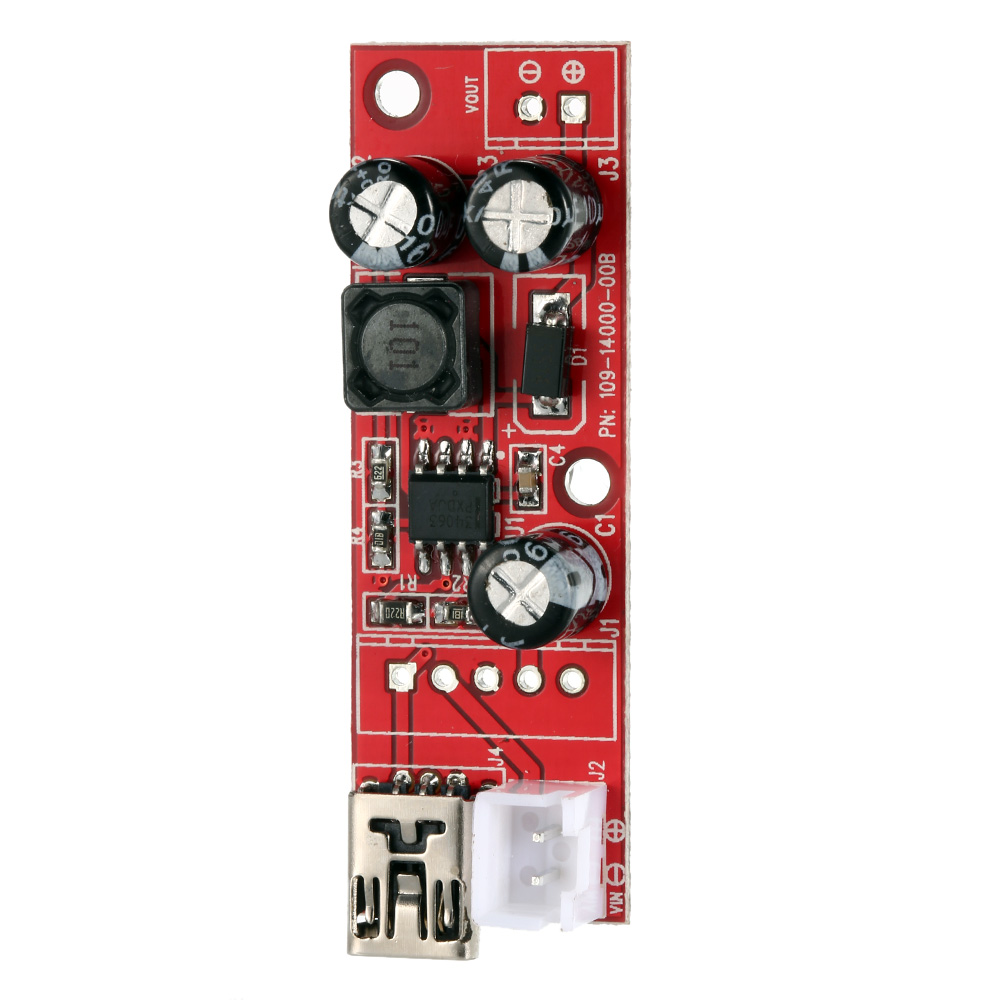

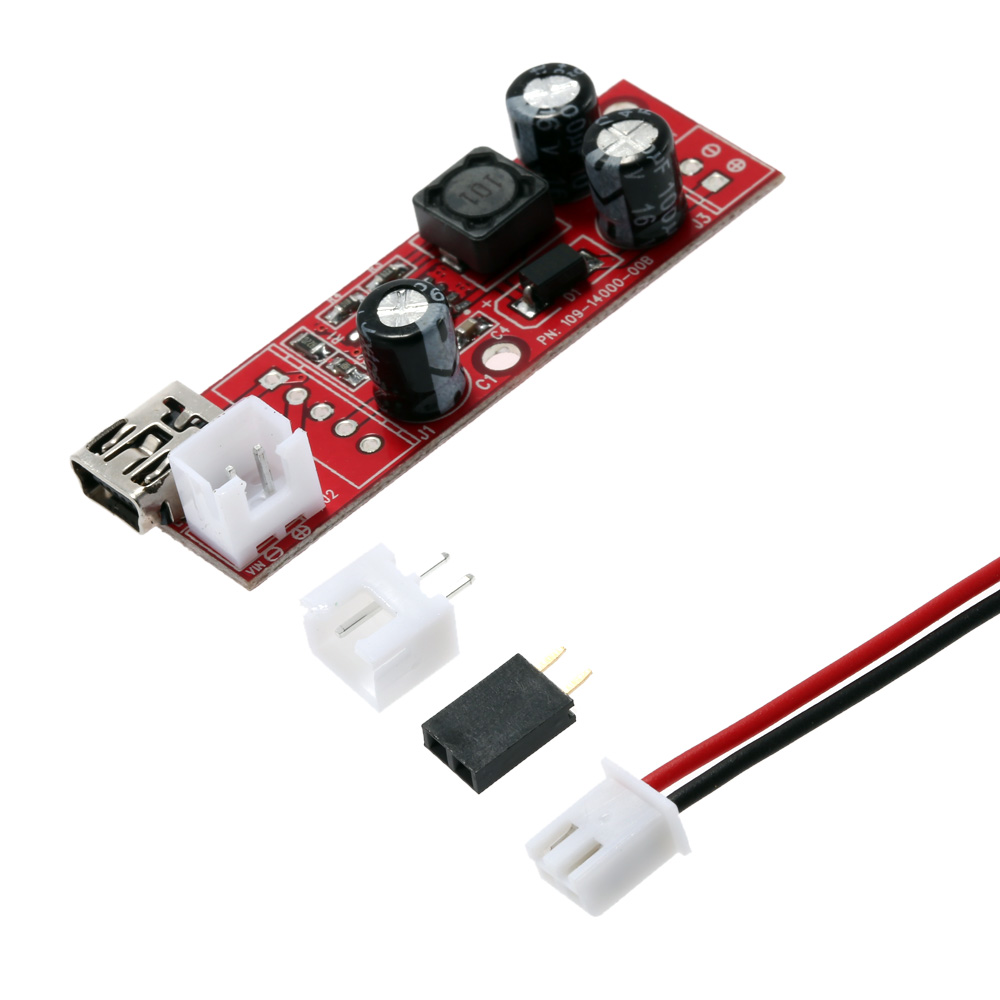

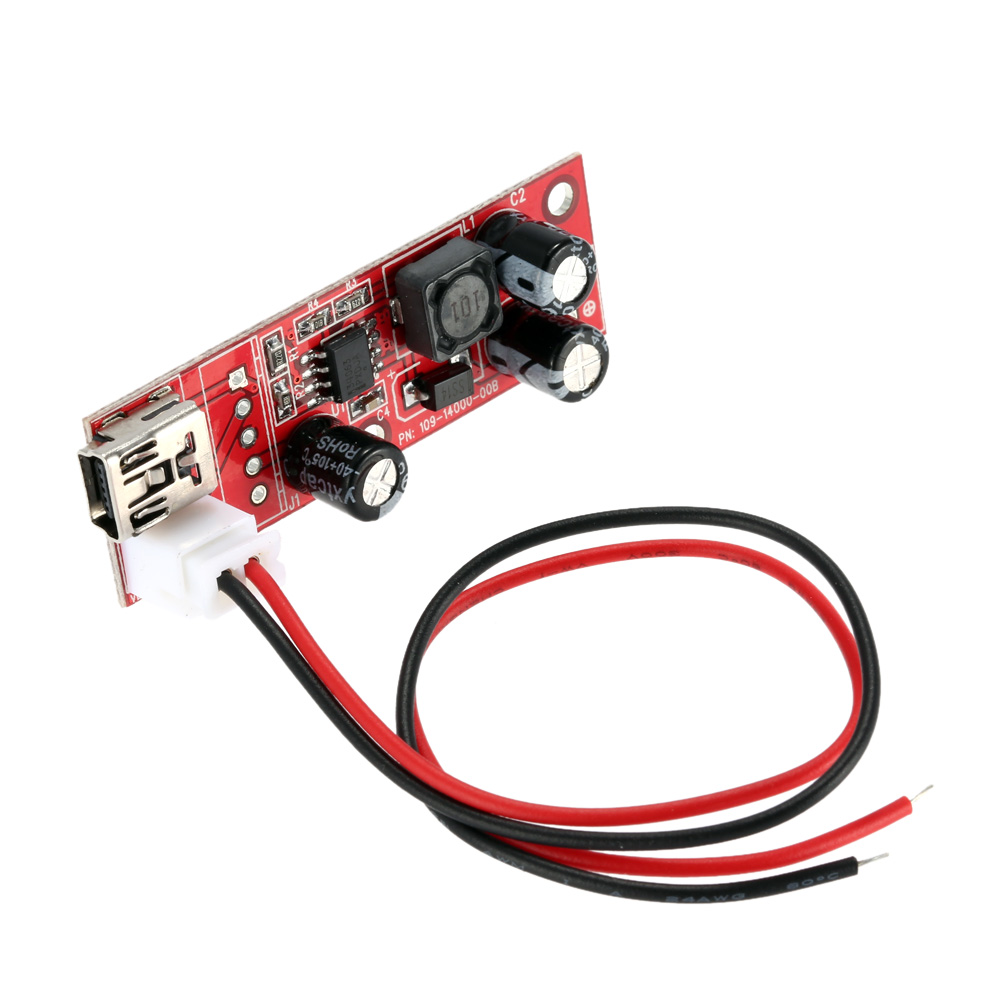

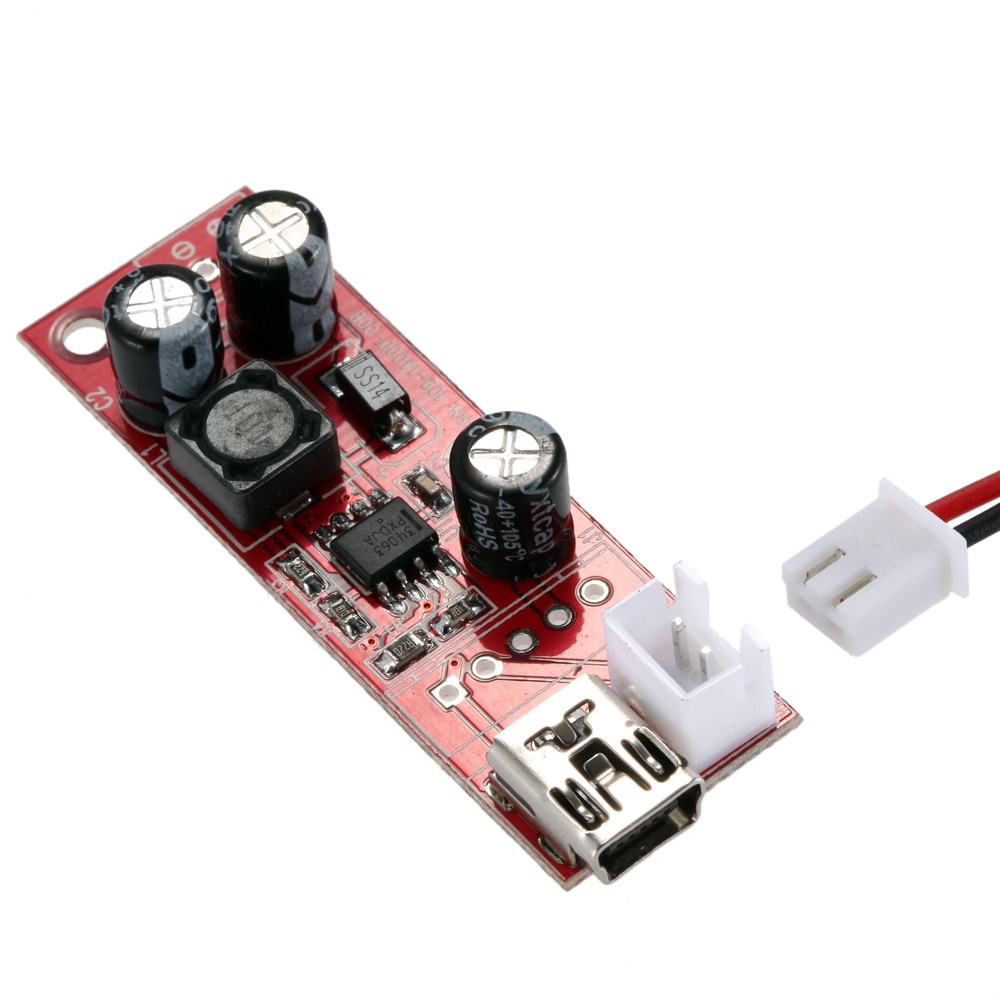

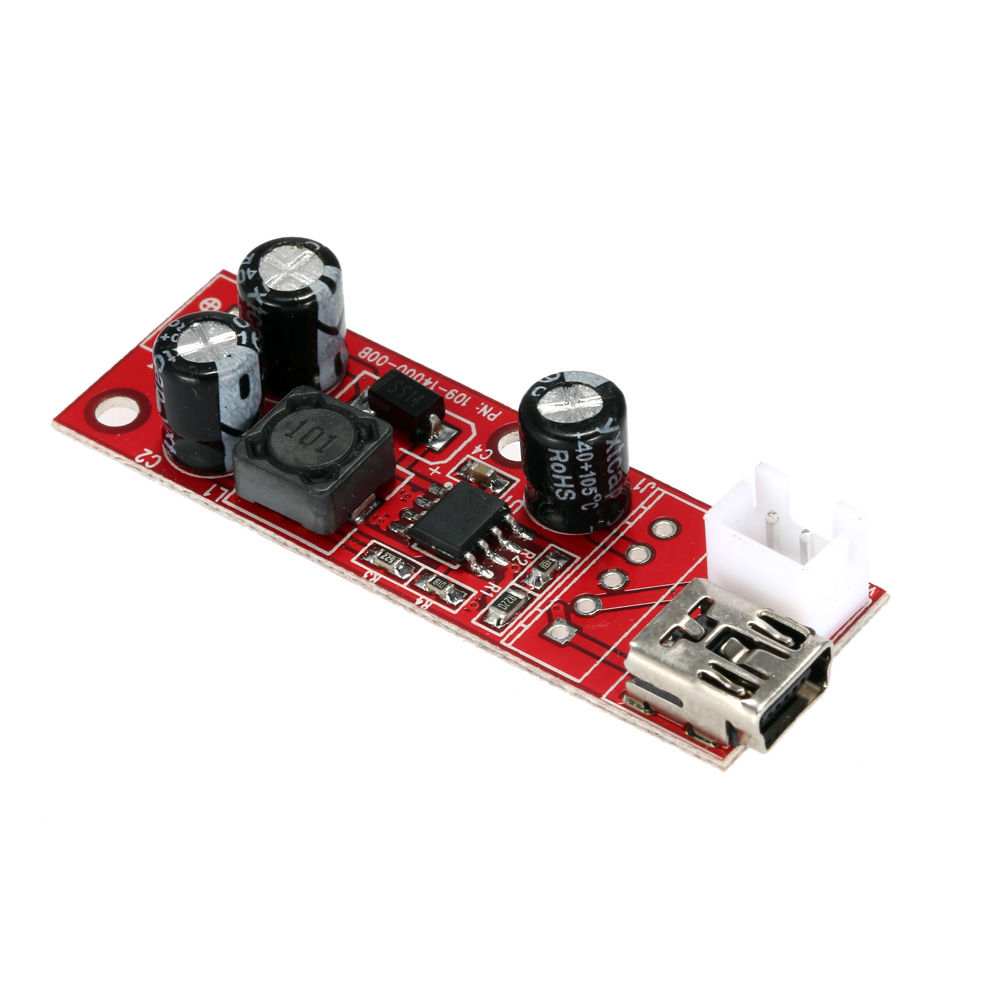

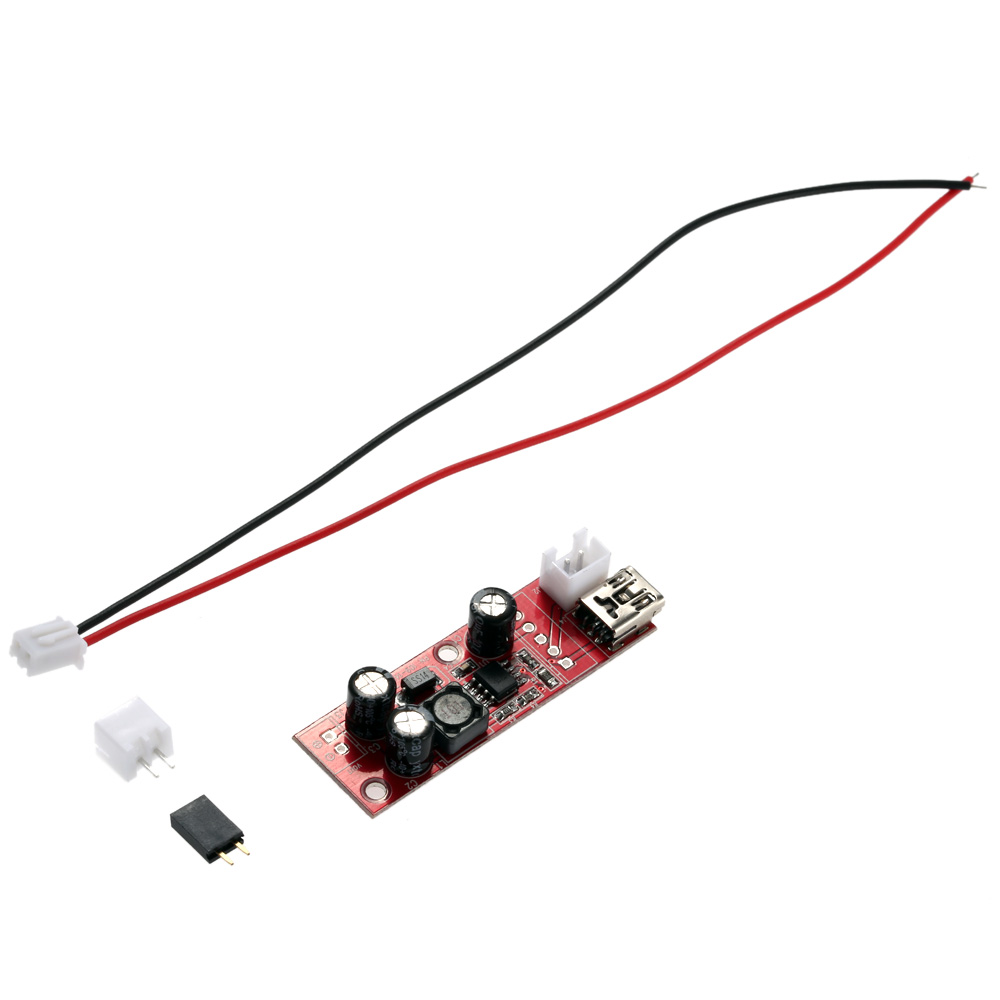

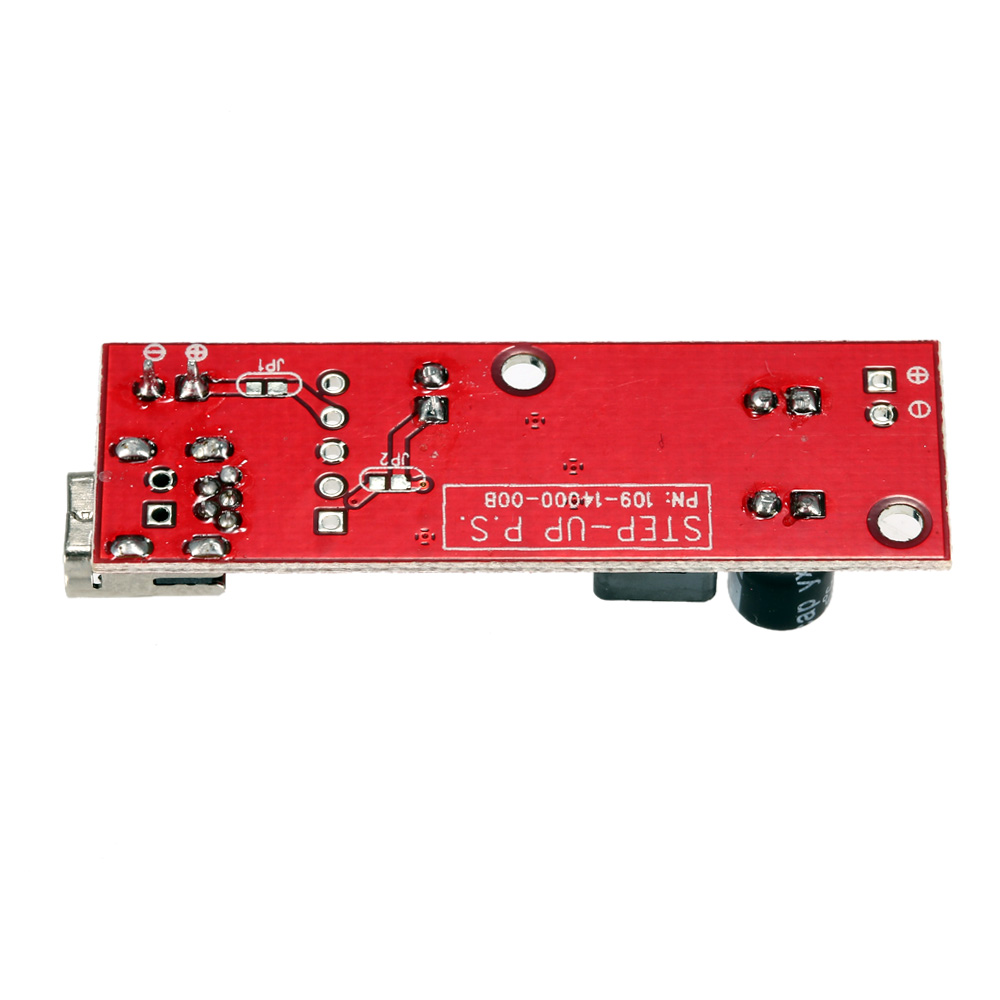

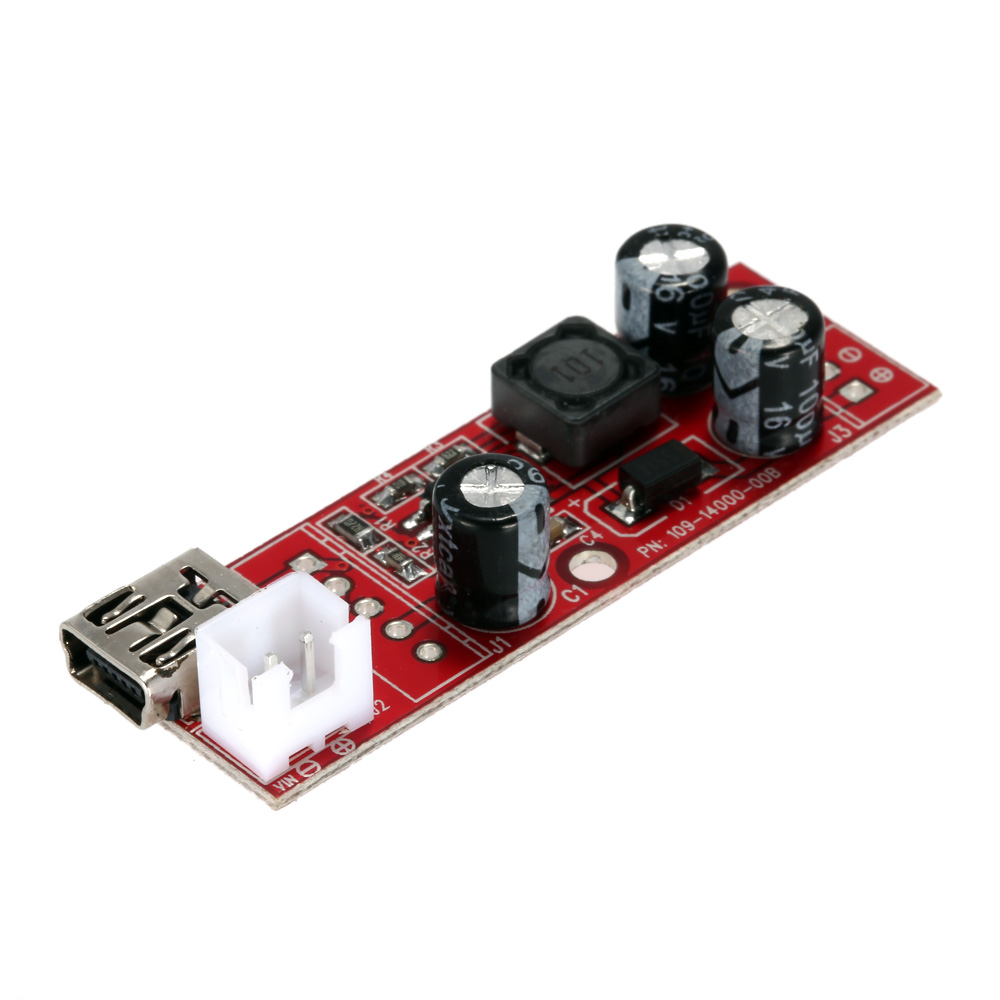

2016 Upgrade DC/DC Converter Boost Module Step-up Module Board for DSO138 Power Mini Boost Converter for DSO138 Oscilloscope Kit

This boost converter is an ideal match for DSO138 oscilloscope kit(not included). It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.


Features:
High performance DC/DC converter boost module.
Can make 3.5V-8V voltage boost up to 9V.
Applicable situation: need 3.7V lithium battery or USB for power supply.
An ideal match for DSO138 oscilloscope kit(not included).
Notice:
The DSO138 oscilloscope and battery is not included.
Specifications:
Input Voltage: 3.5V - 8V
Output Voltage: 9V
Output Current: 150mA (when the output voltage is 9V)
Ripple Voltage: 100mVpk (output current at 150mA)
PCB Board Size: 50 * 15mm / 1.97 * 0.6in
Package Weight: 6g / 0.23oz
Package List:
1 * DC/DC Converter Boost Moudle
