2.0MP FHD Varifocal 2.8-12mm 1080P IP Camera Outdoor CCTV System 2TB HDD 8CH NVR Home Surveillance Security Camera System

<<prev

next>>

2.0MP FHD Varifocal 2.8-12mm 1080P IP Camera Outdoor CCTV System 2TB HDD 8CH NVR Home Surveillance Security Camera System

SKU:

CK10221

Category: IP Camera

$1,239.00

Enquiry

Footer Group

Description

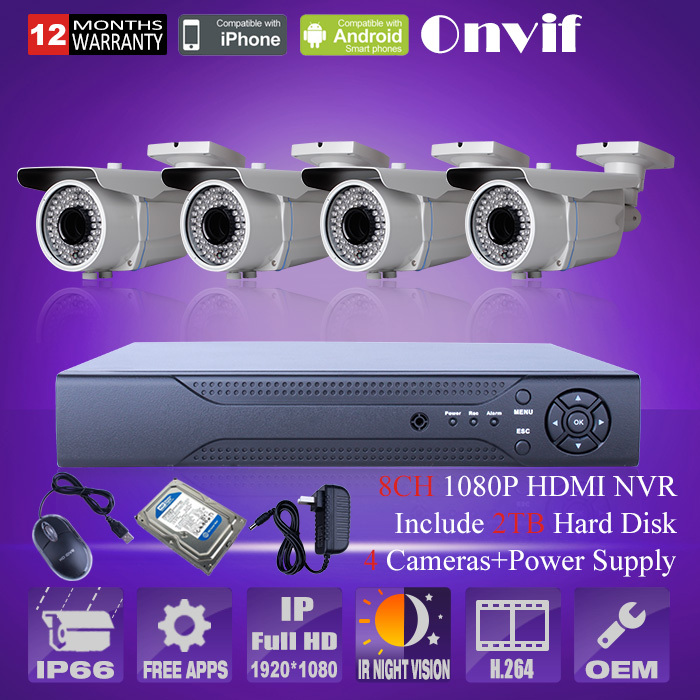

Package includes:

1 x 8 Channel Network Video Recorder
1 x USB mouse
1 x 2TB Hard disk(It was inside the NVR when delivery)
4 x 2.0MP 1080P Network Wired IP Camera with Bracket
4 x Camera Power adapter
4 x CD manual
4 x Screws package

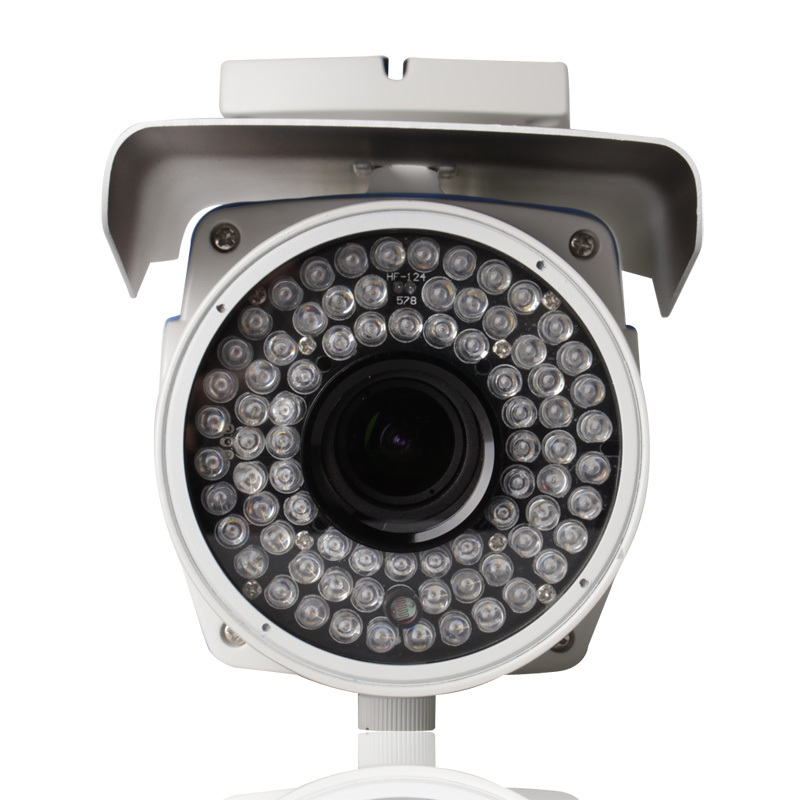

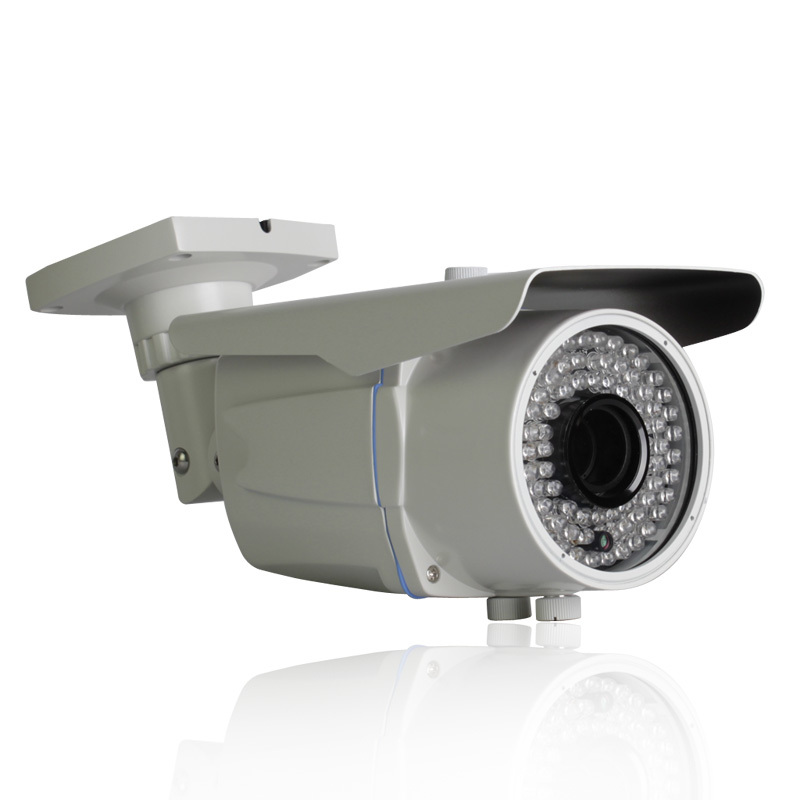

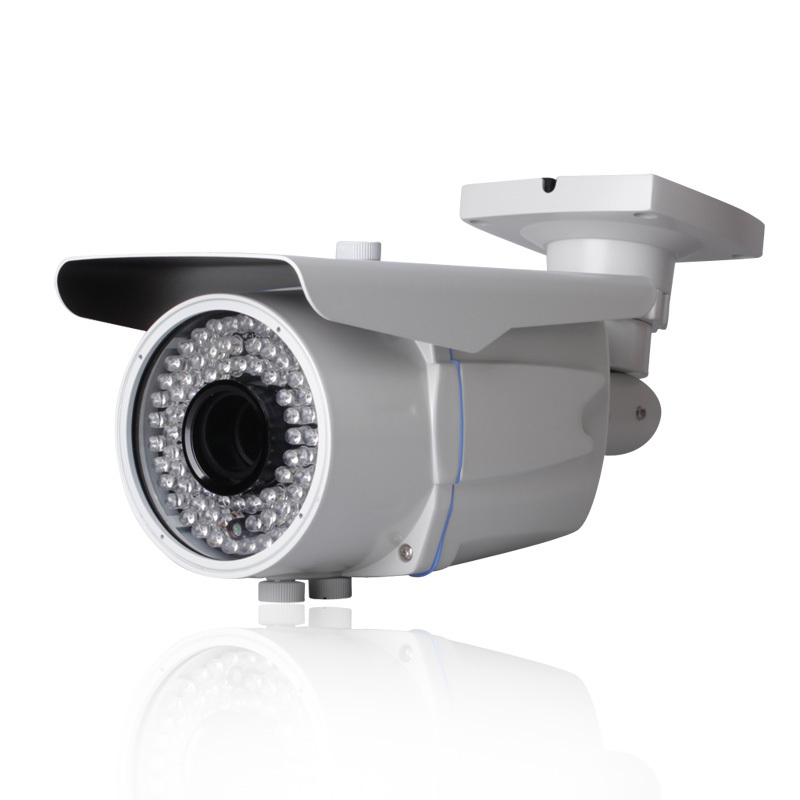

Anran Security Network IP Camera
Main Features	H.264 Main Profile @level 3
	Main stream:1920x1080;Sub stream:704x576
	Dual H.264 Stream, Resolution, Frame rate, Bit rate adjustable
	Build in Motion Detection, Privacy Mask, image snapshot,Title OSD
	Image Controls: Brightness, Saturation, Contrast, Hue adjustable
	Support RTSP Compatible with AVI Media Player
	Onvif 2.0 Compliant;Support Dahua/ Hikvision/ Blue Iris/Axxon/NUUO/ Synology/ iSpy/ Qnap/ Digifort Software
	Support P2P function , Easy remote monitoring
	Smart Phone Support: iPhone, iPad, BlackBerry, Windows Mobile, Android
	Support WEB Remote Config,Alarm input actived to record,Snapshot,Mobile software,MYEYE,SDK
	Suitable for Retail stores,Home,Hotels,School,Parking lot,Colleges and Offices.
Model	Brand Name	Anran Security
	Model Number	AR-VGW720-IP2.0
	Style	Bullet Camera
Camera	Processor	Hi3516C
	Sensor Type	1/2.5" SONY CMOS Sensor Progressive Scan
	Effective pixels,Resolution	2.0 Megapixel 1920x1080 (1080P) 25Fps
	Lens	Manual varifocal 2.8mm-12mm
	Focal length	2.8mm	3.6mm	4mm	6mm	8mm	12mm	16mm
	Viewing Angle	89.7°	75.7°	69.9°	50°	38.5°	26.2°	19.8°
	Suitable for distance	0-2M	0-3M	3-5M	5-10M	10-20M	20-35M	35-50M
	Infrared Light	78 IR Leds.IR Range 20m (60 feet)
	Day and Night Switch Mode	Auto, dual IR-Cut filter
	Min.Illumination	Colour 0.01 Lux,F1.2,B/W 0.001 Lux,F1.2 (The night vision effect is very good.)
	Max S/N Ratio	39dB
Video Encoding	Video Compression	H.264 Main Profile; AVI Baseline
	Main Stream	FHD 1920*1080P 1-25fps
	Video Bitrate	0.1Mbps~6Mbps,Supports CBR/VBR
Functions	Title OSD	Supports Channel name, Date, And video stream information overlay
	Privacy Mask	4 Configurable Regions
	Special features	Auto Exposure Control (AEC); Auto White Balance (AWB);
		Auto Band Filter (ABF); Auto Black Level Calibration (ABLC); Support digital WDR
	Intelligent Alarm	Video Motion,Video Blind,Video Loss
	Alarm Way	Email Alarm or FTP
	Image Orientation	Image Flip and Mirror
	Network protocol	TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP
	ONVIF protocols	Support 2.0 Version
	Recording	Recording set up to record by motion trigger, alarm trigger, manual, or schedule
	Remote View	IE 6.0 or later, firefox
Interface	Network Interface	10/100M BASE-TX,RJ-45 connector
General Specifications	Operating Temperature	-20°C~50°C (-4°F ~ 122°F)
	Operating Humidity	0% -85% RH
	Power Supply	DC12V 2.0A
	Power Consumption	9W (MAX)
	Waterproof / Weatherproof	Yes
	Appearance material	Metal
	Weight	1.6kg

**NVR6008T-PL:81080P/8720P/16*D1, 30fps 1080P decoding**

Support

Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,Japanese,Portuguese,Russian,Thai,Turkish,Brazilian,Bulgarian,

Farsi,French,German,Hebrew,Hungarian,Polish,Romanian,Spanish,Swedish,Vietnamese

Support smart mobile and network (IE&Firefox)

real time remotely monitoring,such as iPhone,Blackberry,Android,Nokia and windows mobile.

Features

1.H.264 High profile compression algorithm ideal for standalone DVR

2.Realtime live display up to 8 cameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5.Multiple control methods:IR remote controller,USB mouse and front panel press button

6.Smart video detection:motion detection,video blind,video loss

7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display

8.Pan Tilt Zoom and Speed Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,auxiliary function supported.

9.Easy backup methods: USB devices,remote network and client software backup

10.Alarm triggering screen tips,PTZ preset,e-mail &FTP upload

11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

12.Powerful network software:built-in web server,multi-DVR Networking access for remote live viewing,recording,playback,setting,

system statu,event log,e-mail & ftp function.

13.Support DHCP/PPPOE/FTP/DNS/DDNS/NTP/Email alarm/IP right management/IP search/network alarm center functions,

support web client, standalone client and SDK.

14.With the sound system for the protection circuit,unique triple watchdog function,very low power consumption,to ensure

the equipment never be hang up.With the unique black box technology, monitor the whole run process of the equipment,

15.Enable strong multi-way synchronization with max 2CH 1080P playback,realize the zero-delay between playback channels.

16.Support Onvif 2.0

17. Support XM cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with XM cloud technology.

*NVR6008T-PL:81080P/8720P/16D1, 30fps 1080P decoding**

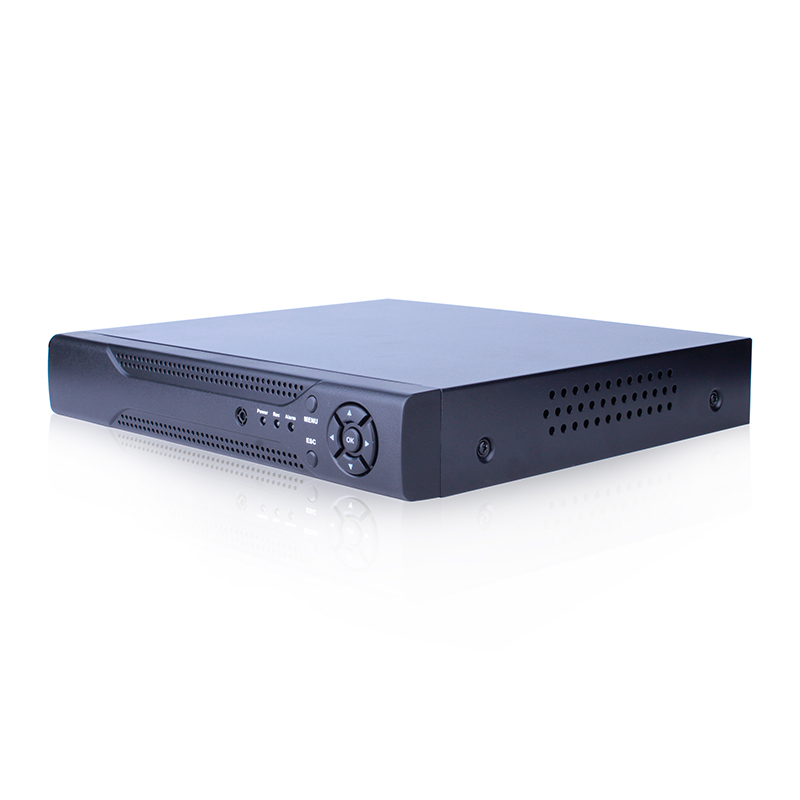

System	Model	NVR6008T-PL
	Main Processor	1 X HI3520A
	Operating System	Embedded LINUX
	System Resources	Pentaplex Function:Live,Recording,Playback,Backup & Remote access
	Preview	1/4/9
	Control Device	Front Pael,USB Mouse,IR Remote Control
Video	Video Standards	PAL 625 line,50F/s;NTSC 525 line,60F/s
	Video Compression	H.264 High Profile
	Video Recording	1080P:PAL 1Fps/s-25Fps/s; NTSC 1Fps/s-30Fps/s;
	Motion Detection	Zones:396(22*18)Detection Zones,Sensitivity:1-6(6 is Highest)
	Motion Detection	Trigger recording,PTZ movement,Tour,Alarm,E-mail& FTP
	TV Output Adjustment	Adjust TV Output Color & Display Zone
Audio	Audio Compression	G711A
Audio	Bidirectional Talk	Not Support
Record Playback	Recording Mode	Manual>Alarm>Video Detection>Timing
	Playback	1080P:1 or 2 CH ;720P:4 CH
		Pause,Stop,Rewind,Fast Play,Slow Play,Next File,Previous File,
		Repeat,Shuffle,Backup Selection
	Search Mode	Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Storage Backup	Space Occupation	Video:1080P 40-50G/day/ch,720P 20-25G/day/ch,
	Space Occupation	D1 10~15G/day/ch ; Audio: 691.2M/day/ch
	HDD Management	Hard Disk Hibernation Technology, HDD Faulty Alarm & Raid (Redundancy)
	Backup Mode	NetworkBackup / Usb Mobile Hard Disk

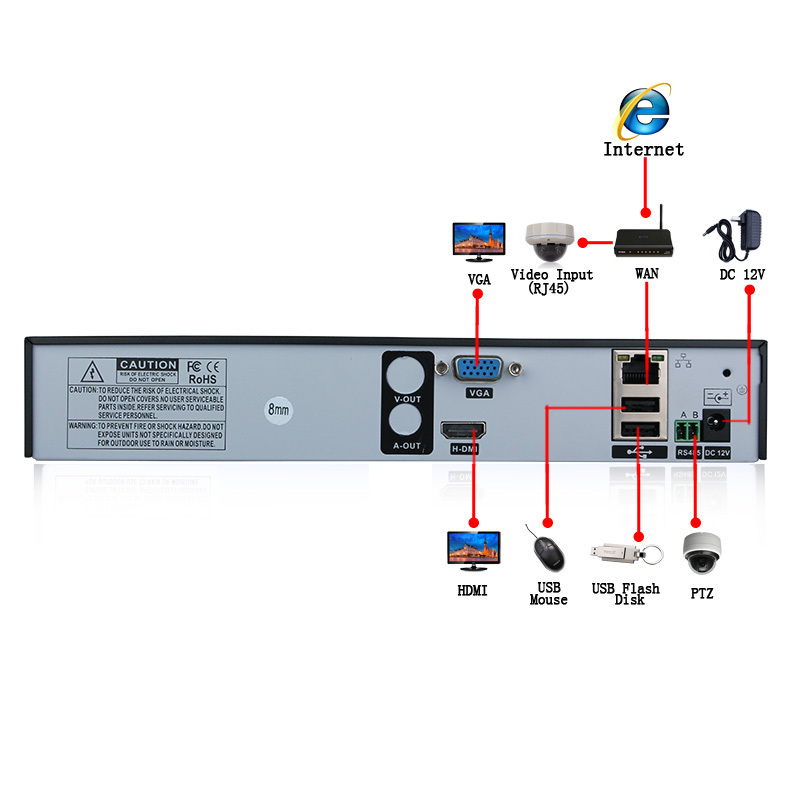

Interface	Video Input	N/A
	Video Output	1CH VGA Output, 1Ch HDMI Output
	Audio Input	N/A
	Audio Output	N/A
	Alarm Input	N/A
	Relay Output	N/A
	Net Interface	RJ-45 10M/100M
	PTZ Control	1 RS485
	3G/WIFI	Support(usb extension)
	USB Interface	2* USB2.0 Port for Mouse and Backup
	Hard Disk	1 SATA port (Max 1 x 3T)
Environmental	Power Supply	12V/3A
	Power Consumption	<10W
	Working Temperature	0-55
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	255mm225mm45mm
	Weight	1.8KG
	Mounting	Desktop
