10-30V 100A 3000W Programable DC Motor Adjustable Speed Controller Regulator PWM Control Reversible electric motor vibrator

This DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse Width Modulation(PWM). It's great for applications like car wiper motor, exhaust fan, etc. providing nice adjustment of motor speed.
Features:
Industrial design, 100A high current speed controller.
Operating voltage: DC 10V-DC 30V, control power: 0.01-3000W (maximum rated current of 60A).
A PWM speed controller, enables you to control the speed of DC motors smoothly.
It can control the motor speed from between 0% -100%.
Stable performance, high efficiency and low noise.
Suitable for applications car wiper motor, exhaust fan, etc. providing nice adjustment of motor speed.
Applications:
1. various types of comon-purpose DC brush motor speed;
2. various types of vehicles motor to adjust speed (automotive cooling fan speed, auto fan speed, auto wiper motor speed, automotive air-conditioning fan speed);
3. the production line belt speed, pipeline exhaust fan speed, treadmill speed, multiple computers in parallel fan speed control, electronic fan speed control;
4. various types of DC lamp dimmer, various types of DC heater thermostat, etc.
Specifications:
Working Voltage: DC 10V-30V
Current: 100A
Control Power: 0.01-3000W(maximum rated current of 60A)
Operating voltage 12V, 12V * 100A = 1200W
Operating voltage 24V, 24V * 100A = 2400W
Operating voltage 30V, 30V * 100A = 3000W
Static Current: 0.04A (operating voltage DC10V to DC30V quiescent current will not exceed 40ma)
PWM Duty Cycle: 0%-100%
PWM Frequency: 15KHz
Operating Temperature: -20 to 40°C
Dimension: 14.3 * 77 * 3.7cm / 5.63 * 3.03 * 1.45in
Weight: 454g / 16.02oz
Package Size: 18 * 9 * 4.5cm / 7.08 * 3.54 * 1.77in
Package Weight: 465g / 16.41oz
Package List:

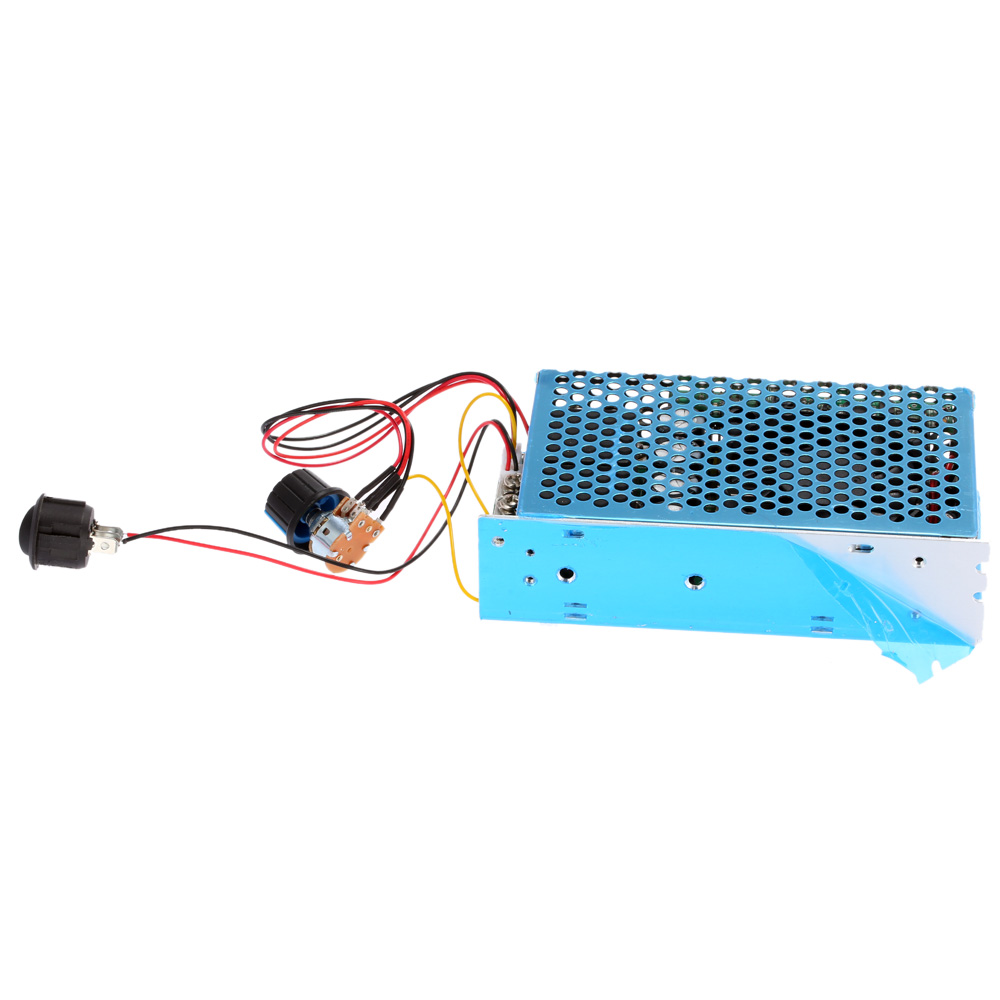

1 * DC Motor Speed Controller
